Wiring Diagram - Accessory Power Supply -

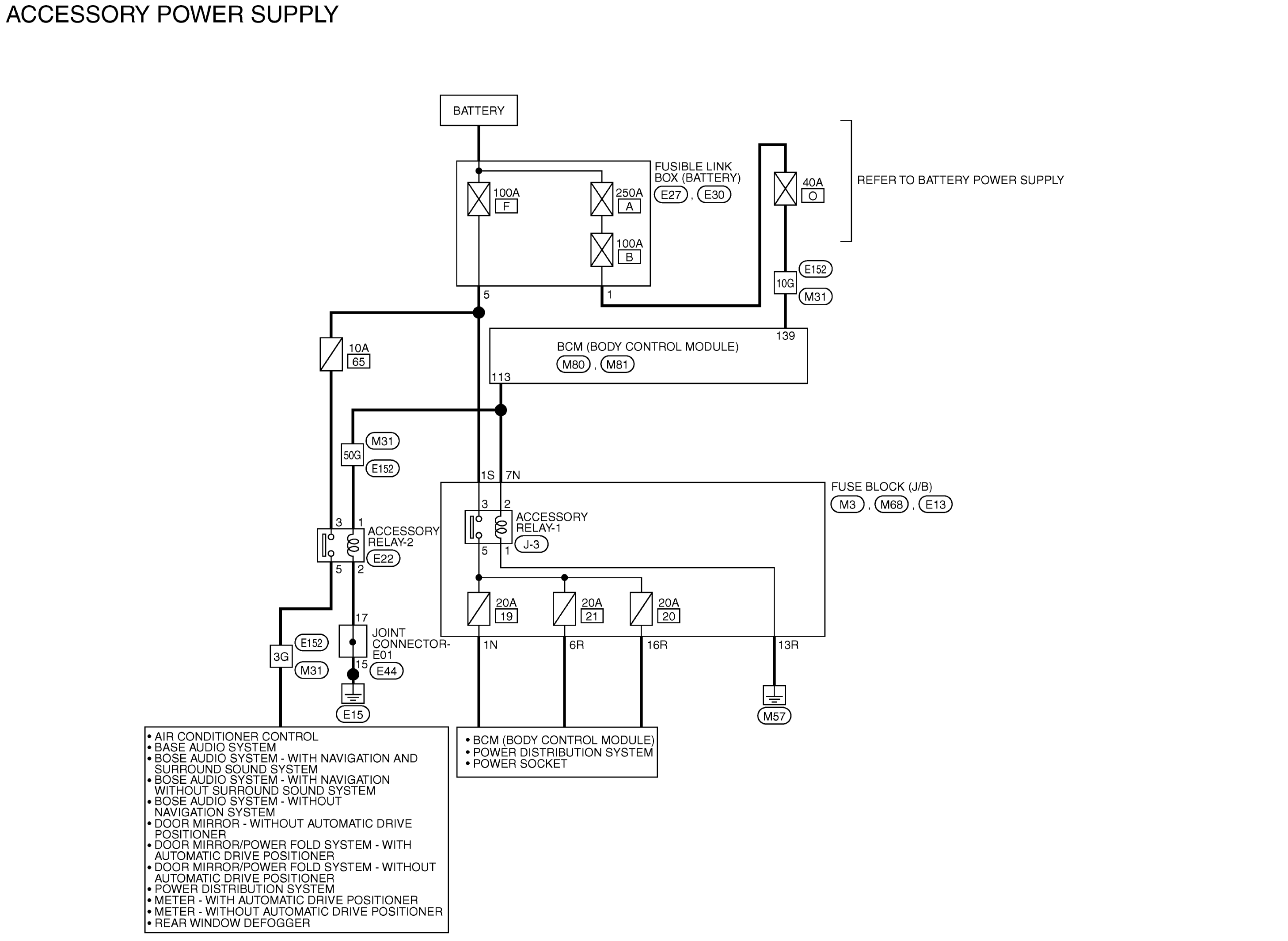

Fig 1: Accessory Power Supply Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Accessory Power Supply Connector End Views (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Accessory Power Supply Connector End Views (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Accessory Power Supply Connector End Views (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
