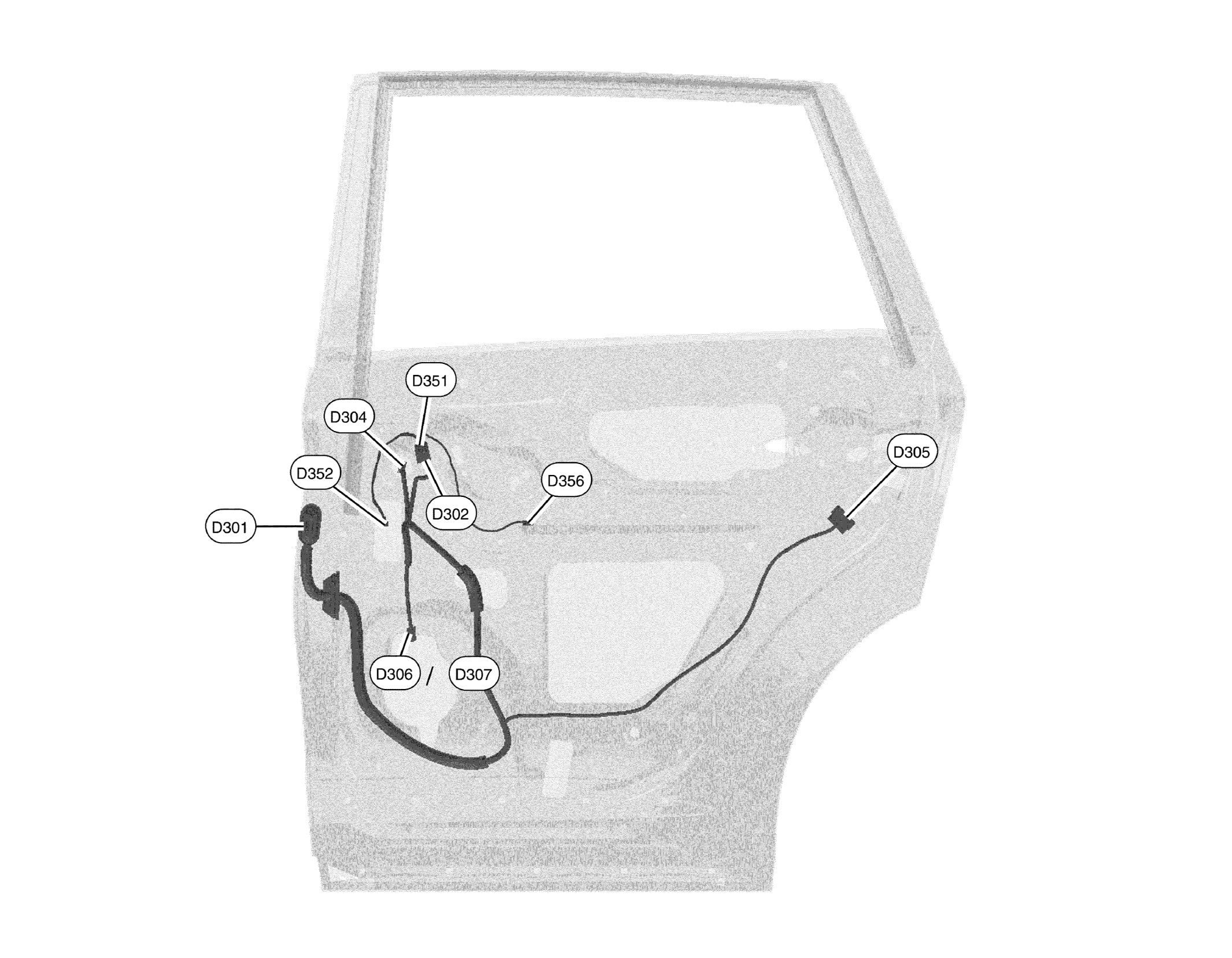

Rear Door RH Harness
| D301 | W/12 | : To B139 | D307 | BR/2 | : Rear door speaker RH (With BOSE audio system) |
|
| D302 | W/12 | : To D351 | Rear door RH sub-harness | |||
| D304 | W/6 | : Rear power window motor RH | D351 | W/12 | : To D302 | |
| D305 | GR/6 | : Rear door lock actuator RH | D352 | BR/2 | : Rear door tweeter RH | |
| D306 | W/2 | : Rear door speaker RH (With base audio system) |
D356 | W/16 | : Rear power window switch RH | |
