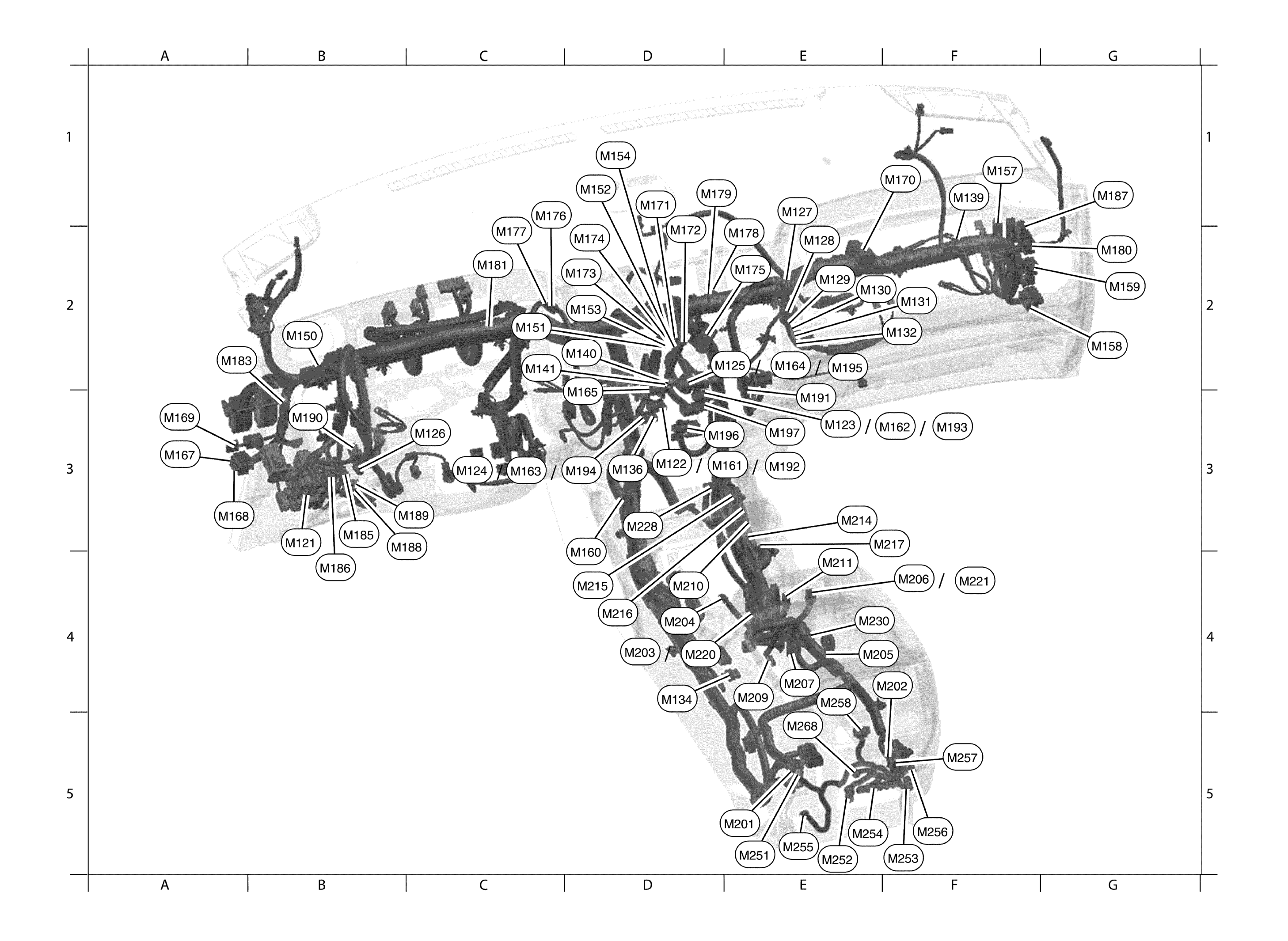

Main Harness 2
| B3 | M121 | W/4 | : Headlamp aiming switch | C2 | M181 | W/4 | : Joint connector-M36 | |
| D3 | M122 | W/20 | : AV control unit (With BOSE audio system - With NAVI without surround sound system) |
A2 | M183 | W/4 | : Joint connector-M44 | |
| E3 | M123 | W/28 | : AV control unit (With BOSE audio system - with NAVI without surround sound system) |
B3 | M185 | W/10 | : Automatic back door main switch | |
| C3 | M124 | W/32 | : AV control unit (With BOSE audio system - With NAVI without surround sound system) |
B4 | M186 | B/8 | : Automatic back door switch | |
| E2 | M125 | W/40 | : AV control unit (With BOSE audio system - With NAVI without surround sound system) |
G1 | M187 | W/2 | : Circuit breaker-1 | |
| C3 | M126 | B/8 | : Twin switch (Warning systems switch) | C3 | M188 | W/24 | : To M189 | |
| E1 | M127 | W/3 | : To M7 | C3 | M189 | W/24 | : To M188 | |
| E2 | M128 | W/3 | : Intake door motor | B3 | M190 | W/12 | : Accessory prewire LH | |
| E2 | M129 | W/3 | : Mode door motor (Front) | E3 | M191 | W/12 | : Accessory prewire RH | |
| E2 | M130 | W/3 | : Air mix door motor driver side | E3 | M192 | W/32 | : AV control unit (With BOSE audio system without NAVI) |
|
| F2 | M131 | W/3 | : Air mix door motor passenger side | F3 | M193 | W/20 | : AV control unit (With BOSE audio system without NAVI) |
|
| F2 | M132 | W/3 | : Air mix door motor (Rear) | D3 | M194 | W/24 | : AV control unit (With BOSE audio system without NAVI) |
|
| D4 | M134 | GR/17 | : TCU | E2 | M195 | W/16 | : AV control unit (With BOSE audio system without NAVI) |
|
| D3 | M136 | GR/17 | : AV control unit (With telematics system) | E3 | M196 | W/12 | : AV control unit (With BOSE audio system without NAVI) |
|
| F1 | M139 | - | : Body ground | E3 | M197 | W/12 | : AV control unit (With BOSE audio system without NAVI) |
|
| D2 | M140 | L/4 | : AV control unit (With NAVI) | Console sub-harness | ||||
| D2 | M141 | BR/4 | : Display unit | E5 | M201 | W/16 | : To M251 | |
| B2 | M150 | W/33 | : Joint connector-M27 | F4 | M202 | W/40 | : To M257 | |
| C2 | M151 | W/4 | : Joint connector-M14 | D4 | M203 | W/10 | : Climate controlled seat switch (Driver seat) |
|
| D1 | M152 | W/4 | : Joint connector-M19 | D4 | M204 | W/4 | : CVT shift selector | |
| D2 | M153 | W/4 | : Joint connector-M16 | E4 | M205 | W/8 | : Front auxiliary input jacks | |
| D1 | M154 | W/4 | : Joint connector-M20 | F4 | M206 | BR/8 | : Climate controlled seat switch (Passenger seat) |
|
| F1 | M157 | W/16 | : To B161 | E4 | M207 | GR/3 | : Front console power socket | |
| G2 | M158 | W/10 | : To D102 | E4 | M209 | G/5 | : USB interface | |
| G2 | M159 | Y/4 | : To D103 | D4 | M210 | GR/7 | : To M115 | |
| D4 | M160 | B/6 | : Yaw rate/side/decel G sensor | E4 | M211 | B/10 | : Drive mode select switch | |
| E3 | M161 | W/20 | : AV control unit (With BOSE audio system - with NAVI and surround sound system) |
E3 | M214 | W/16 | : To M56 | |
| F3 | M162 | W/28 | : AV control unit (With BOSE audio system - with NAVI and surround sound system) |
D4 | M215 | W/24 | : To M63 | |
| C3 | M163 | W/32 | : AV control unit (With BOSE audio system - with NAVI and surround sound system) |
D4 | M216 | W/16 | : To M64 | |
| E2 | M164 | W/40 | : AV control unit (With BOSE audio system - with NAVI and surround sound system) |
F3 | M217 | W/32 | : To M65 | |
| D3 | M165 | W/16 | : AV control unit (With BOSE audio system - with surround sound system) |
D4 | M220 | W/10 | : Front heated seat switch LH | |
| A3 | M167 | W/16 | : To D2 | F4 | M221 | BR/8 | : Front heated seat switch RH | |
| B3 | M168 | W/40 | : To D3 | D3 | M228 | GR/3 | : Front power socket (For cigarette lighter) | |
| A3 | M169 | Y/4 | : To D13 | E4 | M230 | GR/6 | : Joint connector-M01 | |
| F1 | M170 | W/33 | : Joint connector-M09 | Console switch sub-harness | ||||
| D1 | M171 | W/4 | : Joint connector-M10 | E5 | M251 | W/16 | : To M201 | |
| D2 | M172 | W/4 | : Joint connector-M11 | E5 | M252 | W/6 | : 2nd row heated seat switch LH | |
| D2 | M173 | W/4 | : Joint connector-M12 | F5 | M253 | BR/6 | : 2nd row heated seat switch RH | |
| D2 | M174 | W/4 | : Joint connector-M13 | E5 | M254 | W/40 | : Rear auxiliary input jacks | |
| E2 | M175 | W/33 | : Joint connector-M22 | E5 | M255 | GR/2 | : Inside key antenna (Console) | |
| C1 | M176 | W/4 | : Joint connector-M56 | F5 | M256 | W/4 | : A/C 120V outlet | |
| C2 | M177 | W/4 | : Joint connector-M57 | F5 | M257 | W/40 | : To M202 | |
| E2 | M178 | W/4 | : Joint connector-M58 | E4 | M258 | W/12 | : Rear air control | |
| D1 | M179 | W/4 | : Joint connector-M59 | E5 | M268 | GR/3 | : Rear console power socket | |
| G2 | M180 | BR/6 | : Heated seat relay | |||||
