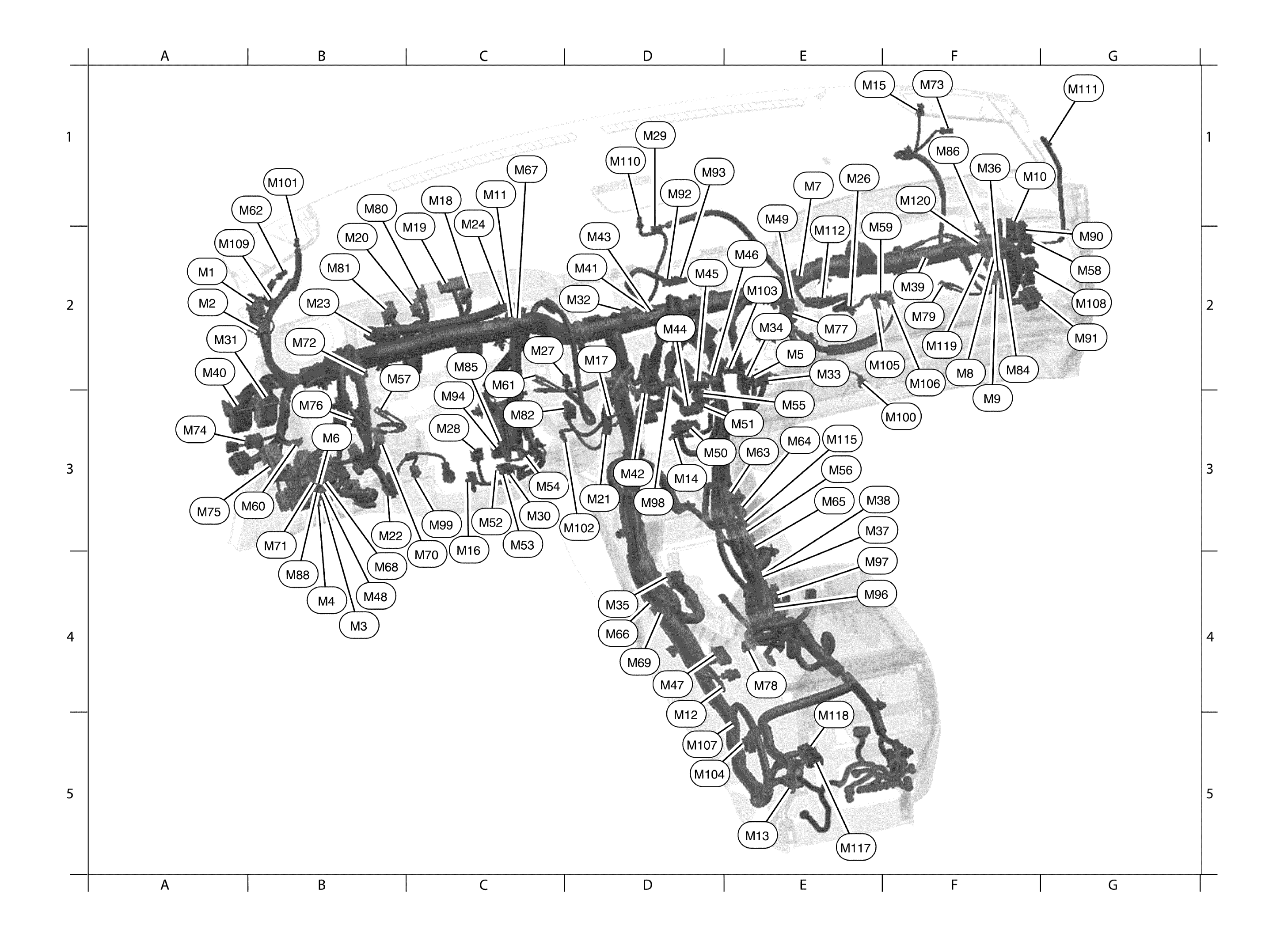

Main Harness 1
| A2 | M1 | W/24 | : To R1 | G2 | M58 | BR/6 | : Climate controlled seat relay | |
| A2 | M2 | W/6 | : To R2 | E1 | M59 | B/2 | : Glove box lamp | |
| B4 | M3 | W/8 | : Fuse block (J/B) | B3 | M60 | BR/4 | : Warning buzzer | |
| B4 | M4 | W/16 | : Fuse block (J/B) | C2 | M61 | - | : Body ground | |
| E2 | M5 | W/12 | : CAN gateway | B1 | M62 | BR/2 | : Instrument panel tweeter LH | |
| B3 | M6 | GR/8 | : Sonar system OFF switch | E3 | M63 | W/24 | : To M215 | |
| E1 | M7 | W/3 | : To M127 | E3 | M64 | W/16 | : To M216 | |
| F2 | M8 | GR/1 | : To B106 | E3 | M65 | W/32 | : To M217 | |
| F3 | M9 | W/24 | : To B107 | D4 | M66 | W/24 | : To B6 | |
| F1 | M10 | BR/16 | : To B111 | C1 | M67 | W/4 | : Joint connector-M04 | |
| C1 | M11 | W/4 | : Joint connector-M03 | B4 | M68 | BR/16 | : Fuse block (J/B) | |
| D5 | M12 | W/3 | : Rear shut-off door motor | D4 | M69 | W/32 | : To B41 | |
| E5 | M13 | W/3 | : Mode door motor (Rear) | C4 | M70 | W/24 | : Sonar control unit | |
| D3 | M14 | GR/2 | : Inside key antenna (Instrument center) | B3 | M71 | G/8 | : VDC OFF switch | |
| E1 | M15 | W/3 | : Optical sensor | B2 | M72 | W/6 | : Joint connector-M08 | |
| C4 | M16 | GR/6 | : ADP steering switch | F1 | M73 | BR/2 | : Instrument panel tweeter RH | |
| D2 | M17 | W/8 | : Push-button ignition switch | A3 | M74 | BR/12 | : To B42 | |
| C1 | M18 | G/40 | : BCM (Body control module) | A3 | M75 | W/3 | : To E36 | |
| C2 | M19 | B/40 | : BCM (Body control module) | B3 | M76 | W/6 | : Electric brake (Pre-wiring) | |
| B2 | M20 | GR/24 | : BCM (Body control module) | E2 | M77 | Y/4 | : Front passenger air bag module (Service replacement) |
|
| D3 | M21 | W/3 | : NATS antenna amp. | E4 | M78 | W/12 | : CVT shift selector | |
| B3 | M22 | W/16 | : Data link connector | F2 | M79 | - | : Body ground | |
| B2 | M23 | W/12 | : Combination meter | B1 | M80 | B/24 | : BCM (Body control module) | |
| C1 | M24 | W/40 | : Combination meter | B2 | M81 | W/15 | : BCM (Body control module) | |
| E1 | M26 | Y/2 | : Front passenger air bag module | C3 | M82 | W/2 | : Circuit breaker-2 | |
| C2 | M27 | W/12 | : Meter control switch | F2 | M84 | W/32 | : To B101 | |
| C3 | M28 | W/14 | : Combination switch | C2 | M85 | W/6 | : Tilt motor | |
| D1 | M29 | W/4 | : Dongle unit | F1 | M86 | B/4 | : Remote keyless entry receiver | |
| C3 | M30 | GR/8 | : Combination switch (Spiral cable) | B4 | M88 | B/10 | : A/C 120V outlet main switch | |
| A2 | M31 | SMJ | : To E152 | G2 | M90 | L/4 | : Heated steering relay | |
| D2 | M32 | B/2 | : Diode-3 | G2 | M91 | W/32 | : To D101 | |
| E2 | M33 | W/24 | : Automatic drive positioner control unit | D1 | M92 | W/24 | : Display unit (With NAVI) | |
| E2 | M34 | W/6 | : Automatic drive positioner control unit | D1 | M93 | W/24 | : Display unit (Without NAVI) | |
| D4 | M35 | Y/28 | : Air bag diagnosis sensor unit | C3 | M94 | BR/6 | : Telescopic motor | |
| F1 | M36 | W/40 | : To B136 | E4 | M96 | W/40 | : Around view monitor control unit | |
| E3 | M37 | W/4 | : Joint connector-M28 | E4 | M97 | W/32 | : Around view monitor control unit | |
| E3 | M38 | W/4 | : Joint connector-M29 | D3 | M98 | W/16 | : A/C and AV switch assembly | |
| F2 | M39 | W/4 | : Joint connector-M06 | C3 | M99 | B/2 | : Foot lamp LH | |
| A2 | M40 | SMJ | : To B69 | F3 | M100 | B/2 | : Foot lamp RH | |
| D2 | M41 | W/4 | : Joint connector-M18 | B1 | M101 | B/2 | : Sunload sensor | |
| D3 | M42 | W/32 | : AV control unit (With base audio system) | D3 | M102 | W/2 | : In-vehicle sensor | |
| D2 | M43 | W/4 | : Joint connector-M17 | E2 | M103 | W/2 | : Intake sensor | |
| D2 | M44 | W/20 | : AV control unit (With base audio system) | D5 | M104 | W/4 | : Rear blower motor resistor 1 | |
| D2 | M45 | W/24 | : AV control unit (With base audio system) | F2 | M105 | Y/2 | : Front passenger air bag module | |
| E2 | M46 | W/16 | : AV control unit (With base audio system) | F2 | M106 | O/2 | : Front passenger air bag module | |
| D4 | M47 | W/40 | : TCU | D5 | M107 | W/2 | : Rear blower motor 1 | |
| B4 | M48 | L/8 | : Heated steering wheel switch | G2 | M108 | BR/6 | : Rear blower motor relay | |
| E1 | M49 | B/12 | : Joint connector-M15 | A2 | M109 | BR/2 | : Front tweeter LH | |
| D3 | M50 | W/40 | : A/C auto amp. | D1 | M110 | BR/2 | : Center speaker | |
| E3 | M51 | W/12 | : AV control unit (With base audio system) | G1 | M111 | BR/2 | : Front tweeter RH | |
| C3 | M52 | W/2 | : Combination switch (Spiral cable) | E2 | M112 | W/6 | : Front blower motor | |
| C3 | M53 | Y/6 | : Combination switch (Spiral cable) | E3 | M115 | GR/7 | : To M210 | |
| C3 | M54 | W/8 | : Steering angle sensor | E5 | M117 | W/2 | : PTC heater | |
| E3 | M55 | L/5 | : AV control unit | E5 | M118 | W/3 | : PTC heater | |
| E3 | M56 | W/16 | : To M214 | F2 | M119 | W/4 | : Ionizer | |
| B2 | M57 | - | : Body ground | F1 | M120 | W/4 | : Joint connector-M21 |
