QX60 Base, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
Power Supply, Ground & Circuit Elements (Except Hybrid)
>>
Wiring Diagram
>>
Ground
>>
Ground Distribution
>>
Main Harness
Main Harness

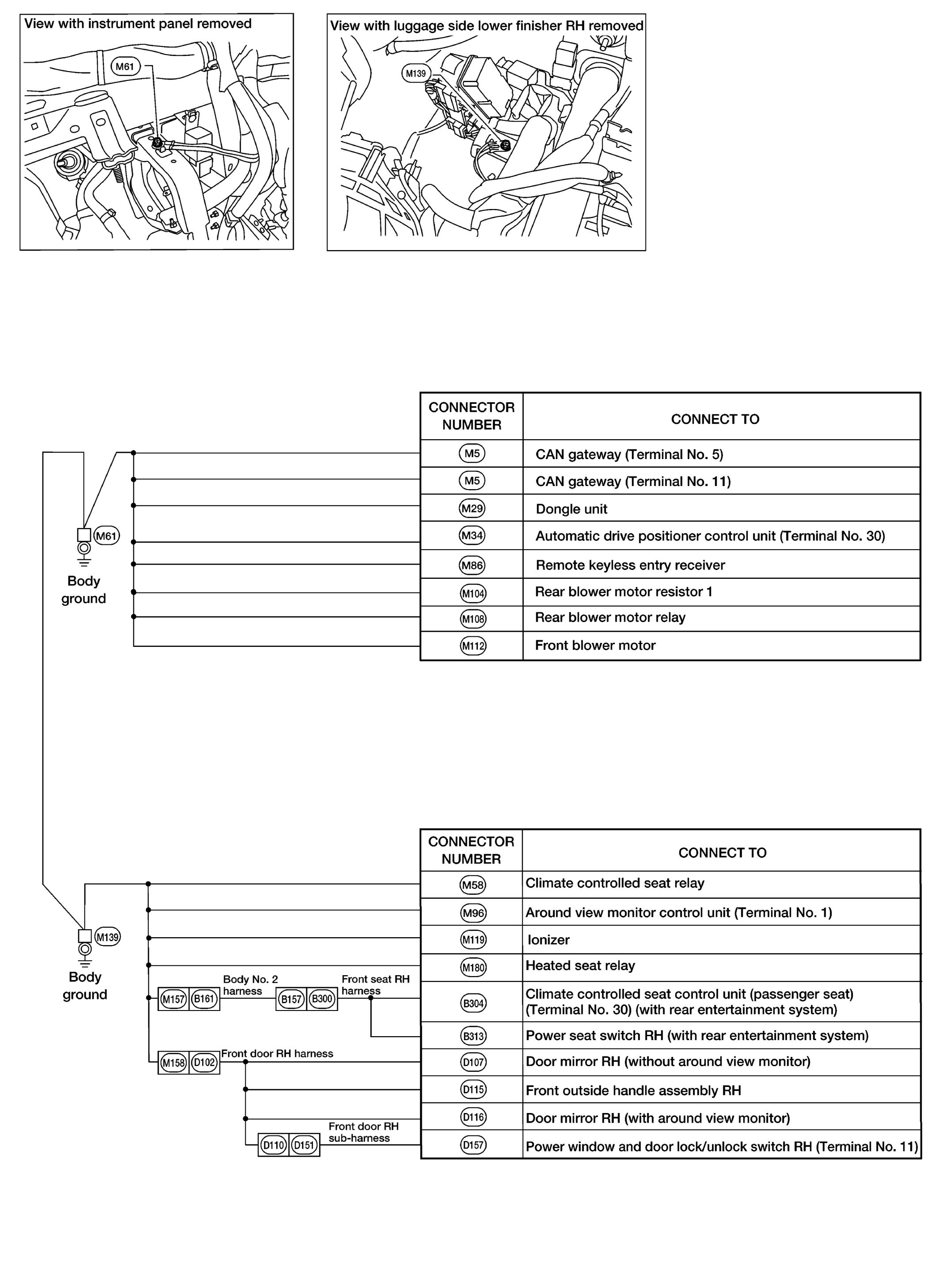

Fig 1: Main Harness Ground Distribution (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

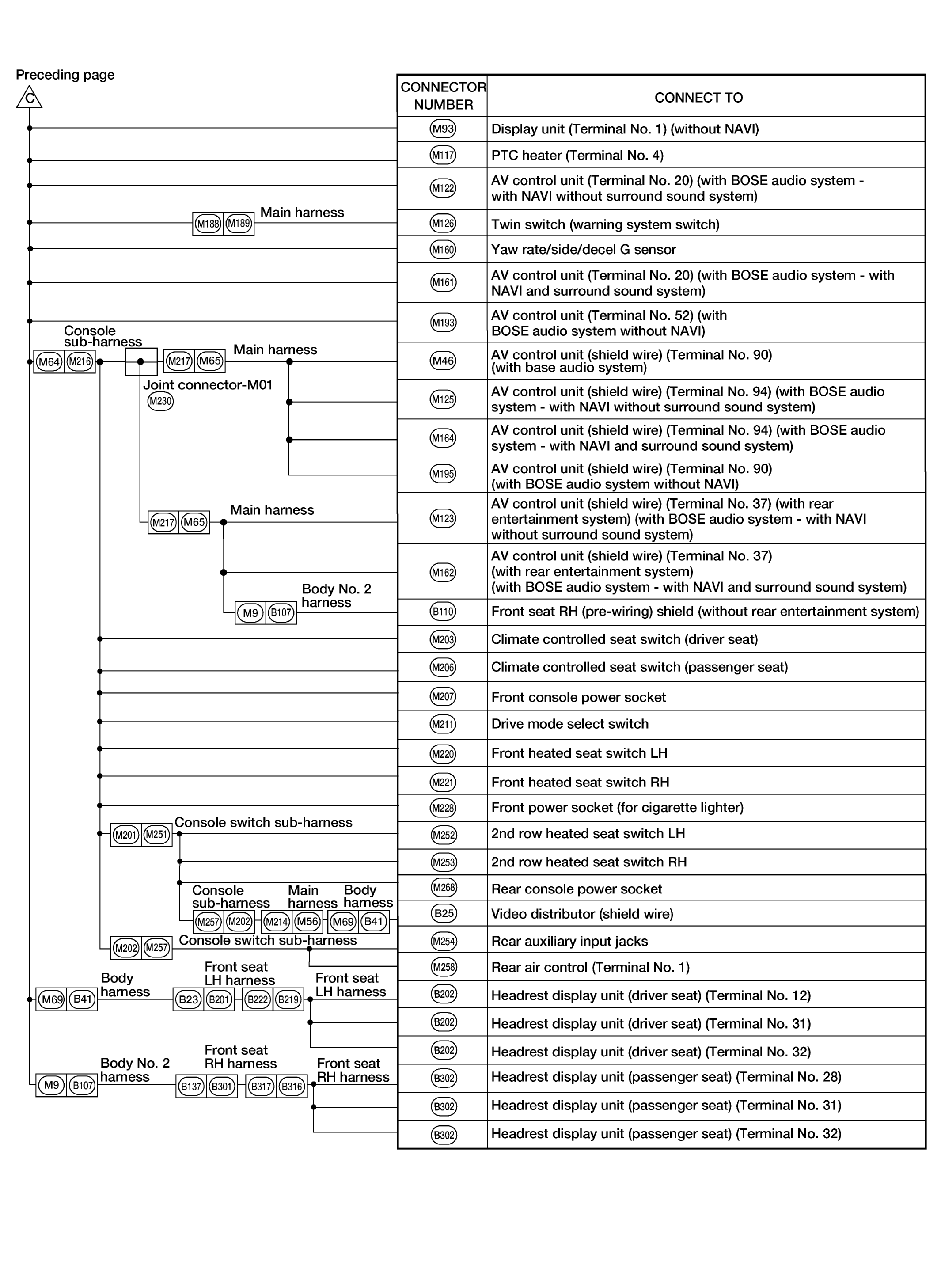

Fig 2: Main Harness Ground Distribution (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

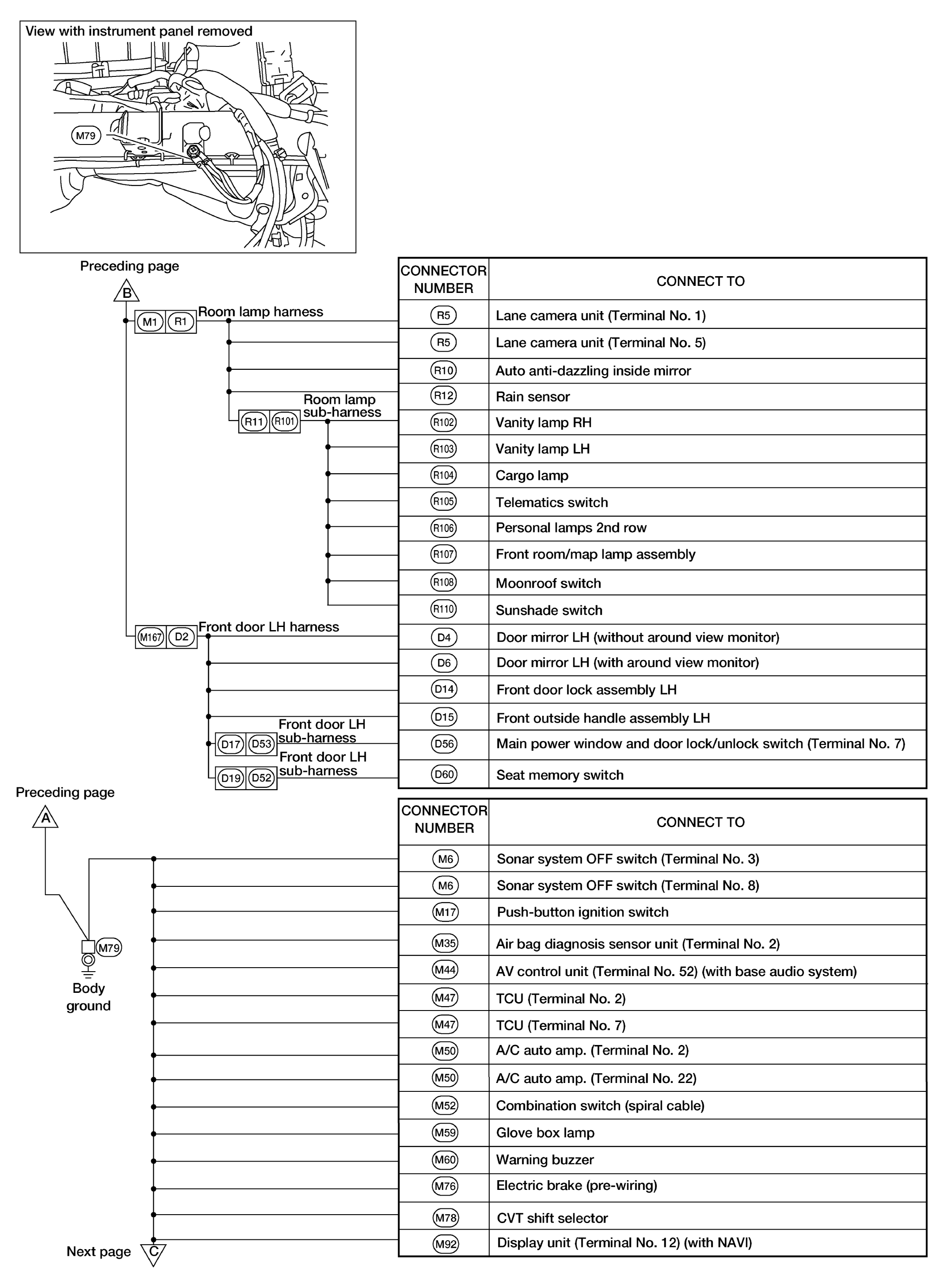

Fig 3: Main Harness Ground Distribution (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

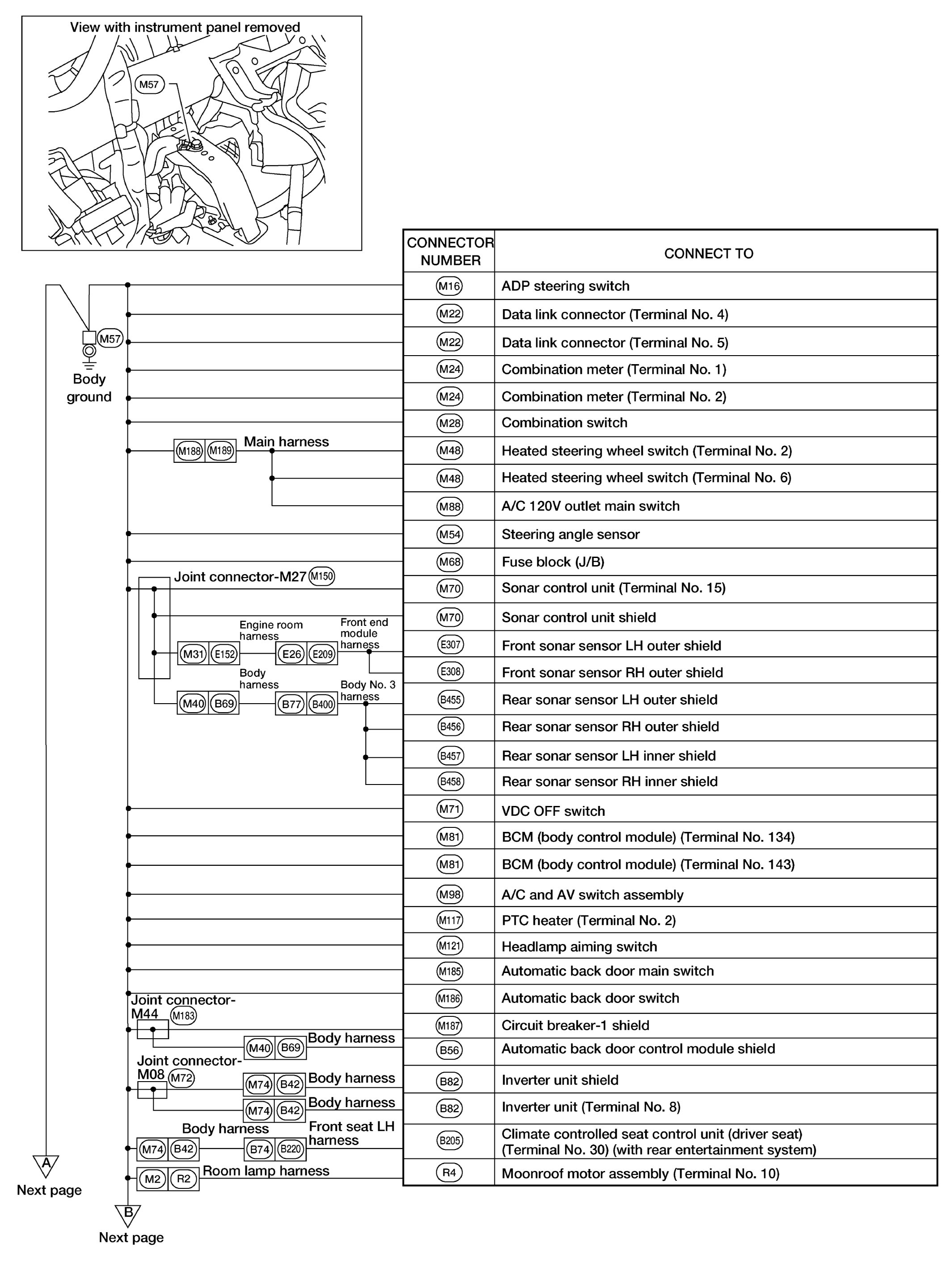

Fig 4: Main Harness Ground Distribution (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
