Infiniti
>>
2015
>>
QX60 Base, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
Power Supply, Ground & Circuit Elements (Except Hybrid)
>>
Wiring Diagram
>>
Ground
>>
Ground Distribution
>>
Body No. 2 Harness
Body No. 2 Harness

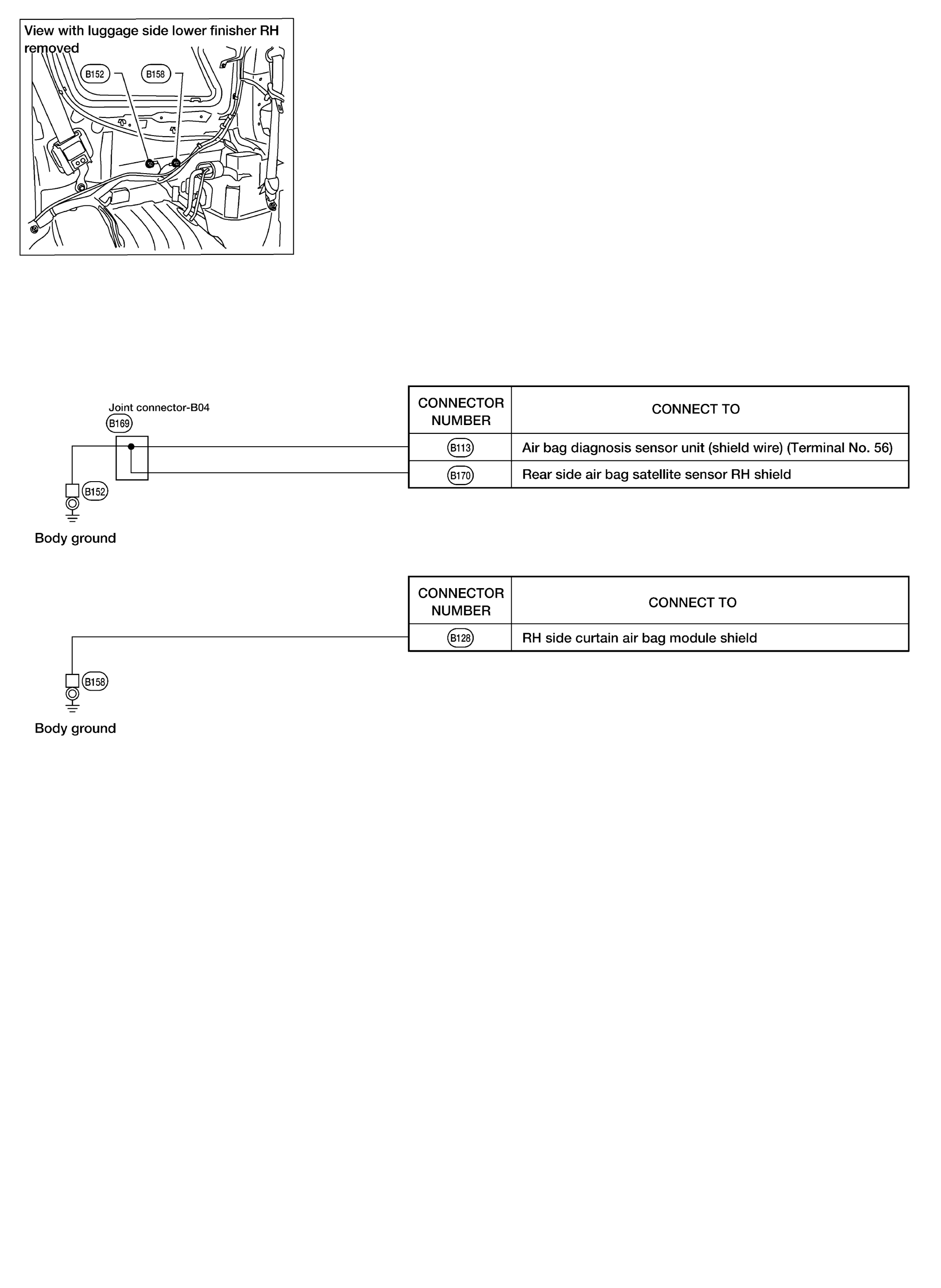

Fig 1: Body No. 2 Harness Ground Distribution Wiring Diagram (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

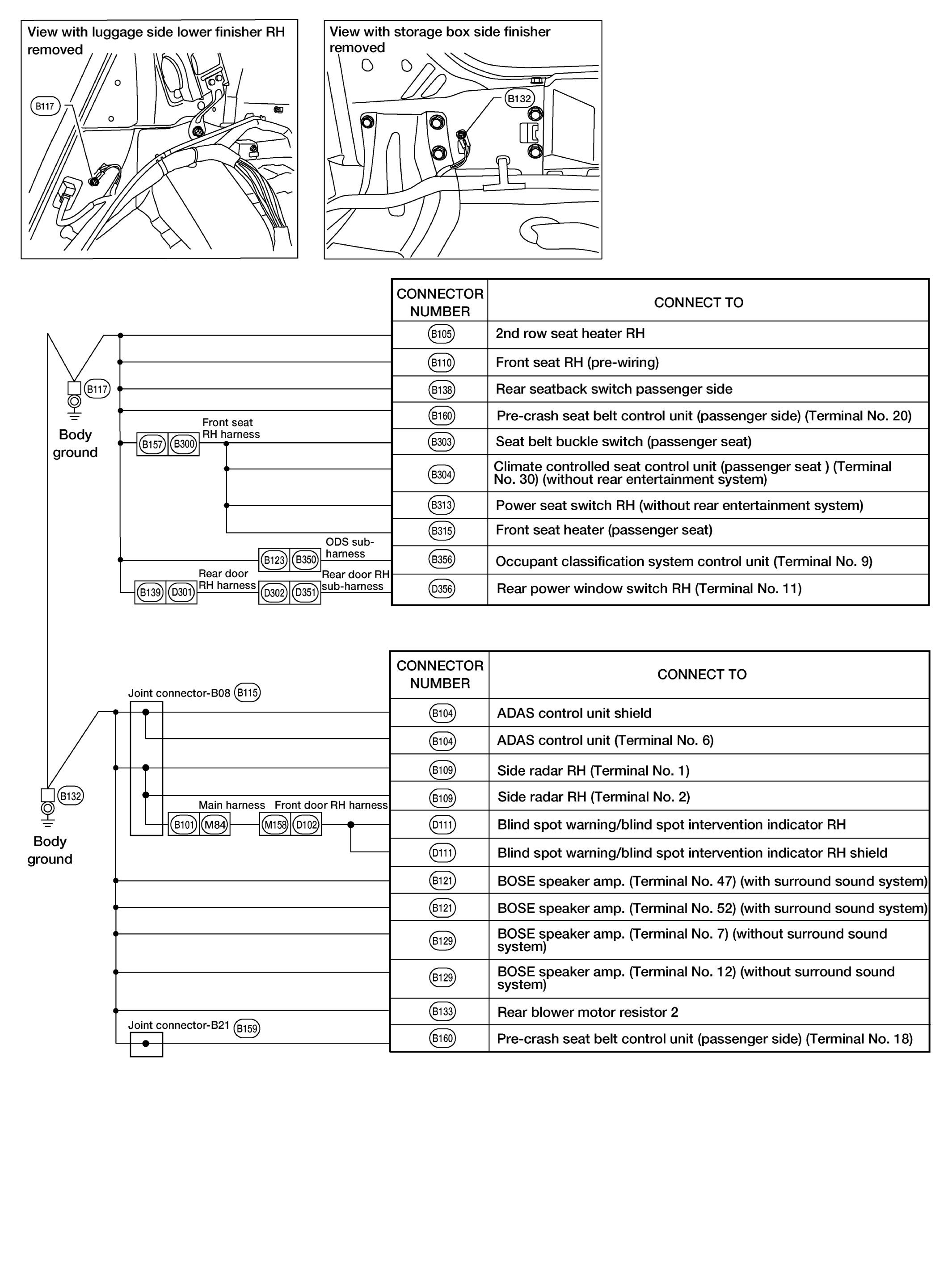

Fig 2: Body No. 2 Harness Ground Distribution Wiring Diagram (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
