Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
Power Supply, Ground & Circuit Elements (Except Hybrid)
>>
Wiring Diagram
>>
Ground
>>
Ground Distribution
>>
Body Harness
Body Harness

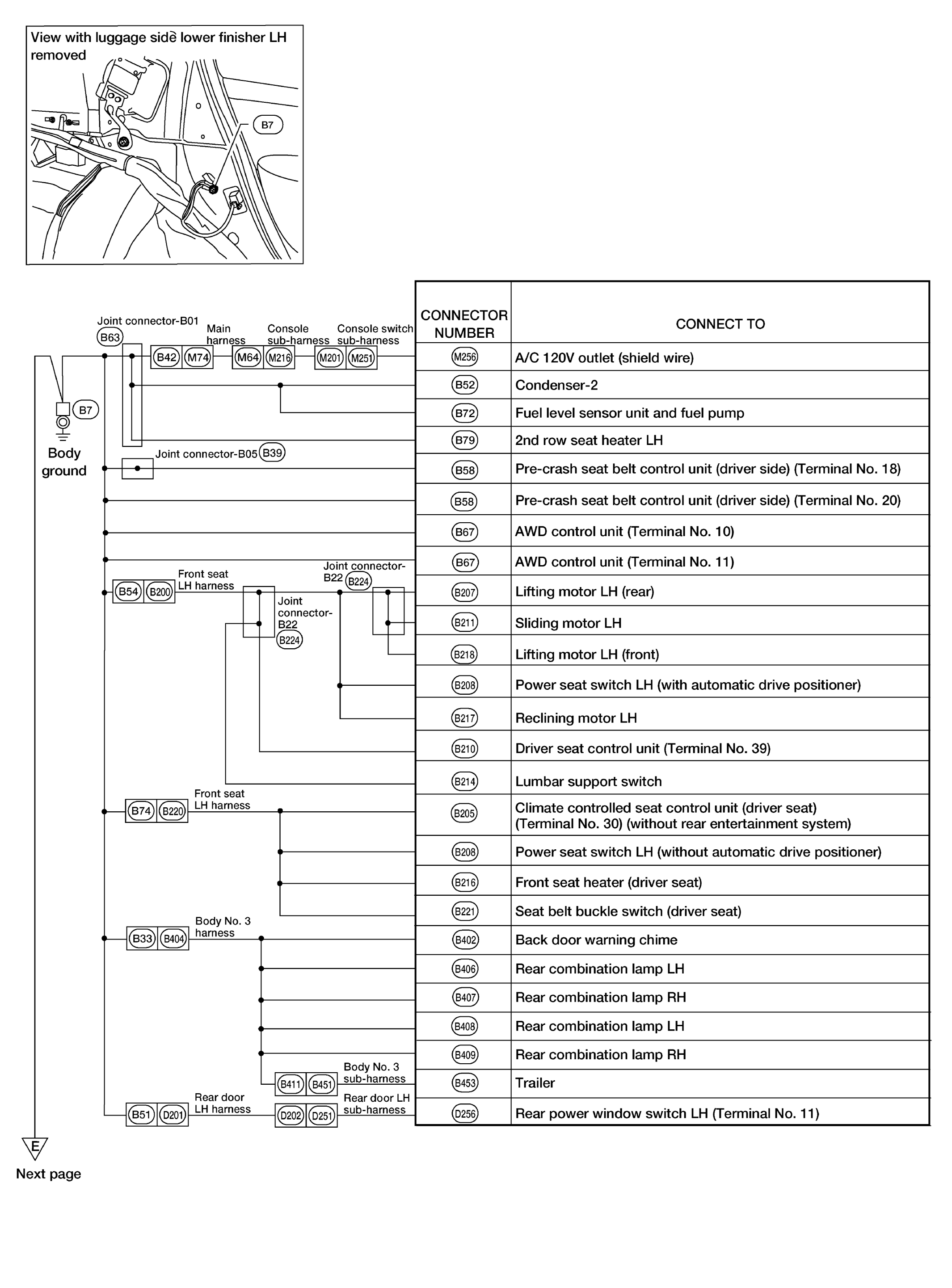

Fig 1: Body Harness Ground Distribution Wiring Diagram (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

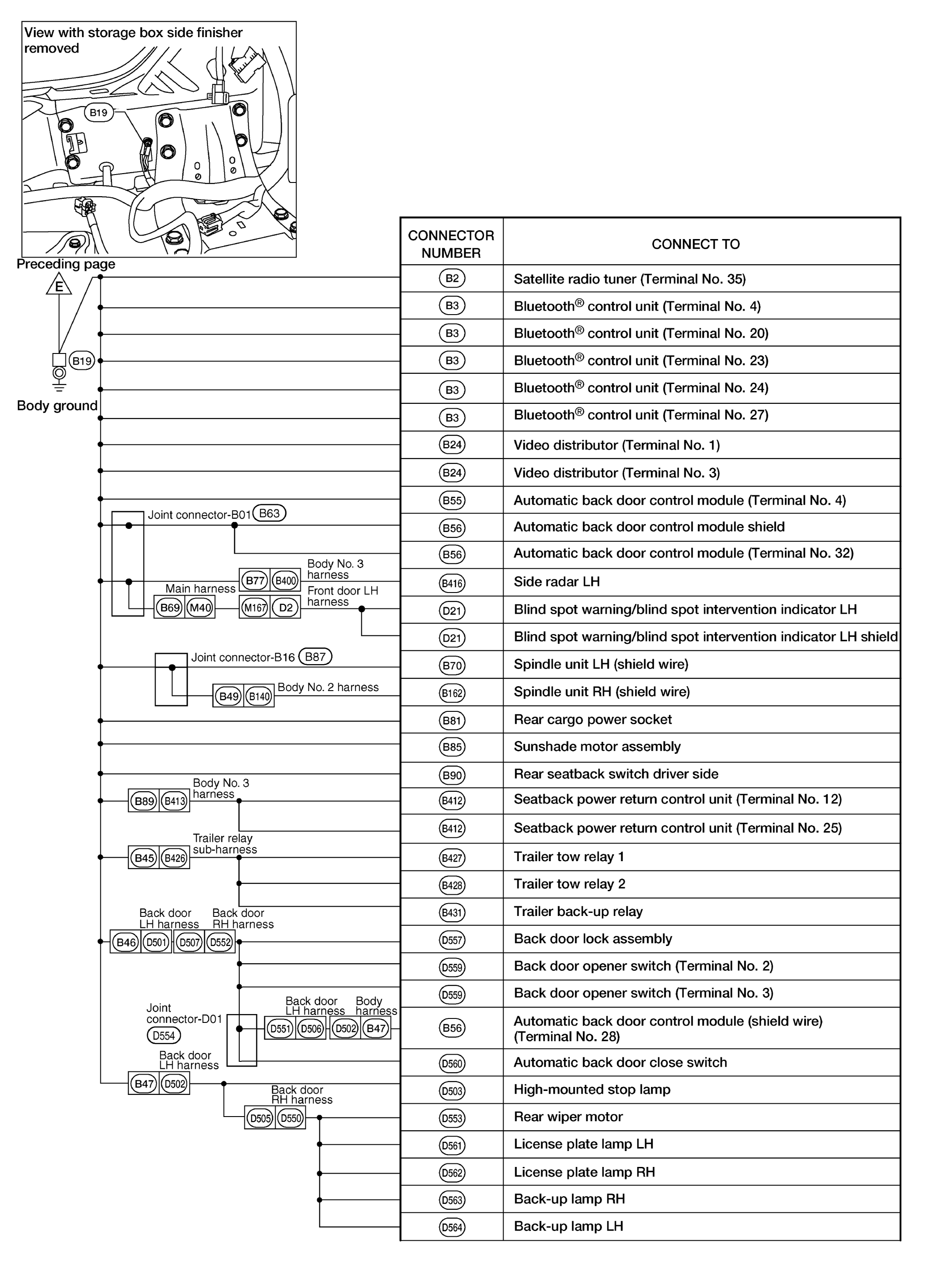

Fig 2: Body Harness Ground Distribution Wiring Diagram (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 3: Body Harness Ground Distribution Wiring Diagram (3 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
