Removal And Installation: Removal

  1. Remove inverter unit fuse.
  2. Remove storage box. Refer to EXPLODED VIEW .
  3. Remove luggage side lower finisher (LH). Refer to REMOVAL AND INSTALLATION .
    NOTE:

    The inverter unit is located under the storage box bracket (LH) (1).

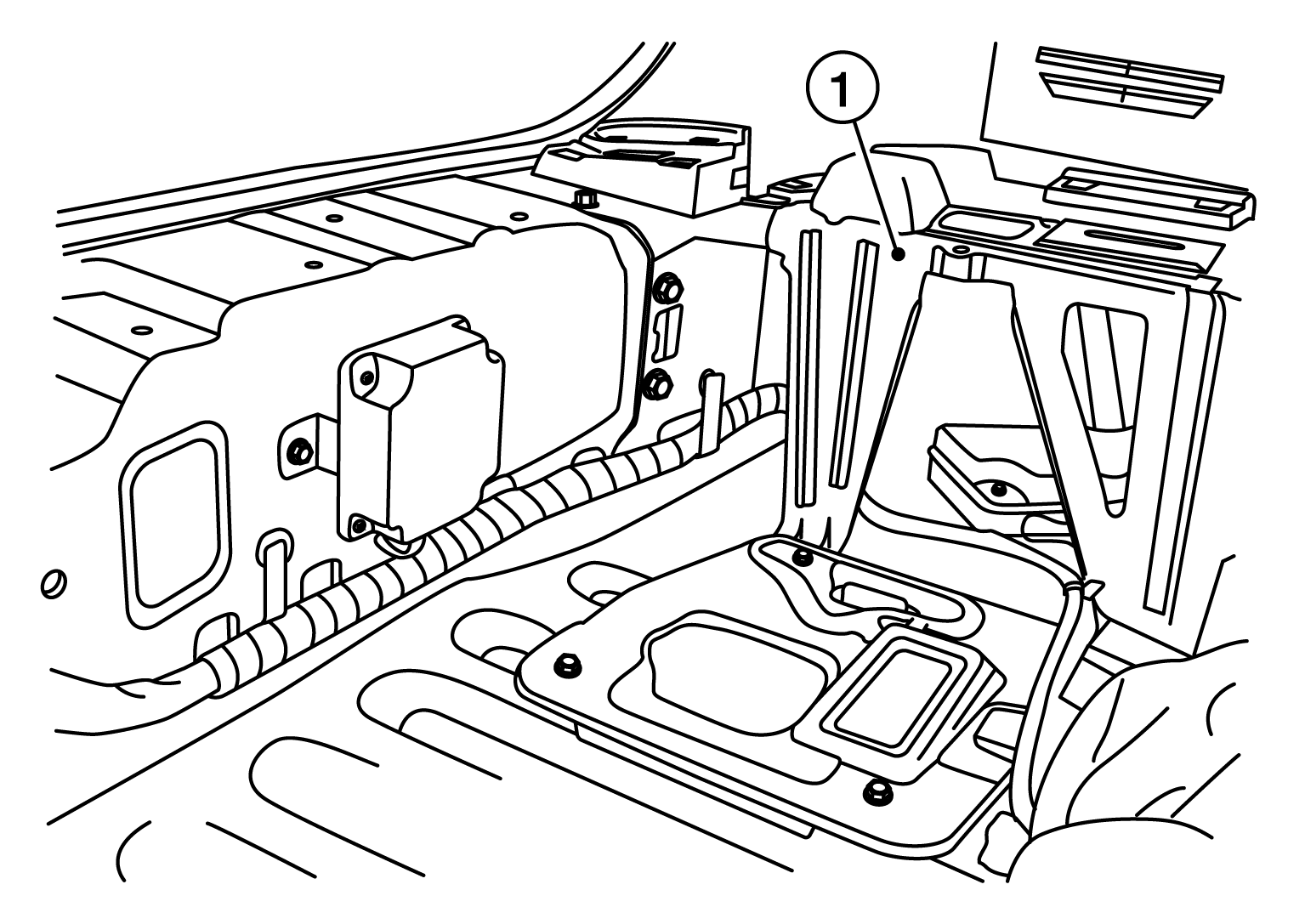

    Fig 1: Identifying Storage Box Bracket (LH)
    G08857254Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove the inverter unit bolts.
  5. Disconnect the harness connector from the inverter unit (1).

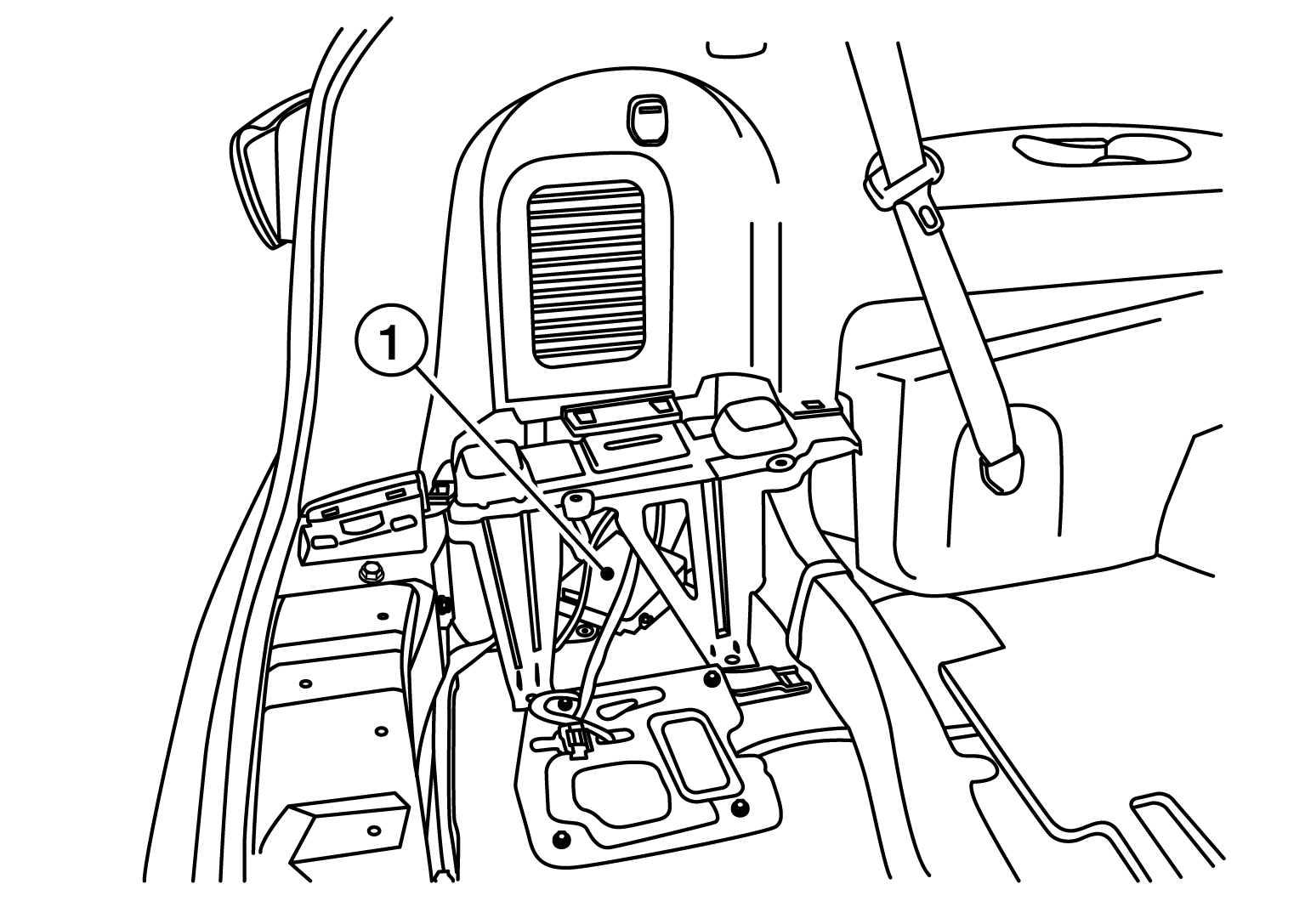

    Fig 2: Identifying Inverter Unit
    G08857255Courtesy of NISSAN NORTH AMERICA, INC.
  6. Remove the inverter unit (1).
