Component Parts Location

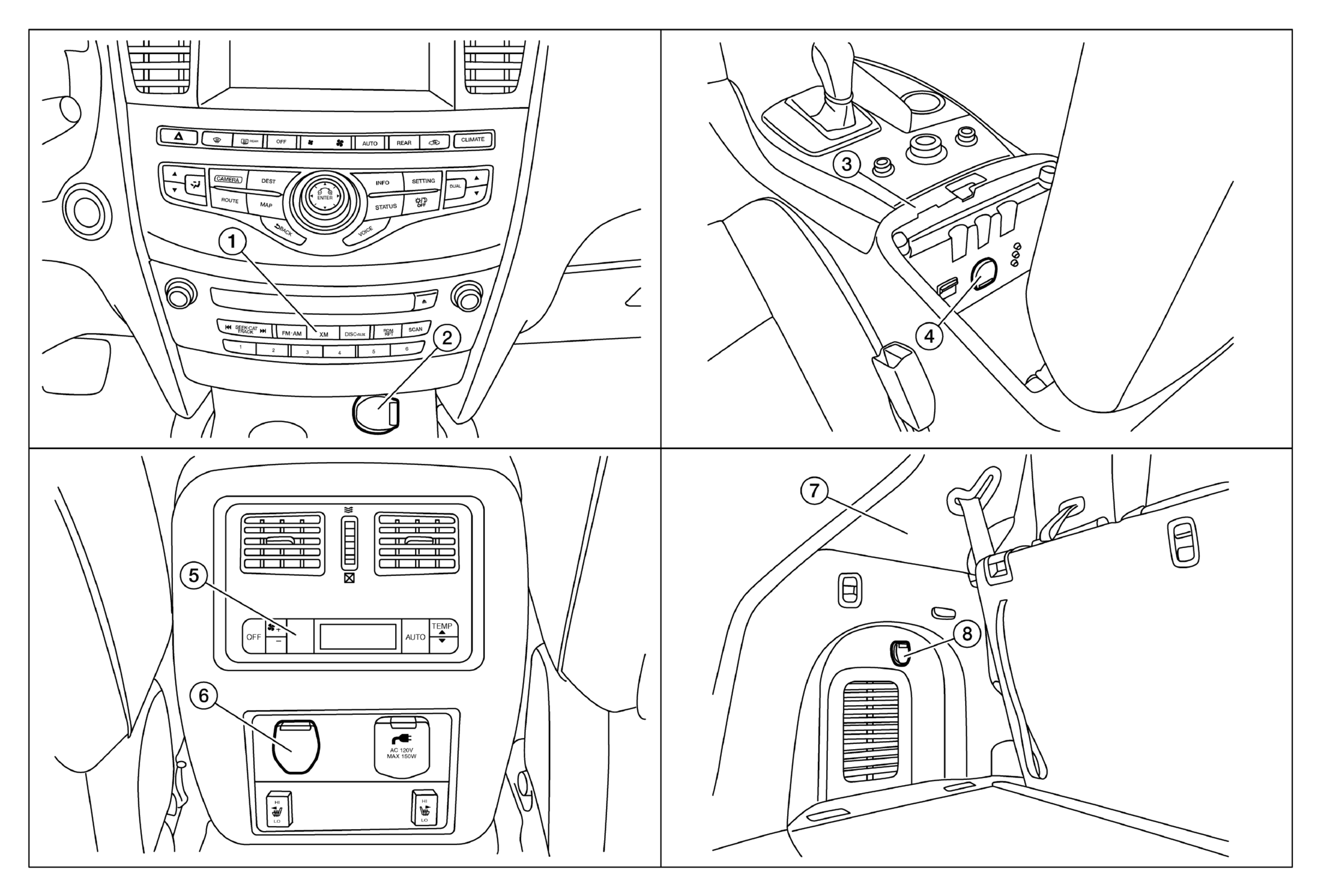

Fig 1: Power Outlet Component Locations

Courtesy of NISSAN NORTH AMERICA, INC.

1.	A/C and AV switch assembly	2.	Front power socket (for cigarette lighter)	3.	Center console
4.	Front console power socket	5.	Rear air control	6.	Rear console power socket
7.	Luggage side finisher lower LH	8.	Rear cargo power socket
