Wiring Diagram - Without Automatic Drive Positioner

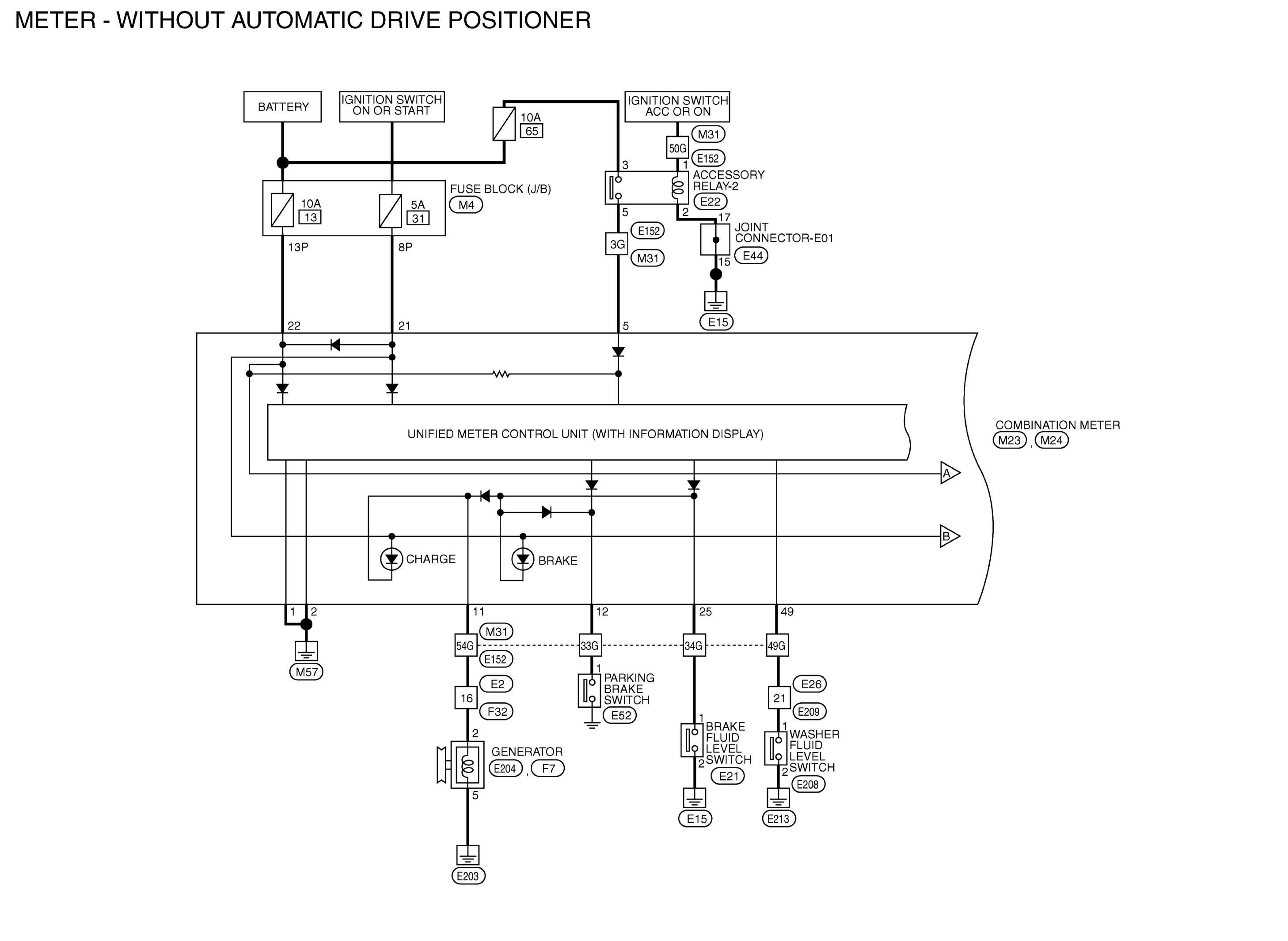

Fig 1: Meter System Wiring Diagram (Without Automatic Drive Positioner) (1 Of 5)

GNSABNWA2543GB-543

Courtesy of NISSAN NORTH AMERICA, INC.

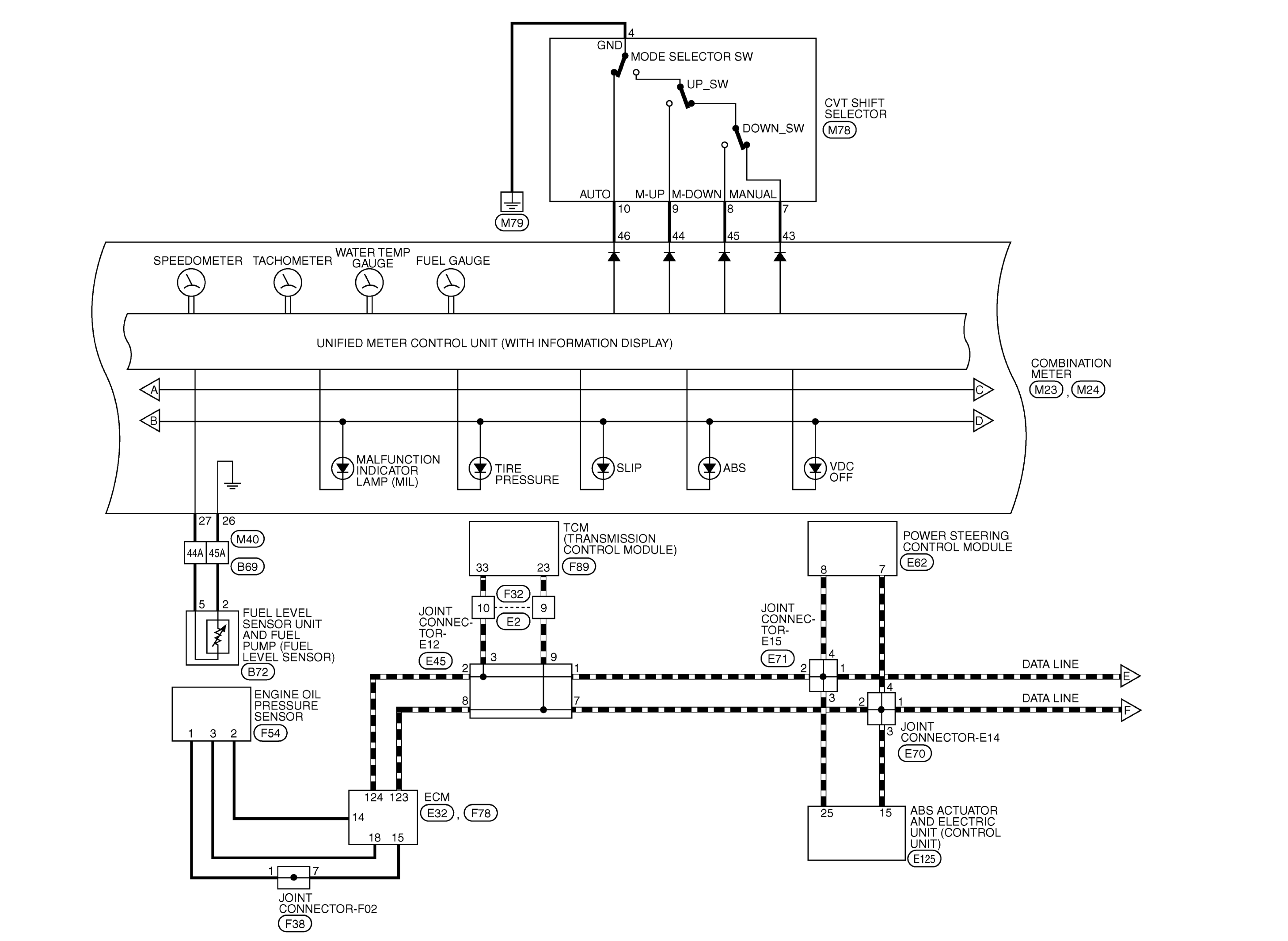

Fig 2: Meter System Wiring Diagram (Without Automatic Drive Positioner) (2 Of 5)

GNSABNWA2544GB-544

Courtesy of NISSAN NORTH AMERICA, INC.

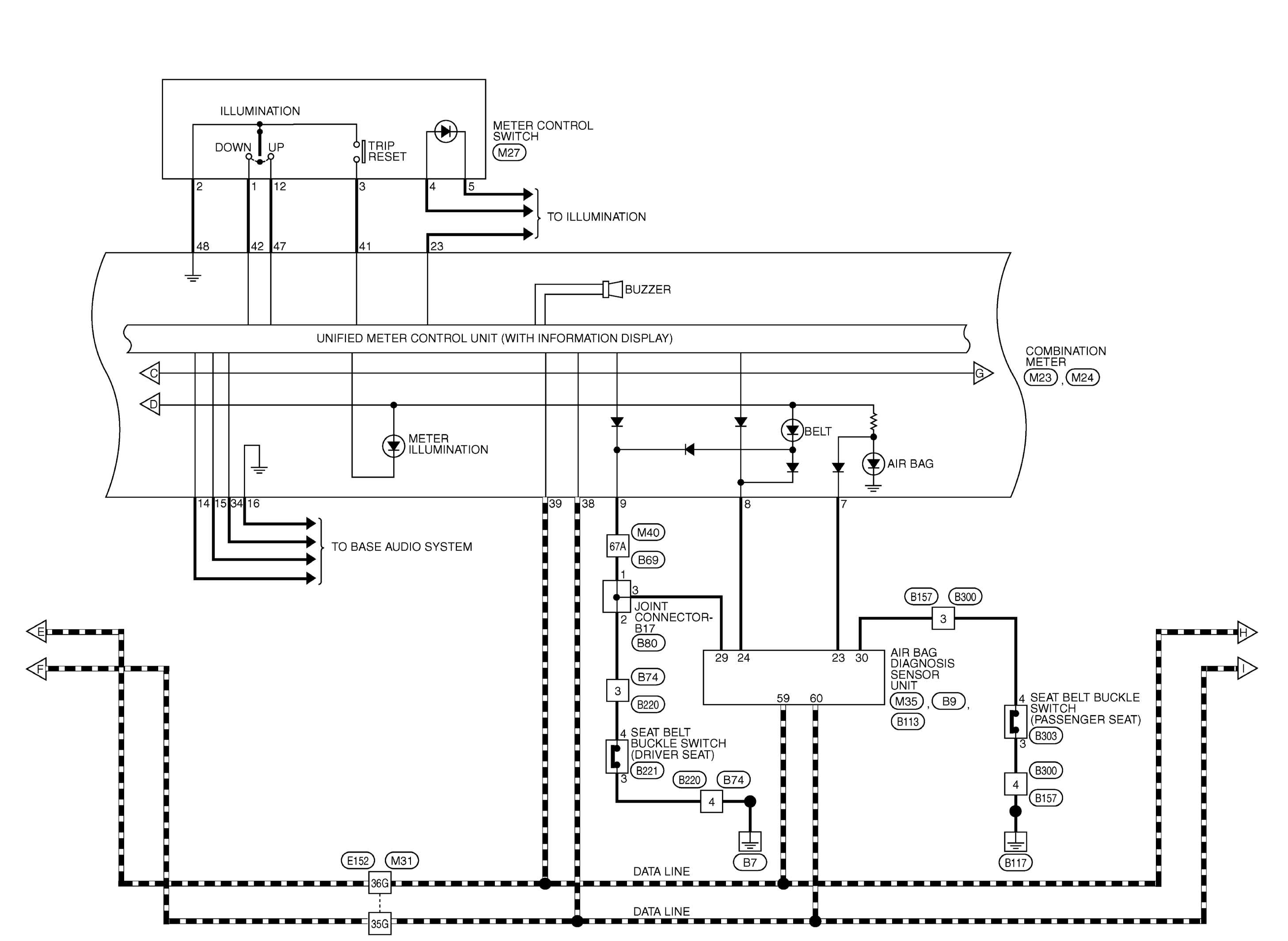

Fig 3: Meter System Wiring Diagram (Without Automatic Drive Positioner) (3 Of 5)

GNSABNWA2595GB-595

Courtesy of NISSAN NORTH AMERICA, INC.

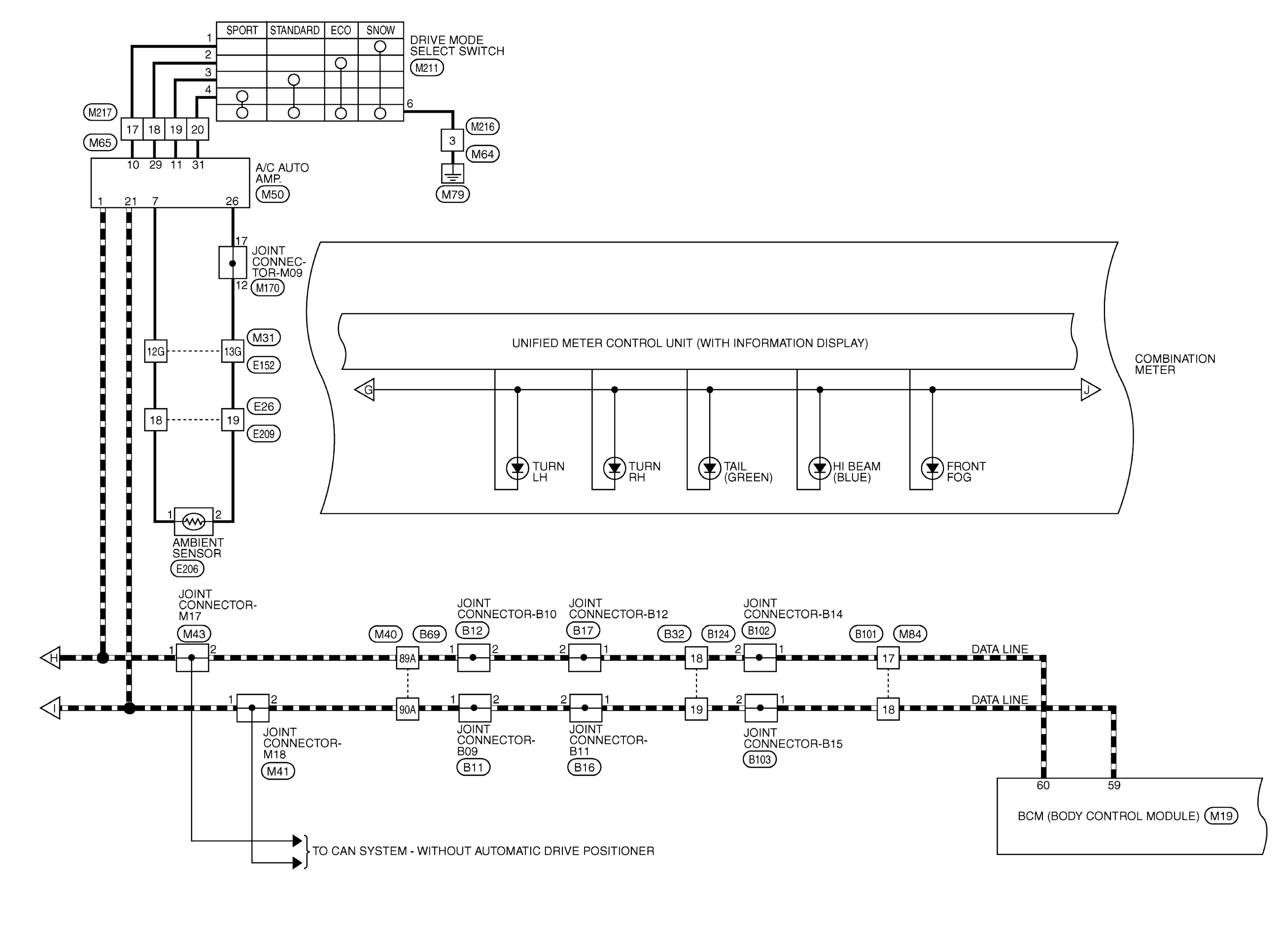

Fig 4: Meter System Wiring Diagram (Without Automatic Drive Positioner) (4 Of 5)

GNSABNWA2390GB-390

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Meter System Wiring Diagram (Without Automatic Drive Positioner) (5 Of 5)

G09427338

Courtesy of NISSAN NORTH AMERICA, INC.

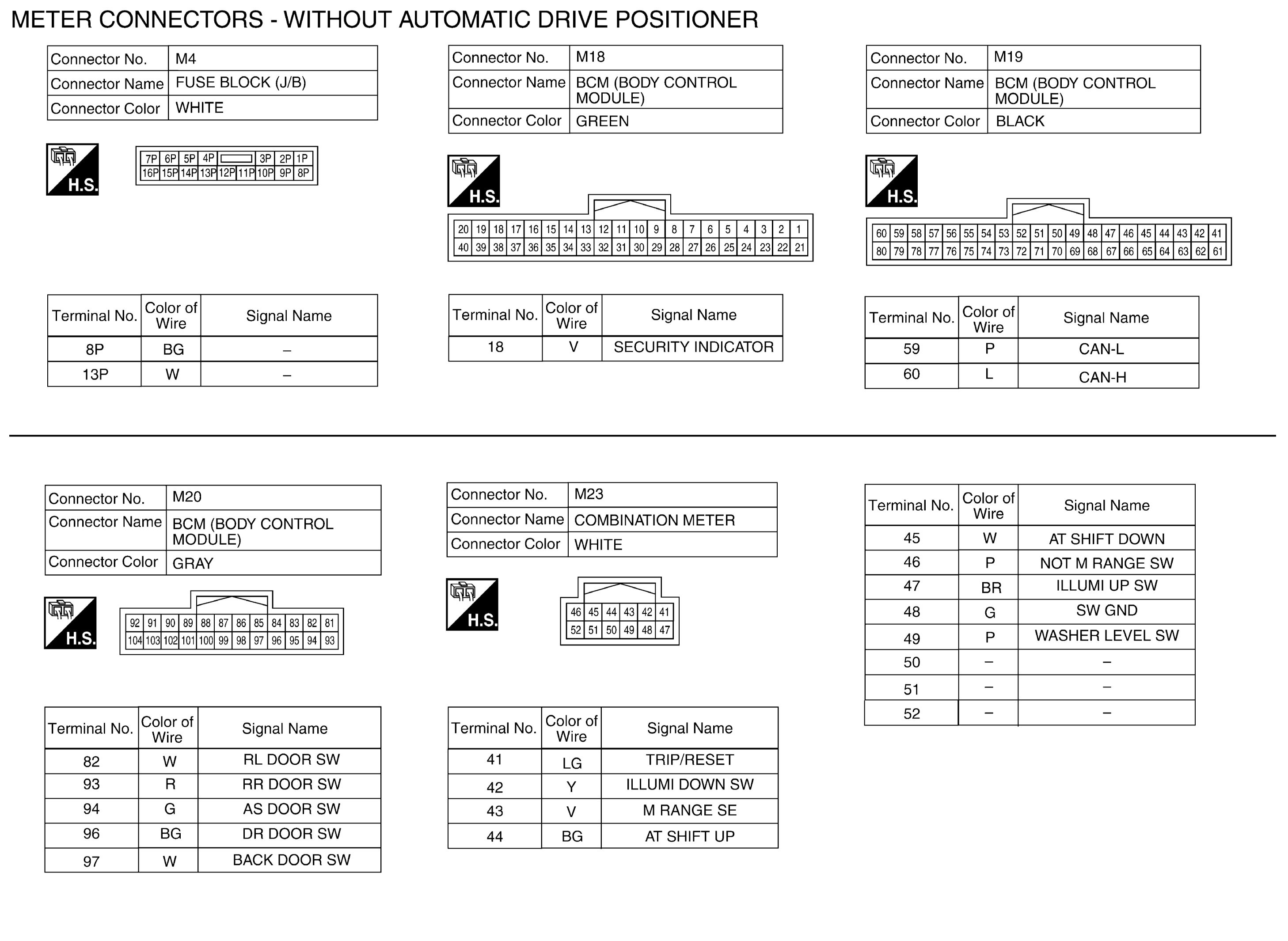

Fig 6: Meter System Connector End Views (Without Automatic Drive Positioner) (1 Of 15)

G09427339

Courtesy of NISSAN NORTH AMERICA, INC.

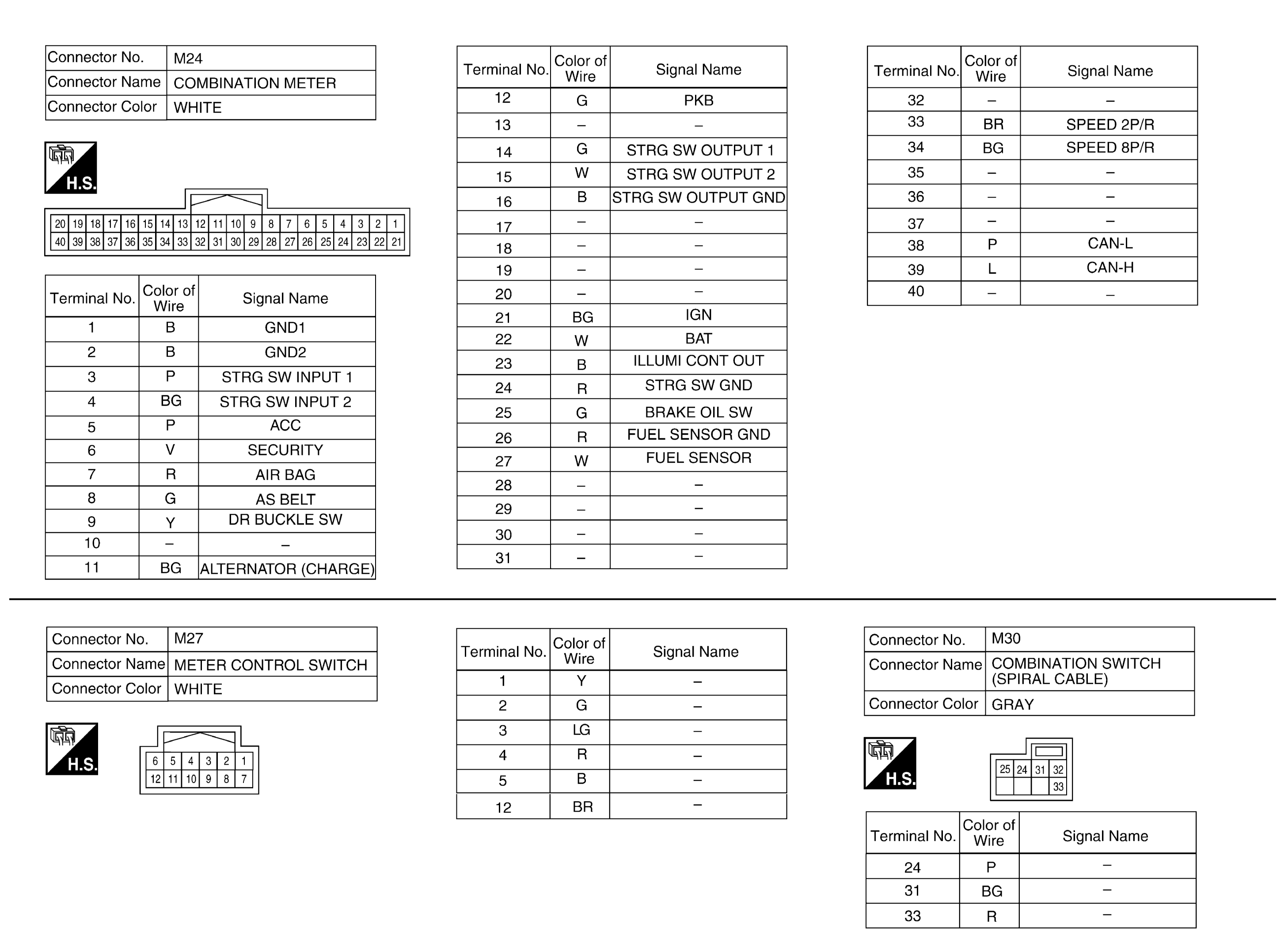

Fig 7: Meter System Connector End Views (Without Automatic Drive Positioner) (2 Of 15)

G09427340

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Meter System Connector End Views (Without Automatic Drive Positioner) (3 Of 15)

G09427341

Courtesy of NISSAN NORTH AMERICA, INC.

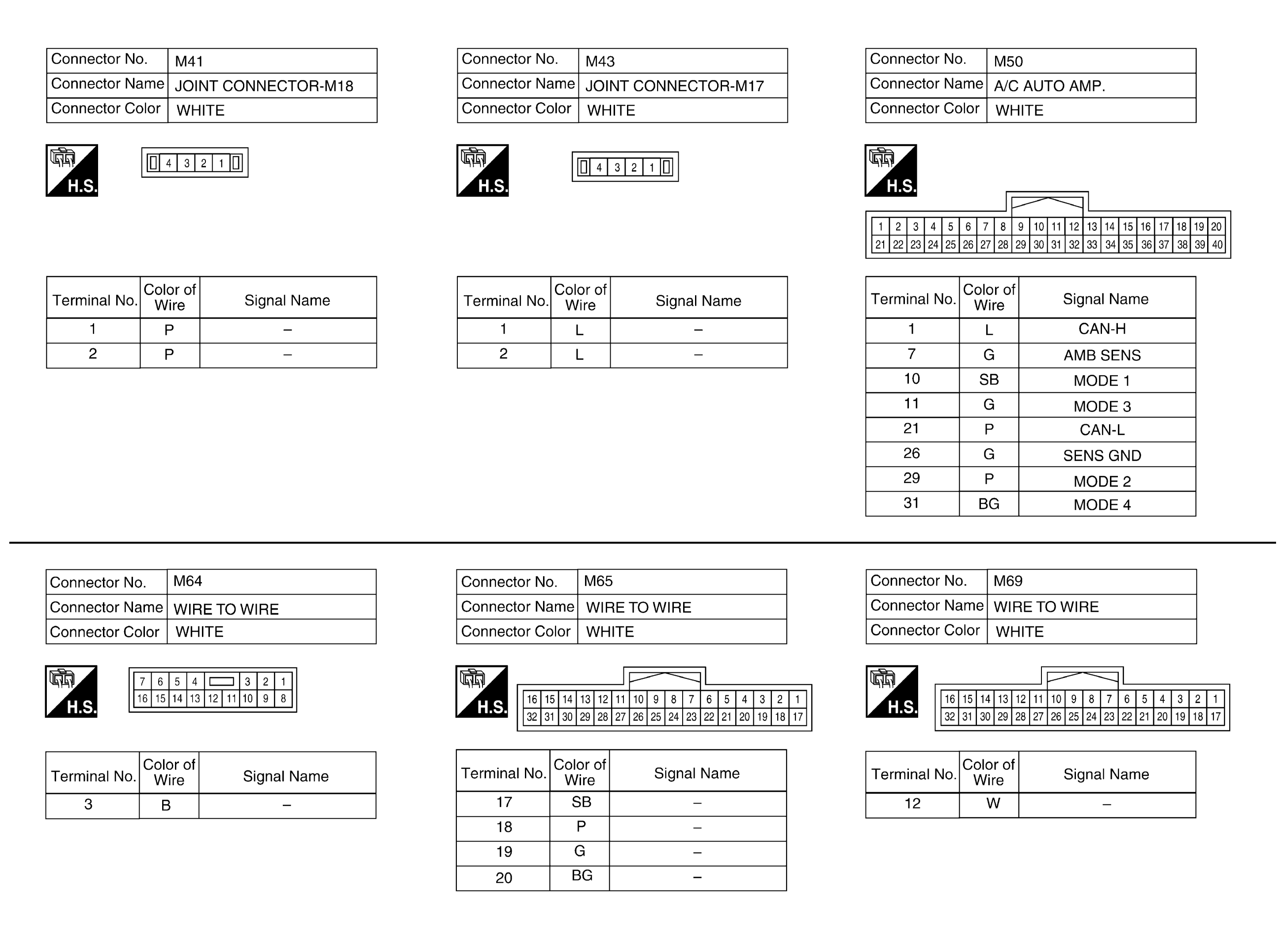

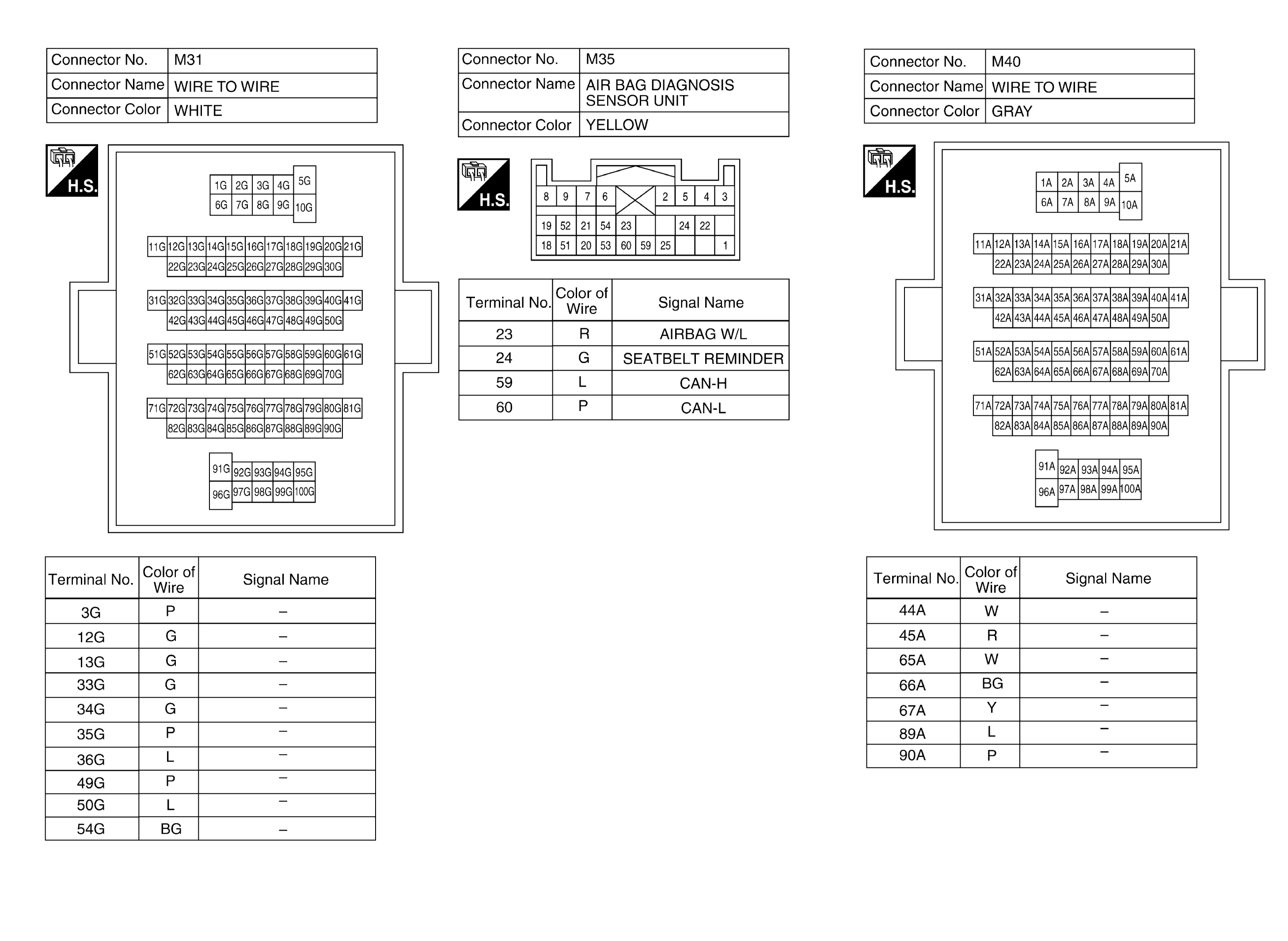

Fig 9: Meter System Connector End Views (Without Automatic Drive Positioner) (4 Of 15)

G08852333

Courtesy of NISSAN NORTH AMERICA, INC.

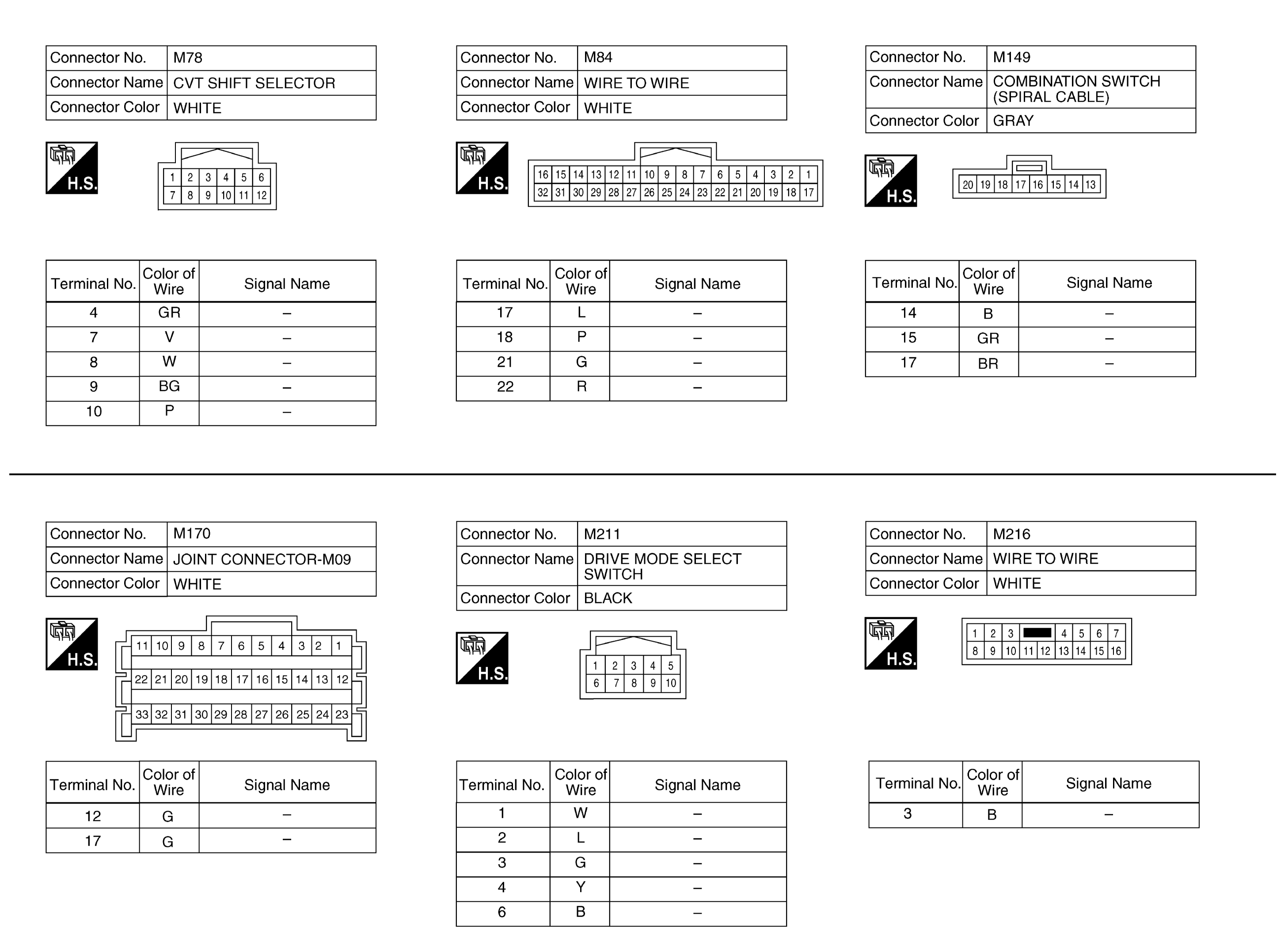

Fig 10: Meter System Connector End Views (Without Automatic Drive Positioner) (5 Of 15)

GNSABNIA6930GB-930

Courtesy of NISSAN NORTH AMERICA, INC.

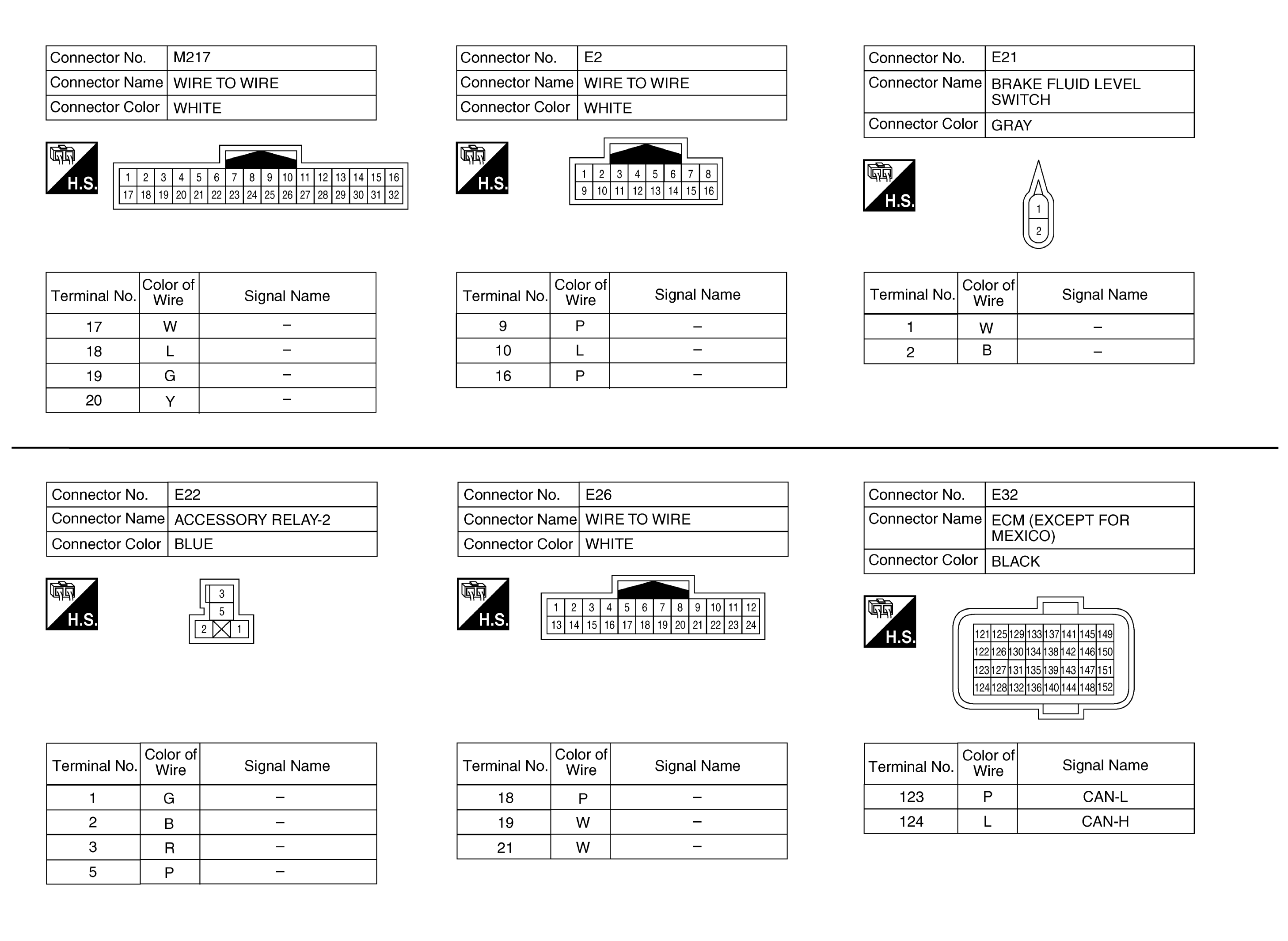

Fig 11: Meter System Connector End Views (Without Automatic Drive Positioner) (6 Of 15)

GNSABNIA6931GB-931

Courtesy of NISSAN NORTH AMERICA, INC.

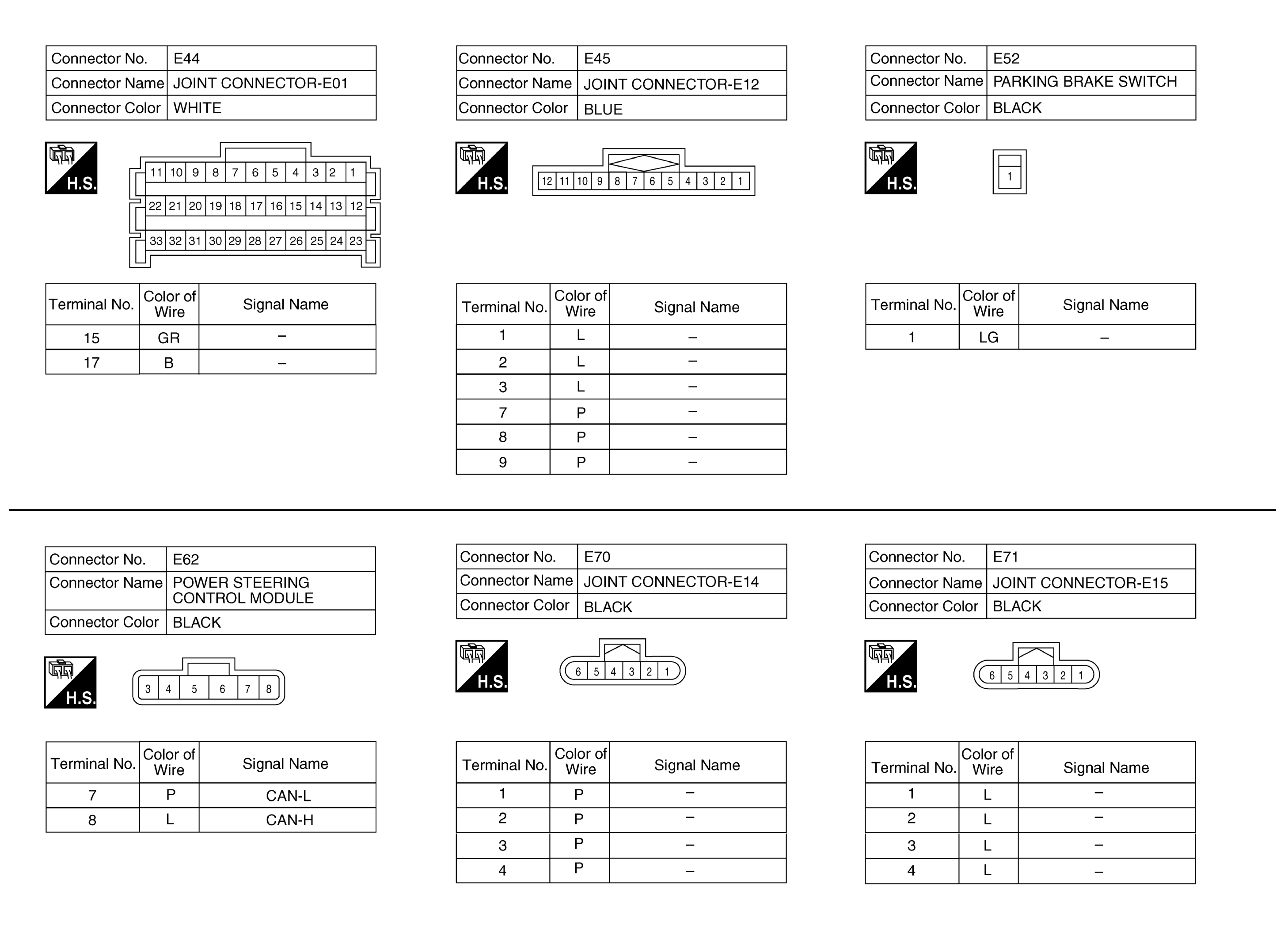

Fig 12: Meter System Connector End Views (Without Automatic Drive Positioner) (7 Of 15)

GNSABNIA6932GB-932

Courtesy of NISSAN NORTH AMERICA, INC.

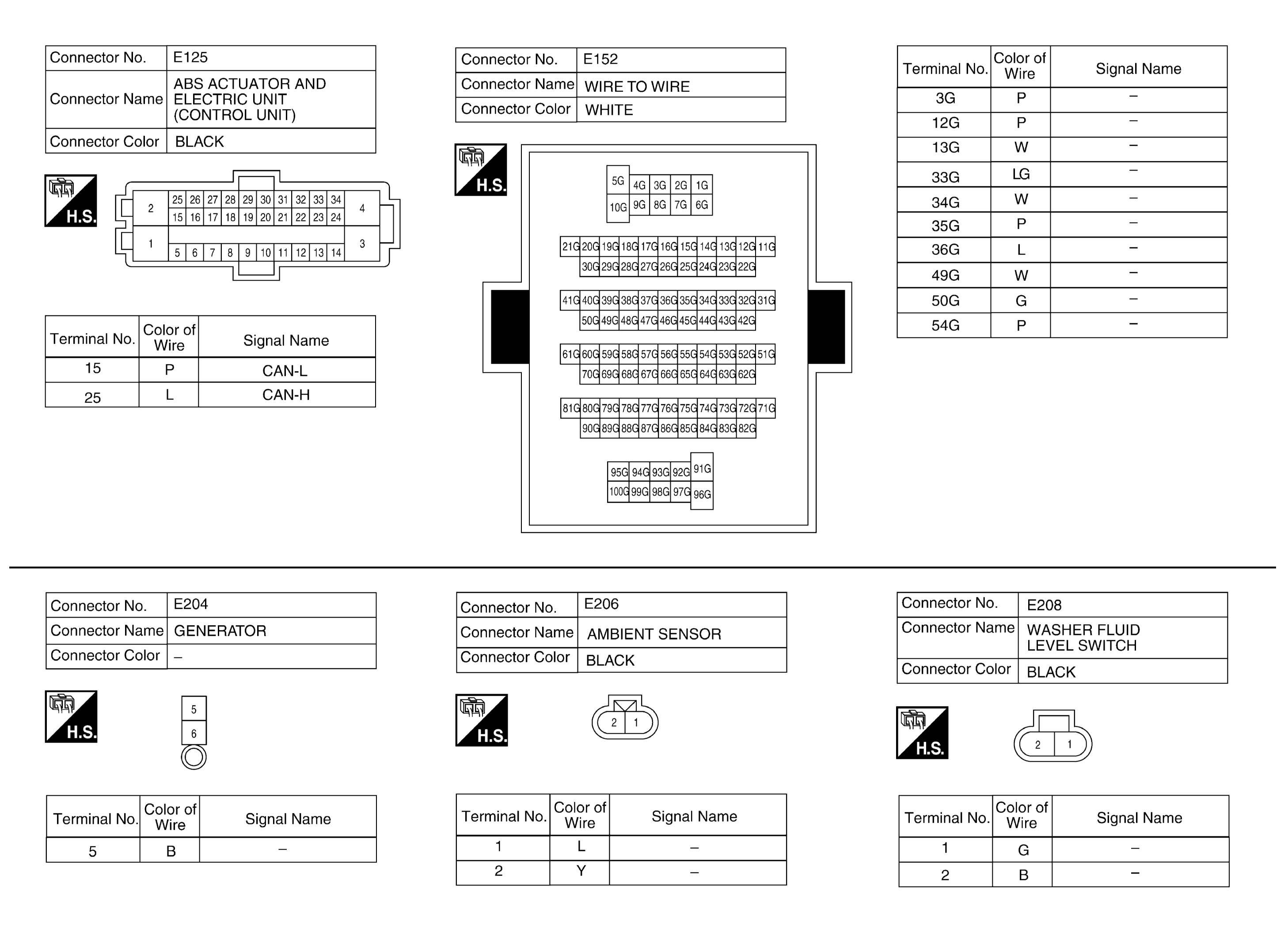

Fig 13: Meter System Connector End Views (Without Automatic Drive Positioner) (8 Of 15)

G08852337

Courtesy of NISSAN NORTH AMERICA, INC.

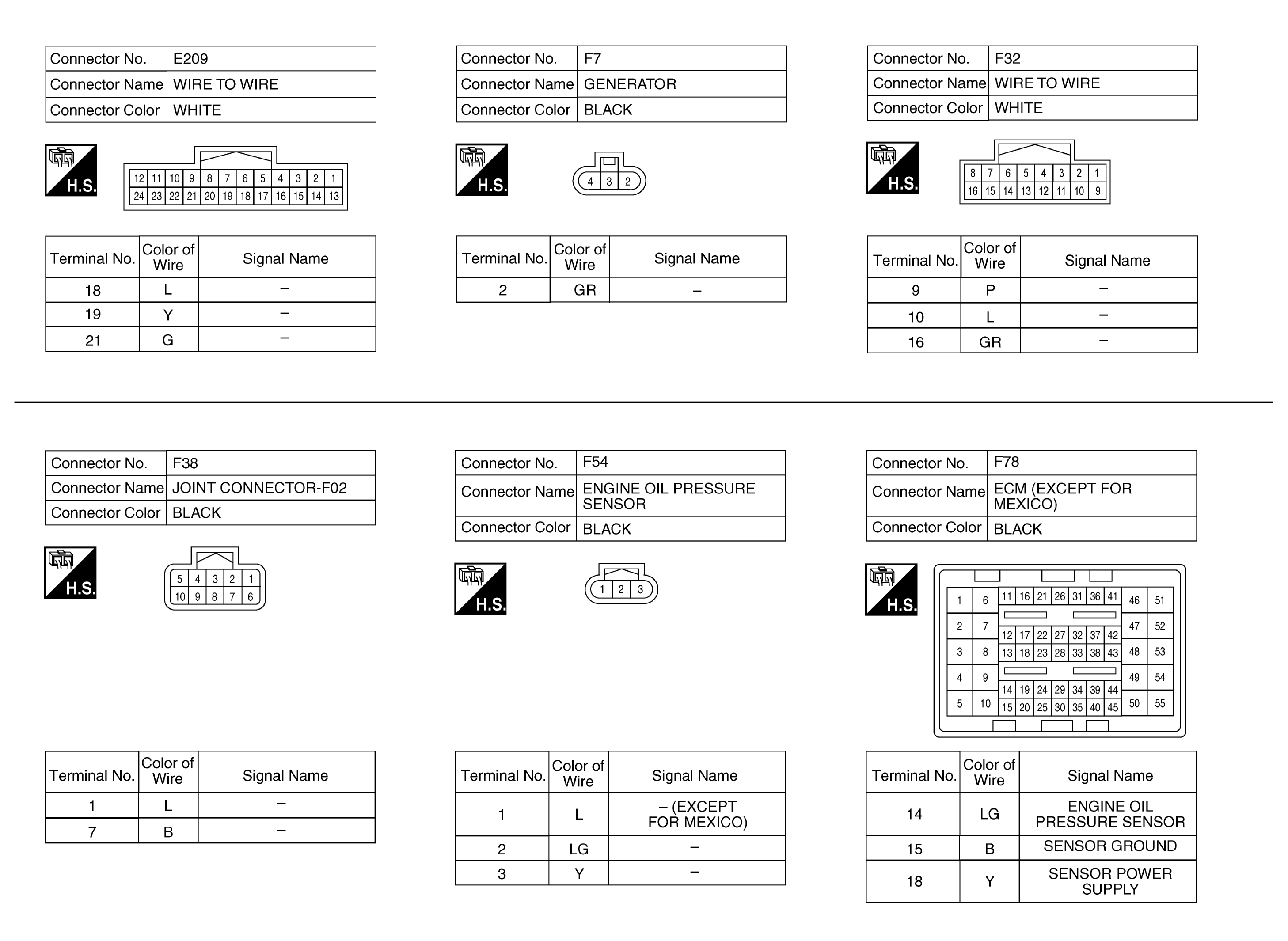

Fig 14: Meter System Connector End Views (Without Automatic Drive Positioner) (9 Of 15)

GNSABNIA6933GB-933

Courtesy of NISSAN NORTH AMERICA, INC.

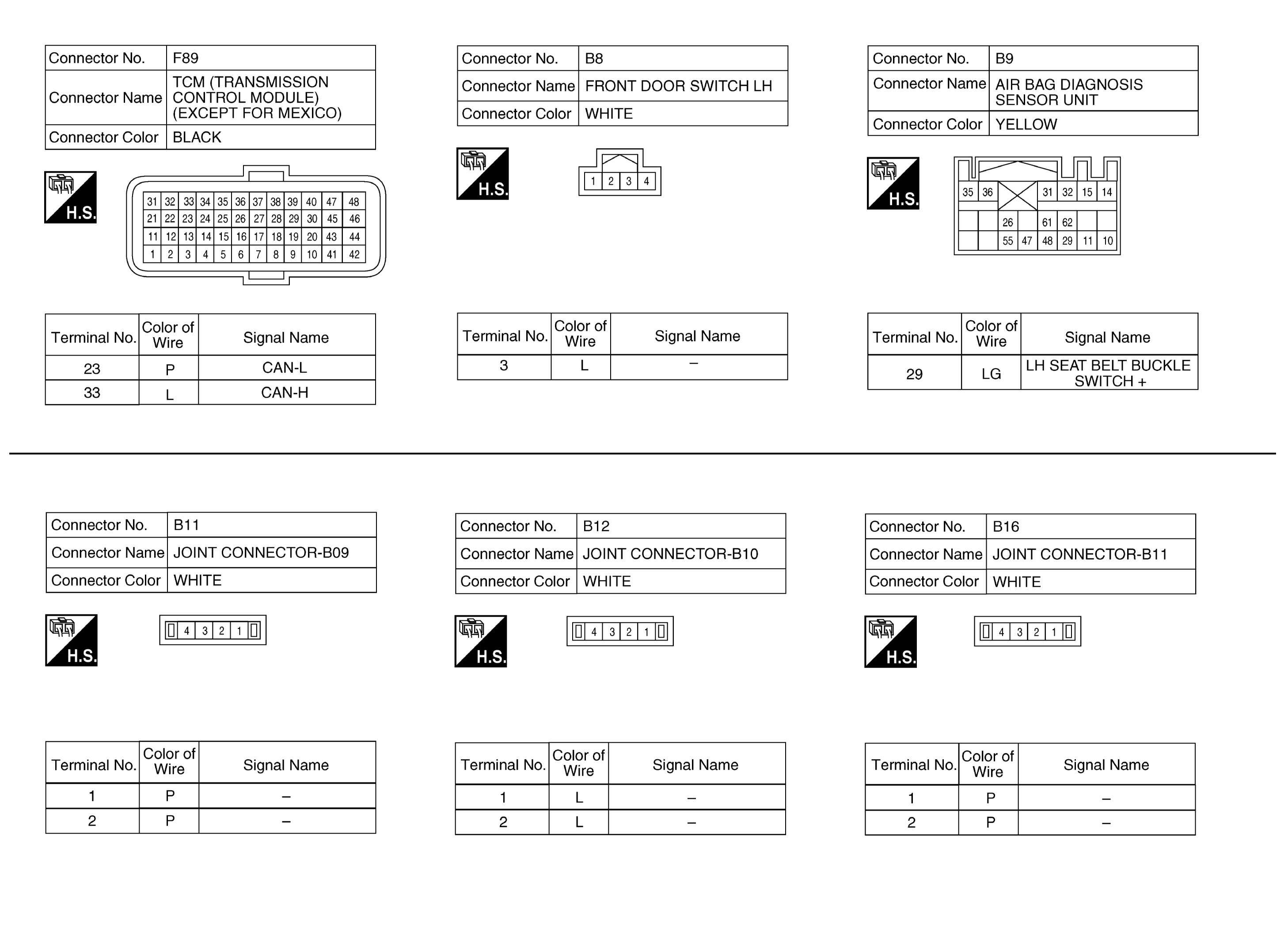

Fig 15: Meter System Connector End Views (Without Automatic Drive Positioner) (10 Of 15)

GNSABNIA6934GB-934

Courtesy of NISSAN NORTH AMERICA, INC.

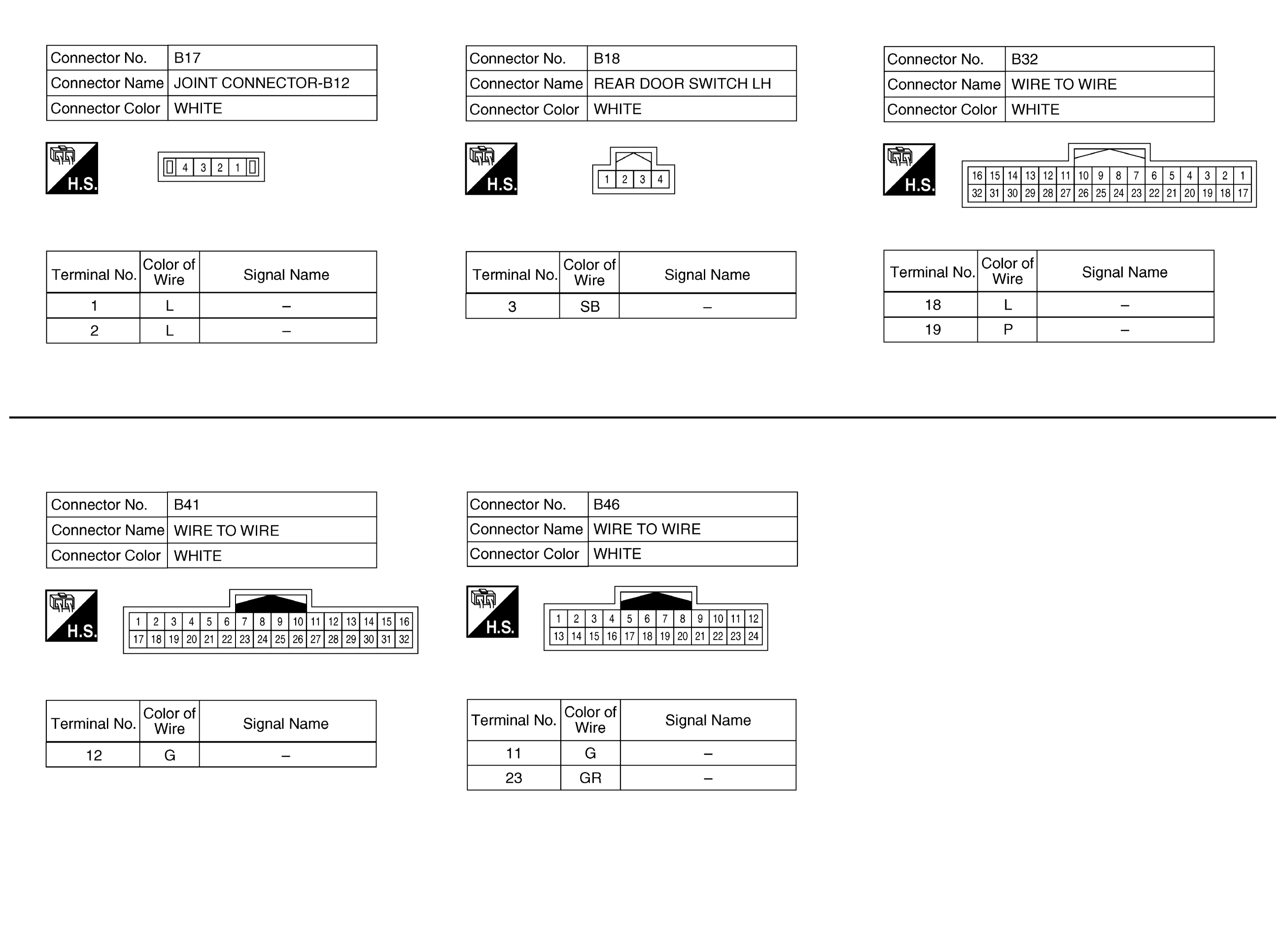

Fig 16: Meter System Connector End Views (Without Automatic Drive Positioner) (11 Of 15)

GNSABNIA6935GB-935

Courtesy of NISSAN NORTH AMERICA, INC.

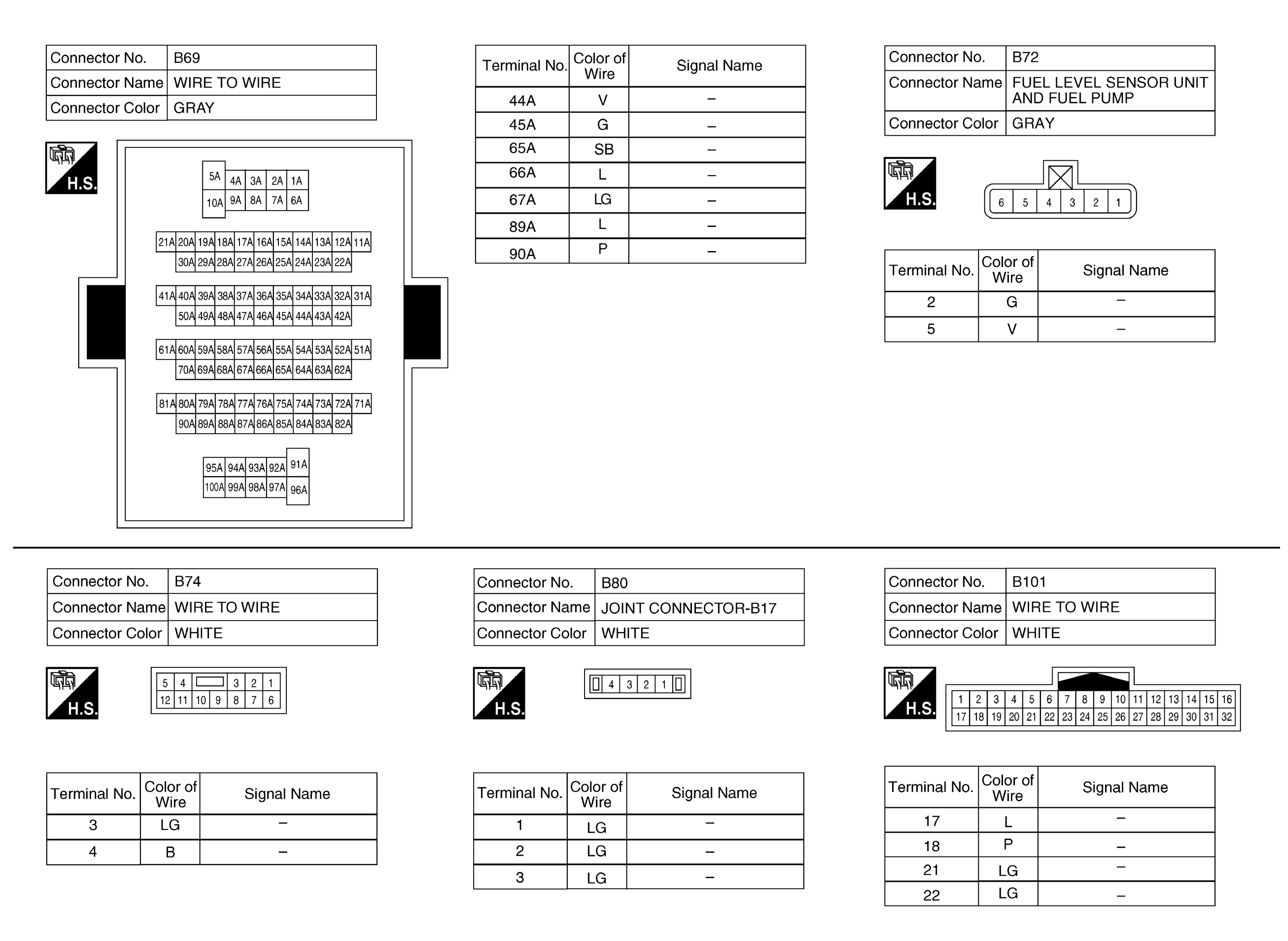

Fig 17: Meter System Connector End Views (Without Automatic Drive Positioner) (12 Of 15)

GNSABNIA6936GB-936

Courtesy of NISSAN NORTH AMERICA, INC.

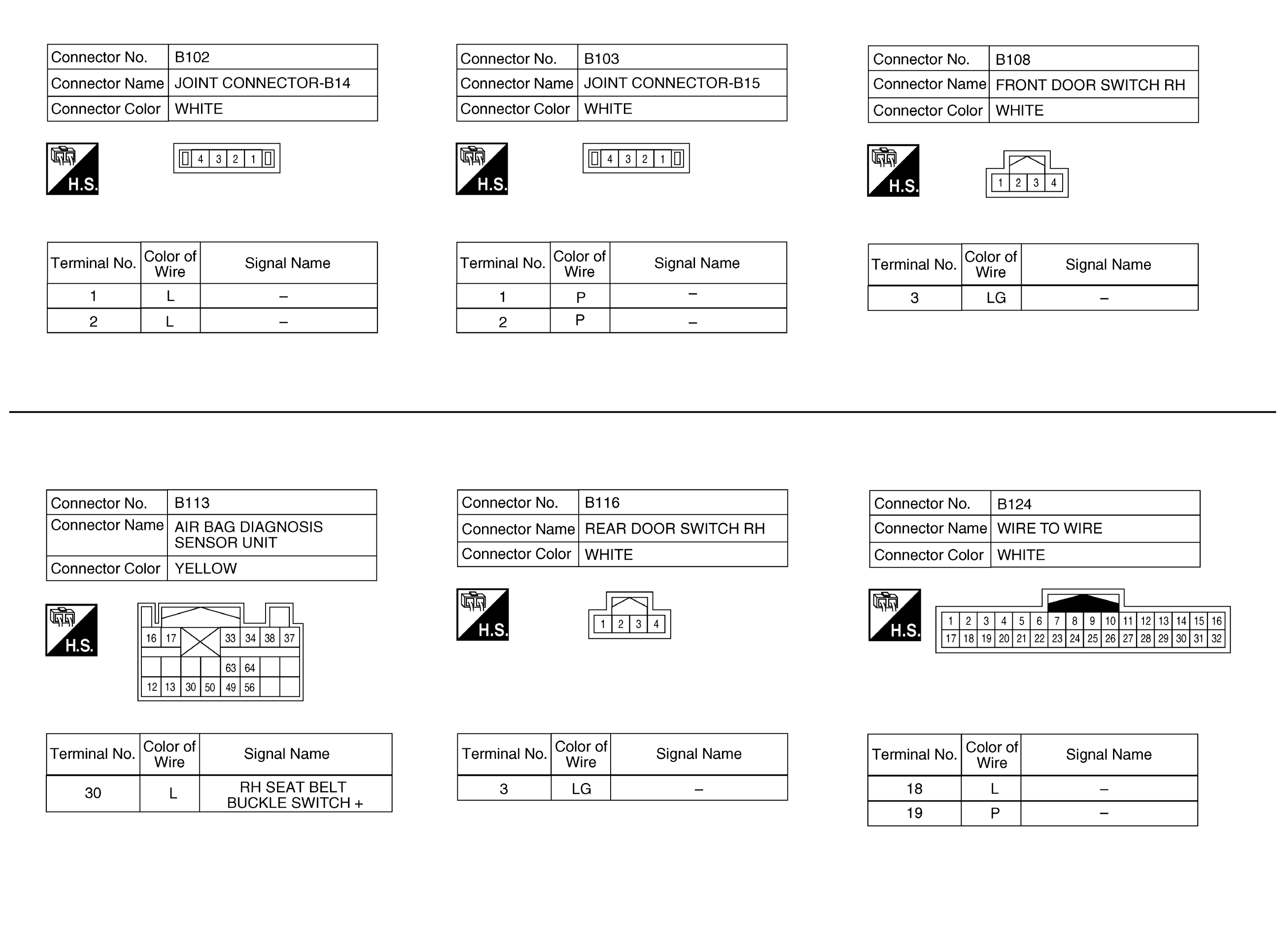

Fig 18: Meter System Connector End Views (Without Automatic Drive Positioner) (13 Of 15)

GNSABNIA6937GB-937

Courtesy of NISSAN NORTH AMERICA, INC.

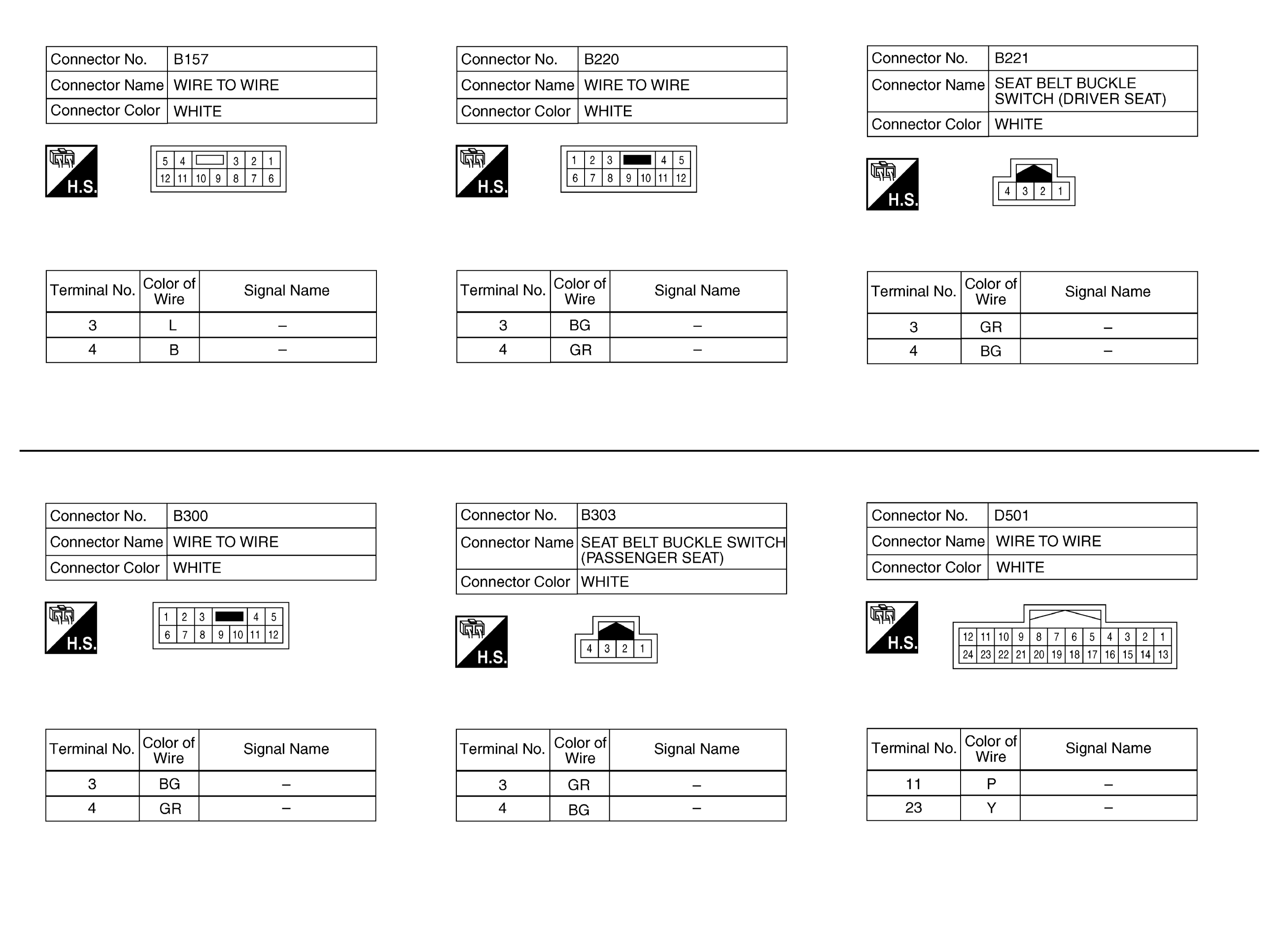

Fig 19: Meter System Connector End Views (Without Automatic Drive Positioner) (14 Of 15)

GNSABNIA6938GB-938

Courtesy of NISSAN NORTH AMERICA, INC.

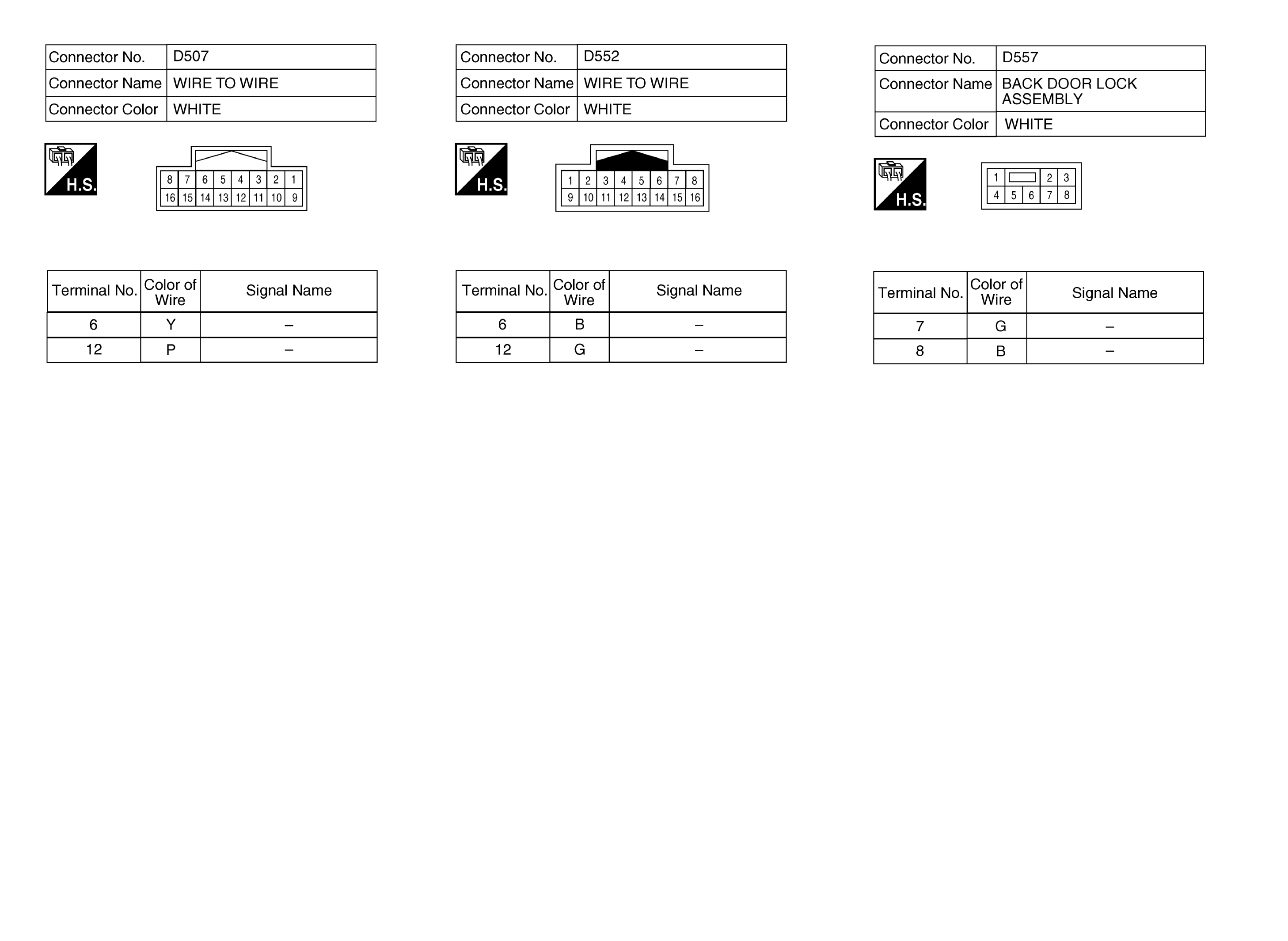

Fig 20: Meter System Connector End Views (Without Automatic Drive Positioner) (15 Of 15)

GNSABNIA6939GB-939

Courtesy of NISSAN NORTH AMERICA, INC.
