Wiring Diagram - With Automatic Drive Positioner

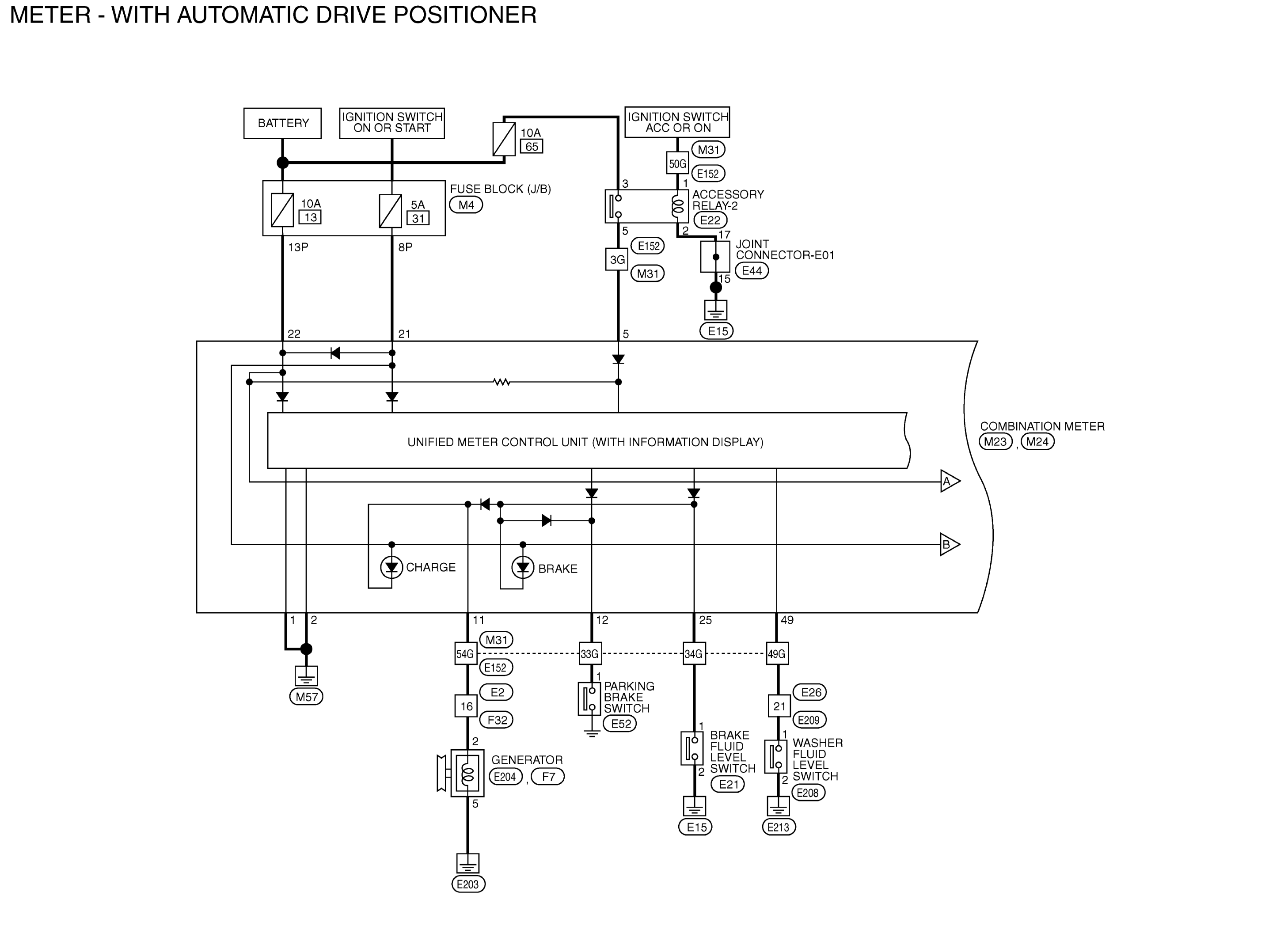

Fig 1: Meter System Wiring Diagram (With Automatic Drive Positioner) (1 Of 5)

GNSABNWA2539GB-539

Courtesy of NISSAN NORTH AMERICA, INC.

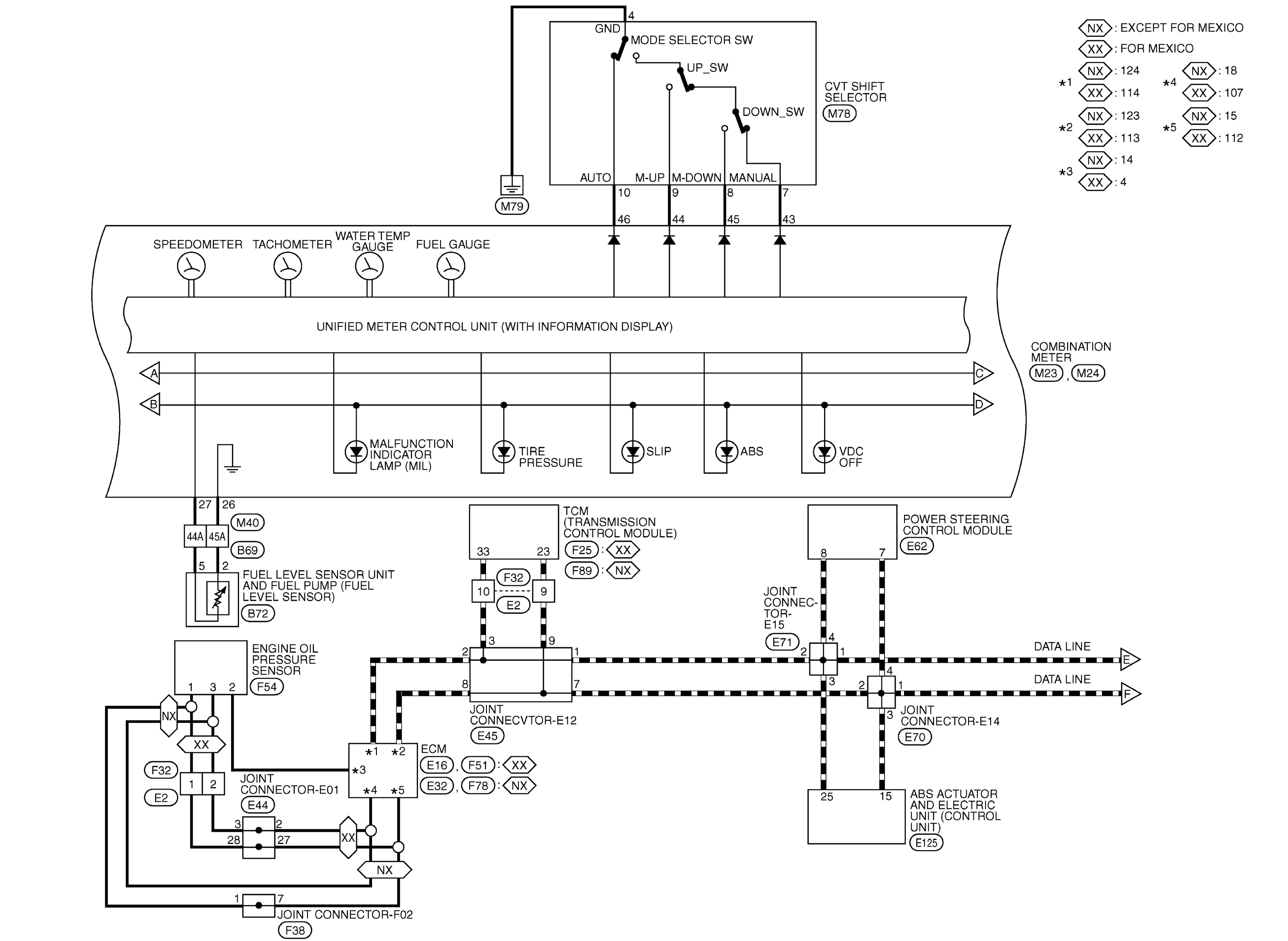

Fig 2: Meter System Wiring Diagram (With Automatic Drive Positioner) (2 Of 5)

GNSABNWA2540GB-540

Courtesy of NISSAN NORTH AMERICA, INC.

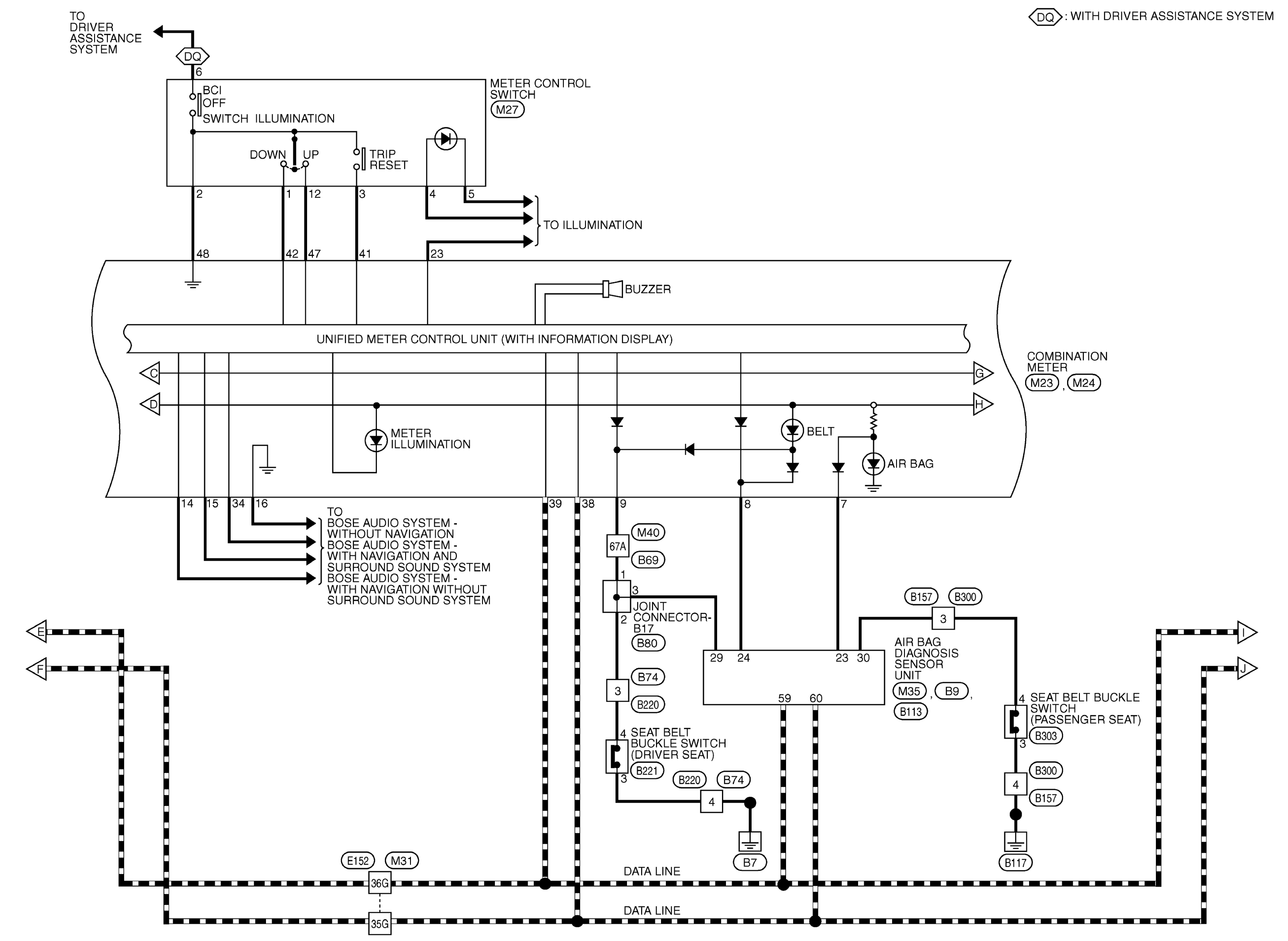

Fig 3: Meter System Wiring Diagram (With Automatic Drive Positioner) (3 Of 5)

GNSABNWA2541GB-541

Courtesy of NISSAN NORTH AMERICA, INC.

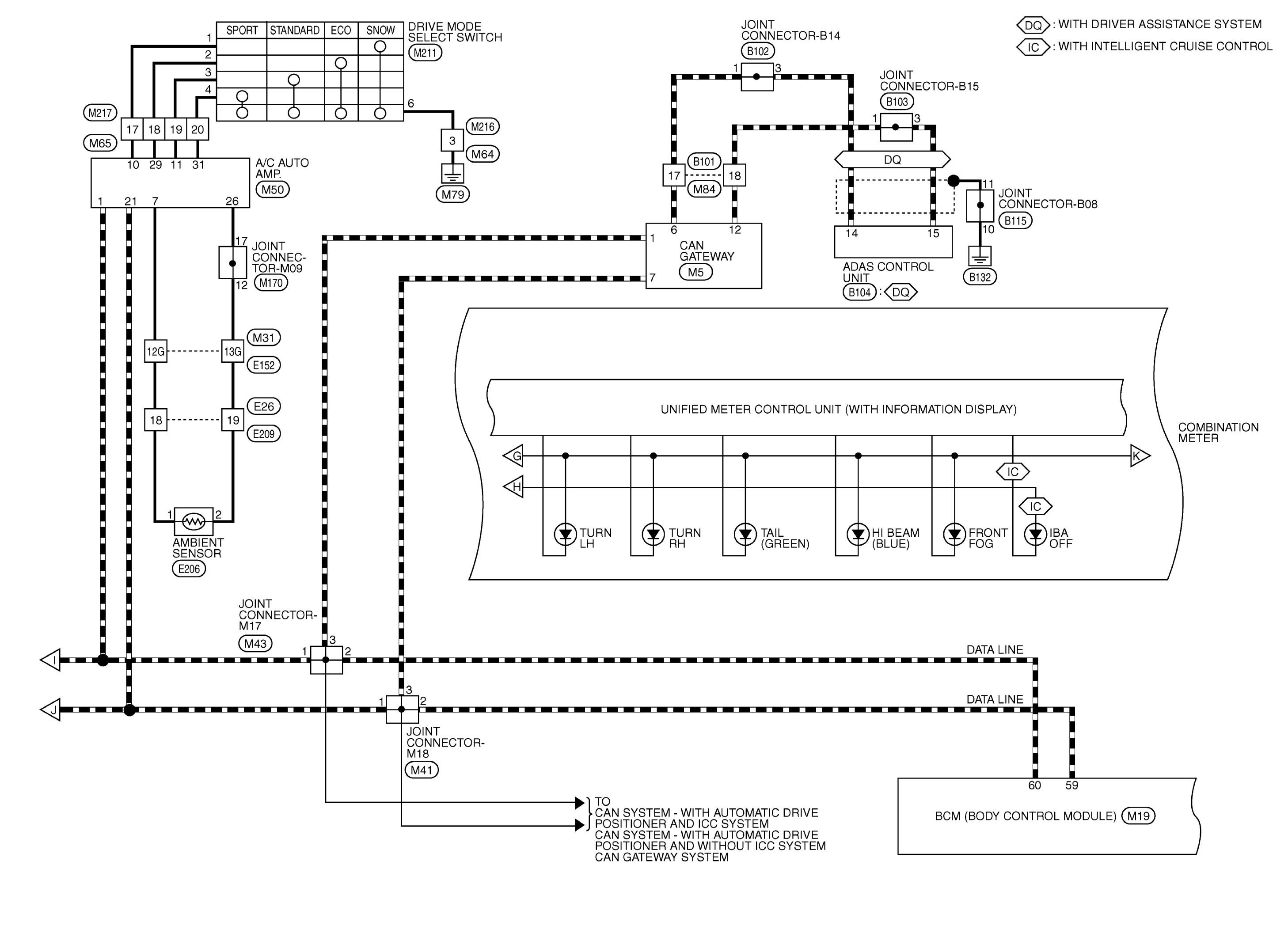

Fig 4: Meter System Wiring Diagram (With Automatic Drive Positioner) (4 Of 5)

GNSABNWA2388GB-388

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Meter System Wiring Diagram (With Automatic Drive Positioner) (5 Of 5)

G09427319

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Meter System Connector End Views (With Automatic Drive Positioner) (1 Of 15)

G09427320

Courtesy of NISSAN NORTH AMERICA, INC.

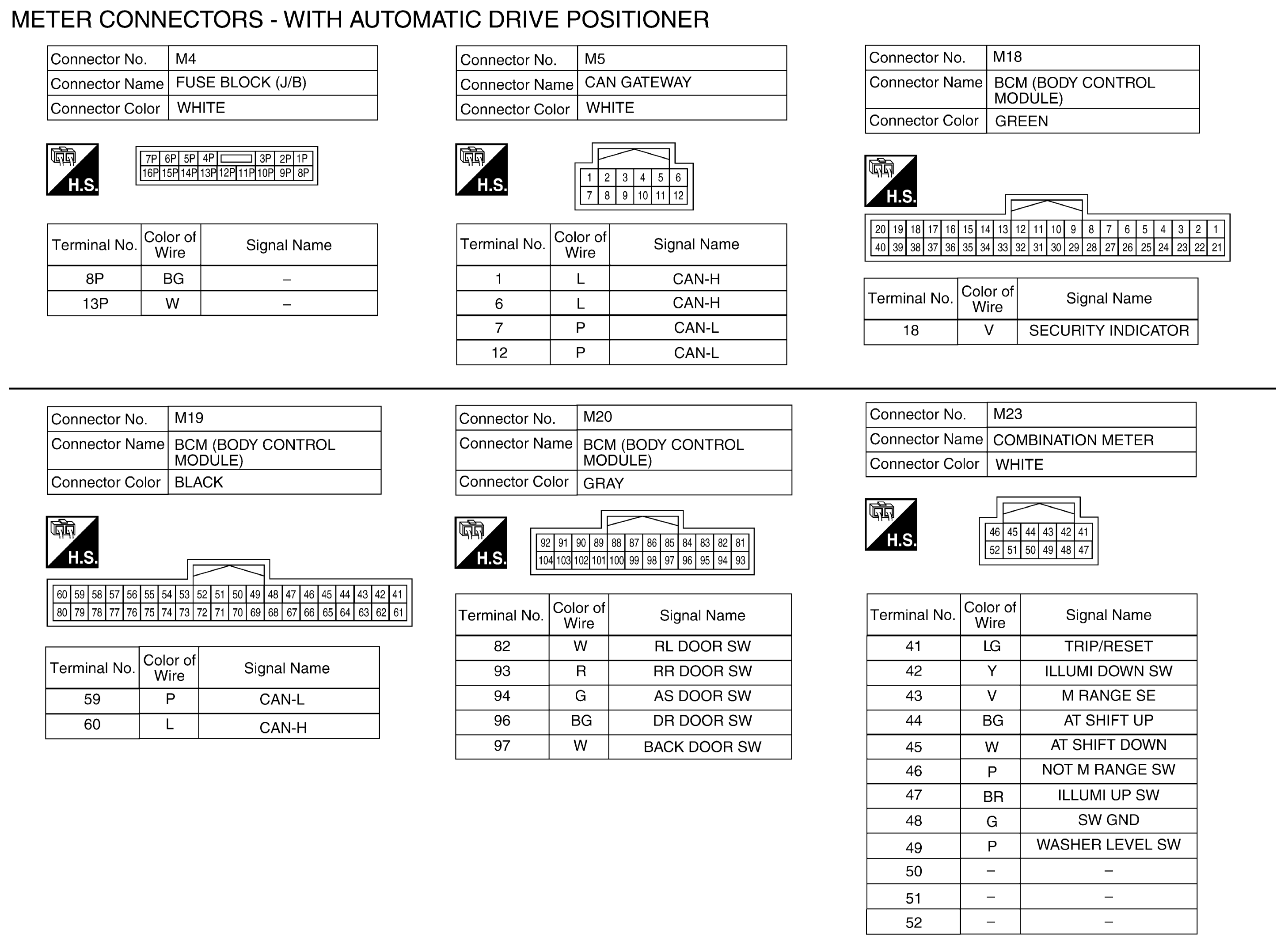

Fig 7: Meter System Connector End Views (With Automatic Drive Positioner) (2 Of 15)

G09427321

Courtesy of NISSAN NORTH AMERICA, INC.

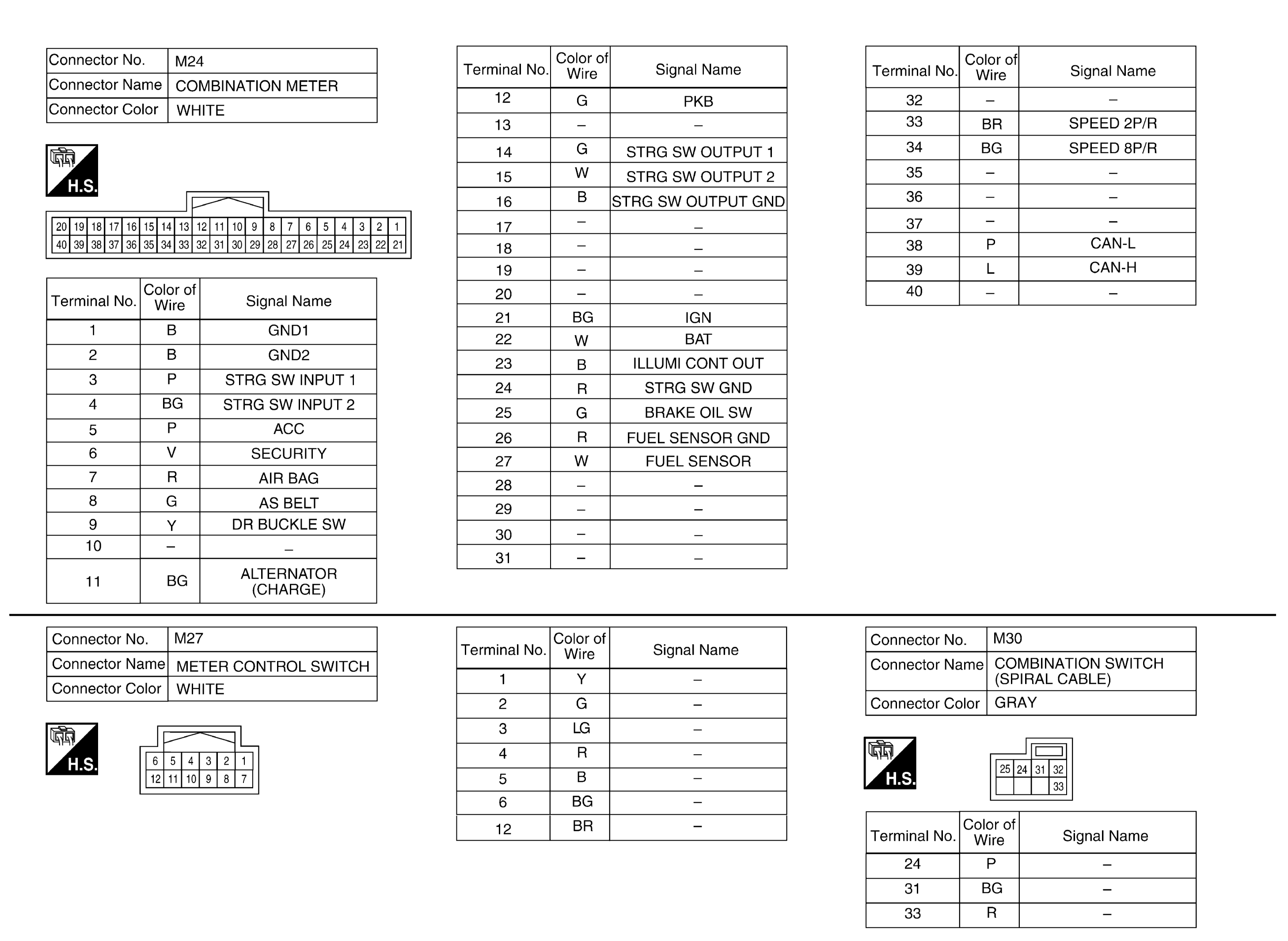

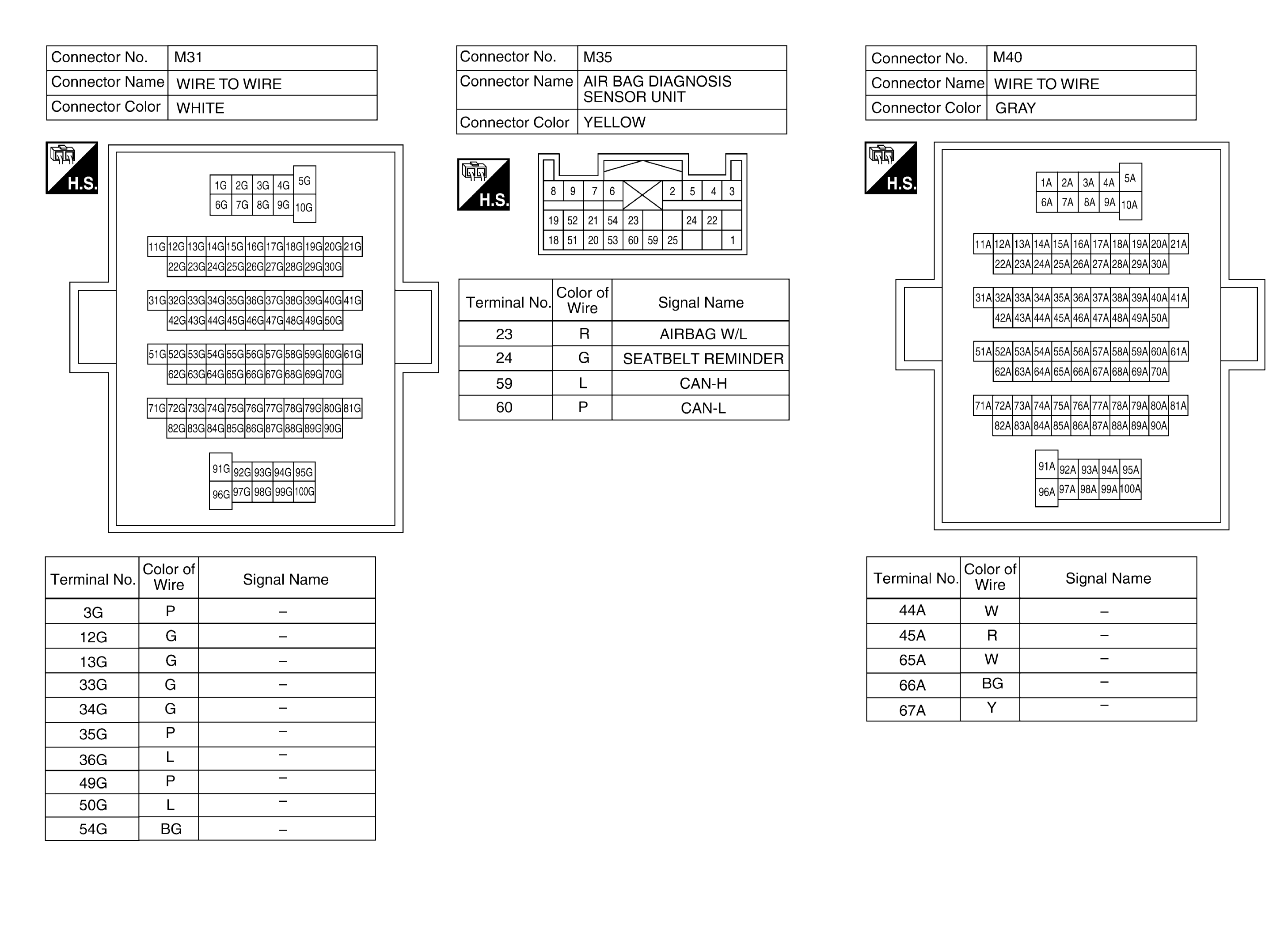

Fig 8: Meter System Connector End Views (With Automatic Drive Positioner) (3 Of 15)

G09427322

Courtesy of NISSAN NORTH AMERICA, INC.

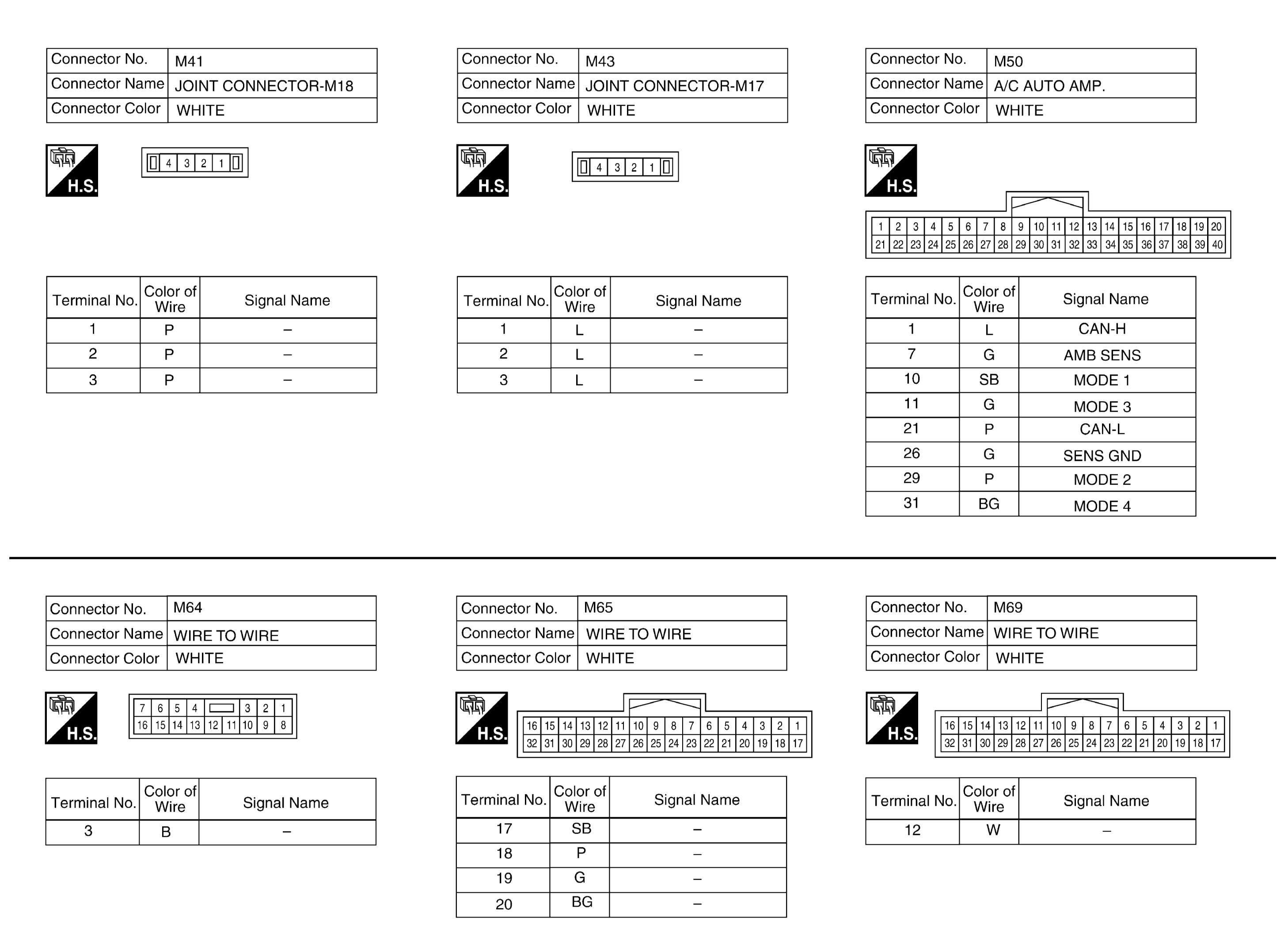

Fig 9: Meter System Connector End Views (With Automatic Drive Positioner) (4 Of 15)

G08852315

Courtesy of NISSAN NORTH AMERICA, INC.

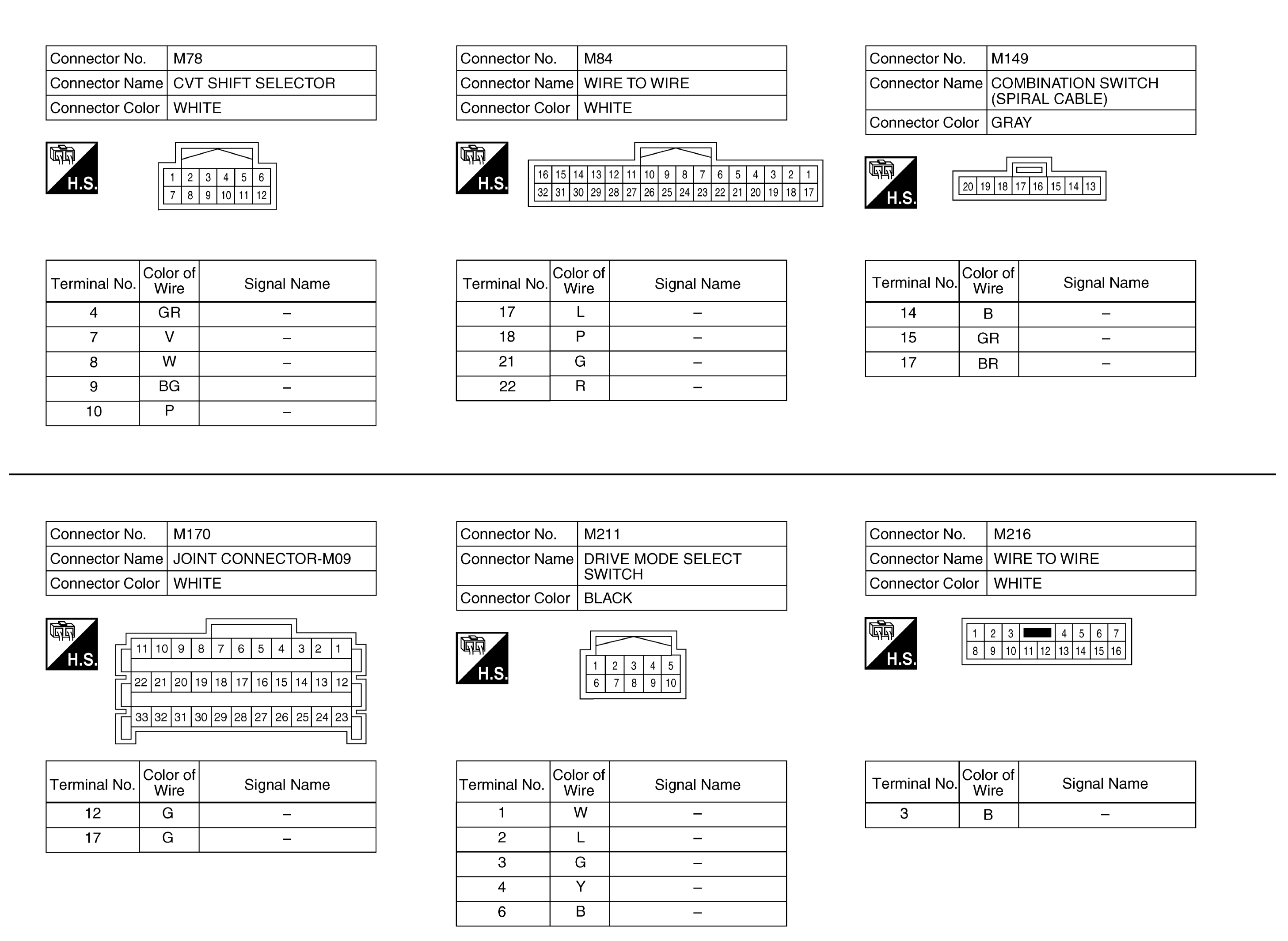

Fig 10: Meter System Connector End Views (With Automatic Drive Positioner) (5 Of 15)

GNSABNIA6919GB-919

Courtesy of NISSAN NORTH AMERICA, INC.

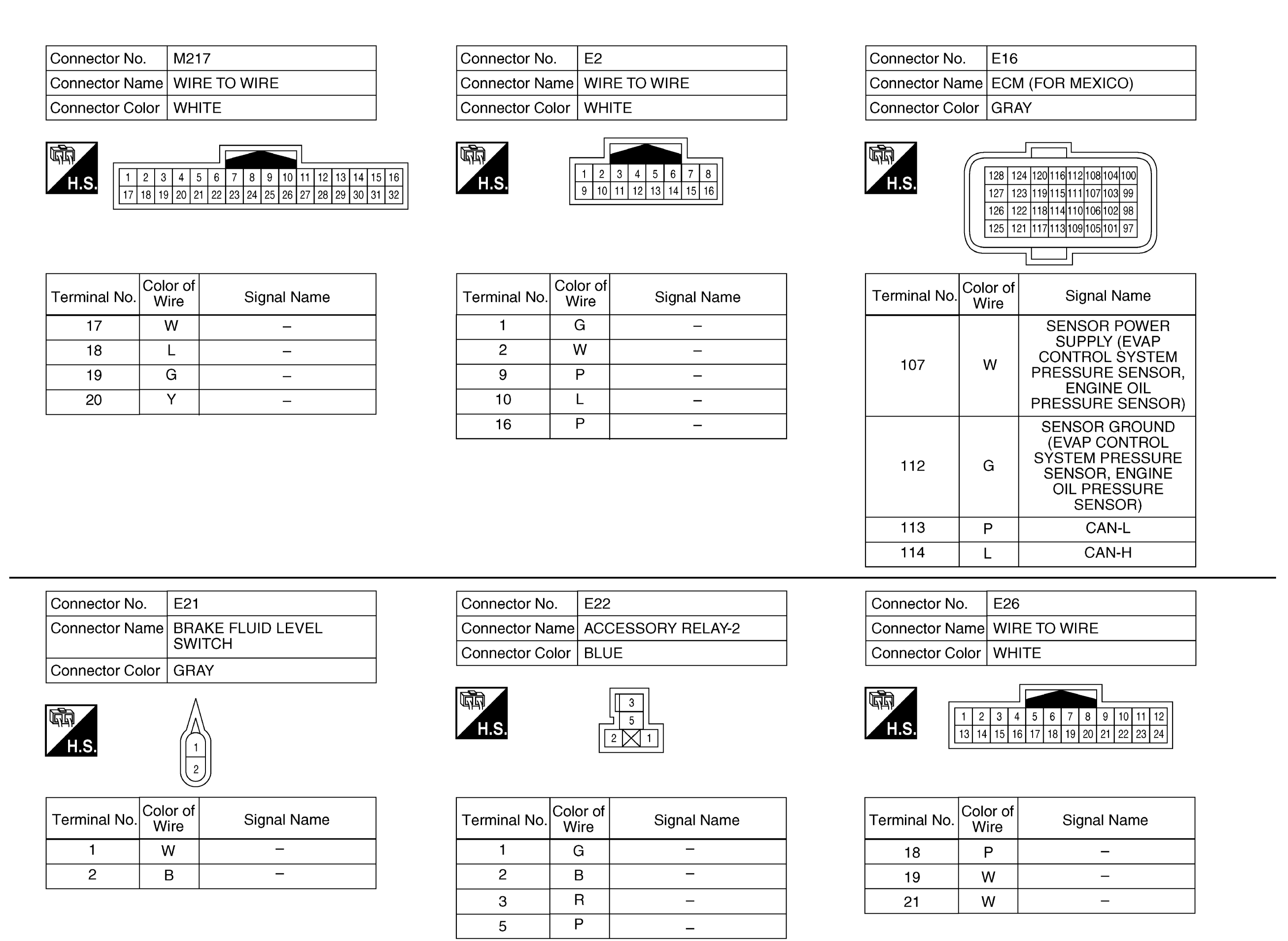

Fig 11: Meter System Connector End Views (With Automatic Drive Positioner) (6 Of 15)

GNSABNIA6920GB-920

Courtesy of NISSAN NORTH AMERICA, INC.

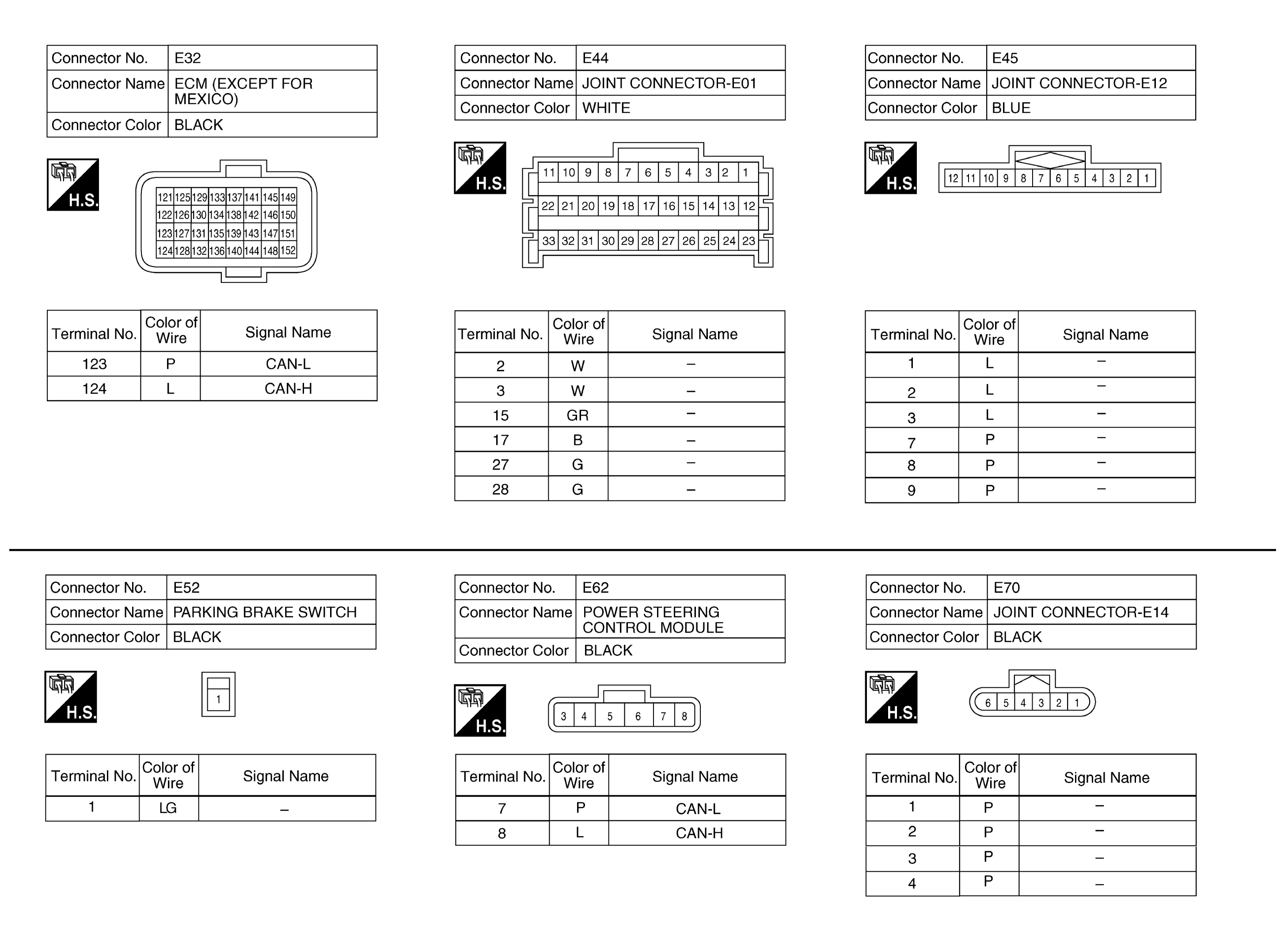

Fig 12: Meter System Connector End Views (With Automatic Drive Positioner) (7 Of 15)

GNSABNIA6921GB-921

Courtesy of NISSAN NORTH AMERICA, INC.

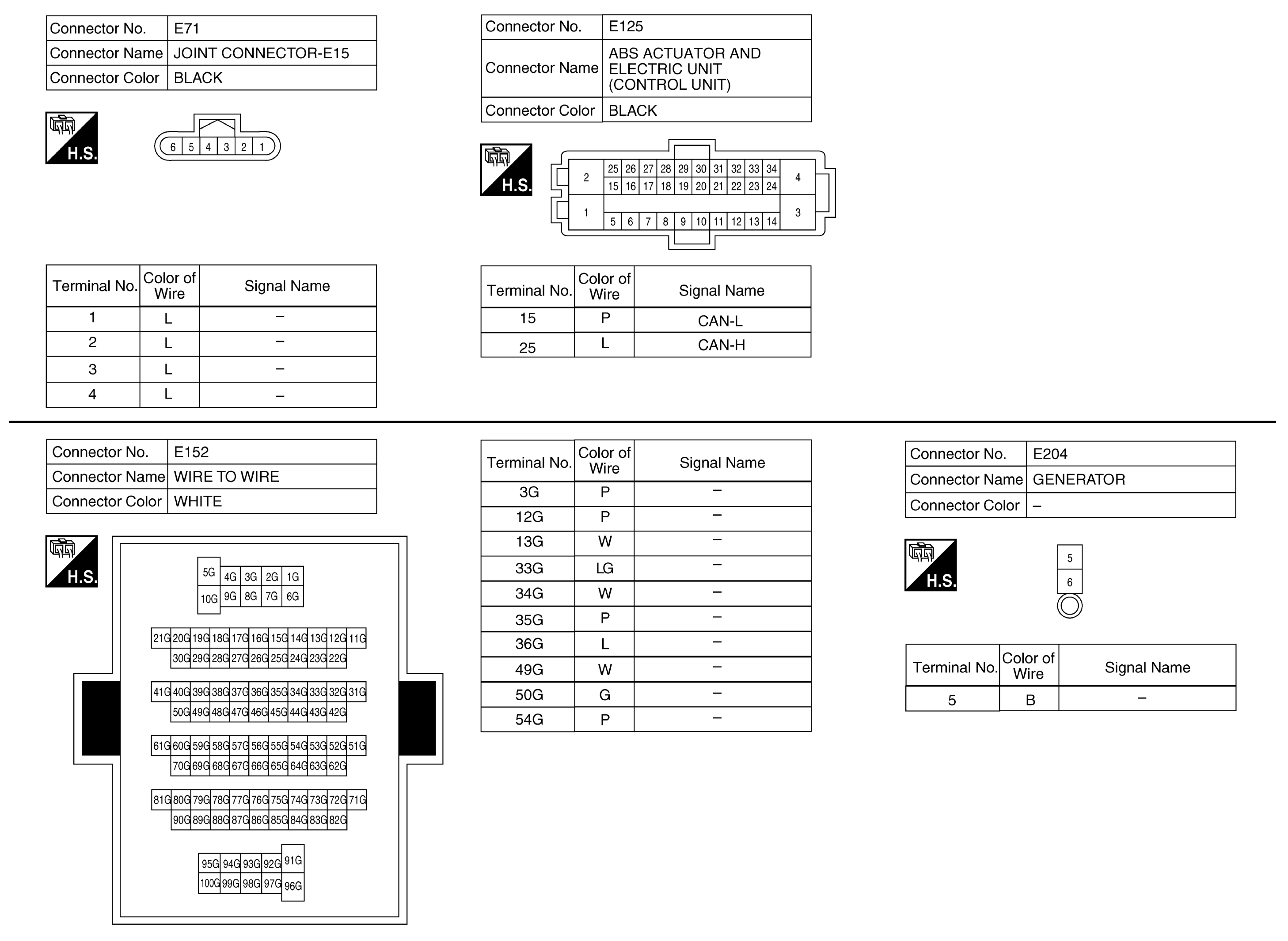

Fig 13: Meter System Connector End Views (With Automatic Drive Positioner) (8 Of 15)

GNSABNIA6922GB-922

Courtesy of NISSAN NORTH AMERICA, INC.

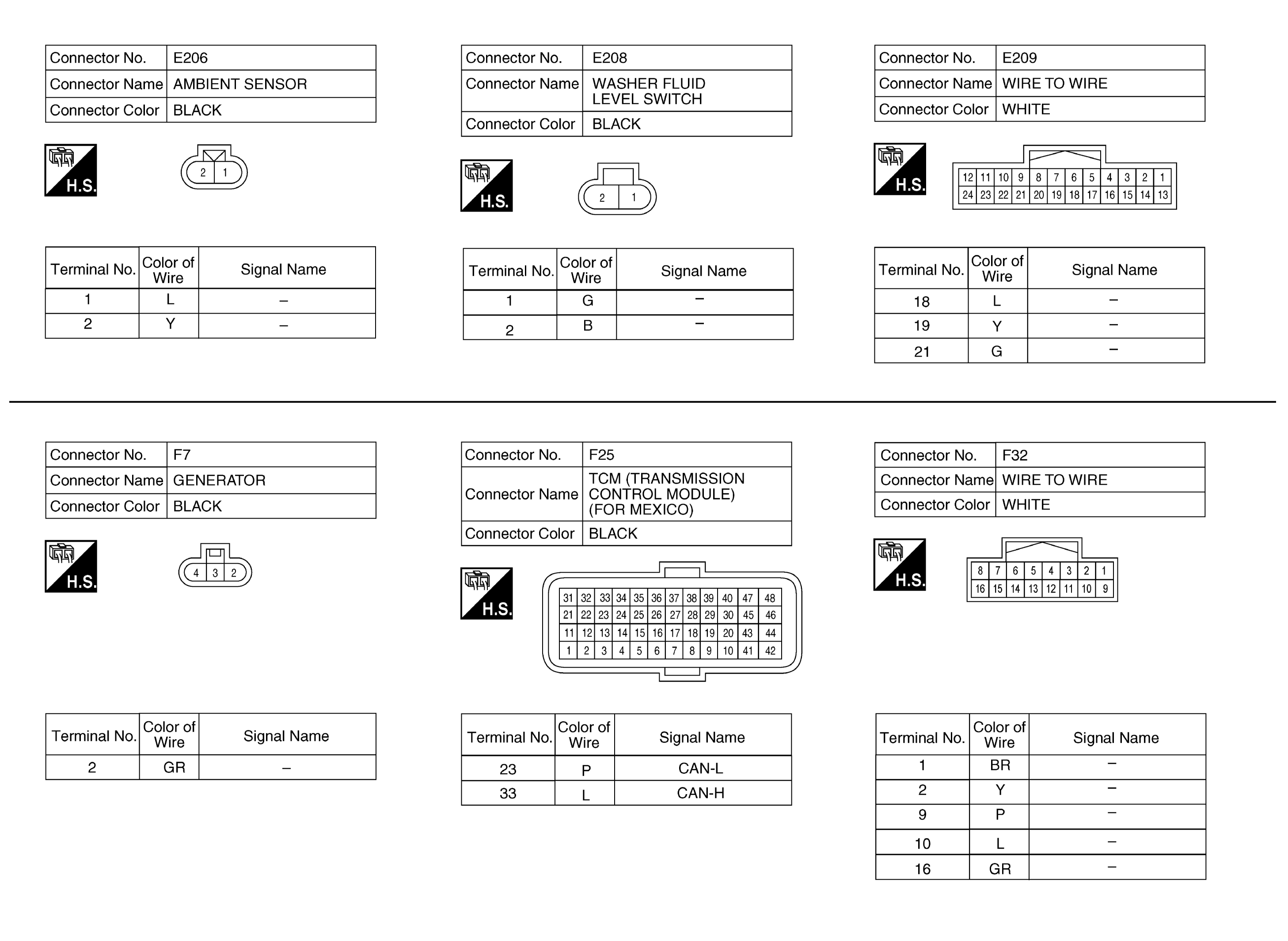

Fig 14: Meter System Connector End Views (With Automatic Drive Positioner) (9 Of 15)

GNSABNIA6923GB-923

Courtesy of NISSAN NORTH AMERICA, INC.

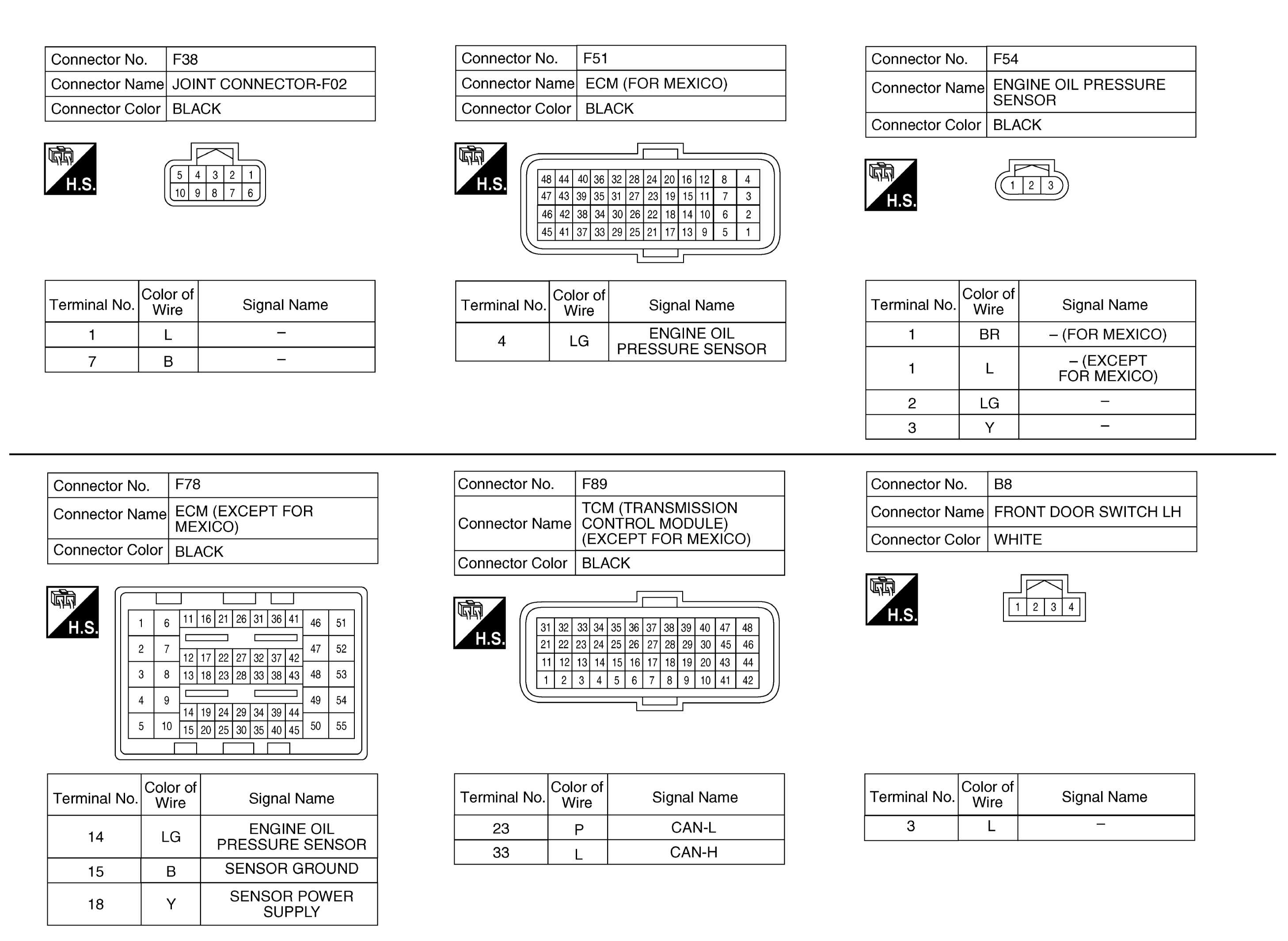

Fig 15: Meter System Connector End Views (With Automatic Drive Positioner) (10 Of 15)

GNSABNIA6924GB-924

Courtesy of NISSAN NORTH AMERICA, INC.

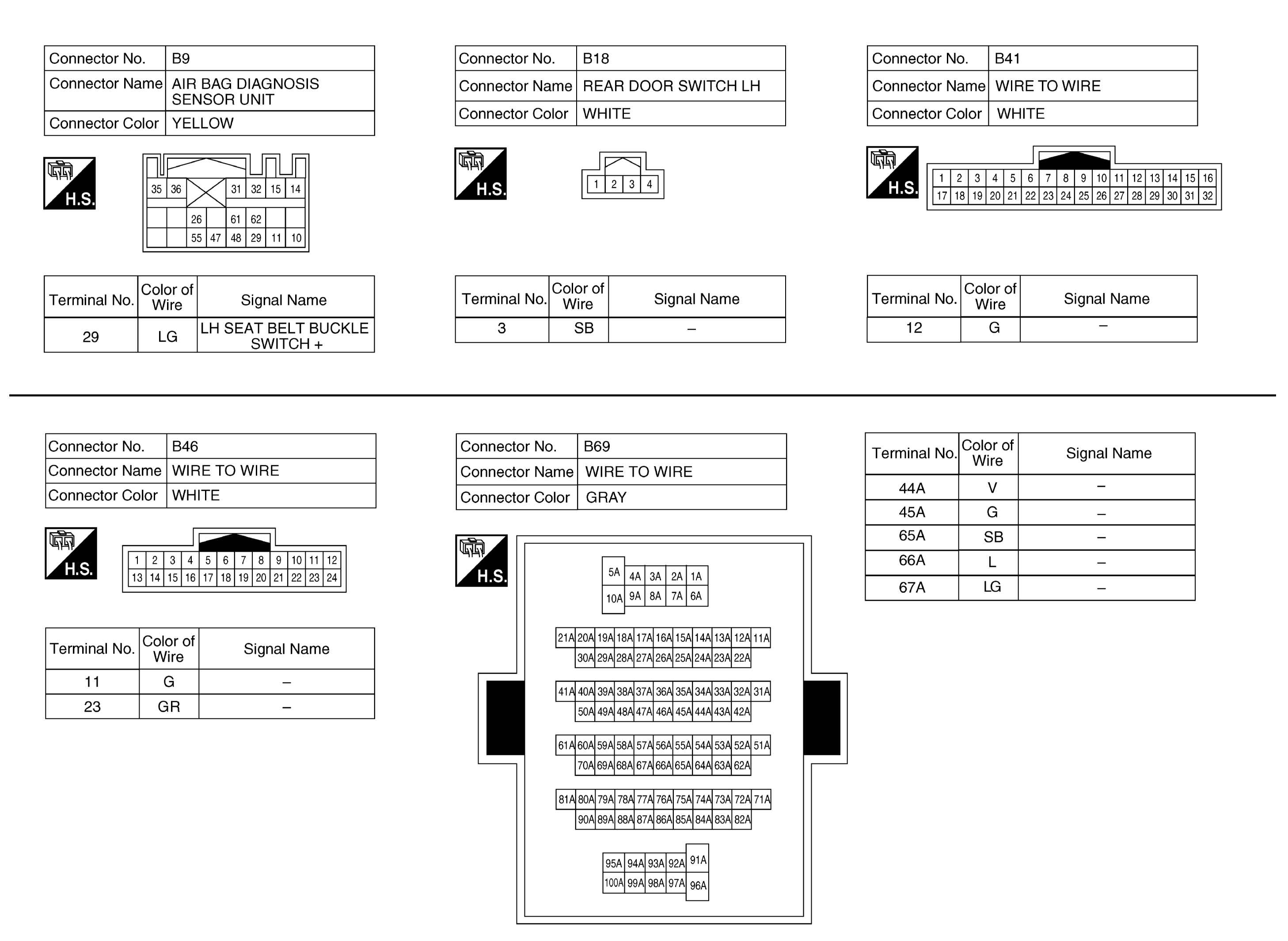

Fig 16: Meter System Connector End Views (With Automatic Drive Positioner) (11 Of 15)

GNSABNIA6925GB-925

Courtesy of NISSAN NORTH AMERICA, INC.

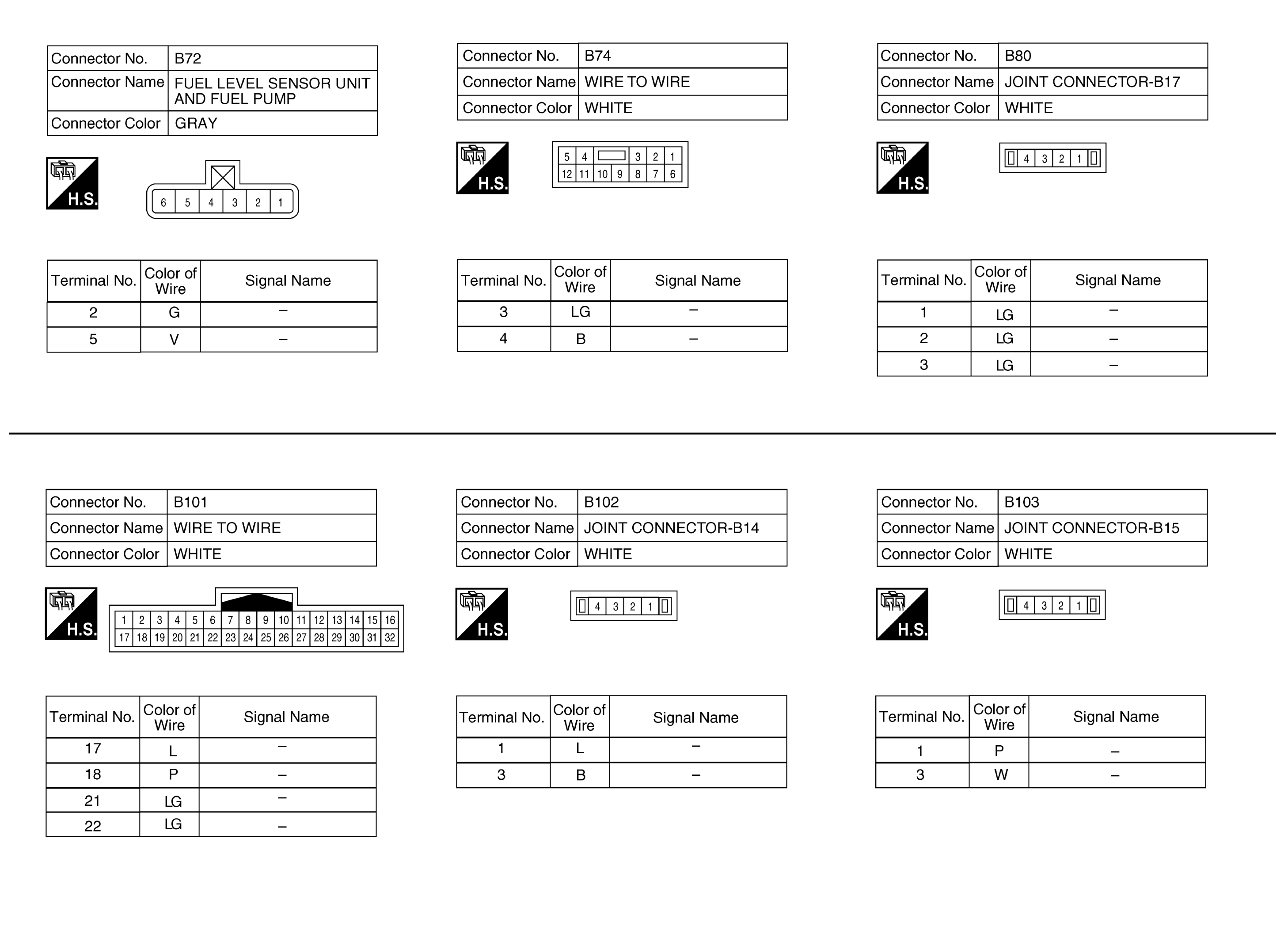

Fig 17: Meter System Connector End Views (With Automatic Drive Positioner) (12 Of 15)

GNSABNIA6926GB-926

Courtesy of NISSAN NORTH AMERICA, INC.

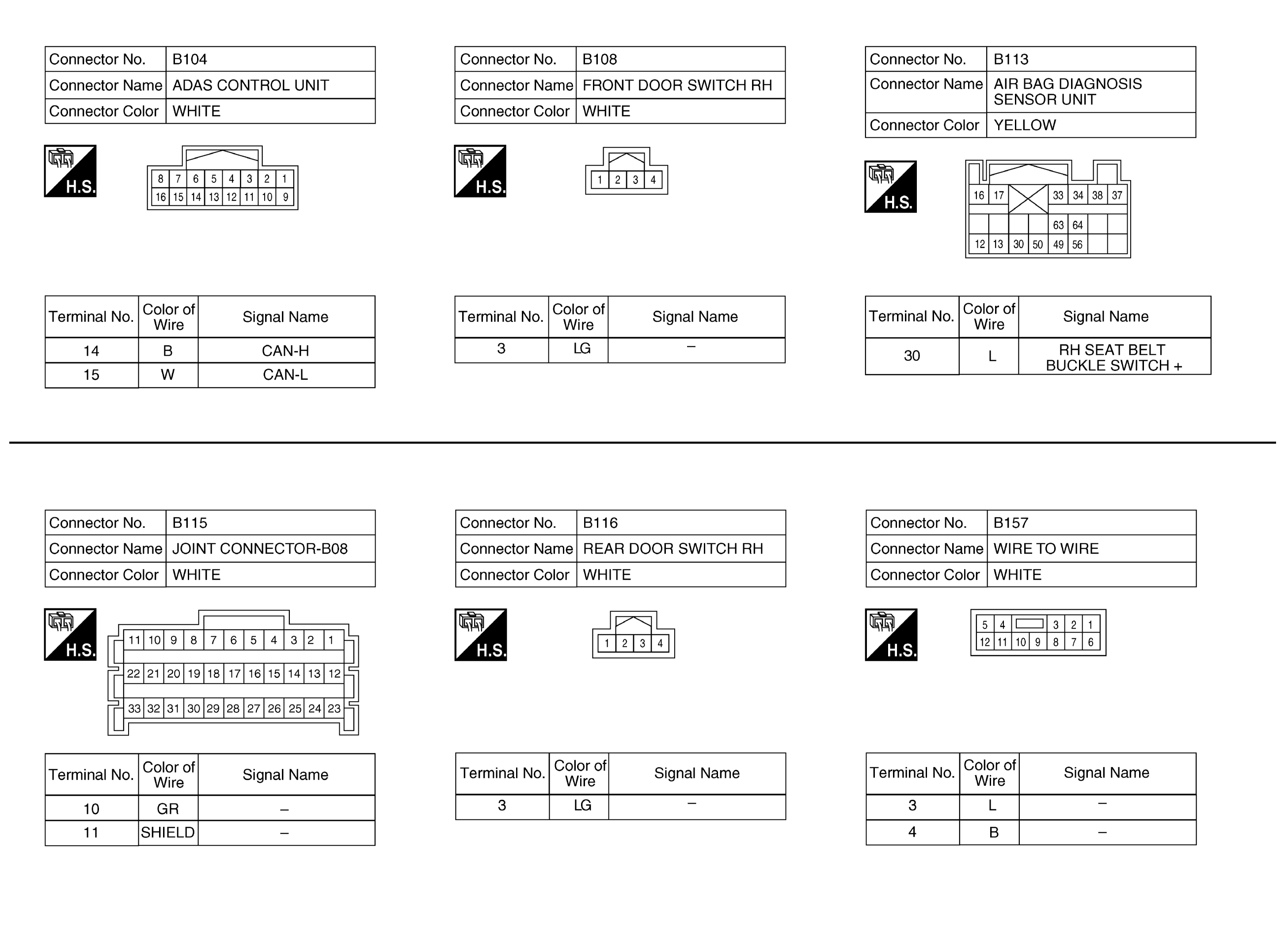

Fig 18: Meter System Connector End Views (With Automatic Drive Positioner) (13 Of 15)

GNSABNIA6927GB-927

Courtesy of NISSAN NORTH AMERICA, INC.

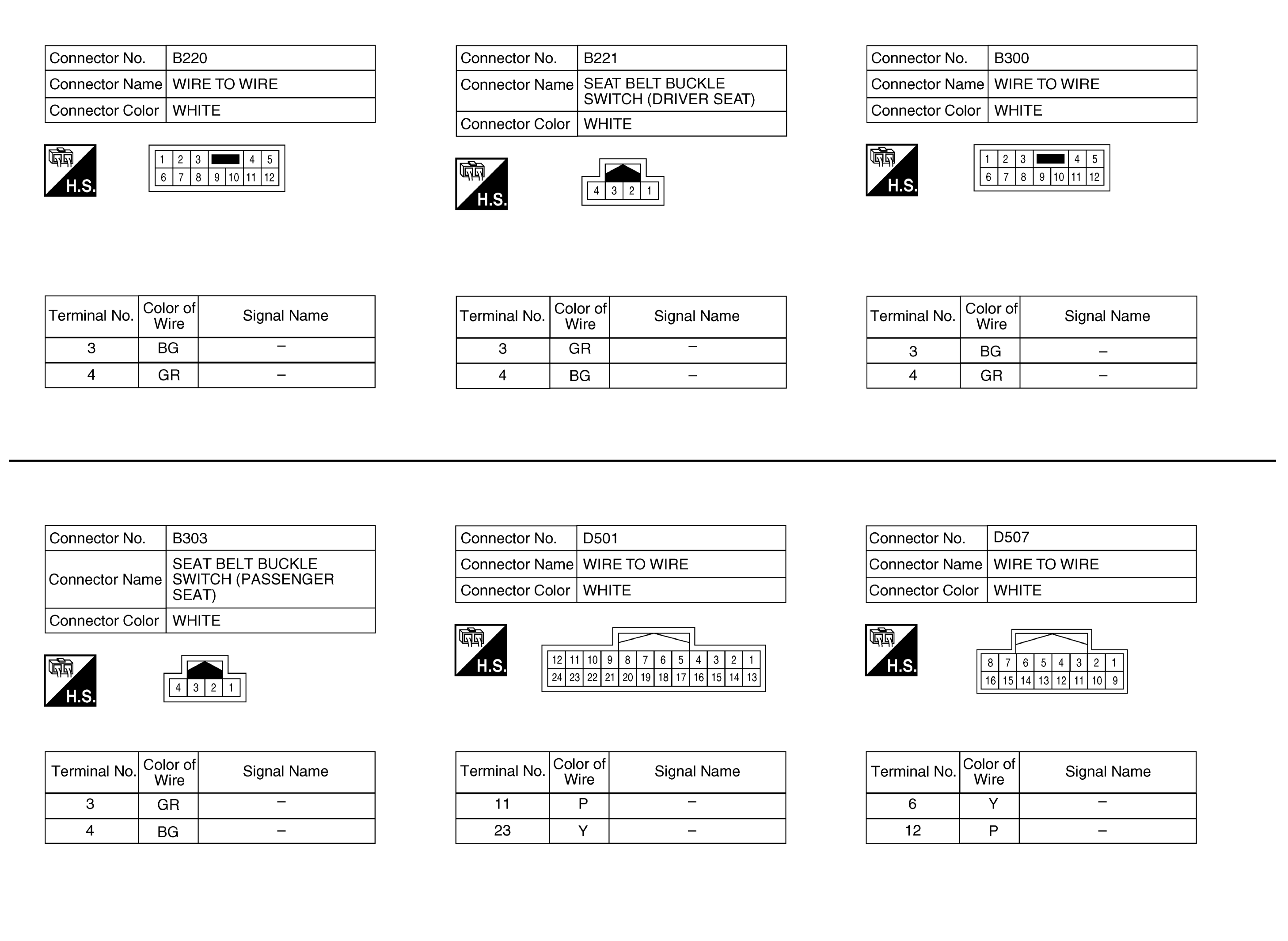

Fig 19: Meter System Connector End Views (With Automatic Drive Positioner) (14 Of 15)

GNSABNIA6928GB-928

Courtesy of NISSAN NORTH AMERICA, INC.

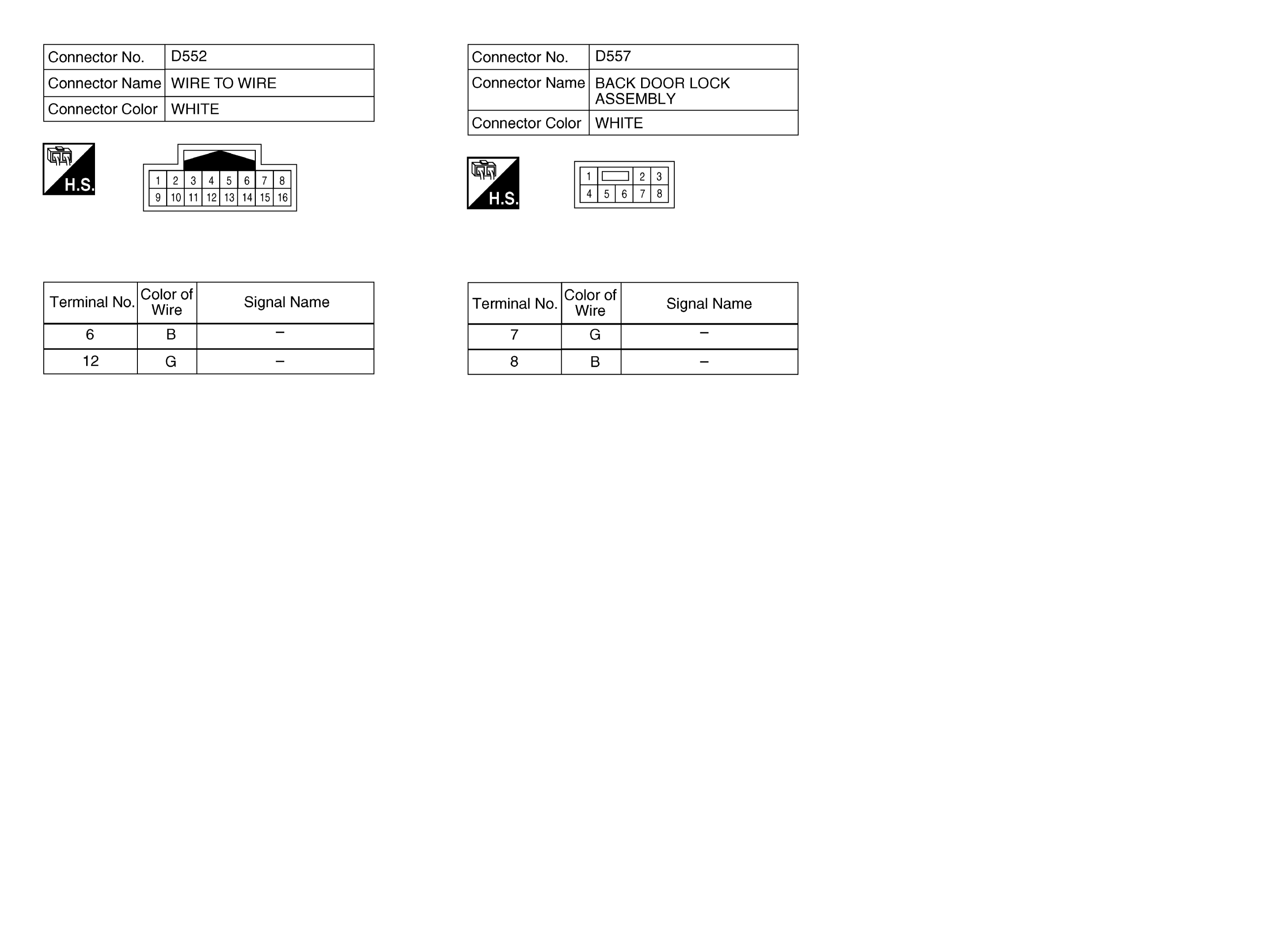

Fig 20: Meter System Connector End Views (With Automatic Drive Positioner) (15 Of 15)

GNSABNIA6929GB-929

Courtesy of NISSAN NORTH AMERICA, INC.
