Mechanical - Hydraulic
>>
Brake System (Except Hybrid)
>>
Removal And Installation
>>
Brake Pedal
>>
Exploded View
Exploded View

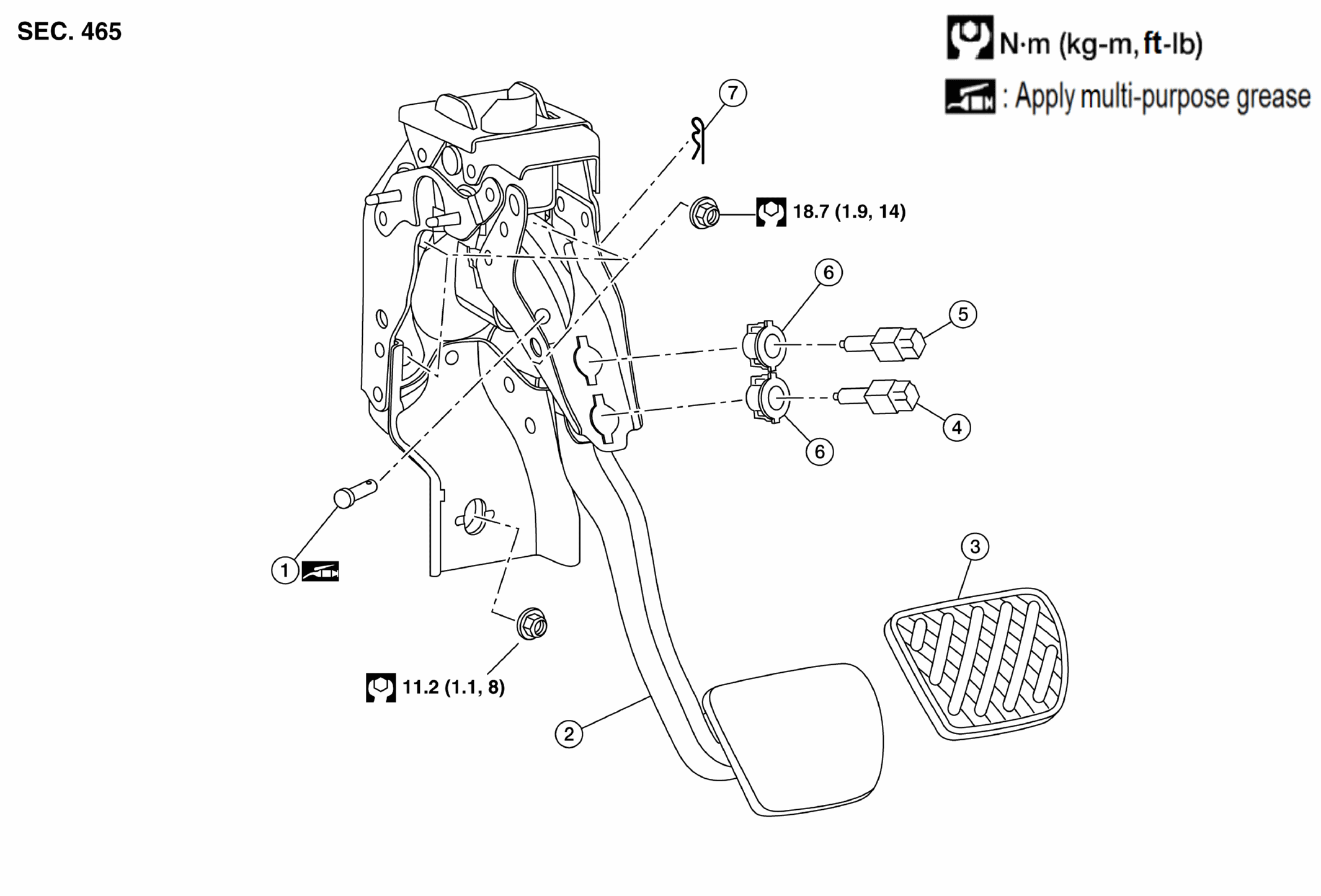

Fig 1: Exploded View Of Brake Pedal With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Clevis pin
2.
Brake pedal assembly
3.
Brake pedal pad
4.
Stop lamp switch
5.
Brake pedal position switch
6.
Clip
7.
Snap pin
