Intelligent Key System: Wiring Diagram

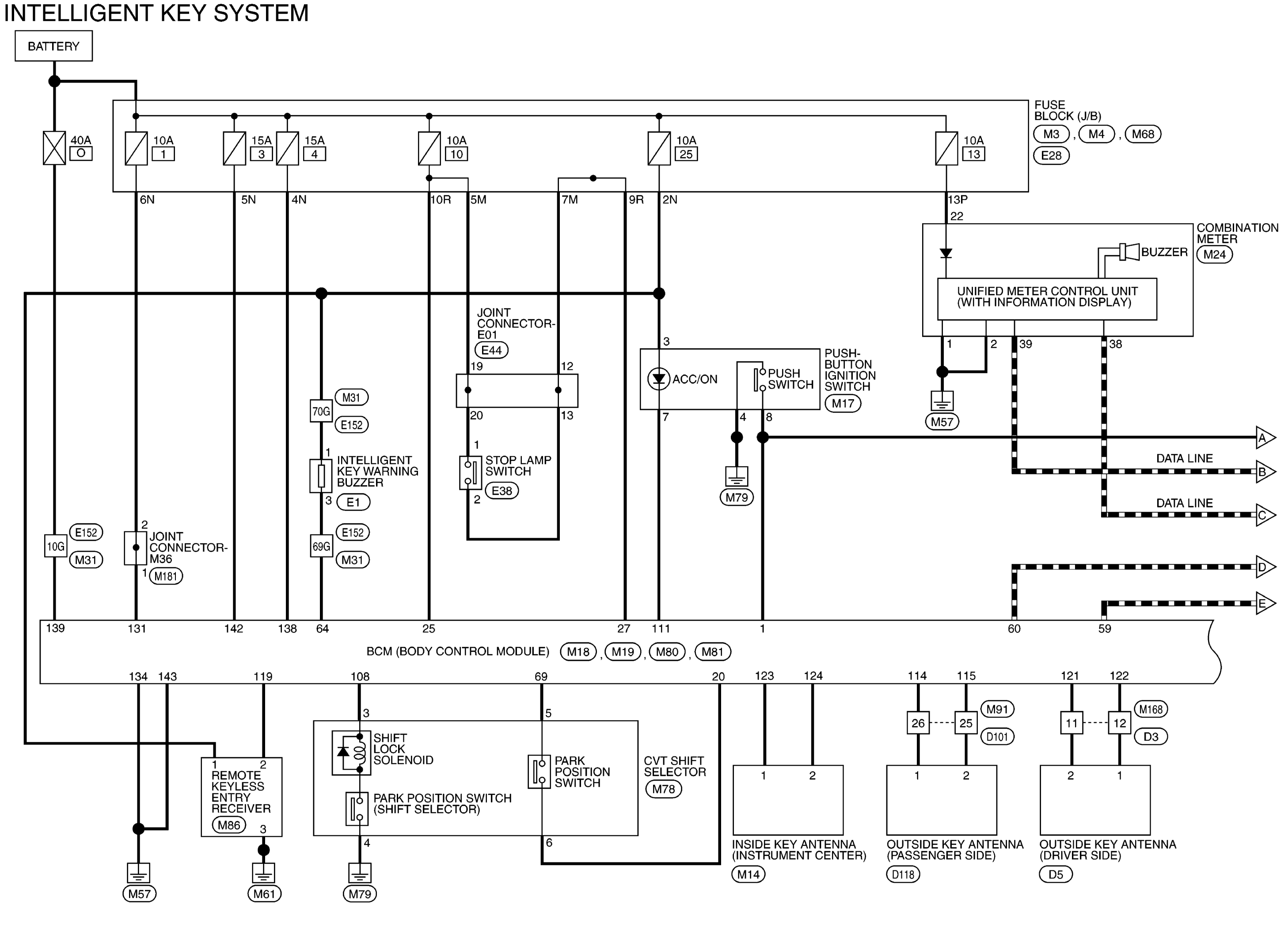

Fig 1: Intelligent Key System Wiring Diagram (1 Of 5)

GNSABKWA2765GB-765

Courtesy of NISSAN NORTH AMERICA, INC.

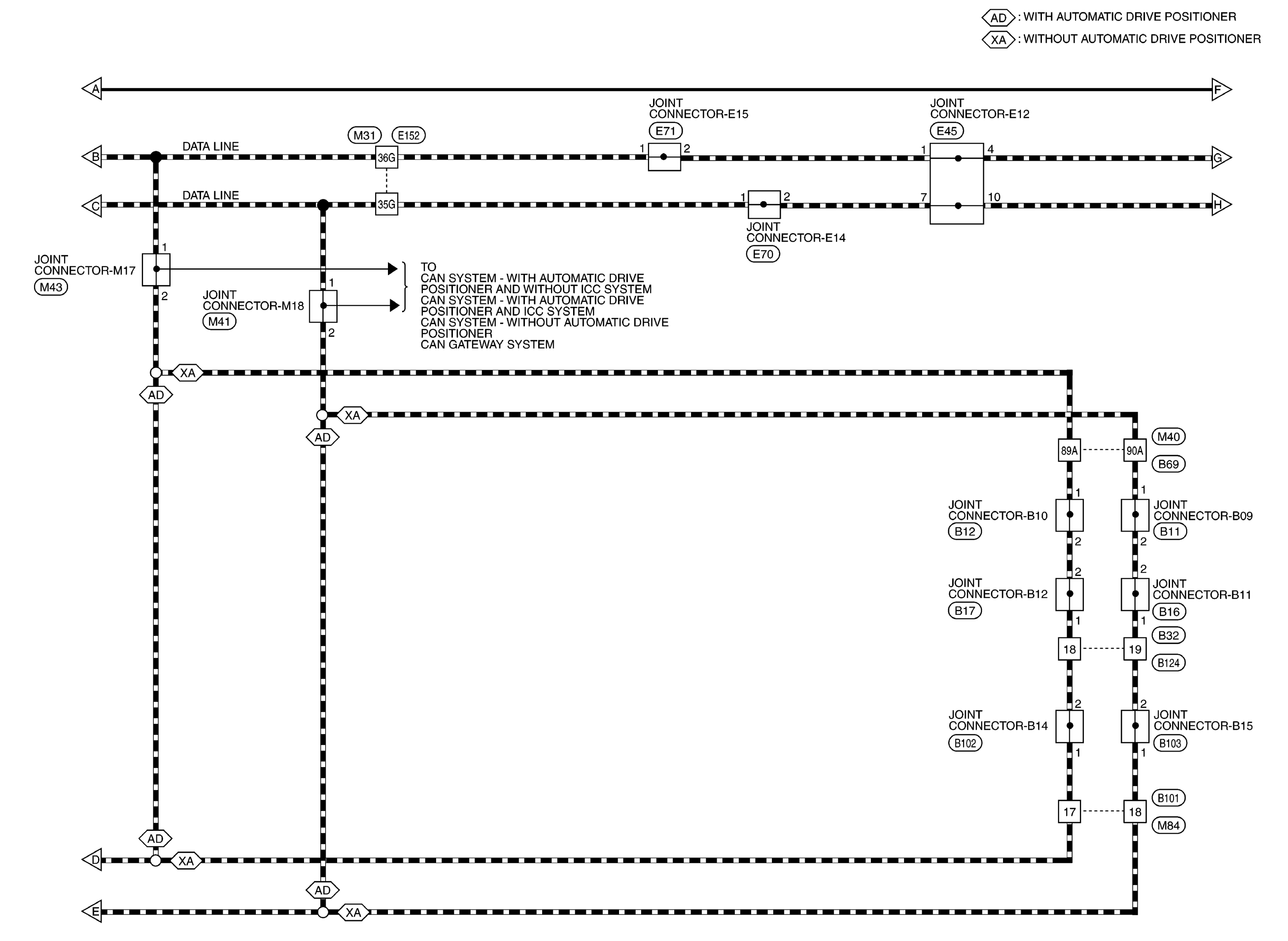

Fig 2: Intelligent Key System Wiring Diagram (2 Of 5)

GNSABKWA2766GB-766

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Intelligent Key System Wiring Diagram (3 Of 5)

G09426229

Courtesy of NISSAN NORTH AMERICA, INC.

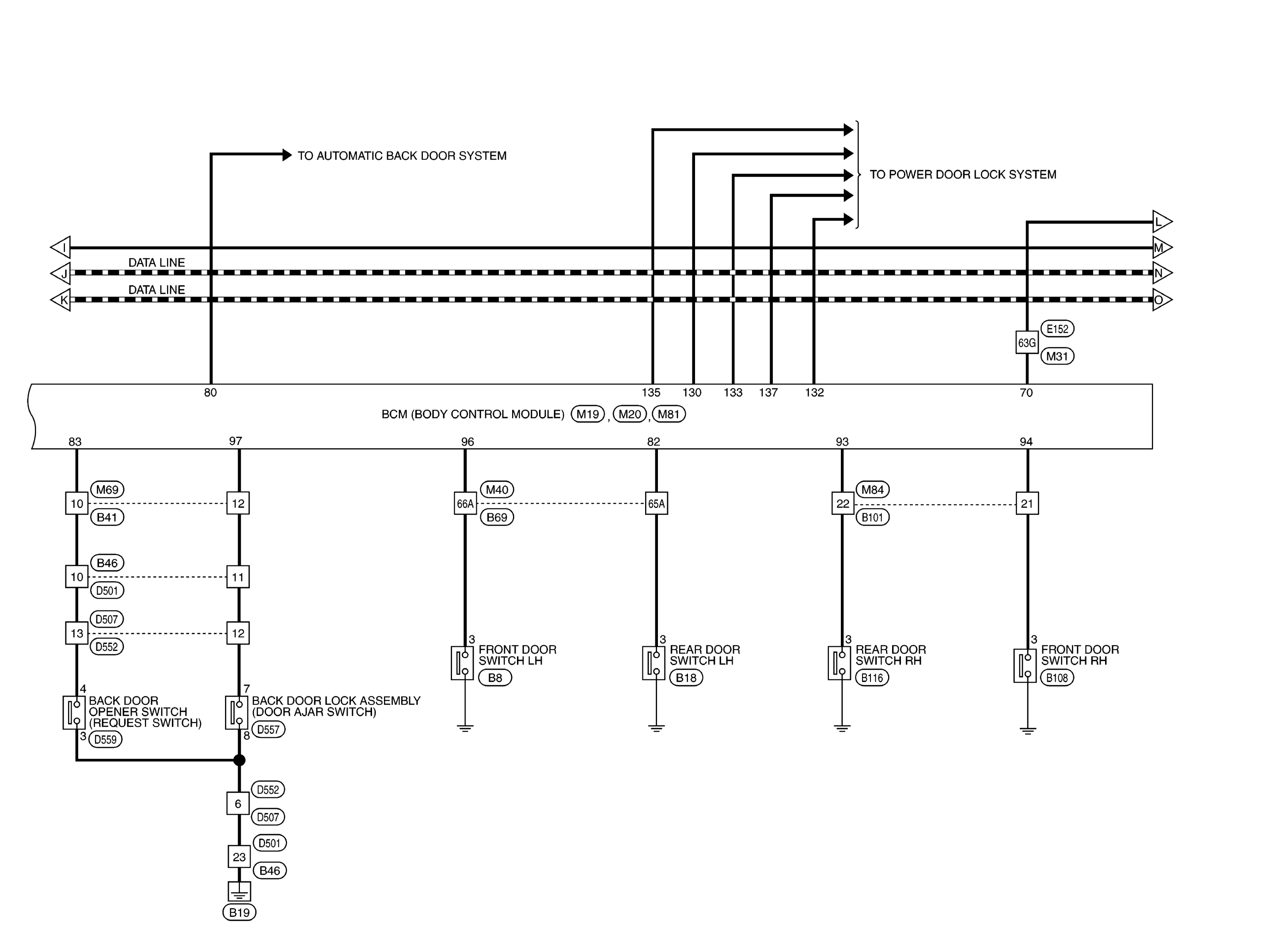

Fig 4: Intelligent Key System Wiring Diagram (4 Of 5)

GNSABKWA2782GB-782

Courtesy of NISSAN NORTH AMERICA, INC.

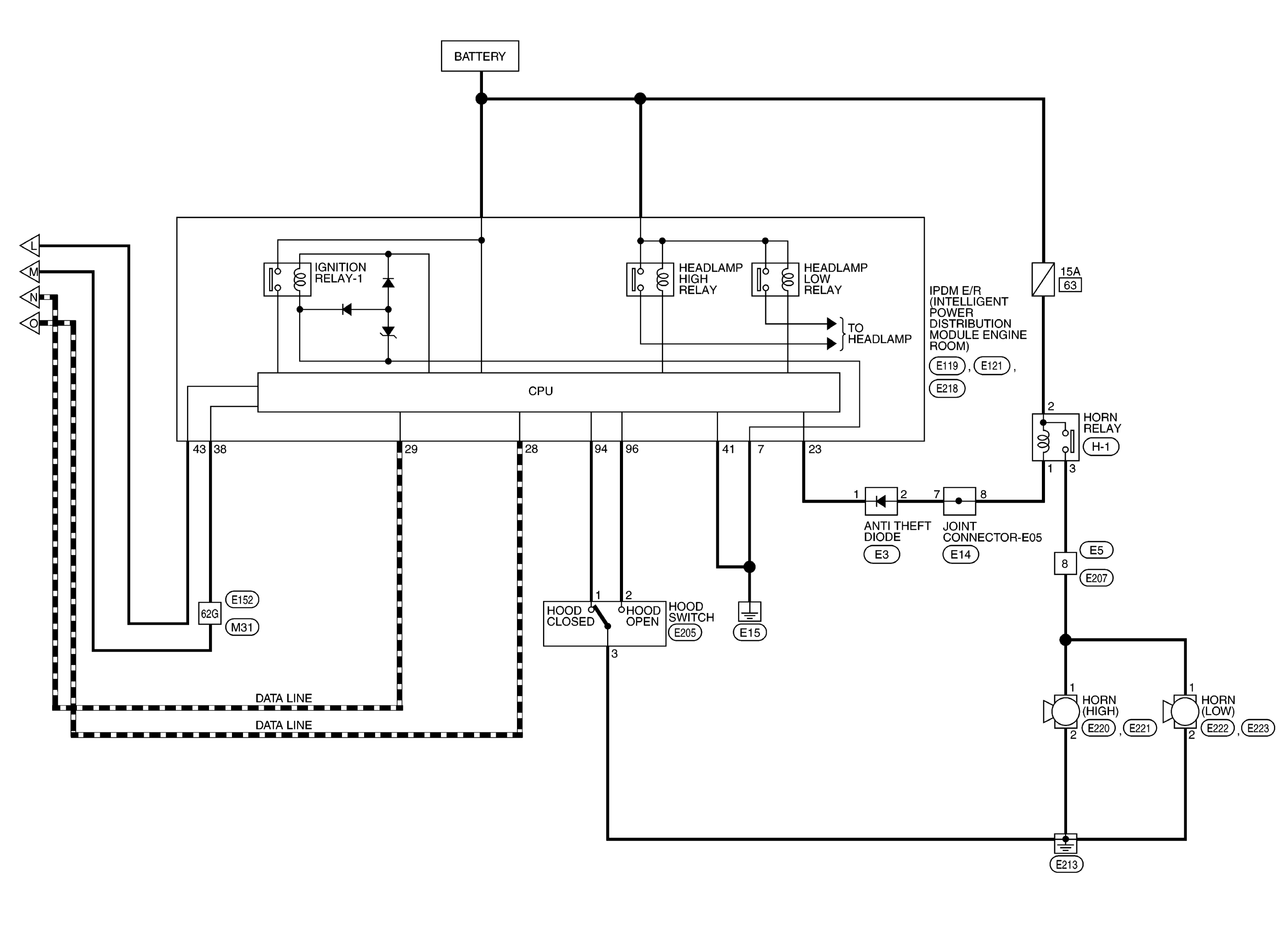

Fig 5: Intelligent Key System Wiring Diagram (5 Of 5)

GNSABKWA2767GB-767

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Intelligent Key System Connector End Views And Pin-Outs (1 Of 16)

G09426232

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Intelligent Key System Connector End Views And Pin-Outs (2 Of 16)

G08854361

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Intelligent Key System Connector End Views And Pin-Outs (3 Of 16)

G09426234

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Intelligent Key System Connector End Views And Pin-Outs (4 Of 16)

GNSABKIA6360GB-360

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Intelligent Key System Connector End Views And Pin-Outs (5 Of 16)

G09426236

Courtesy of NISSAN NORTH AMERICA, INC.

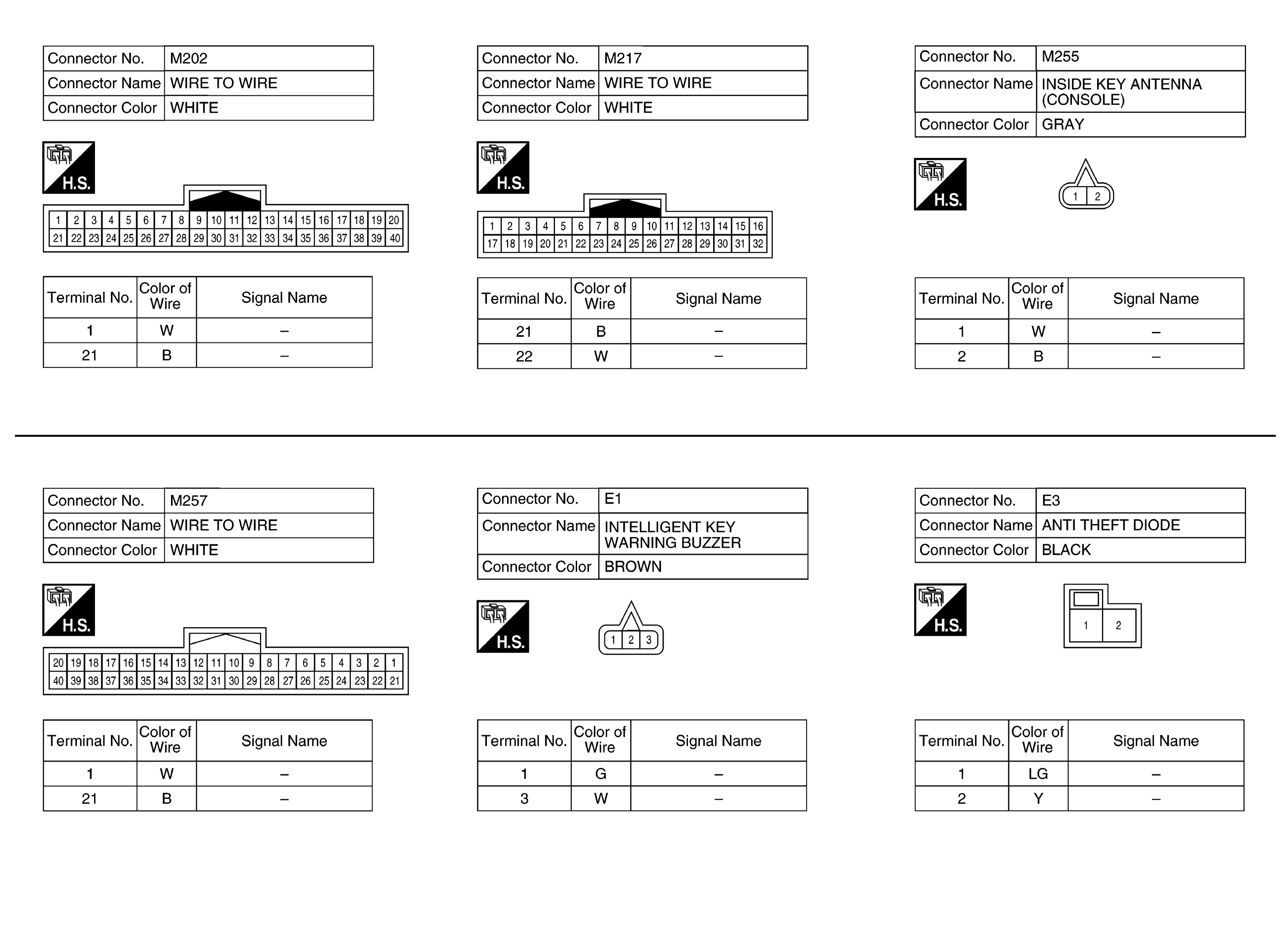

Fig 11: Intelligent Key System Connector End Views And Pin-Outs (6 Of 16)

GNSABKIA6346GB-346

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Intelligent Key System Connector End Views And Pin-Outs (7 Of 16)

G09426238

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Intelligent Key System Connector End Views And Pin-Outs (8 Of 16)

G09426239

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Intelligent Key System Connector End Views And Pin-Outs (9 Of 16)

G09426240

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Intelligent Key System Connector End Views And Pin-Outs (10 Of 16)

G09426241

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Intelligent Key System Connector End Views And Pin-Outs (11 Of 16)

G09426242

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Intelligent Key System Connector End Views And Pin-Outs (12 Of 16)

G09426243

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Intelligent Key System Connector End Views And Pin-Outs (13 Of 16)

G09426244

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Intelligent Key System Connector End Views And Pin-Outs (14 Of 16)

G09426245

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Intelligent Key System Connector End Views And Pin-Outs (15 Of 16)

G09426246

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Intelligent Key System Connector End Views And Pin-Outs (16 Of 16)

G09426247

Courtesy of NISSAN NORTH AMERICA, INC.
