Automatic Rear Power Liftgate System: Wiring Diagram

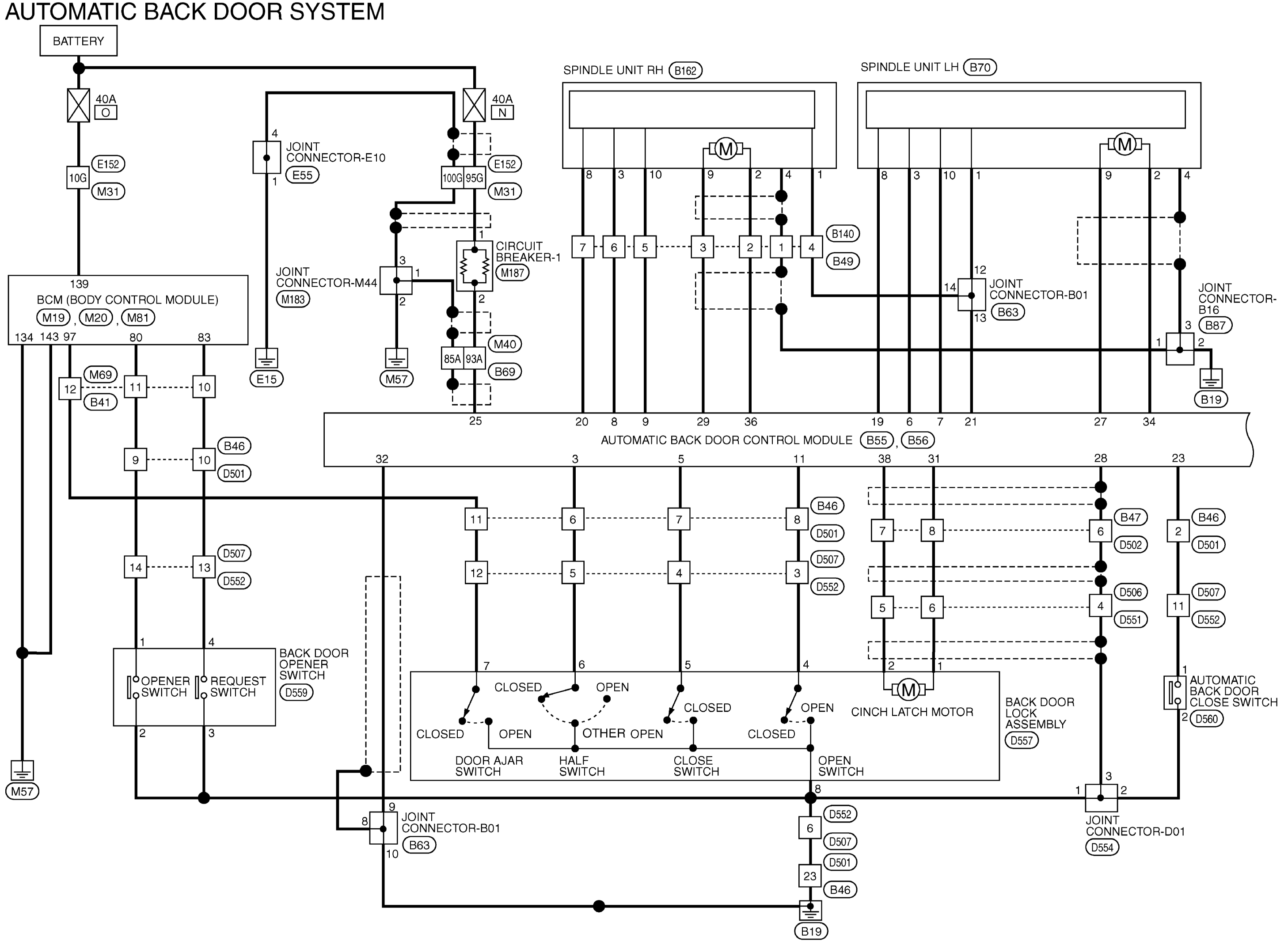

Fig 1: Automatic Rear Power Liftgate System Wiring Diagram (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

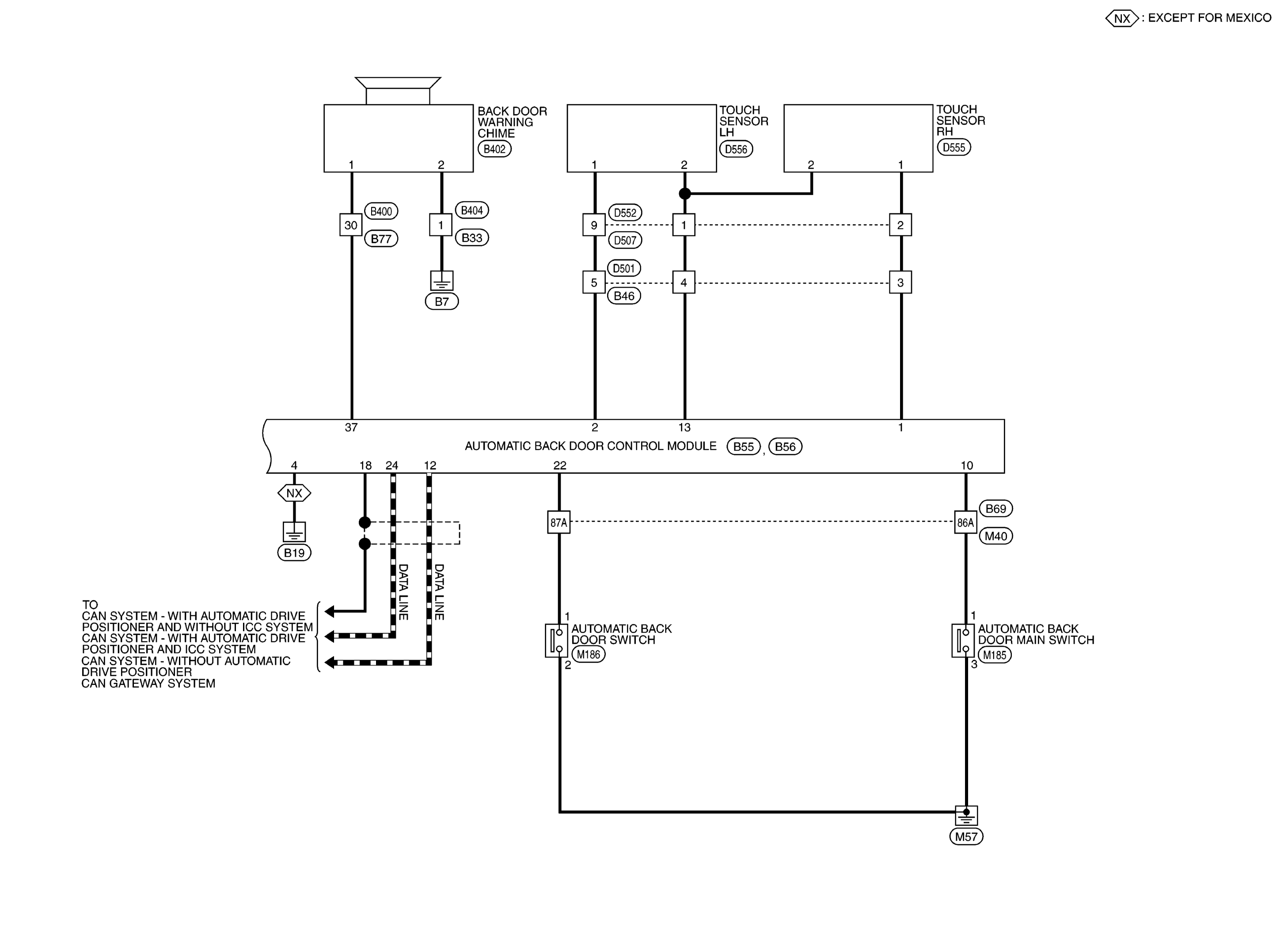

Fig 2: Automatic Rear Power Liftgate System Wiring Diagram (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

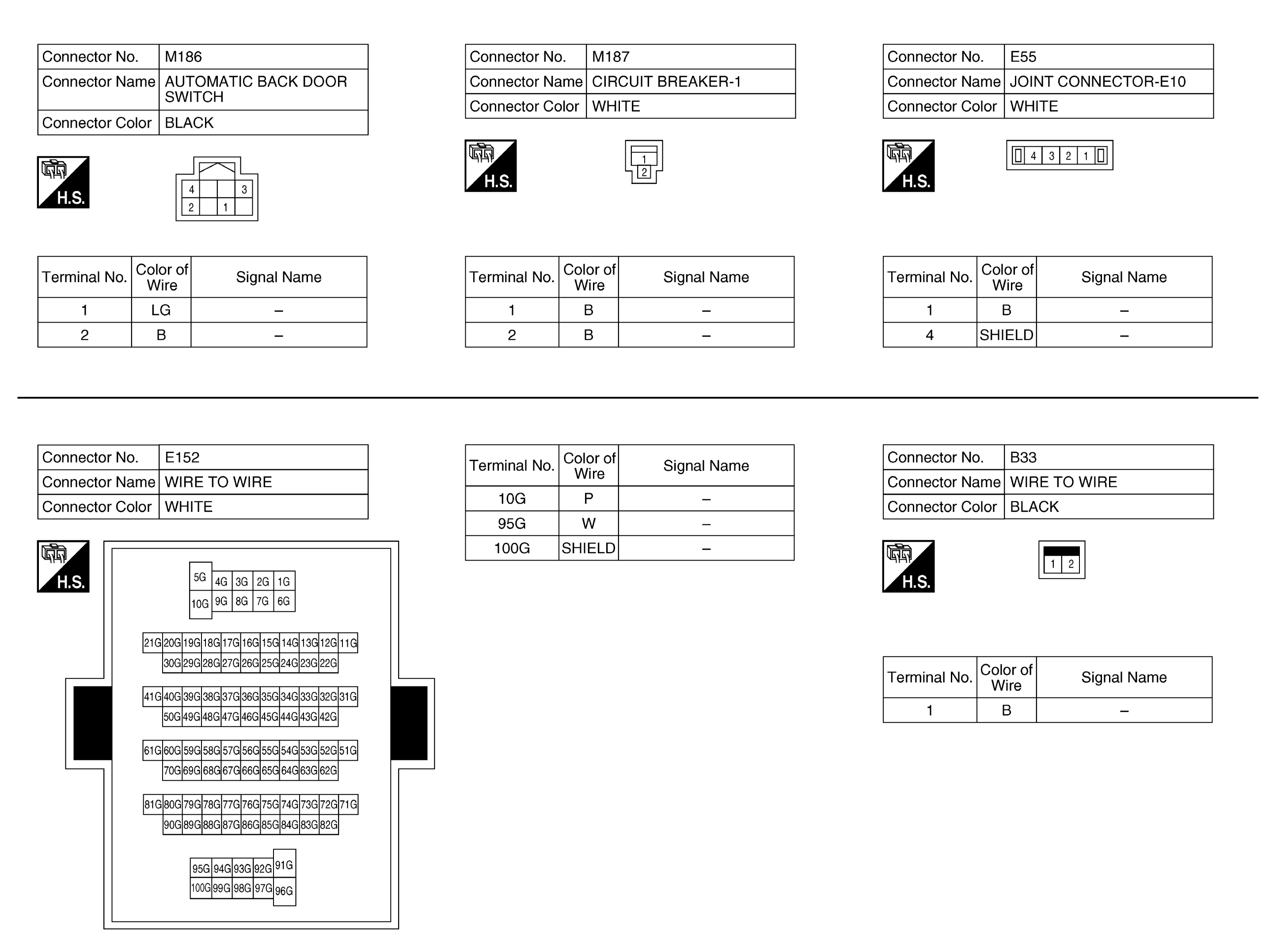

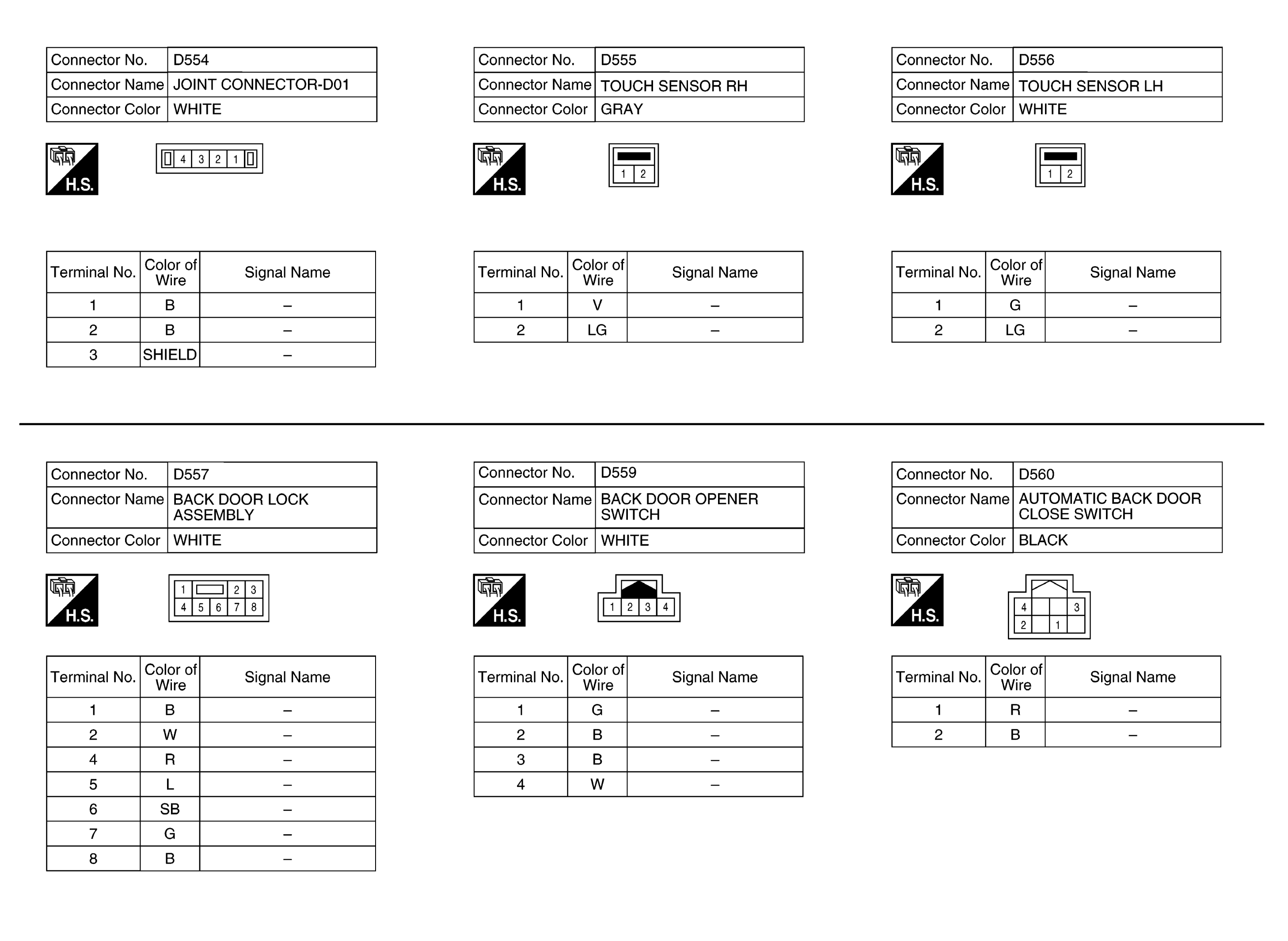

Fig 3: Automatic Rear Power Liftgate System Connector End Views And Pin-Outs (1 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Automatic Rear Power Liftgate System Connector End Views And Pin-Outs (2 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Automatic Rear Power Liftgate System Connector End Views And Pin-Outs (3 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Automatic Rear Power Liftgate System Connector End Views And Pin-Outs (4 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Automatic Rear Power Liftgate System Connector End Views And Pin-Outs (5 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Automatic Rear Power Liftgate System Connector End Views And Pin-Outs (6 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Automatic Rear Power Liftgate System Connector End Views And Pin-Outs (7 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Automatic Rear Power Liftgate System Connector End Views And Pin-Outs (8 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Automatic Rear Power Liftgate System Connector End Views And Pin-Outs (9 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.
