Required Tools

• ICC alignment kit 1-20-2721-1-IF in addition to one of the following:

  a) Hunter self-centering wheel adapter (Hunter wheel alignment tool)

  b) Special Service Tool kit 1-20-2722-1-IF (kit SCA W/Tire Clamp-ICC Aiming)

The following ICC alignment kit 1-20-2721-1-IF is necessary to perform the ICC sensor alignment:

• ICC target board.
  Fig 1: Identifying ICC Target Board Positions

  Courtesy of NISSAN NORTH AMERICA, INC.
  1. Position 1, with top tilted 2° toward vehicle (1).
  2. Position 2, vertical (2).
  3. Position 3, with top tilted 2° away from vehicle (3).
• Hunter self-centering wheel adapter (1) [shown in illustration with laser assembly (2) installed] (Hunter alignment rack head may be substituted).
  Fig 2: Identifying Self-Centering Wheel Adapter And Laser Assembly

  Courtesy of NISSAN NORTH AMERICA, INC.
  NOTE:

  Retailers that are not equipped with a Hunter self-centering wheel adapter will require the following kit:

  Part No. 1-20-2722-1-IF (kit SCA W/Tire Clamp-ICC Aiming)

• Laser assembly (with bi-directional laser beam) as shown in the illustration.

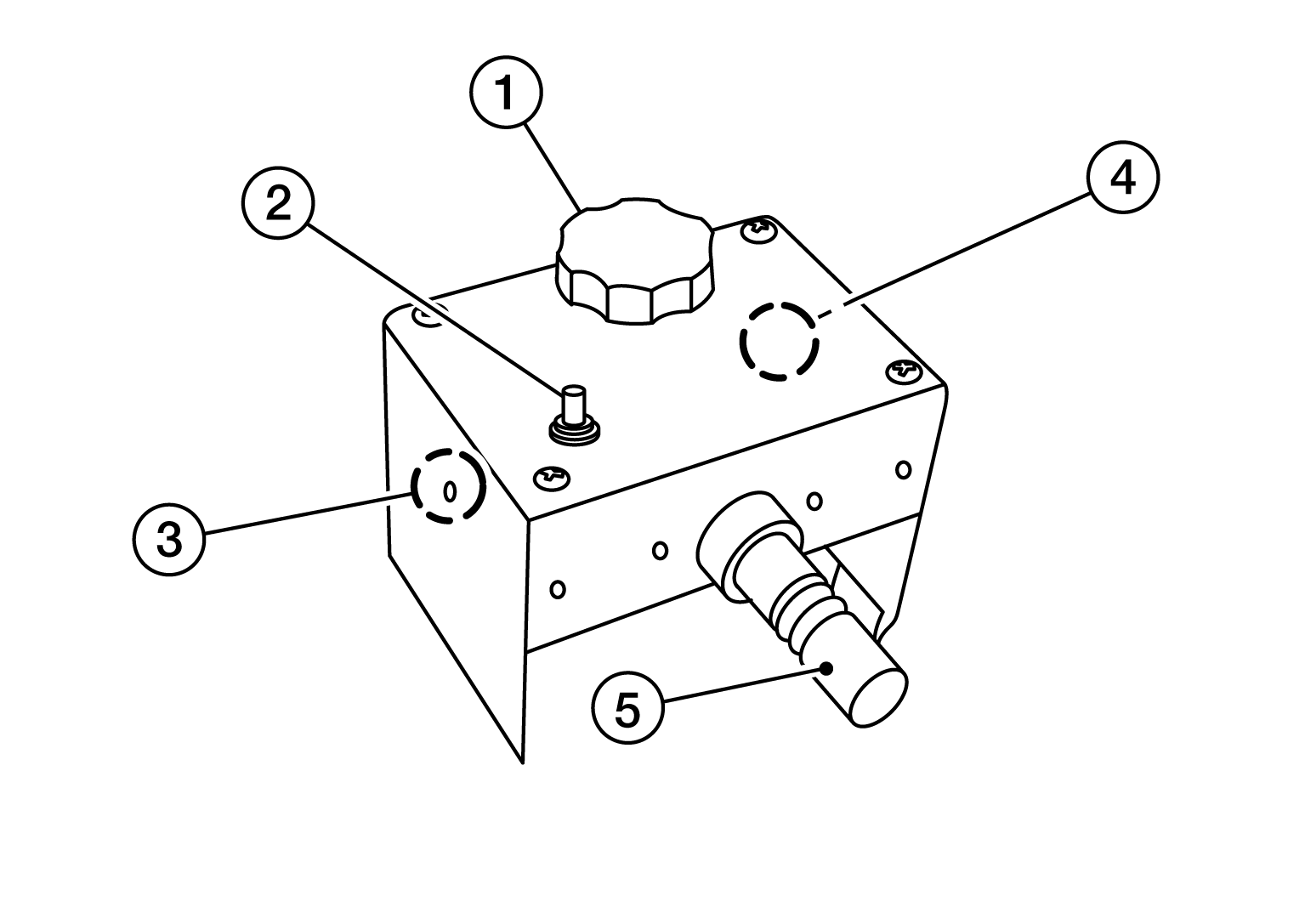

  Fig 3: Identifying Laser Assembly Components

  Courtesy of NISSAN NORTH AMERICA, INC.
  1. Tightening knob (1)
  2. Power ON/OFF button (2)
  3. Front laser beam opening (3)
  4. Rear laser beam opening (4)
  5. Attaching shaft (5)
• Stationary target as shown in the illustration.

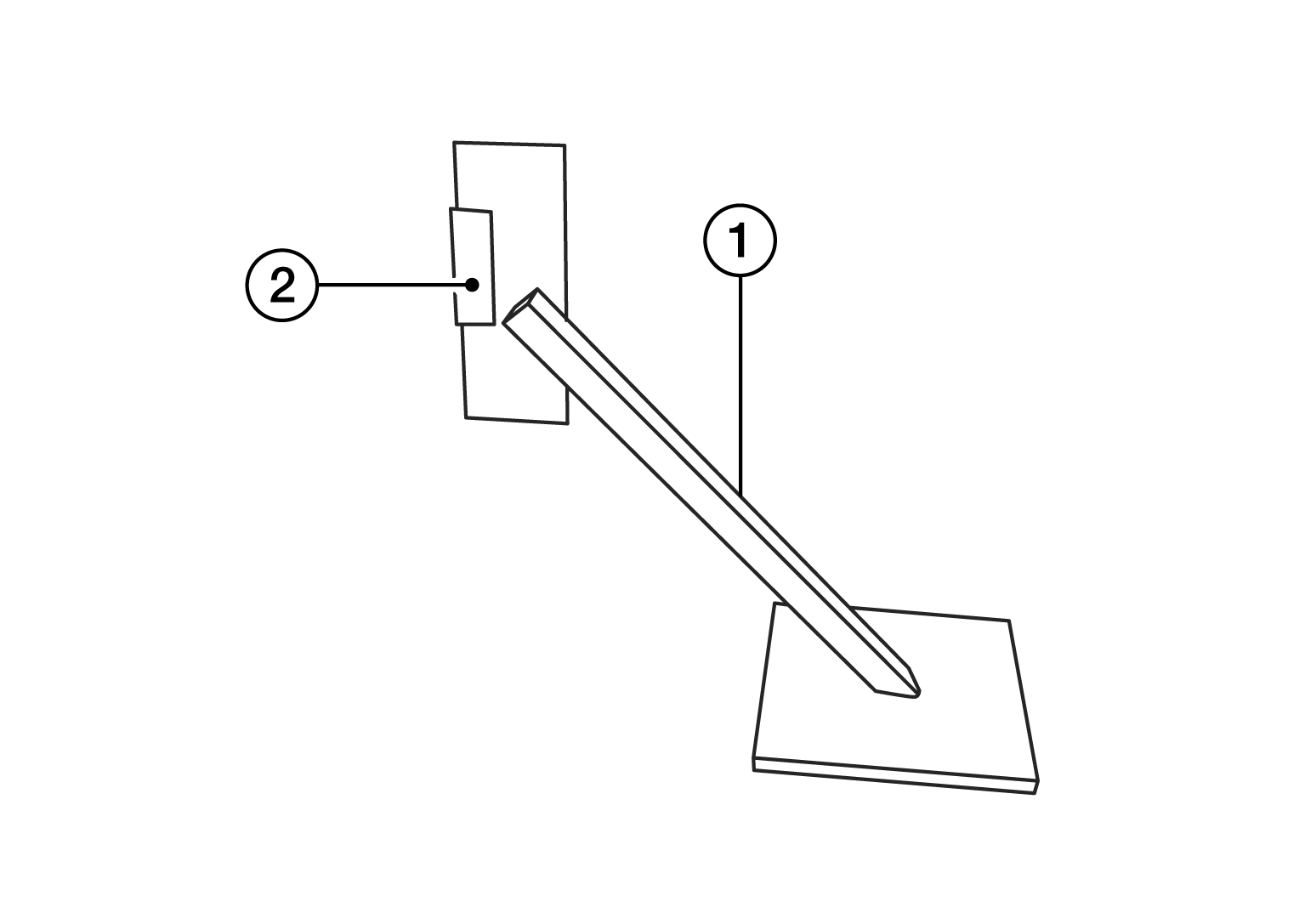

  Fig 4: Identifying Stationary Target And Laser Signal Reception Plate

  Courtesy of NISSAN NORTH AMERICA, INC.
  1. Stationary target (1)
  2. Laser signal reception plate (2)
• Distance chain (not shown in illustration).
