BOSE Audio W/NAVI W/O Surround: Wiring Diagram

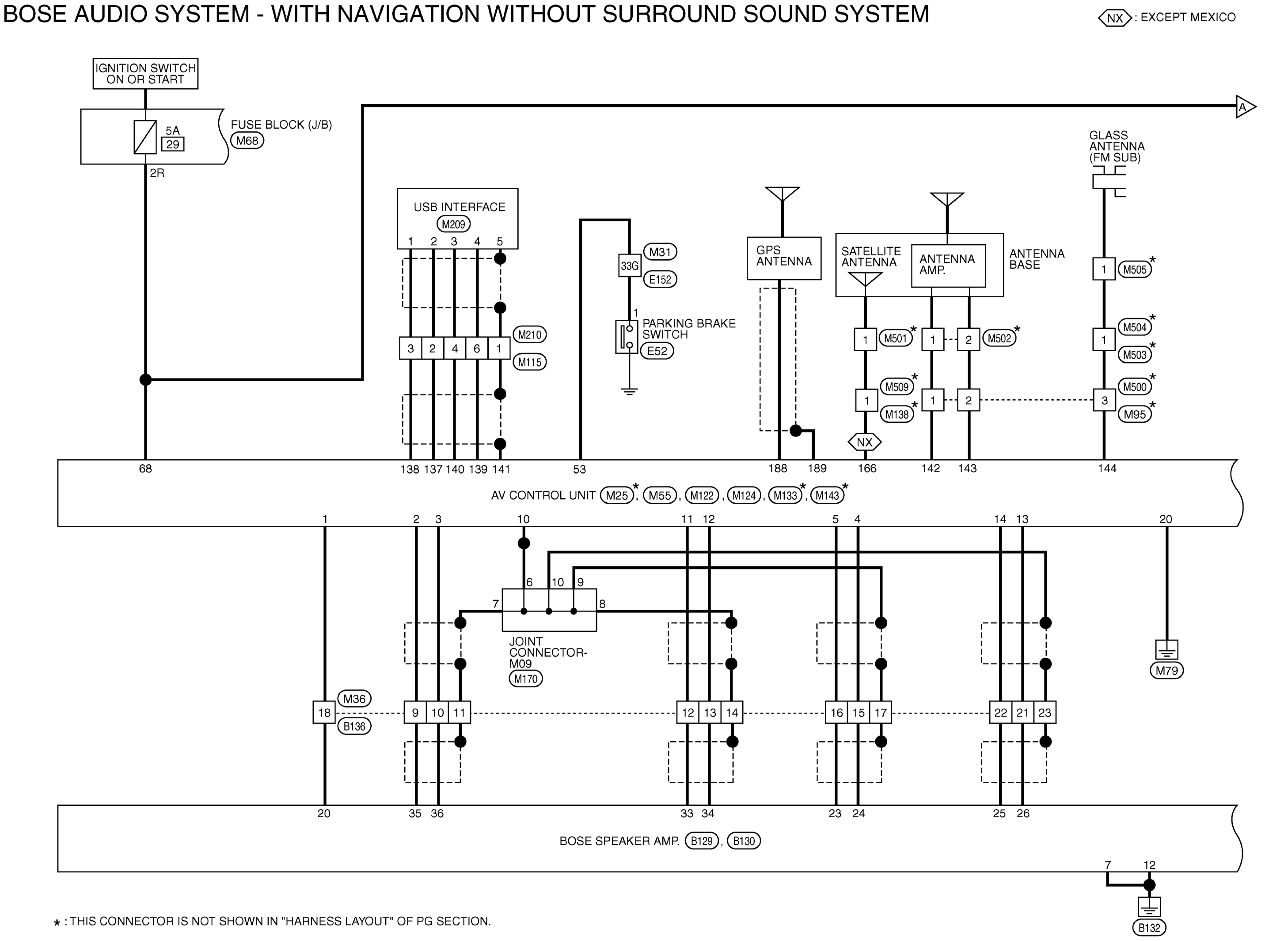

Fig 1: Bose Audio With Navigation (Without Surround) Wiring Diagram (1 Of 9)

GNSABNWA2554GB-554

Courtesy of NISSAN NORTH AMERICA, INC.

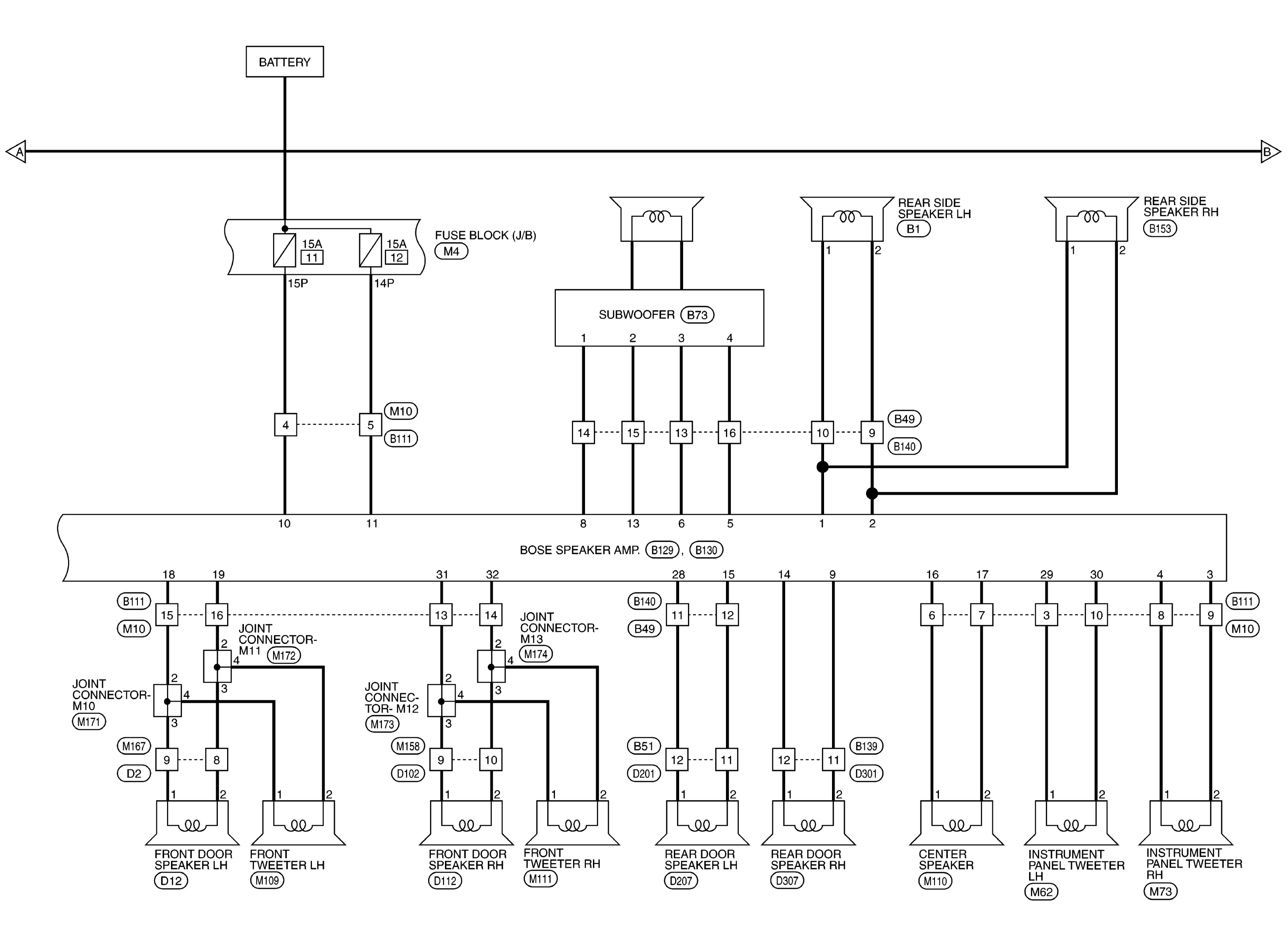

Fig 2: Bose Audio With Navigation (Without Surround) Wiring Diagram (2 Of 9)

GNSABNWA2555GB-555

Courtesy of NISSAN NORTH AMERICA, INC.

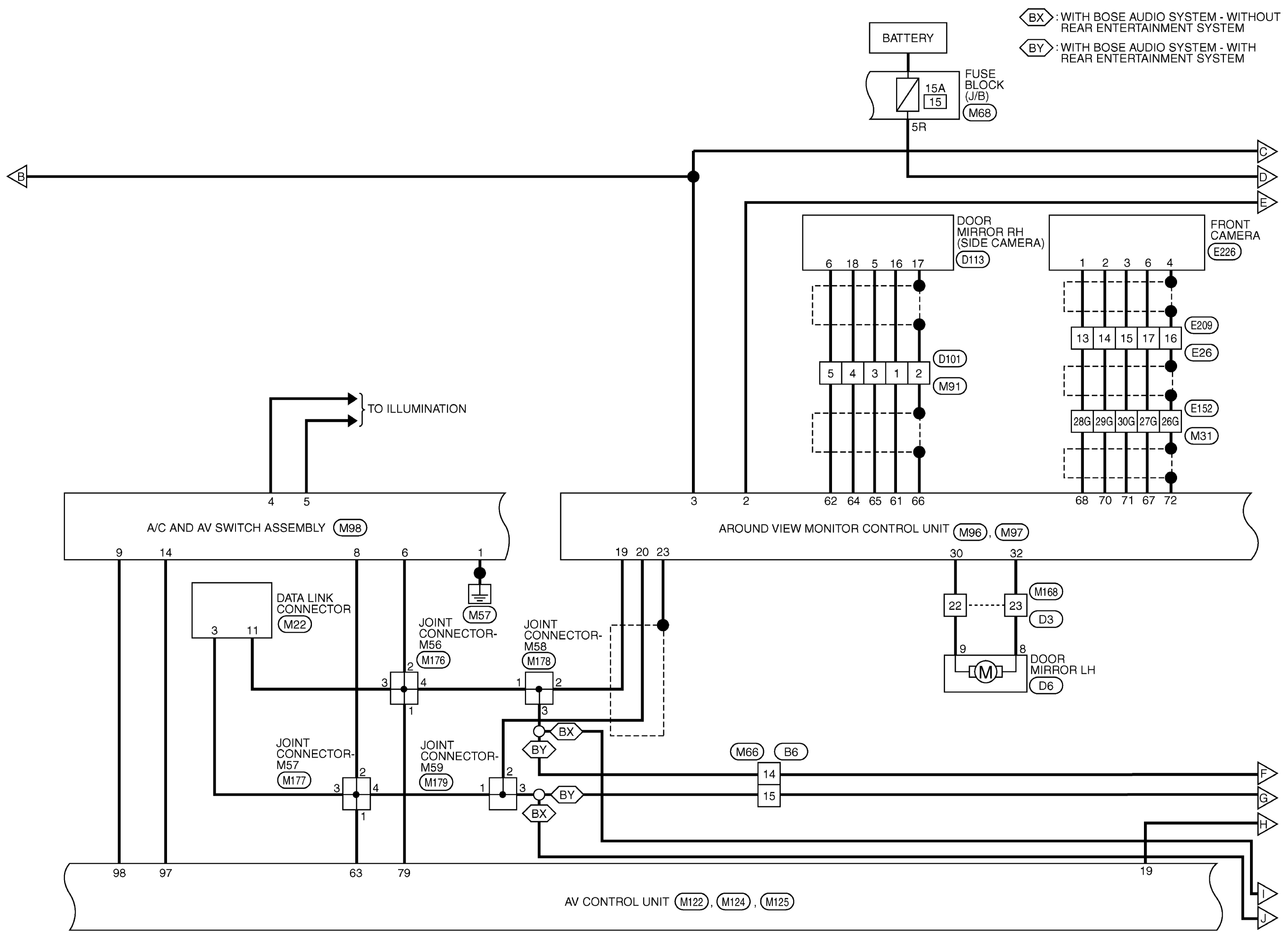

Fig 3: Bose Audio With Navigation (Without Surround) Wiring Diagram (3 Of 9)

GNSABNWA2556GB-556

Courtesy of NISSAN NORTH AMERICA, INC.

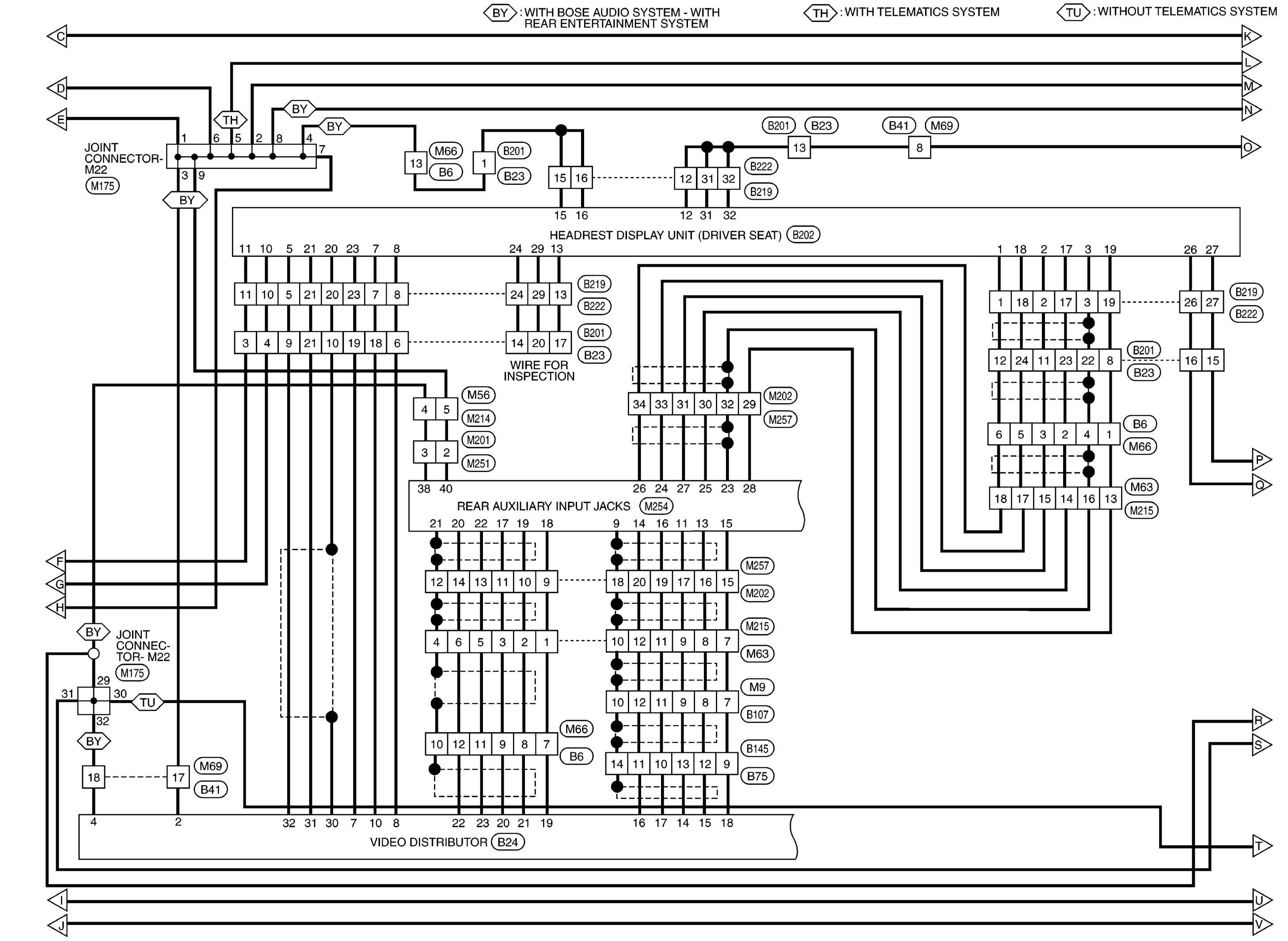

Fig 4: Bose Audio With Navigation (Without Surround) Wiring Diagram (4 Of 9)

GNSABNWA2557GB-557

Courtesy of NISSAN NORTH AMERICA, INC.

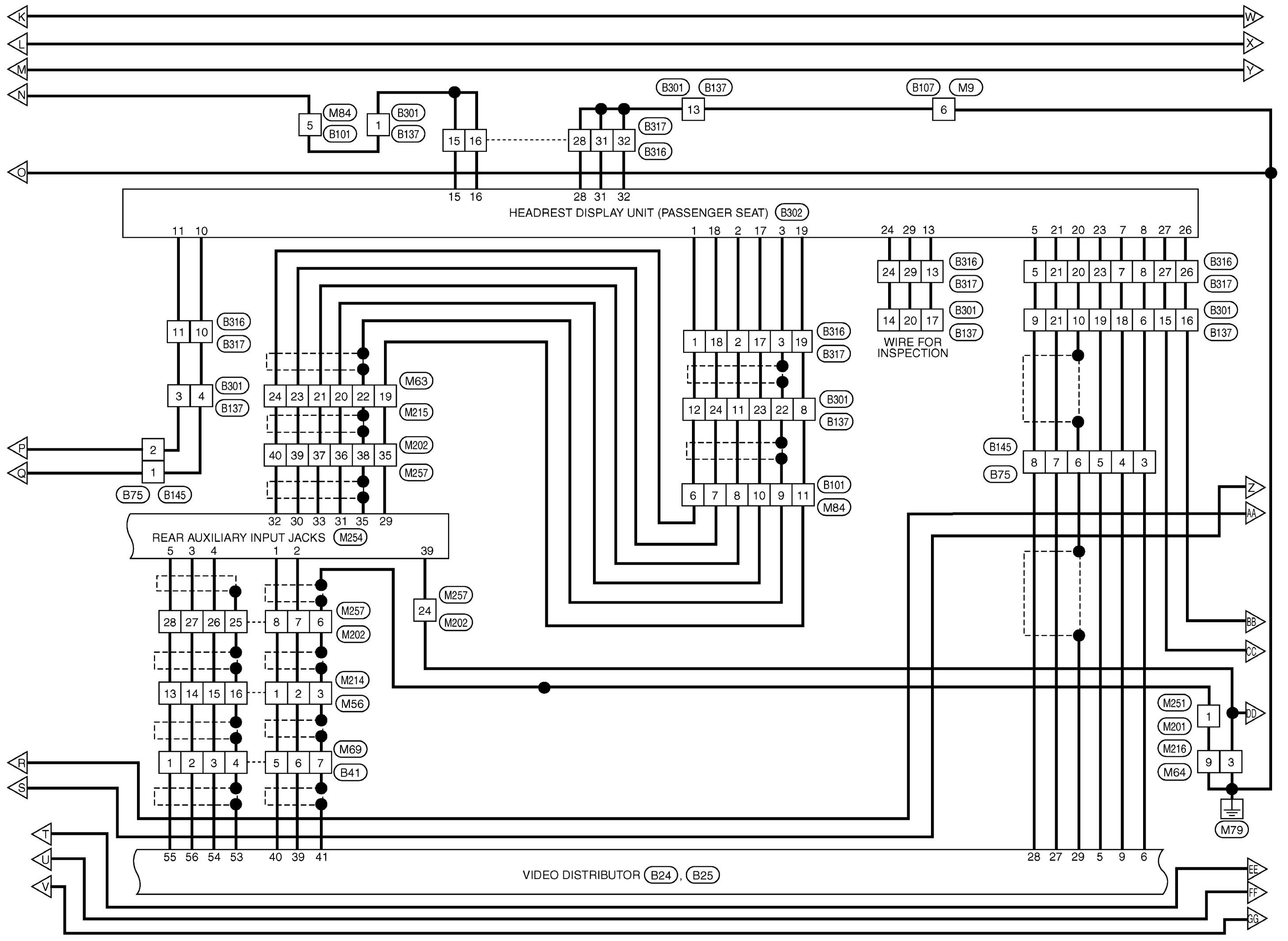

Fig 5: Bose Audio With Navigation (Without Surround) Wiring Diagram (5 Of 9)

GNSABNWA2558GB-558

Courtesy of NISSAN NORTH AMERICA, INC.

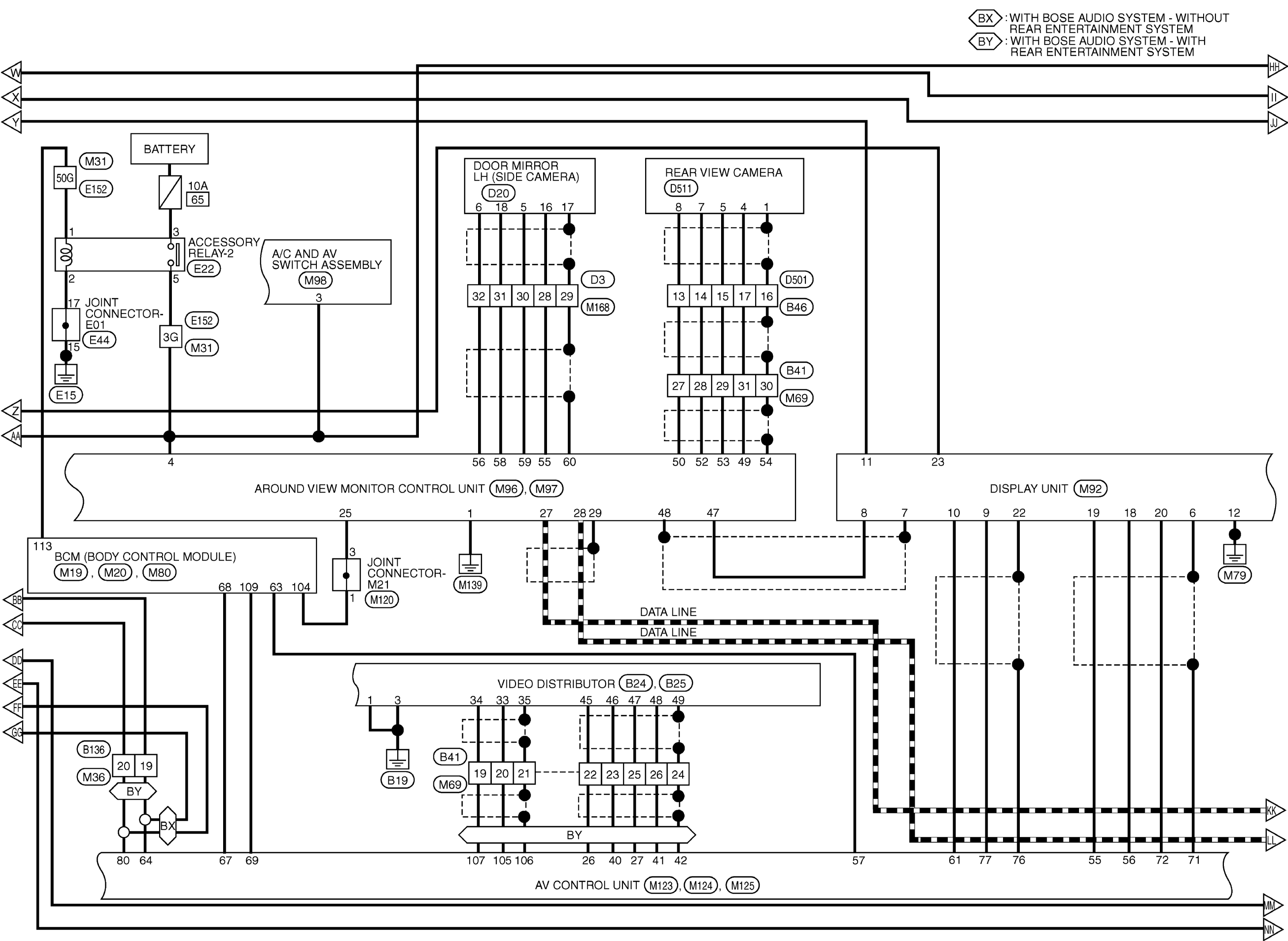

Fig 6: Bose Audio With Navigation (Without Surround) Wiring Diagram (6 Of 9)

GNSABNWA2559GB-559

Courtesy of NISSAN NORTH AMERICA, INC.

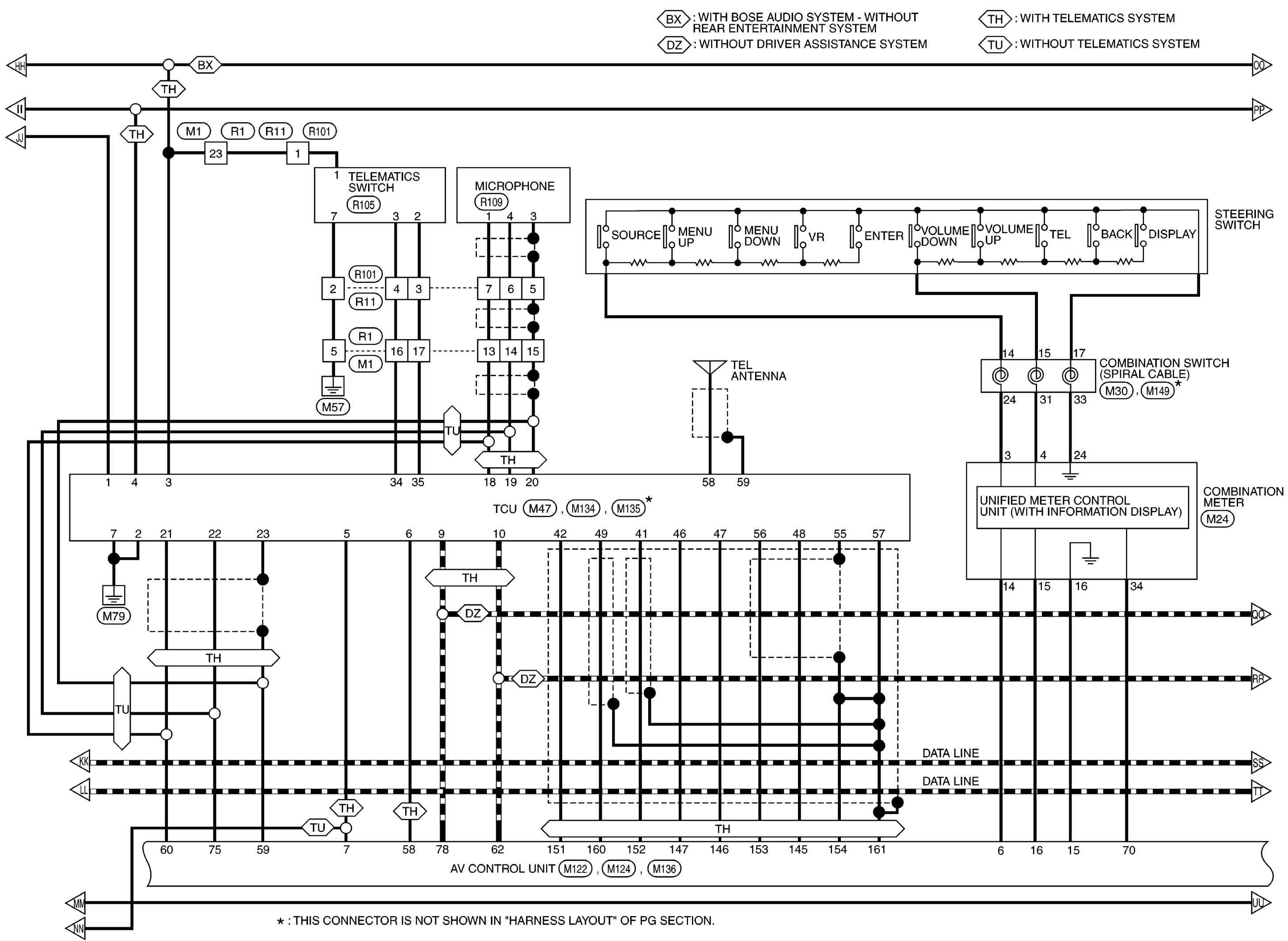

Fig 7: Bose Audio With Navigation (Without Surround) Wiring Diagram (7 Of 9)

GNSABNWA2560GB-560

Courtesy of NISSAN NORTH AMERICA, INC.

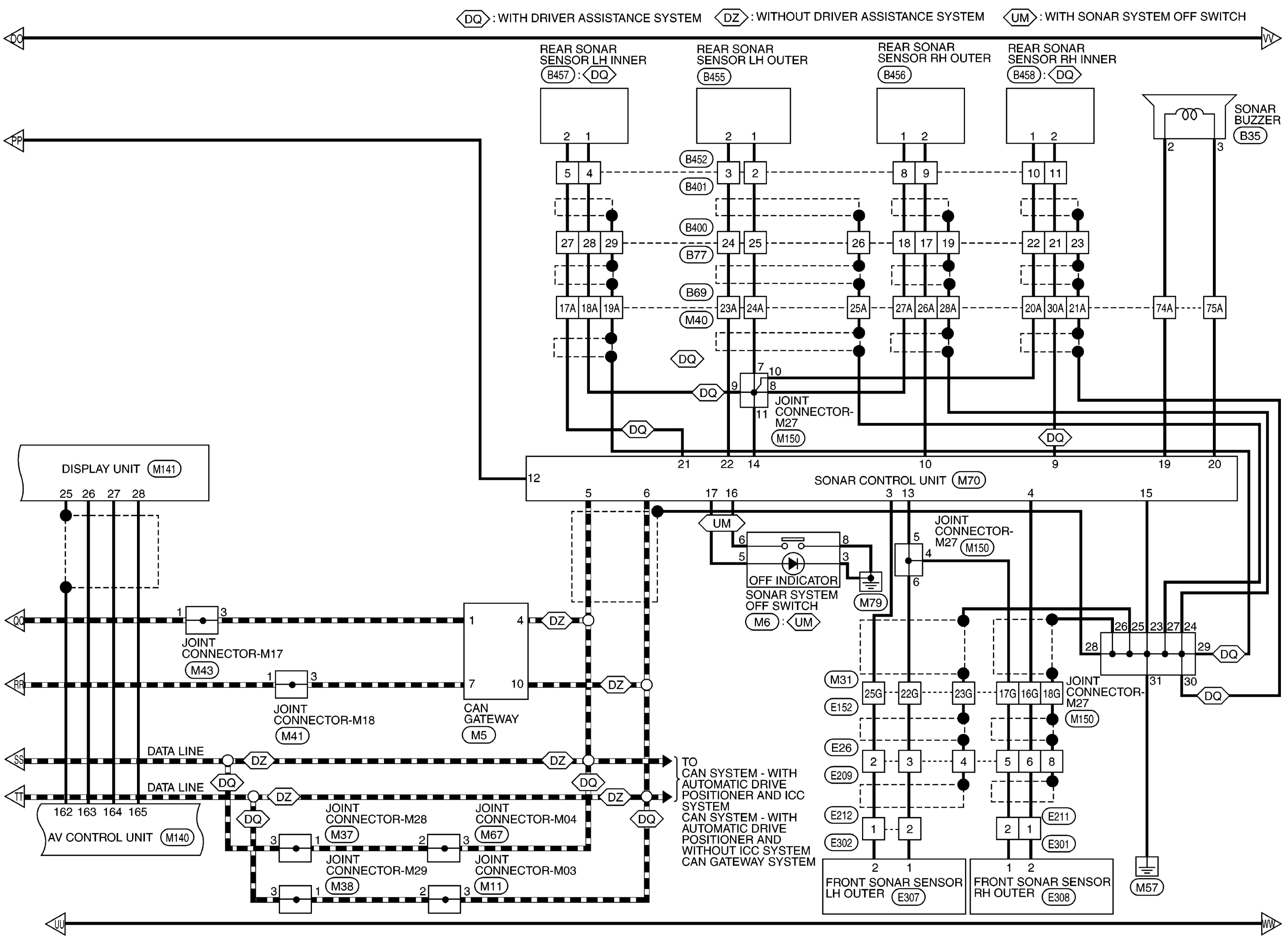

Fig 8: Bose Audio With Navigation (Without Surround) Wiring Diagram (8 Of 9)

GNSABNWA2561GB-561

Courtesy of NISSAN NORTH AMERICA, INC.

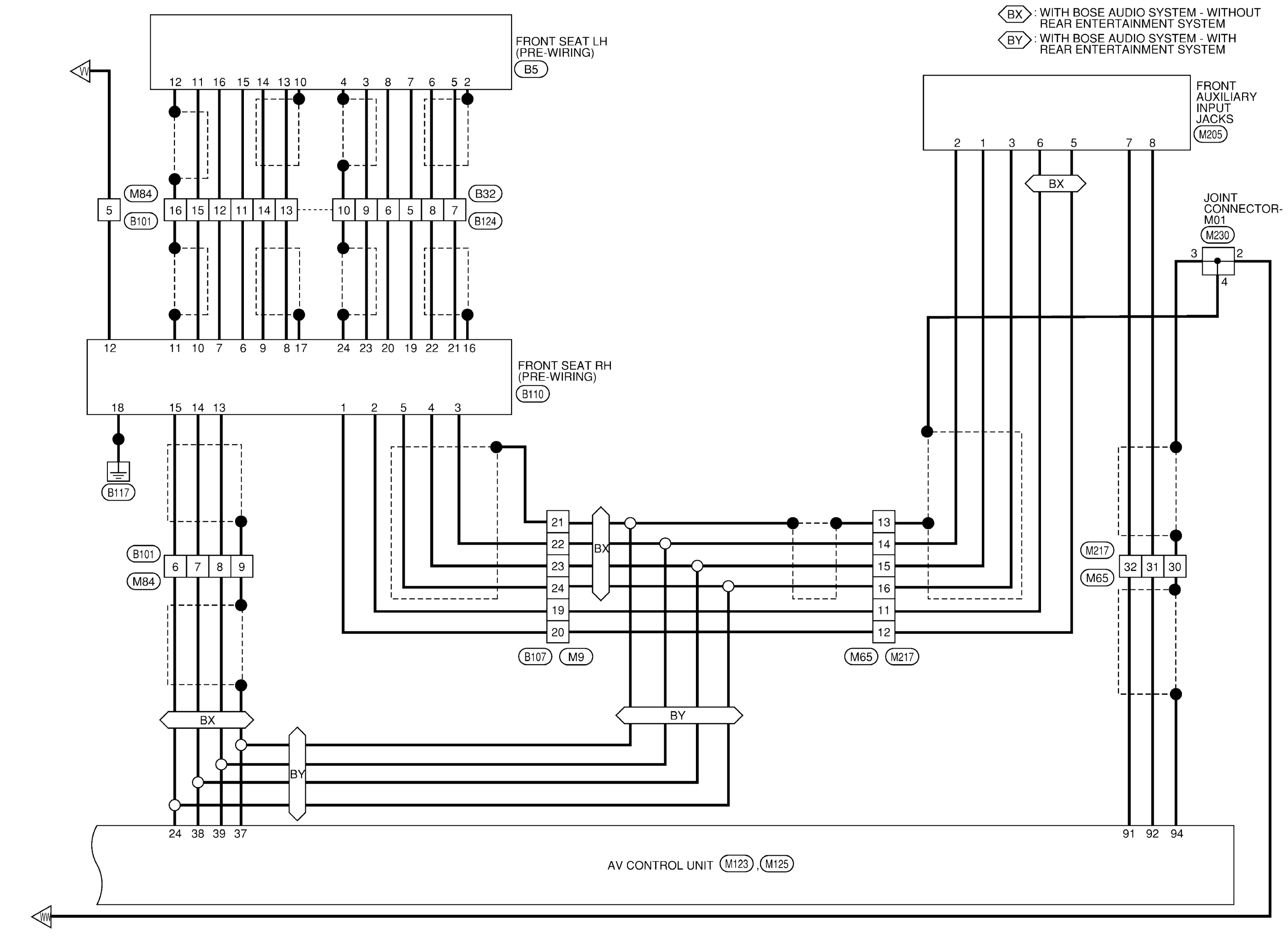

Fig 9: Bose Audio With Navigation (Without Surround) Wiring Diagram (9 Of 9)

G09427800

Courtesy of NISSAN NORTH AMERICA, INC.

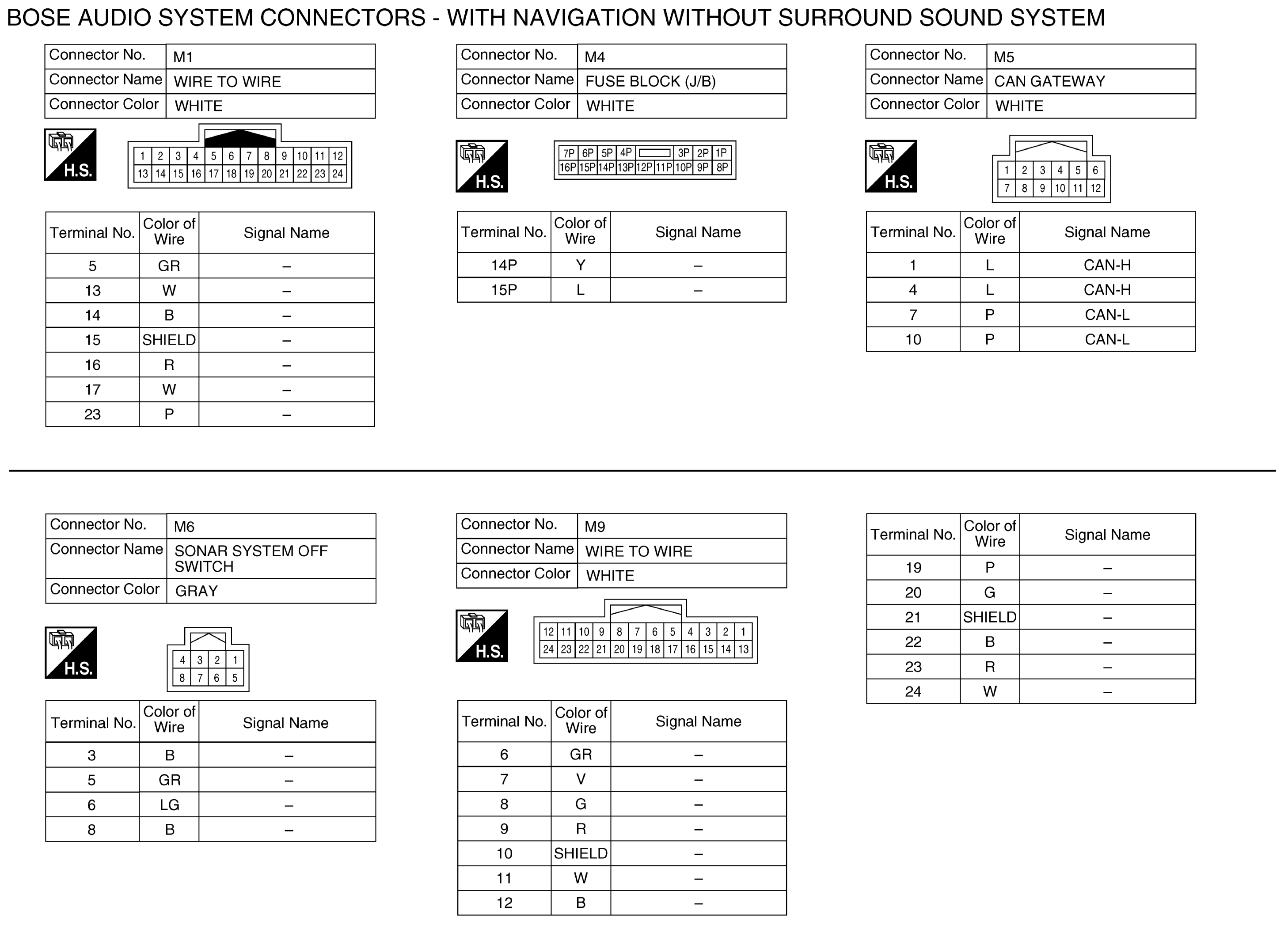

Fig 10: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (1 Of 43)

GNSABNIA6969GB-969

Courtesy of NISSAN NORTH AMERICA, INC.

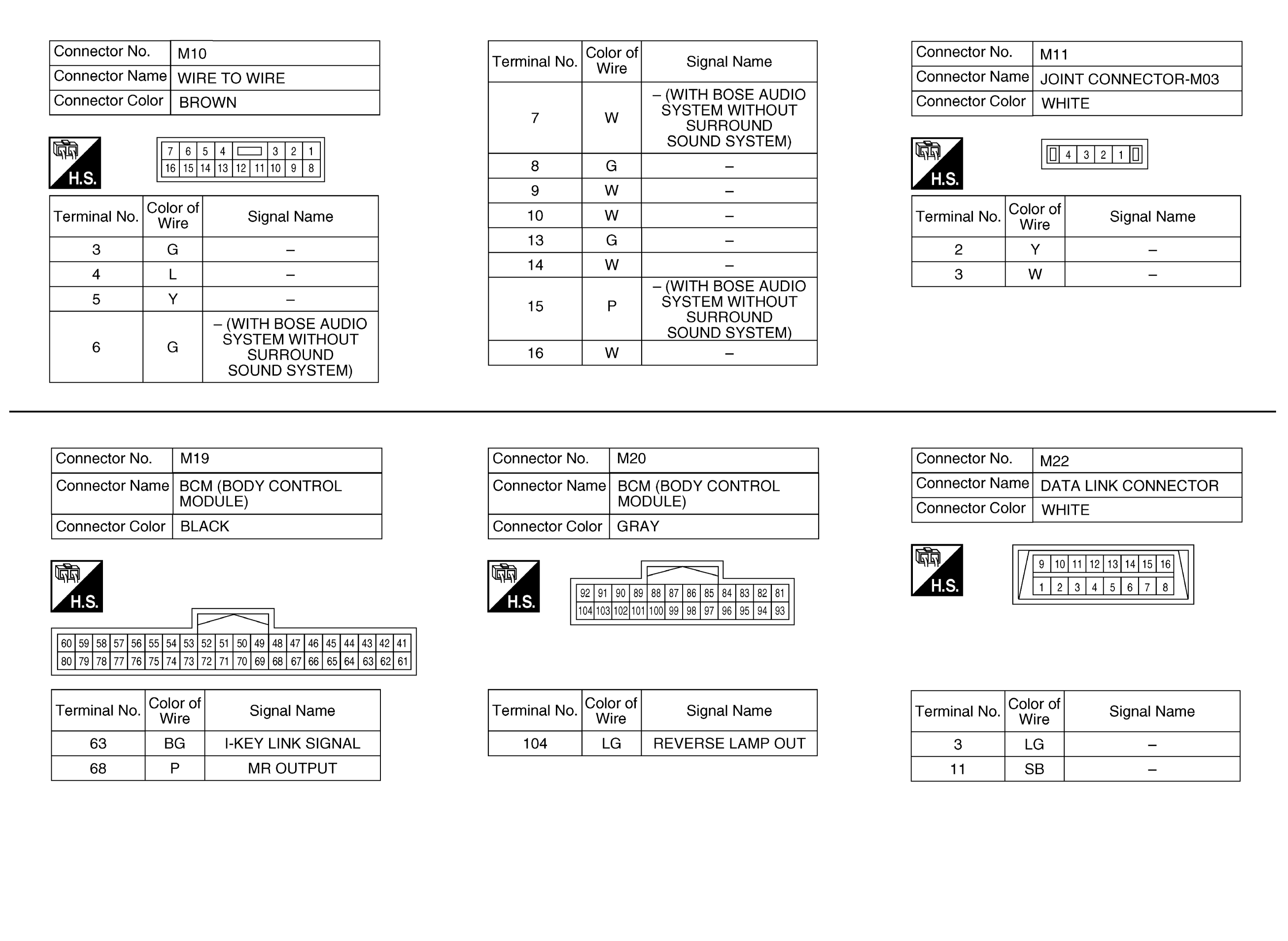

Fig 11: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (2 Of 43)

GNSABNIA6970GB-970

Courtesy of NISSAN NORTH AMERICA, INC.

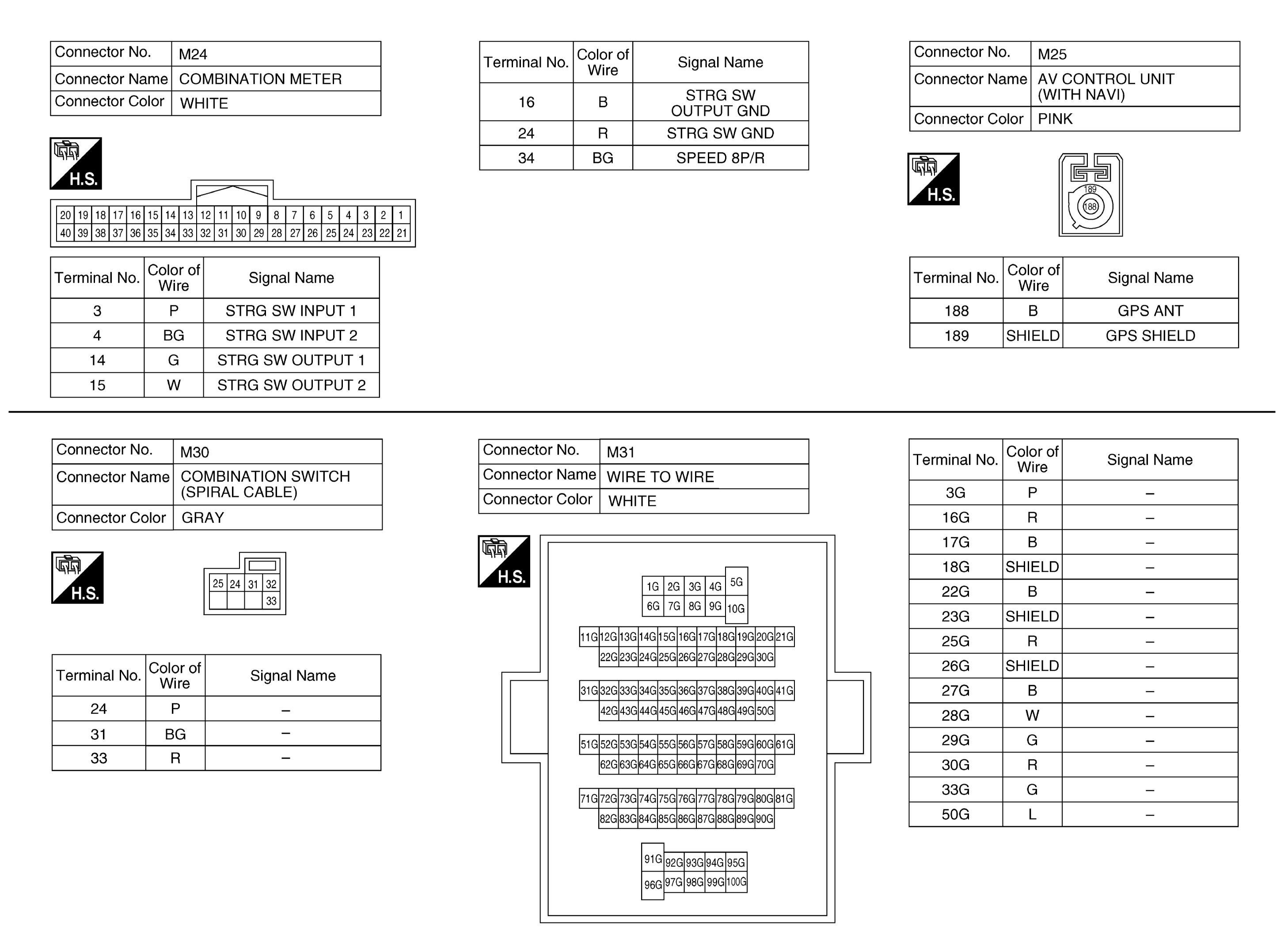

Fig 12: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (3 Of 43)

GNSABNIA6971GB-971

Courtesy of NISSAN NORTH AMERICA, INC.

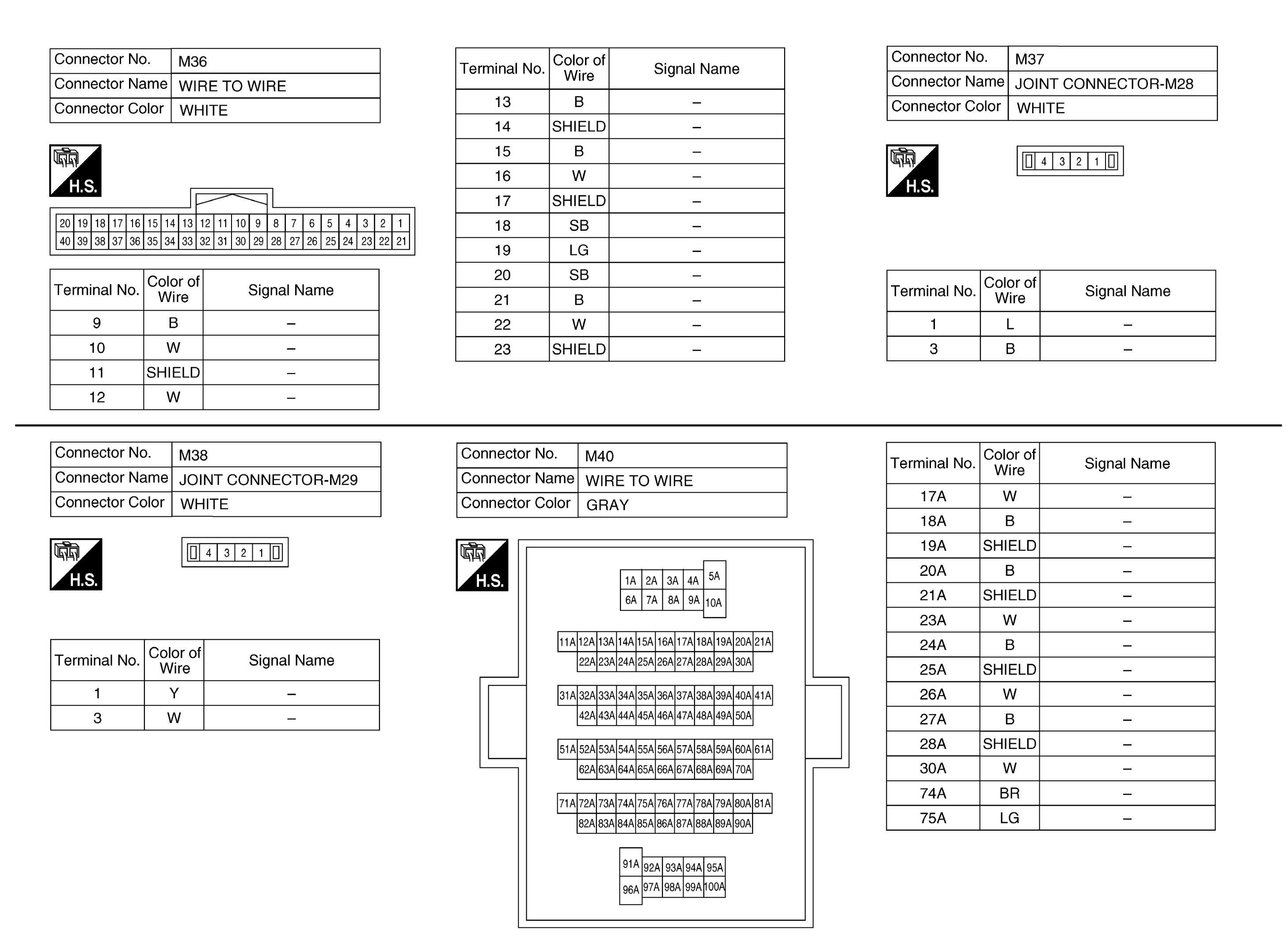

Fig 13: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (4 Of 43)

GNSABNIA6972GB-972

Courtesy of NISSAN NORTH AMERICA, INC.

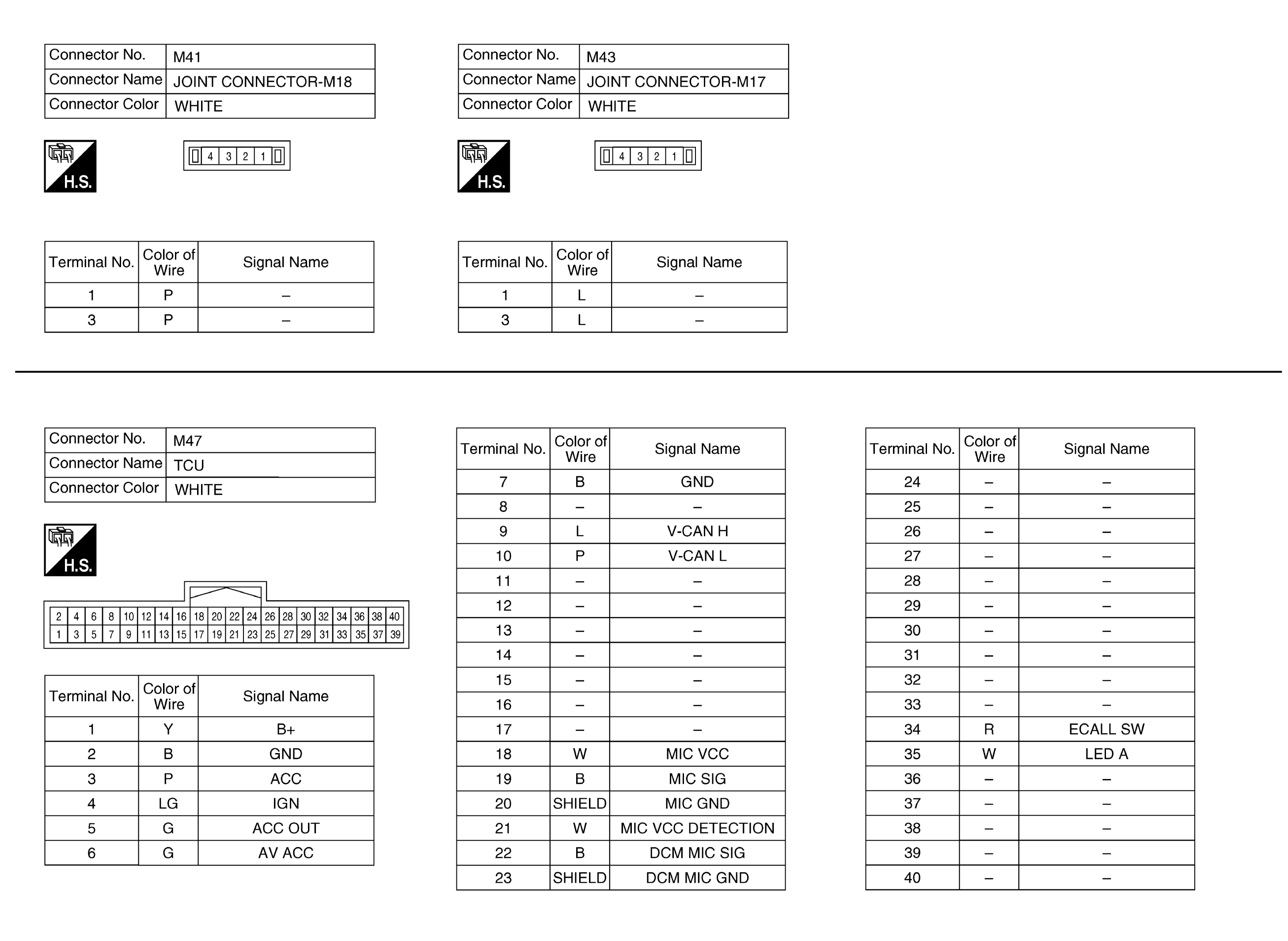

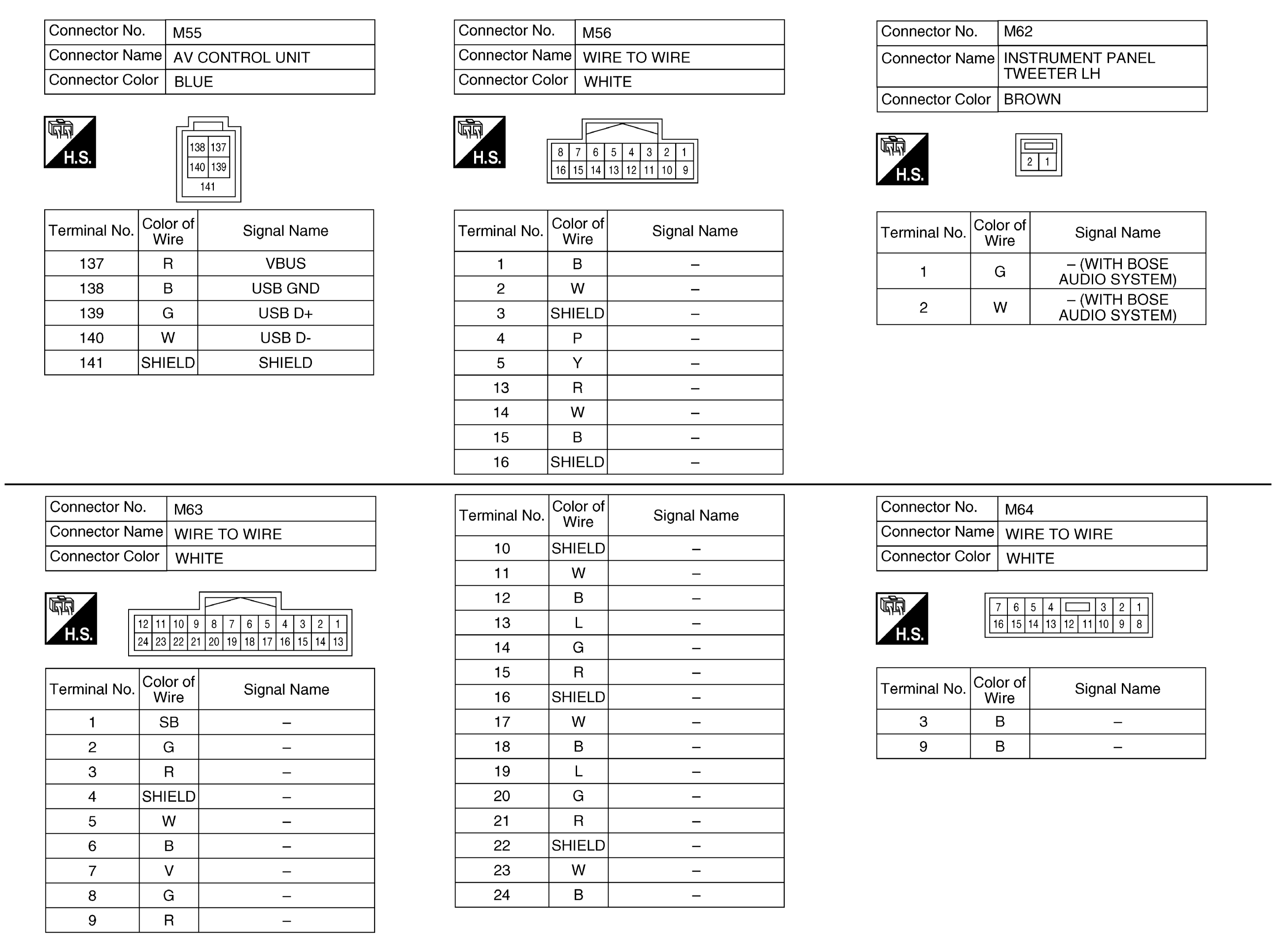

Fig 14: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (5 Of 43)

GNSABNIA6973GB-973

Courtesy of NISSAN NORTH AMERICA, INC.

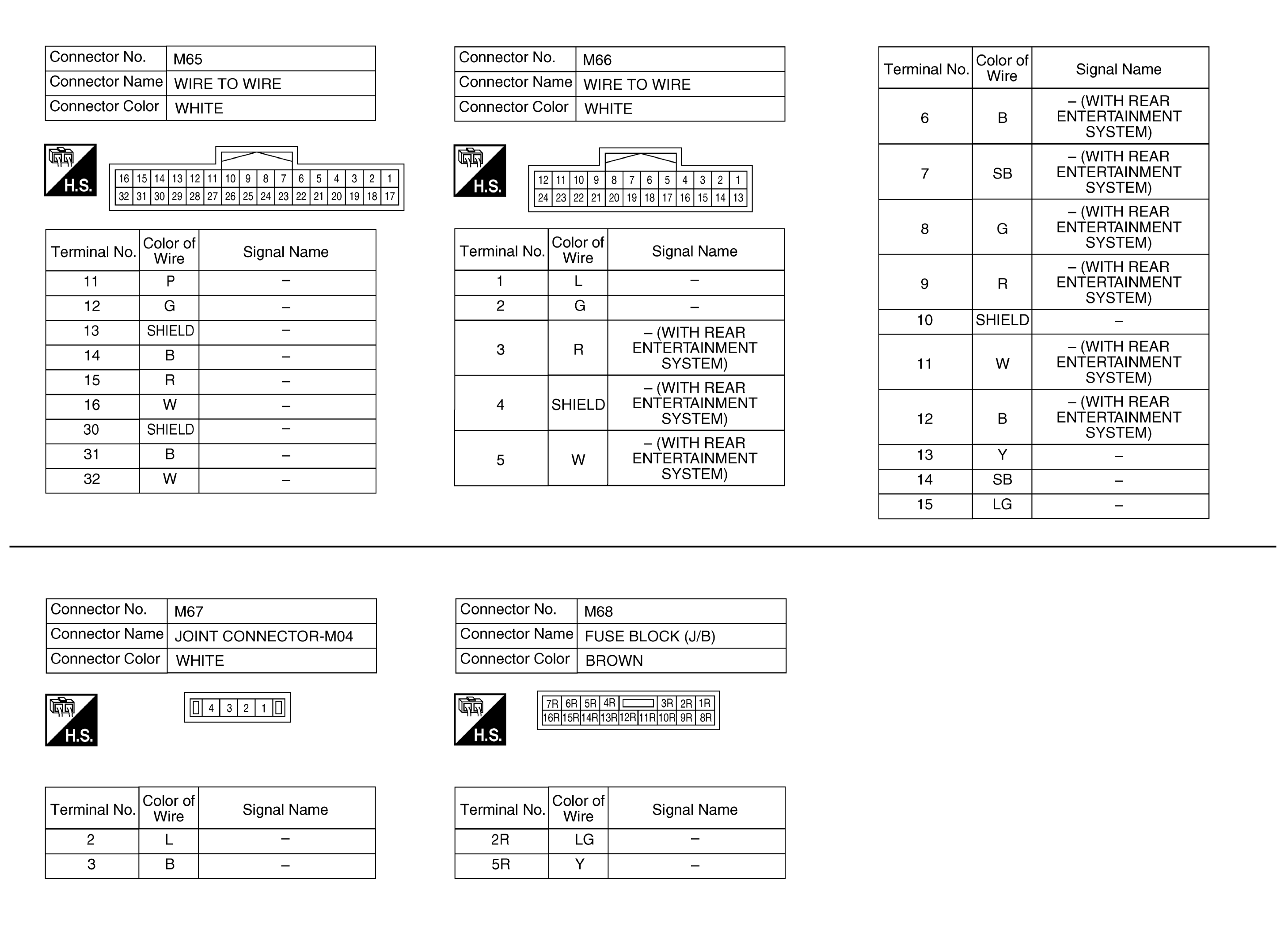

Fig 15: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (6 Of 43)

GNSABNIA6974GB-974

Courtesy of NISSAN NORTH AMERICA, INC.

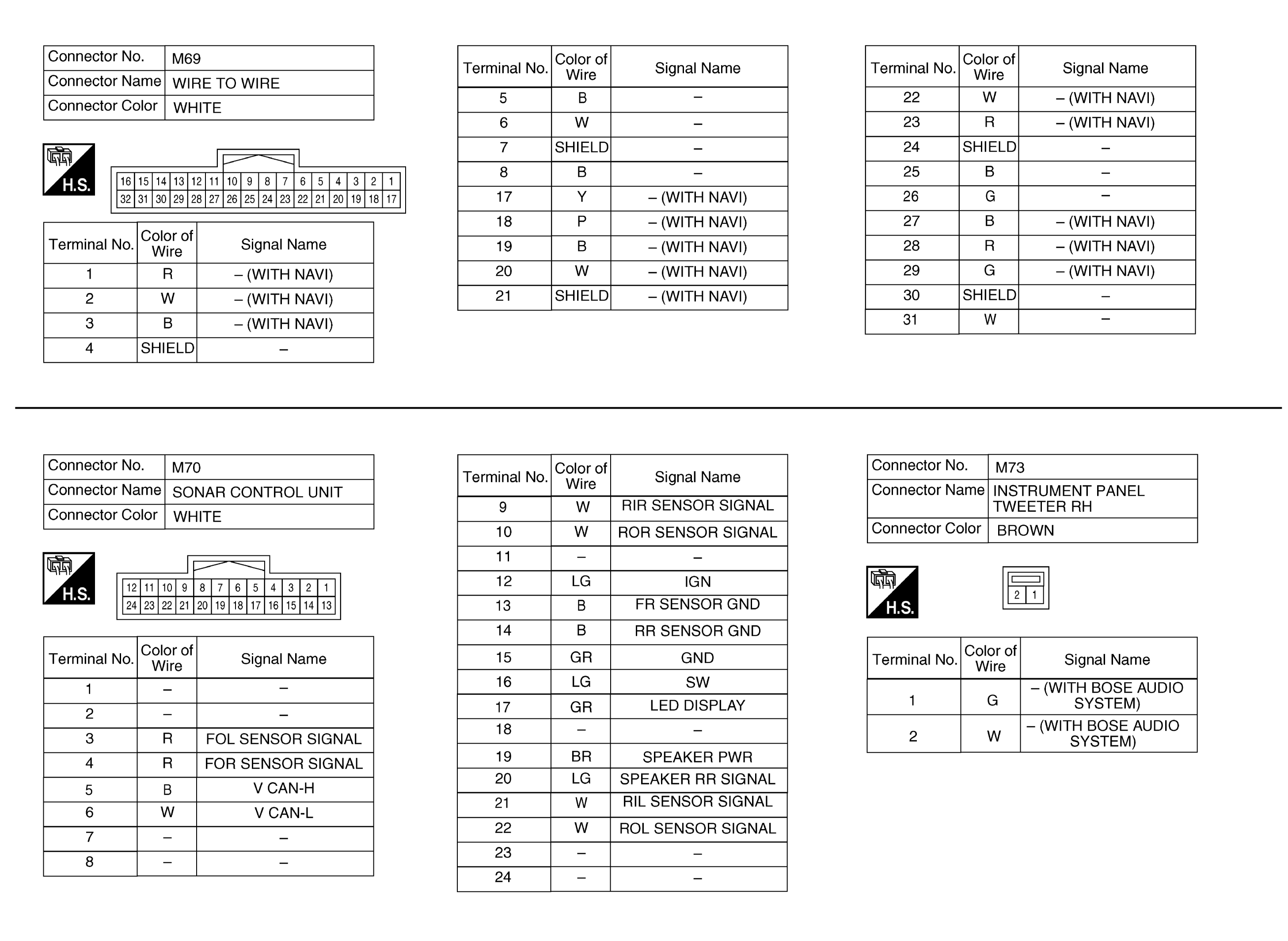

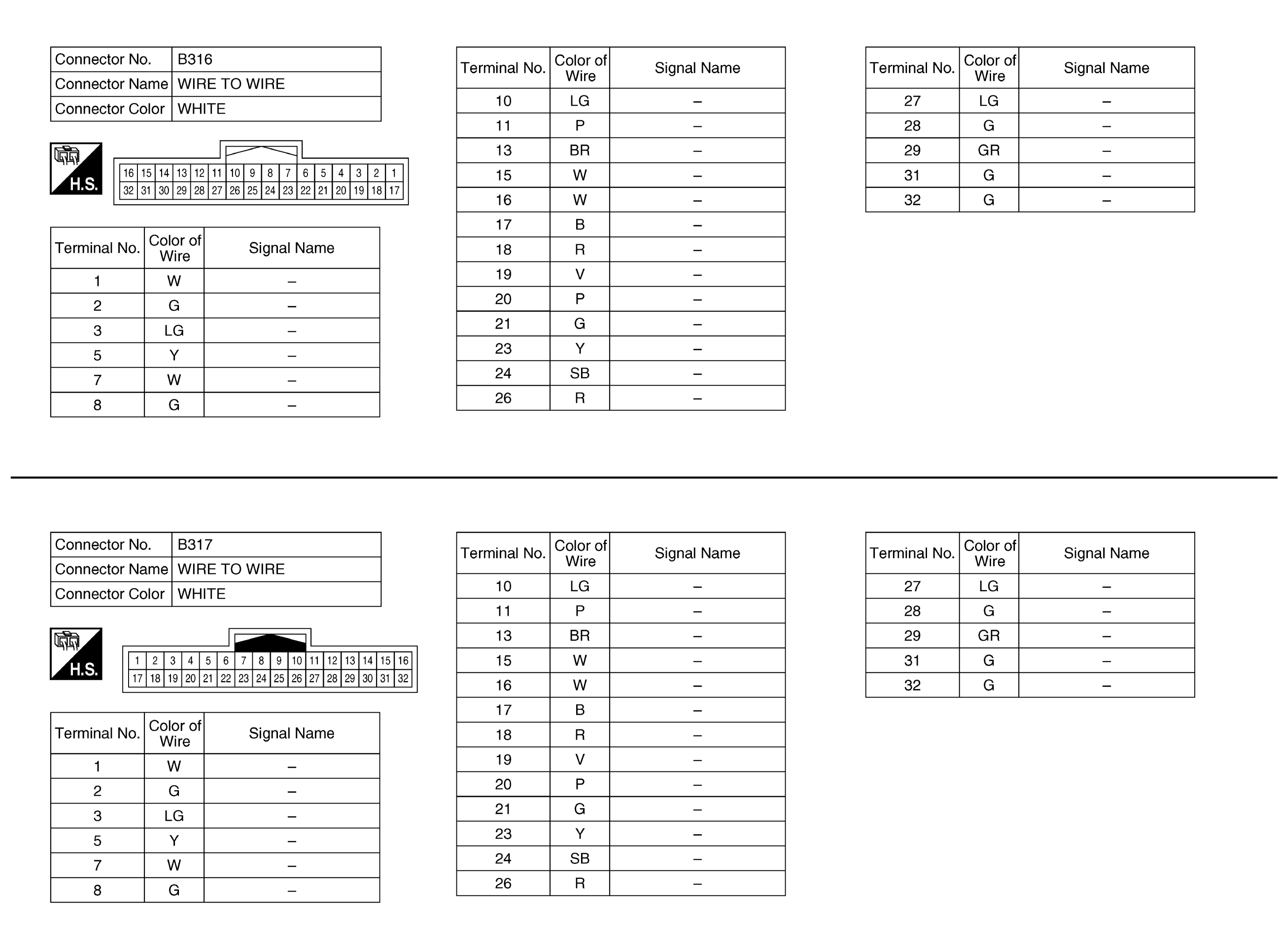

Fig 16: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (7 Of 43)

GNSABNIA6975GB-975

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (8 Of 43)

GNSABNIA6976GB-976

Courtesy of NISSAN NORTH AMERICA, INC.

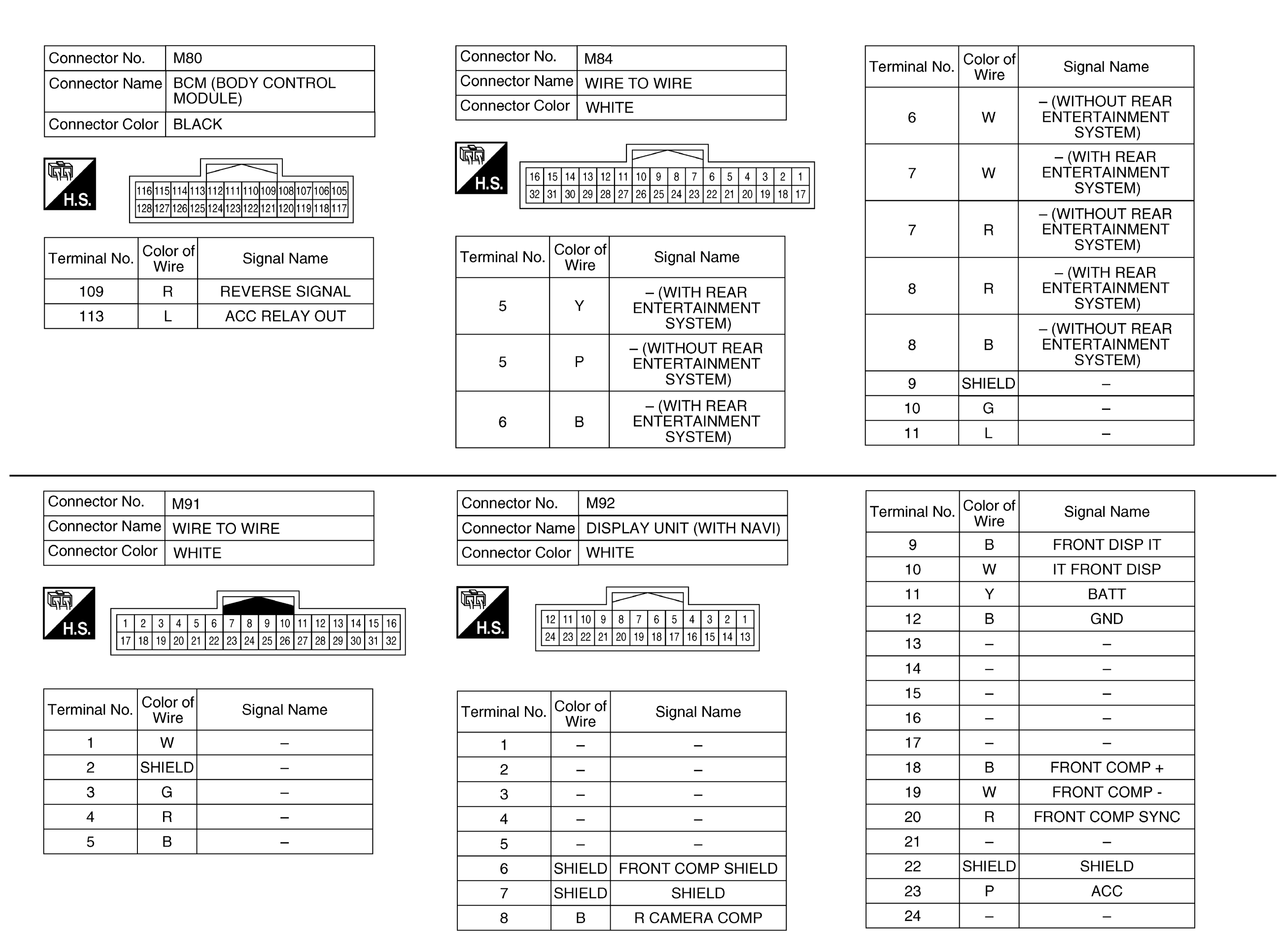

Fig 18: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (9 Of 43)

GNSABNIA6977GB-977

Courtesy of NISSAN NORTH AMERICA, INC.

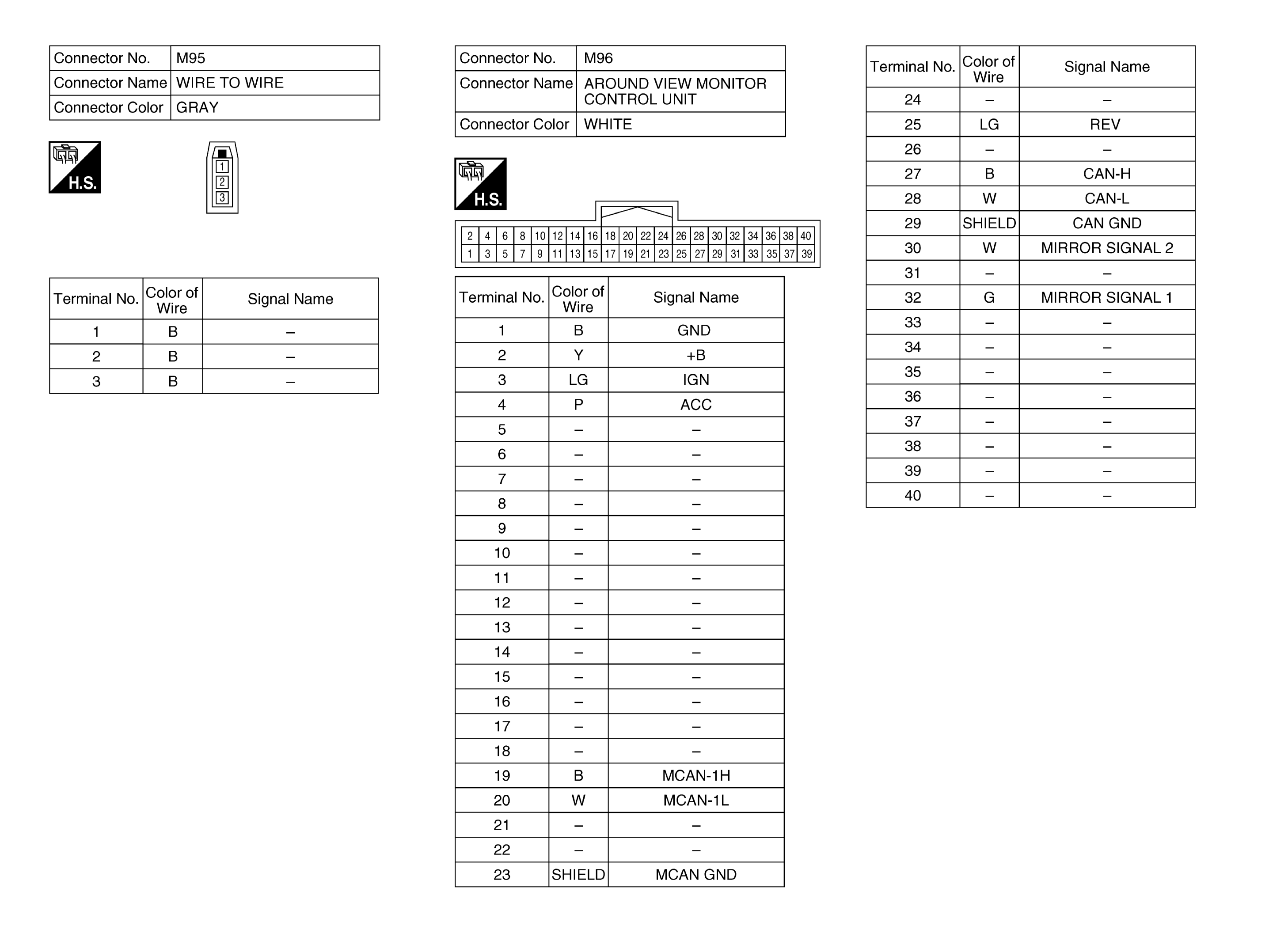

Fig 19: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (10 Of 43)

GNSABNIA6978GB-978

Courtesy of NISSAN NORTH AMERICA, INC.

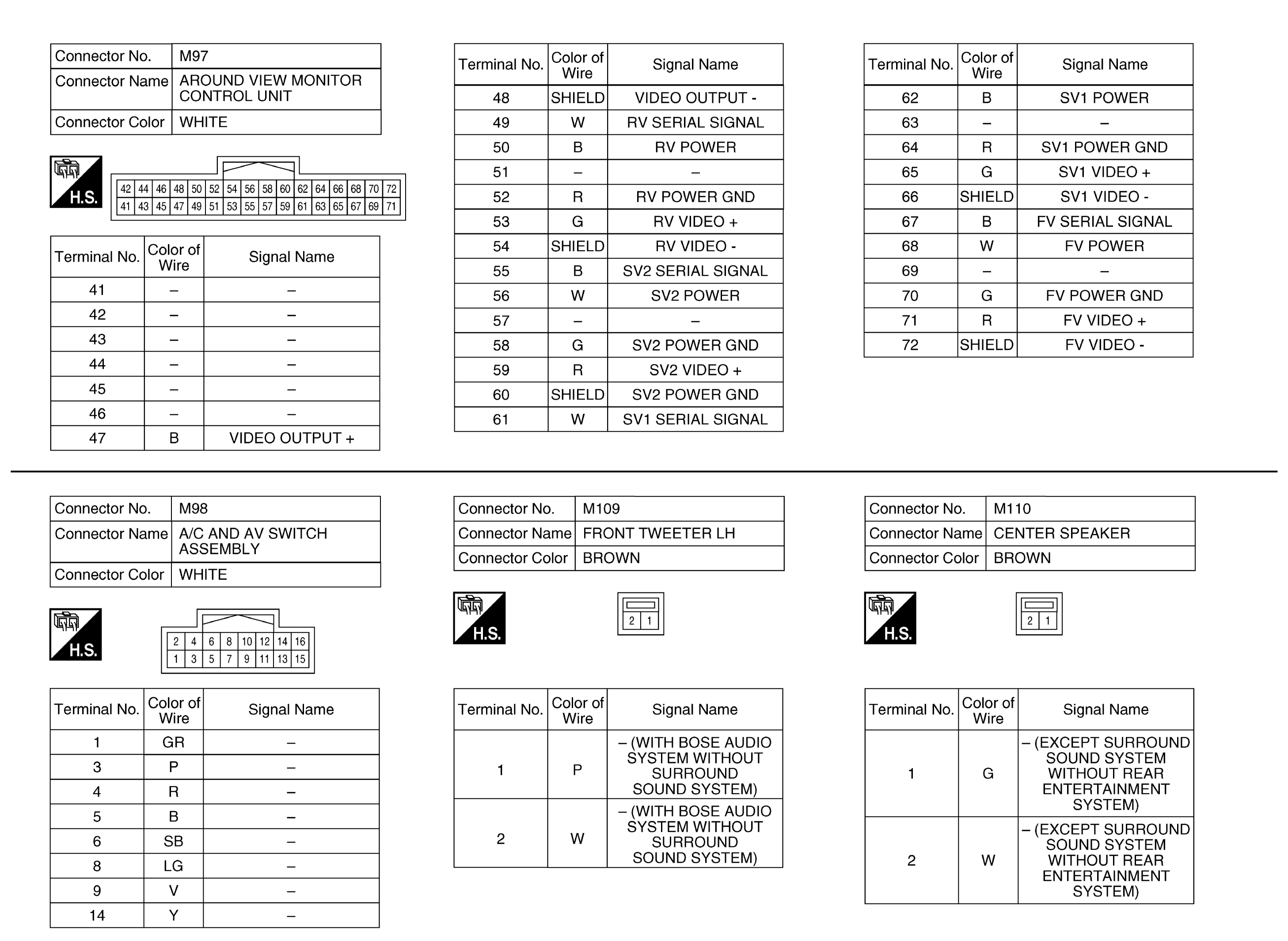

Fig 20: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (11 Of 43)

GNSABNIA6979GB-979

Courtesy of NISSAN NORTH AMERICA, INC.

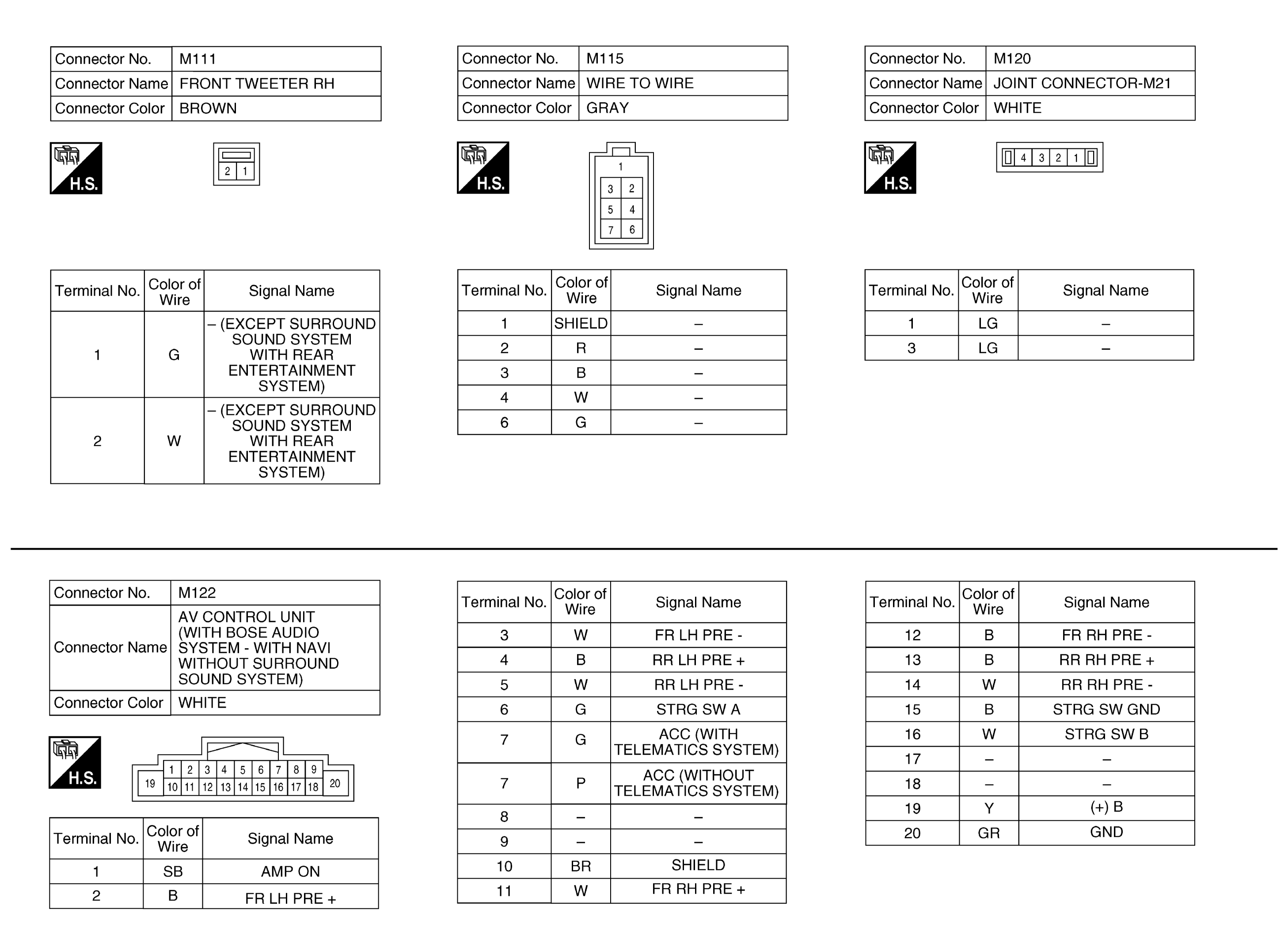

Fig 21: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (12 Of 43)

GNSABNIA6980GB-980

Courtesy of NISSAN NORTH AMERICA, INC.

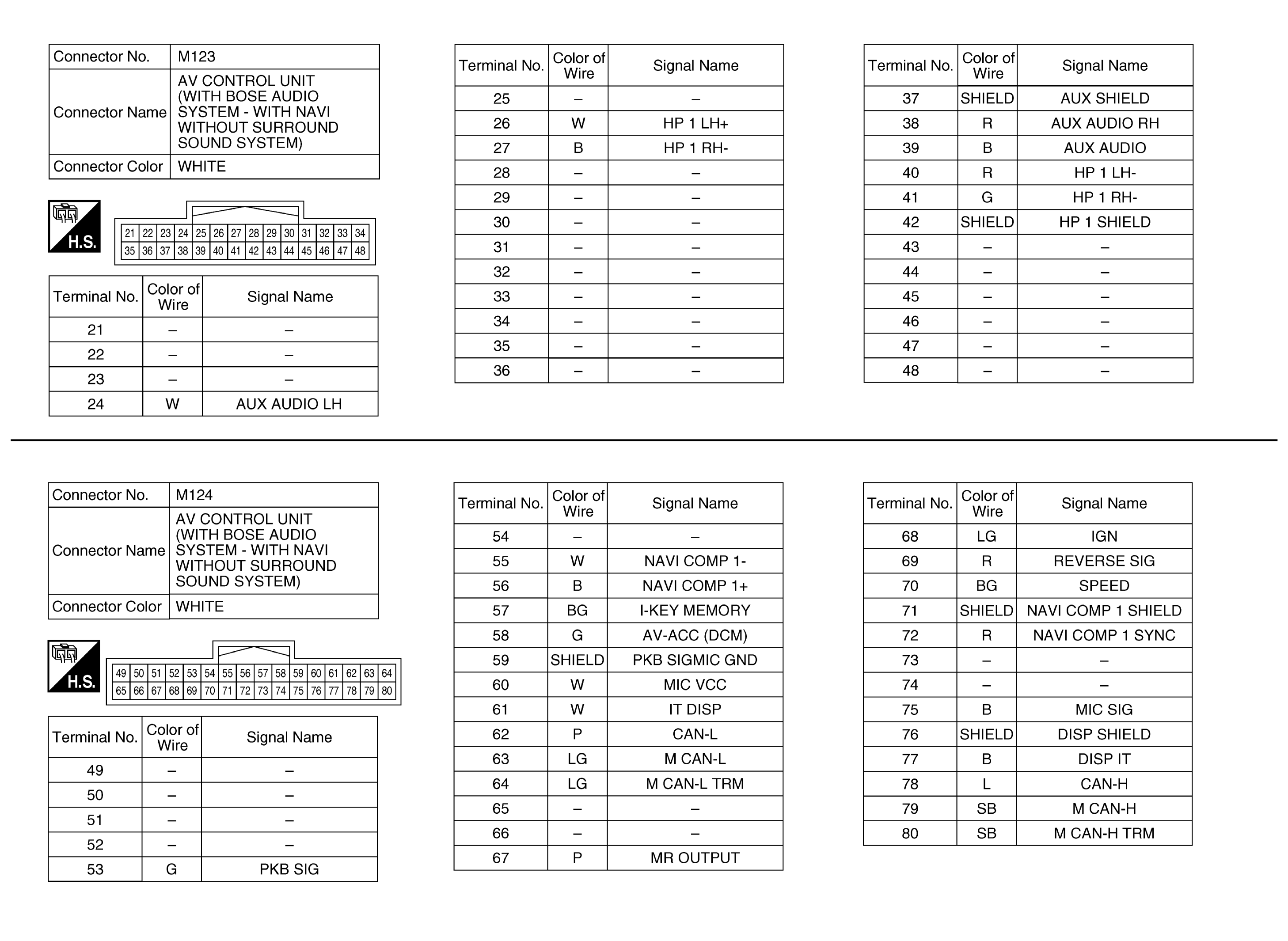

Fig 22: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (13 Of 43)

GNSABNIA6981GB-981

Courtesy of NISSAN NORTH AMERICA, INC.

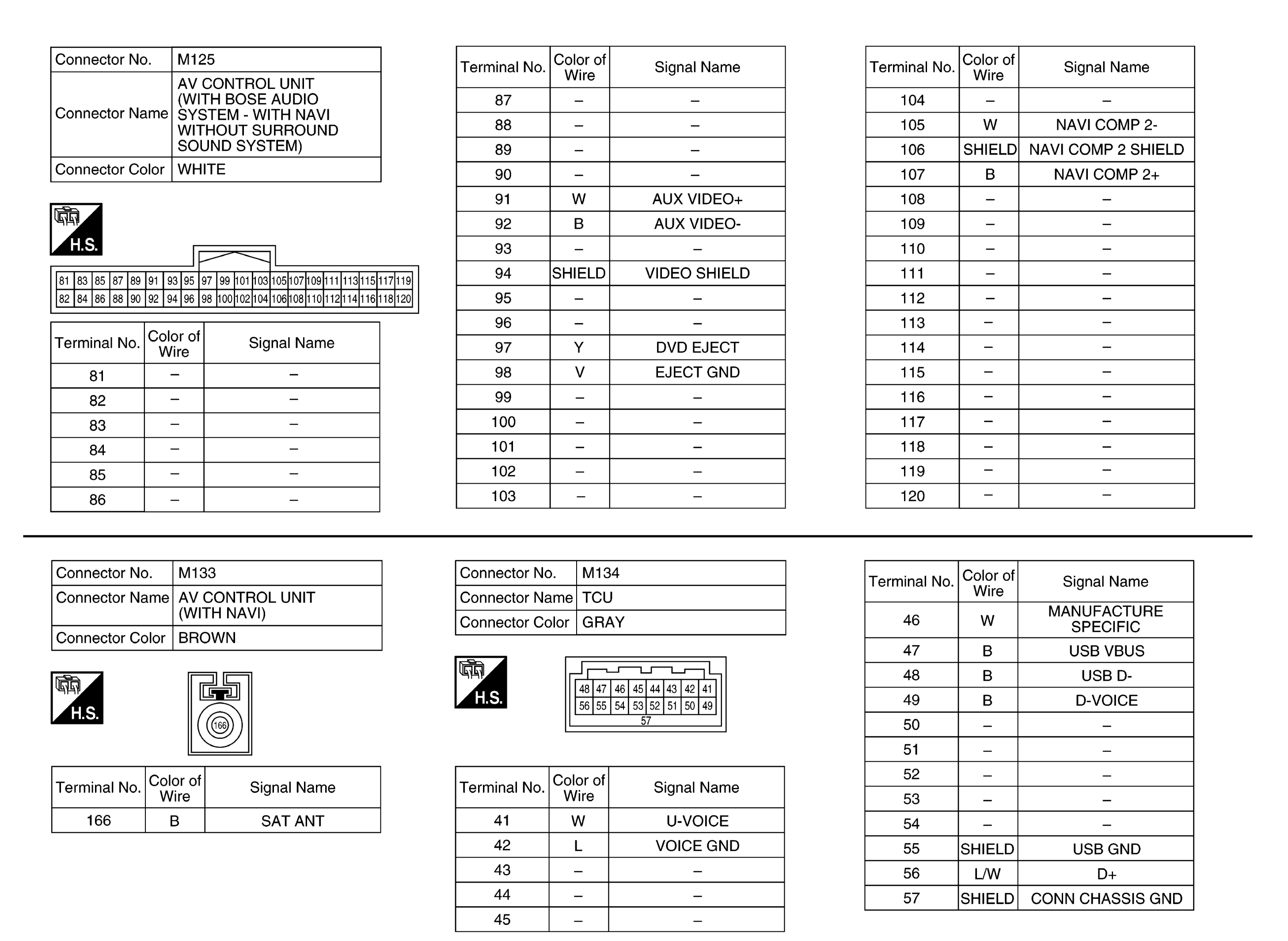

Fig 23: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (14 Of 43)

GNSABNIA6982GB-982

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 24: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (15 Of 43)

GNSABNIA6983GB-983

Courtesy of NISSAN NORTH AMERICA, INC.

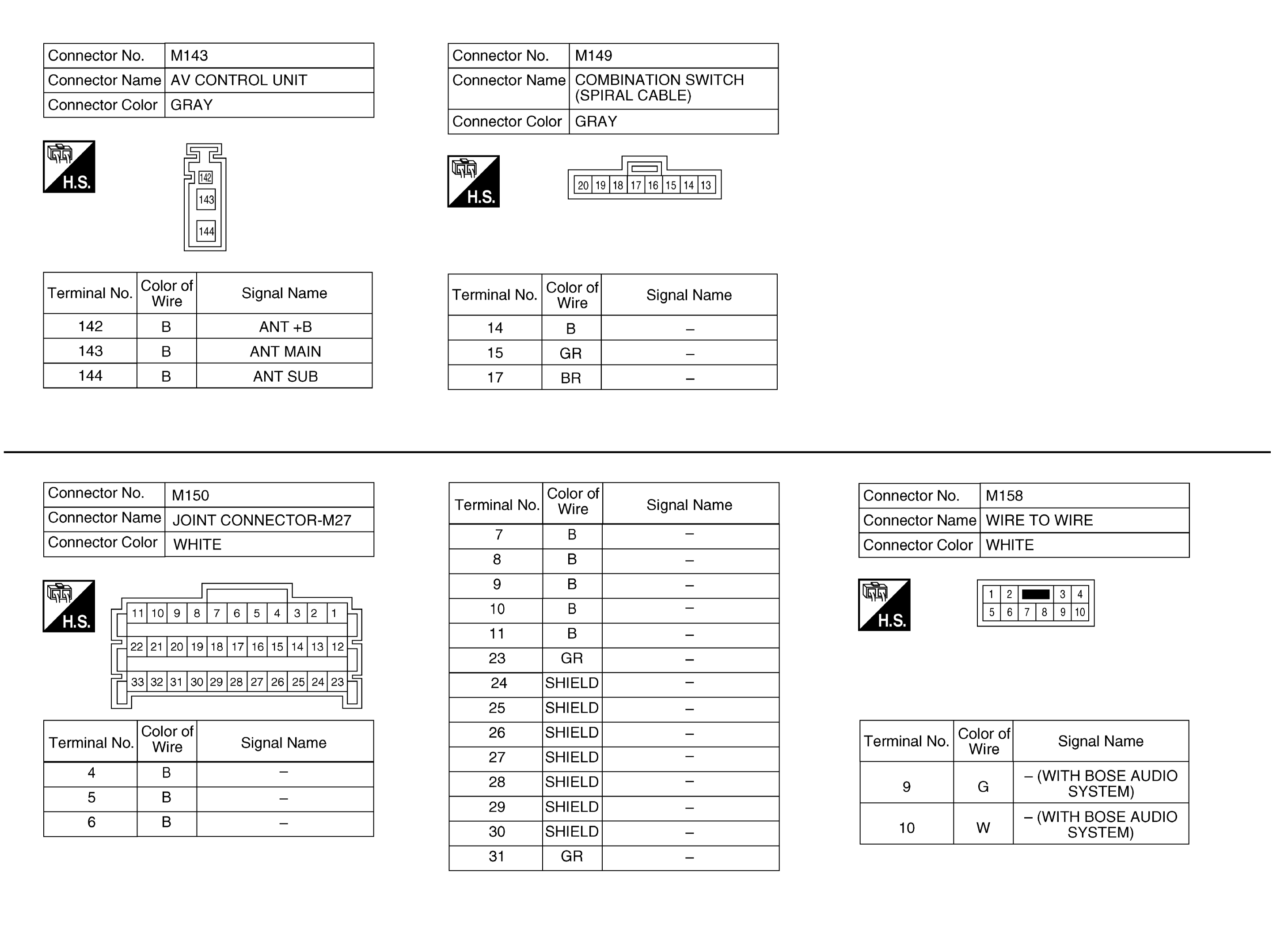

Fig 25: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (16 Of 43)

GNSABNIA6984GB-984

Courtesy of NISSAN NORTH AMERICA, INC.

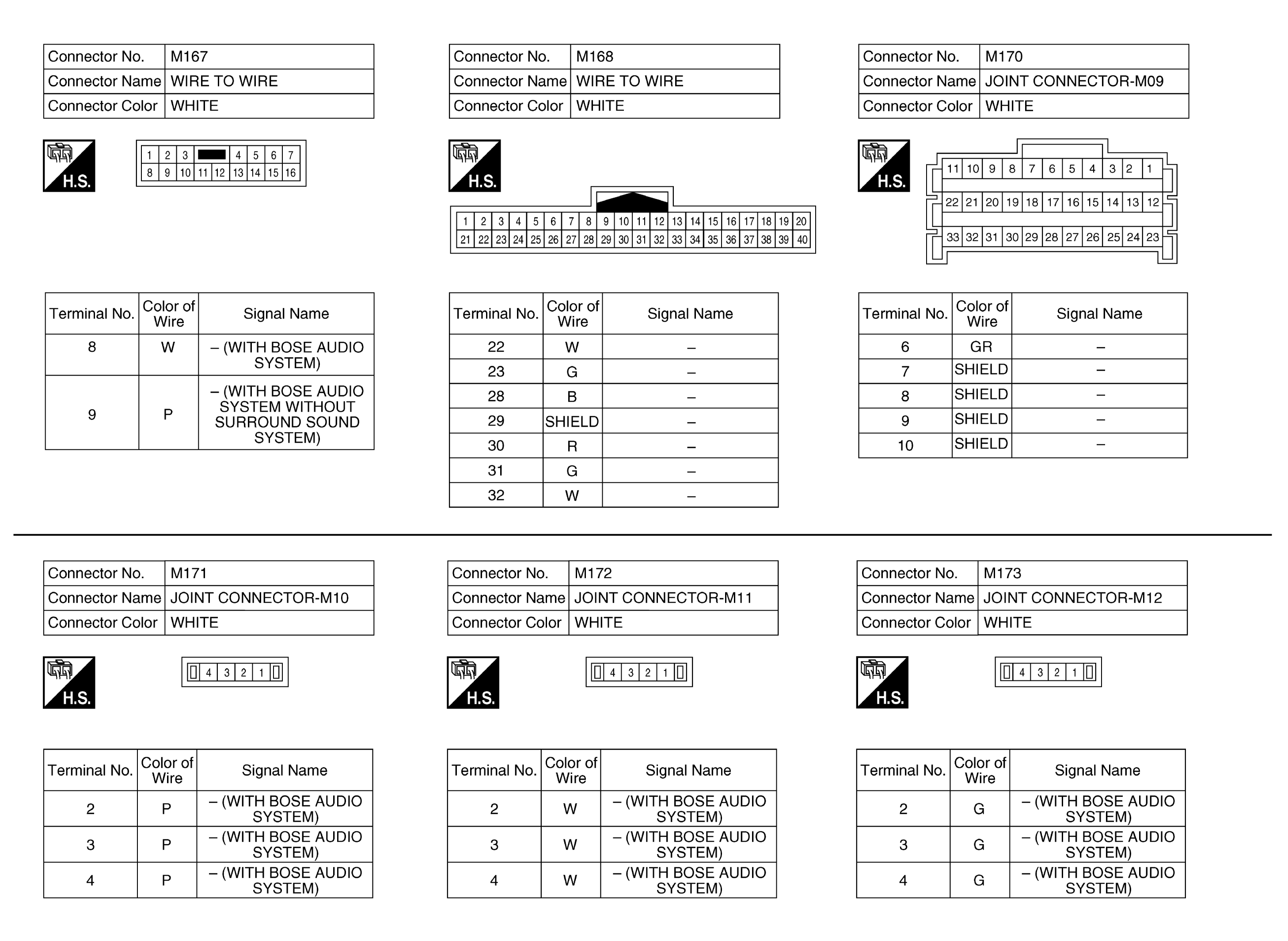

Fig 26: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (17 Of 43)

GNSABNIA6985GB-985

Courtesy of NISSAN NORTH AMERICA, INC.

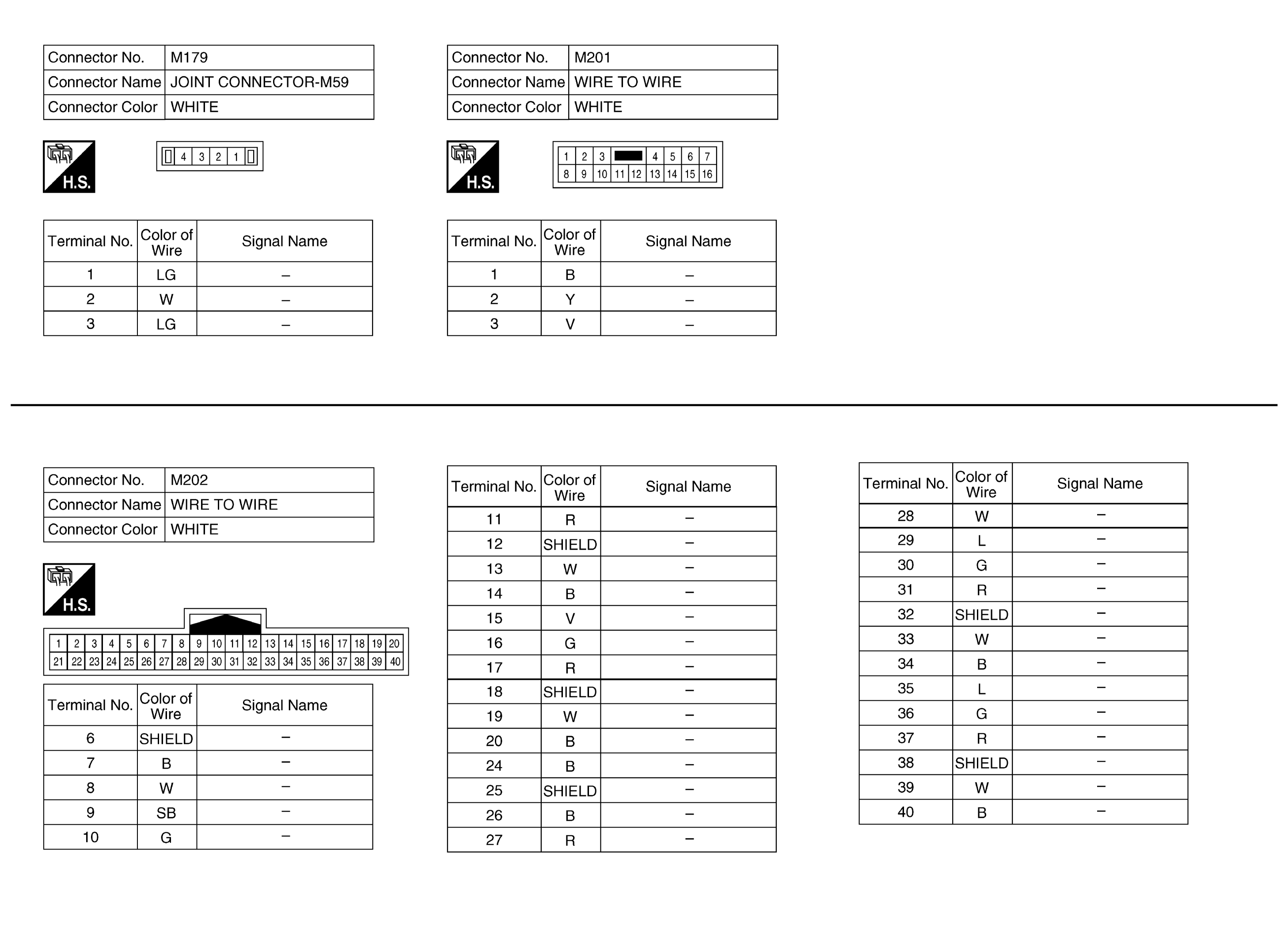

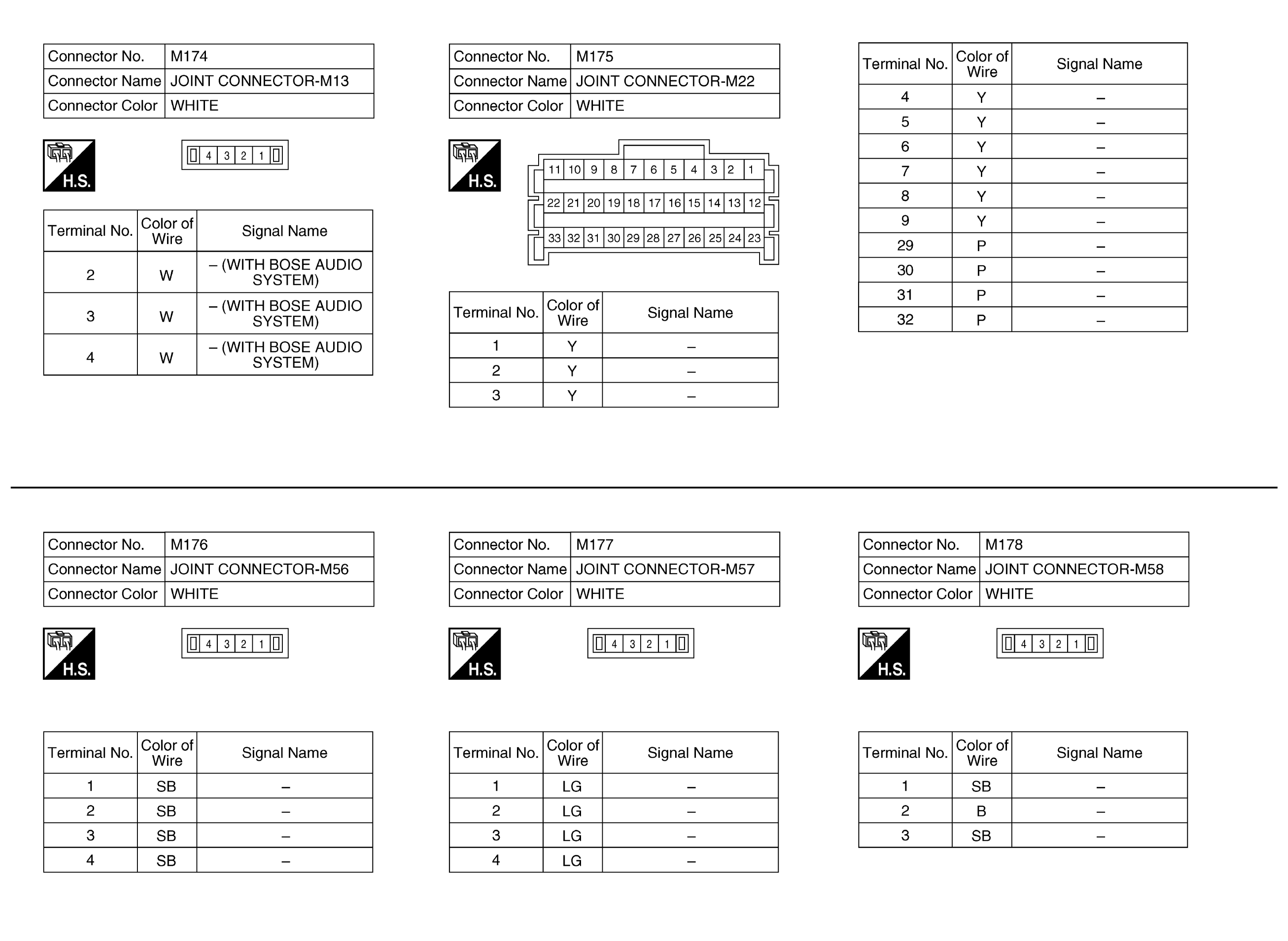

Fig 27: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (18 Of 43)

GNSABNIA6986GB-986

Courtesy of NISSAN NORTH AMERICA, INC.

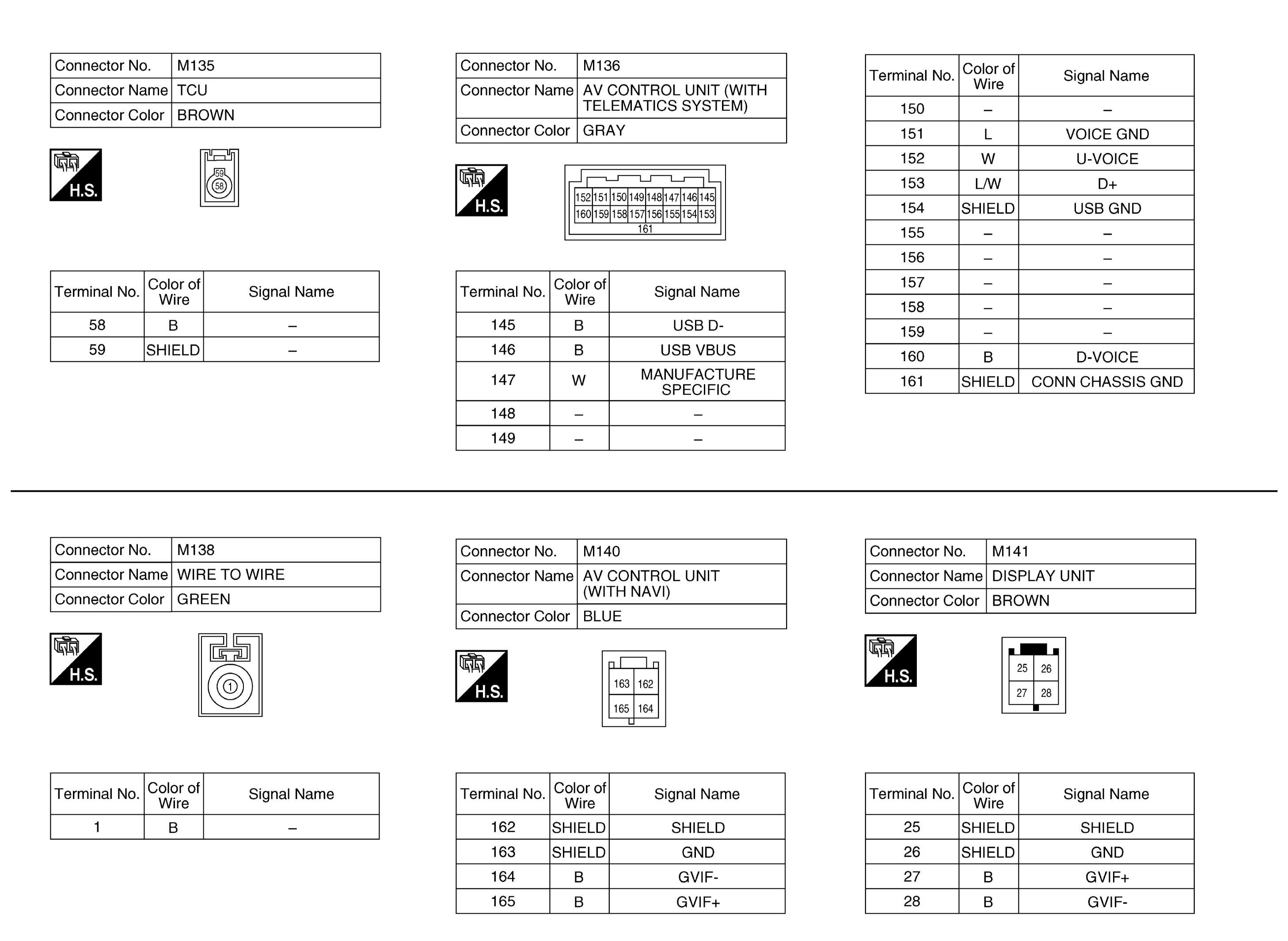

Fig 28: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (19 Of 43)

GNSABNIA6987GB-987

Courtesy of NISSAN NORTH AMERICA, INC.

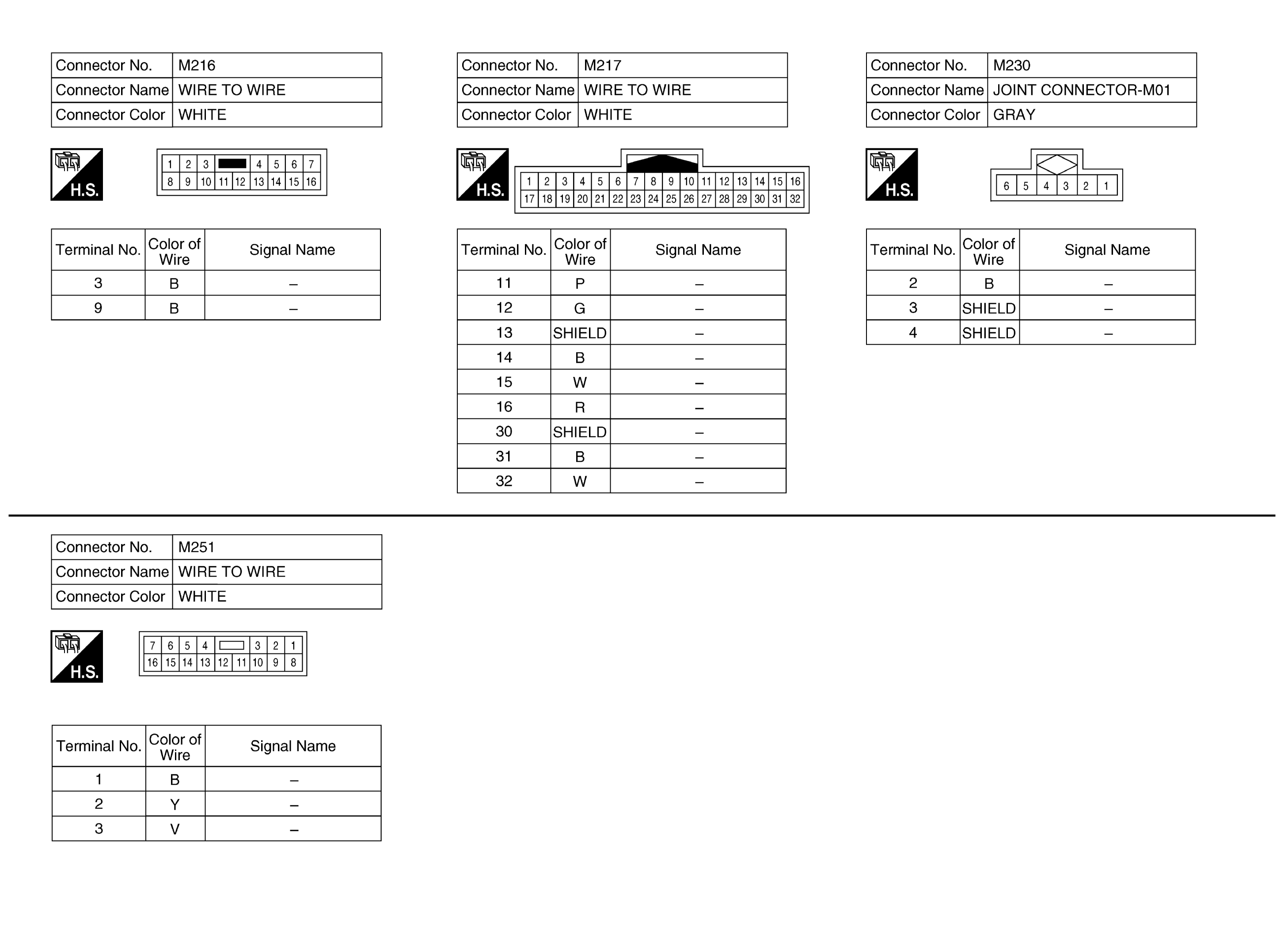

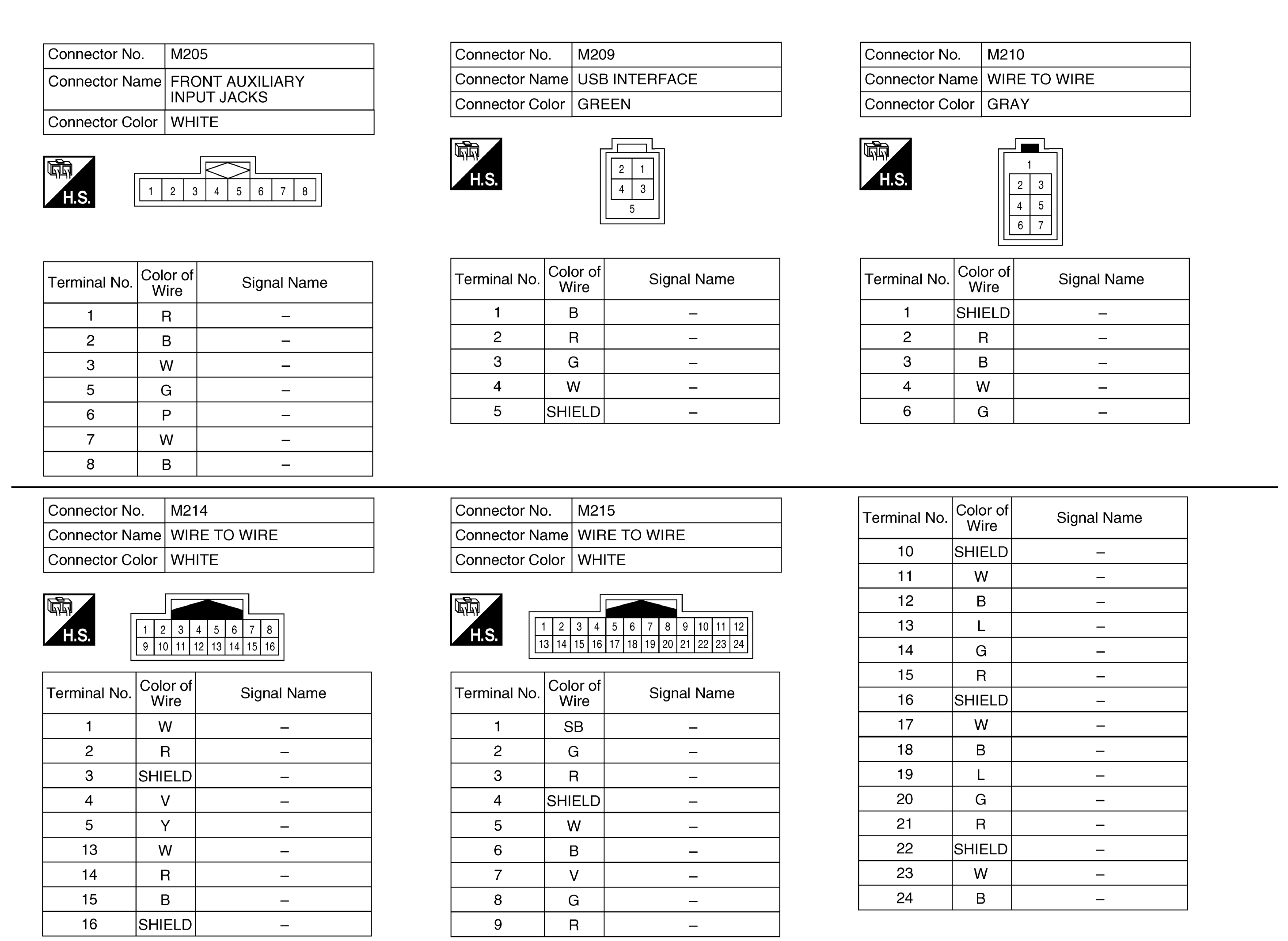

Fig 29: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (20 Of 43)

GNSABNIA6988GB-988

Courtesy of NISSAN NORTH AMERICA, INC.

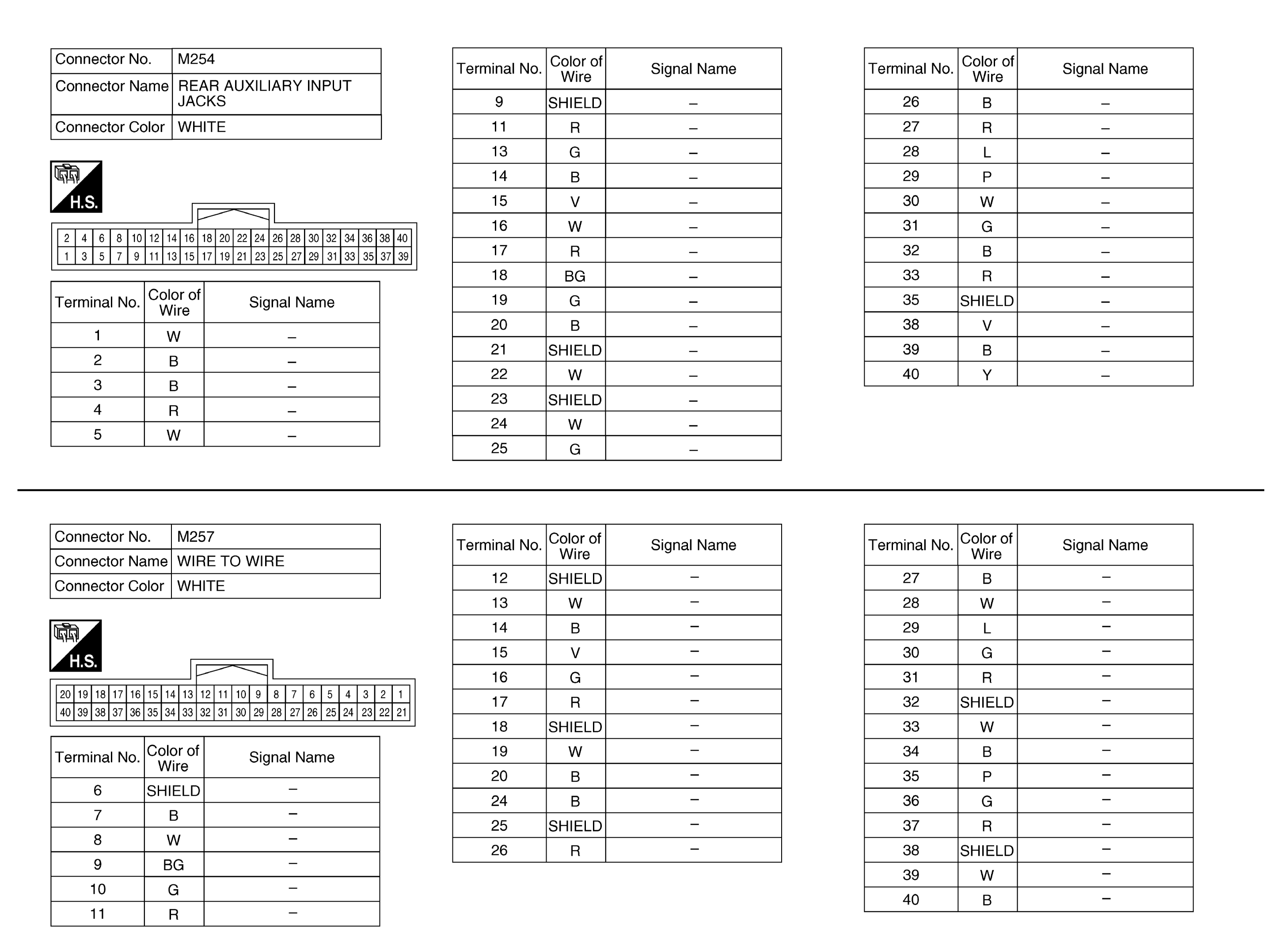

Fig 30: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (21 Of 43)

GNSABNIA6989GB-989

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 31: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (22 Of 43)

GNSABNIA6990GB-990

Courtesy of NISSAN NORTH AMERICA, INC.

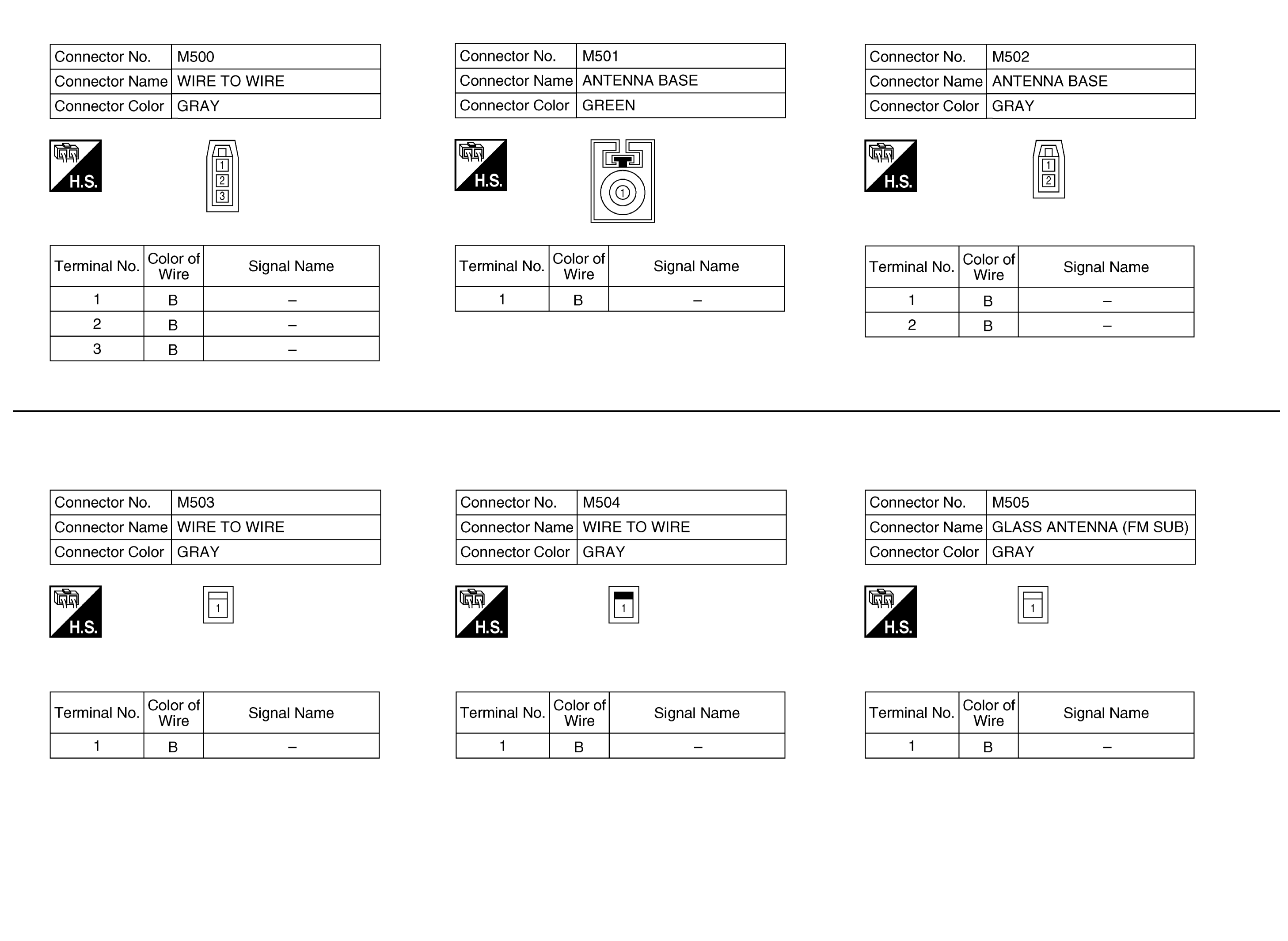

Fig 32: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (23 Of 43)

GNSABNIA6991GB-991

Courtesy of NISSAN NORTH AMERICA, INC.

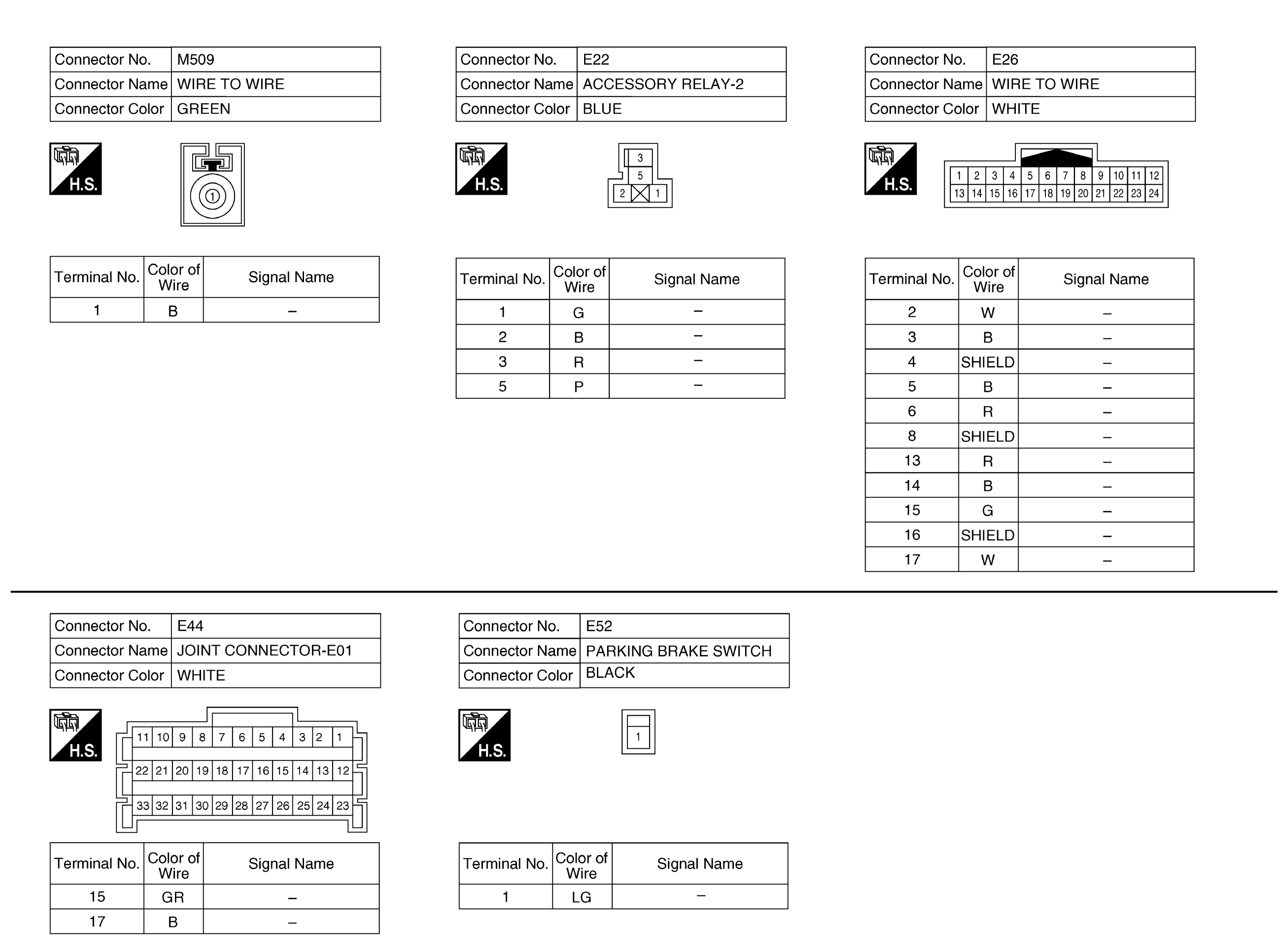

Fig 33: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (24 Of 43)

GNSABNIA6992GB-992

Courtesy of NISSAN NORTH AMERICA, INC.

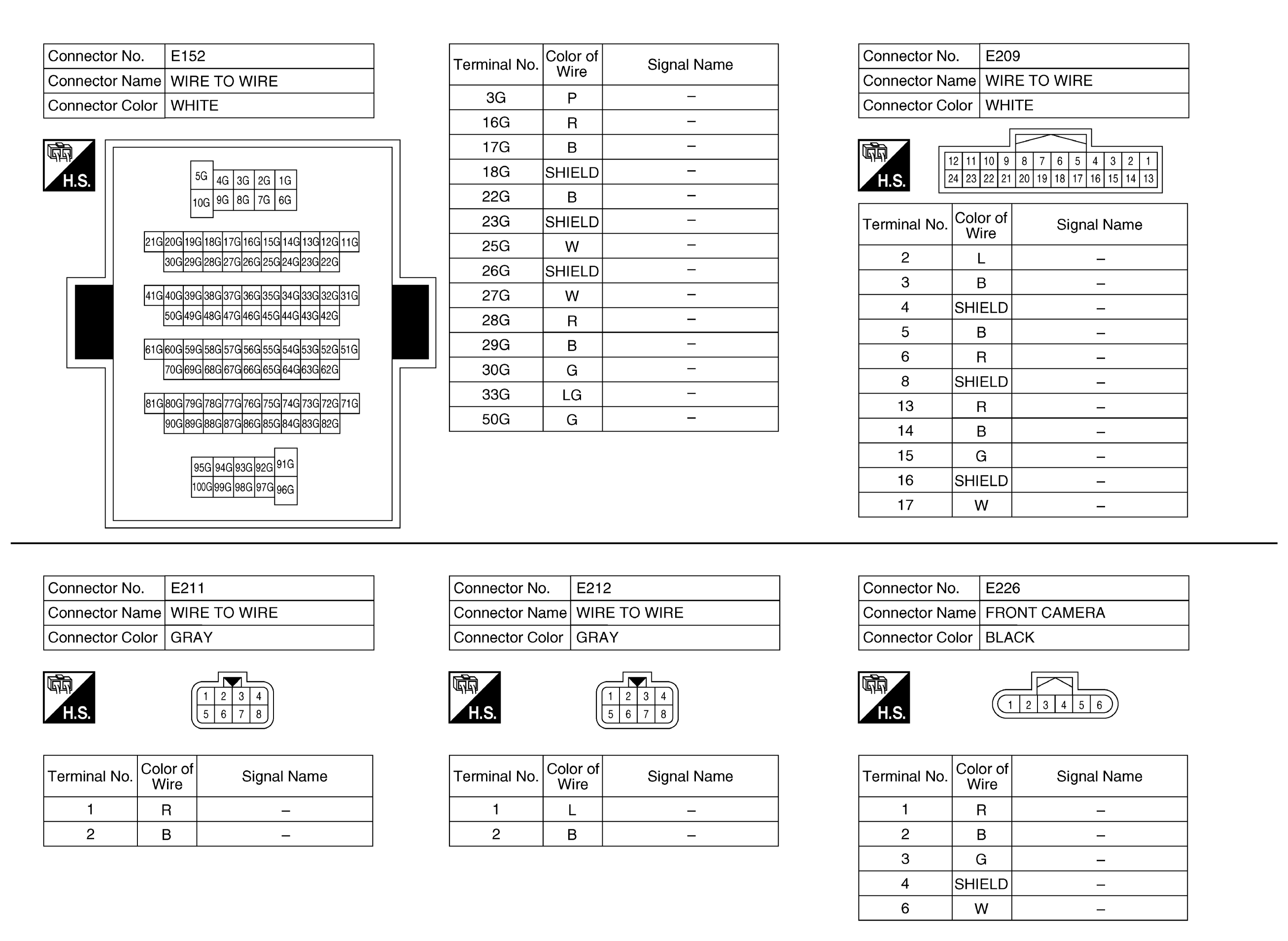

Fig 34: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (25 Of 43)

GNSABNIA6993GB-993

Courtesy of NISSAN NORTH AMERICA, INC.

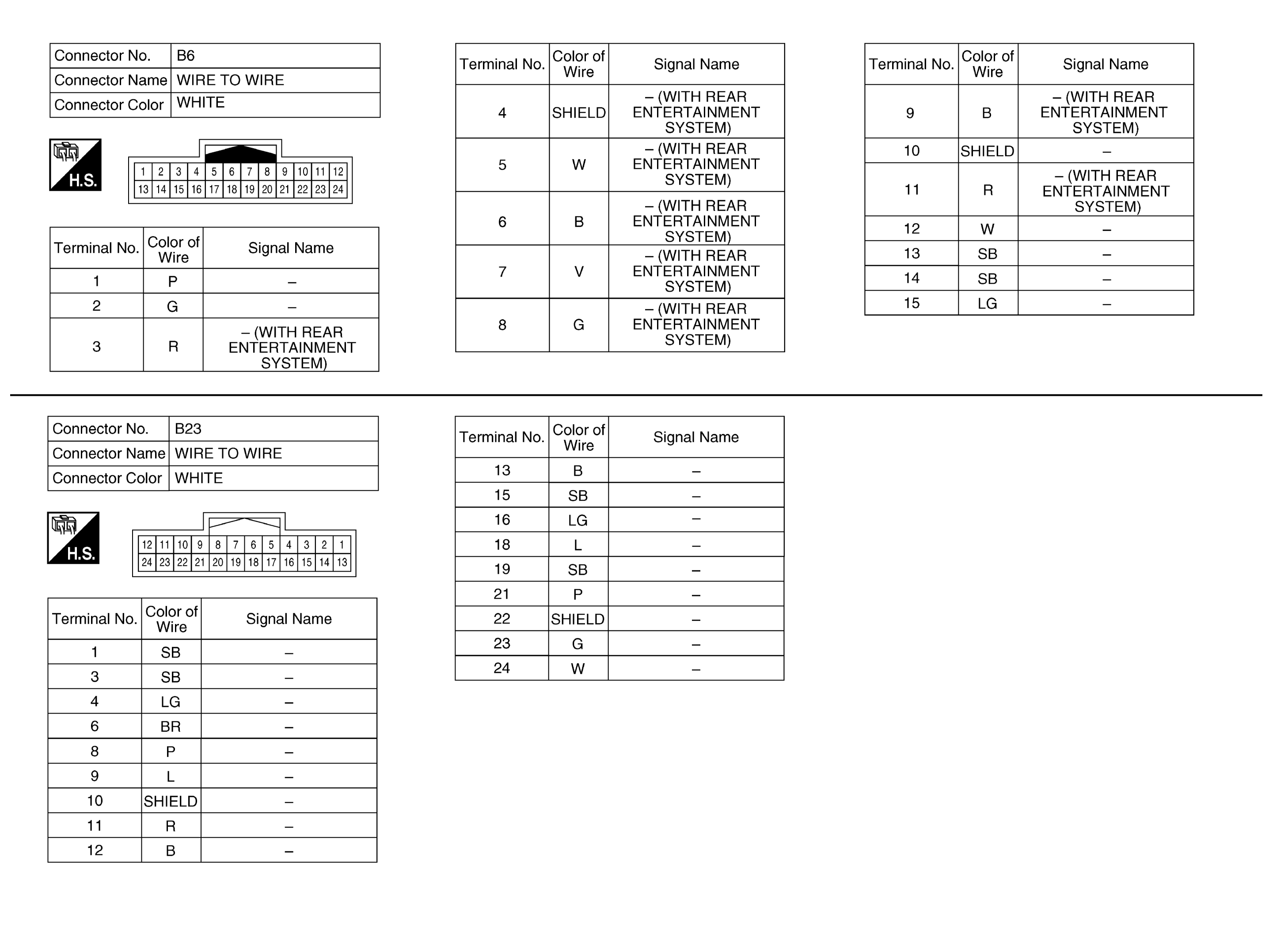

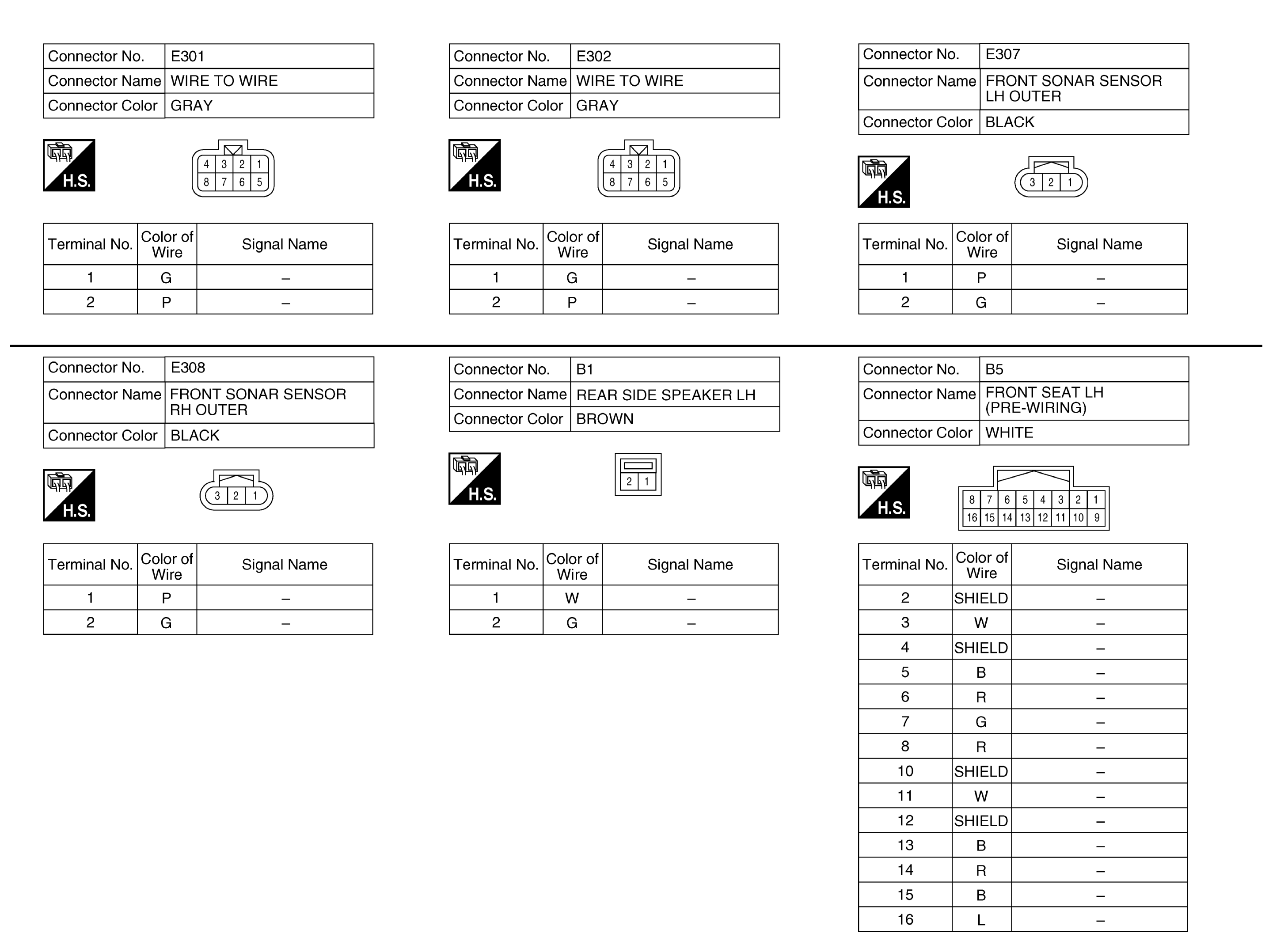

Fig 35: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (26 Of 43)

GNSABNIA6994GB-994

Courtesy of NISSAN NORTH AMERICA, INC.

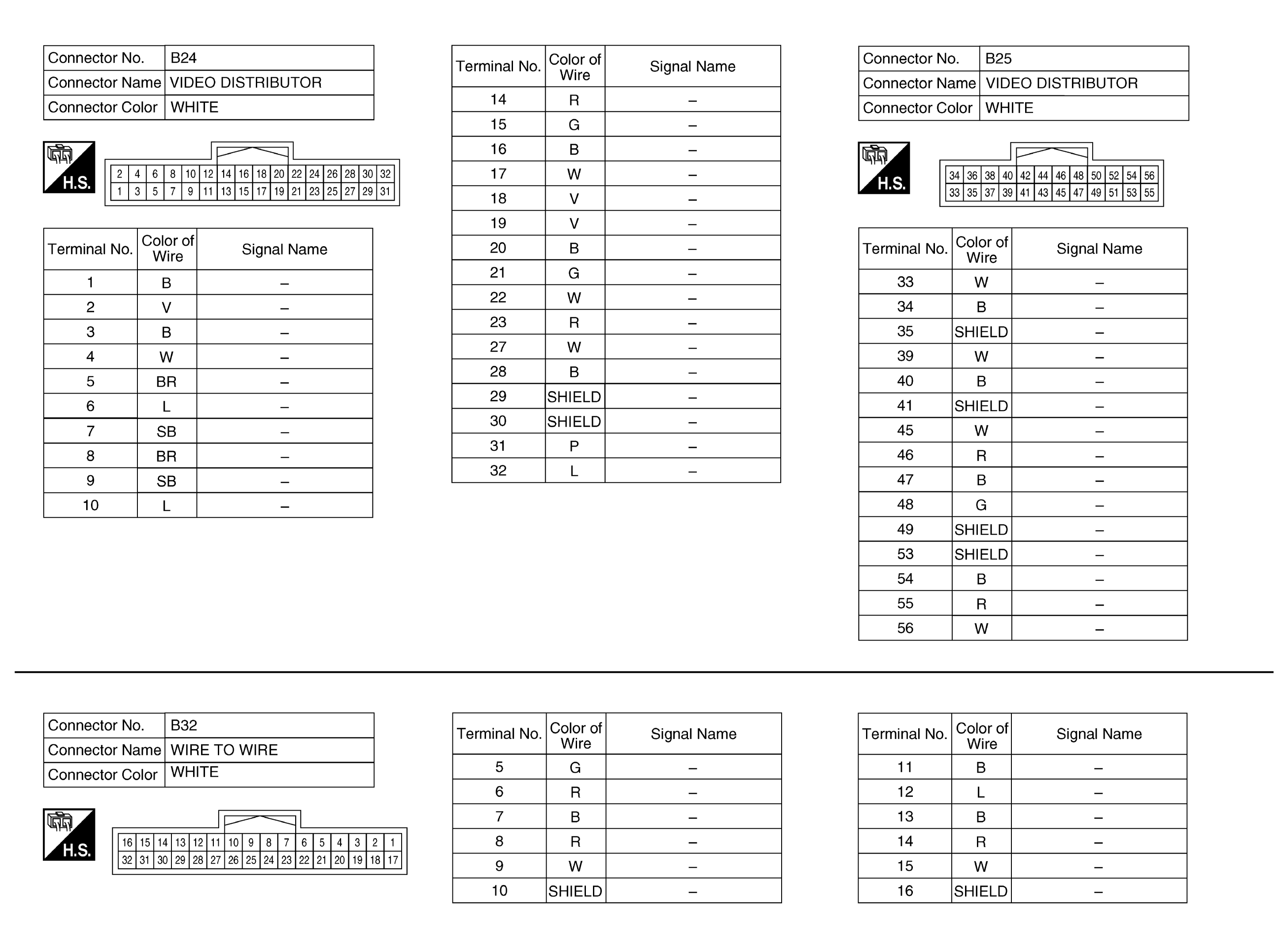

Fig 36: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (27 Of 43)

GNSABNIA6995GB-995

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 37: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (28 Of 43)

GNSABNIA6996GB-996

Courtesy of NISSAN NORTH AMERICA, INC.

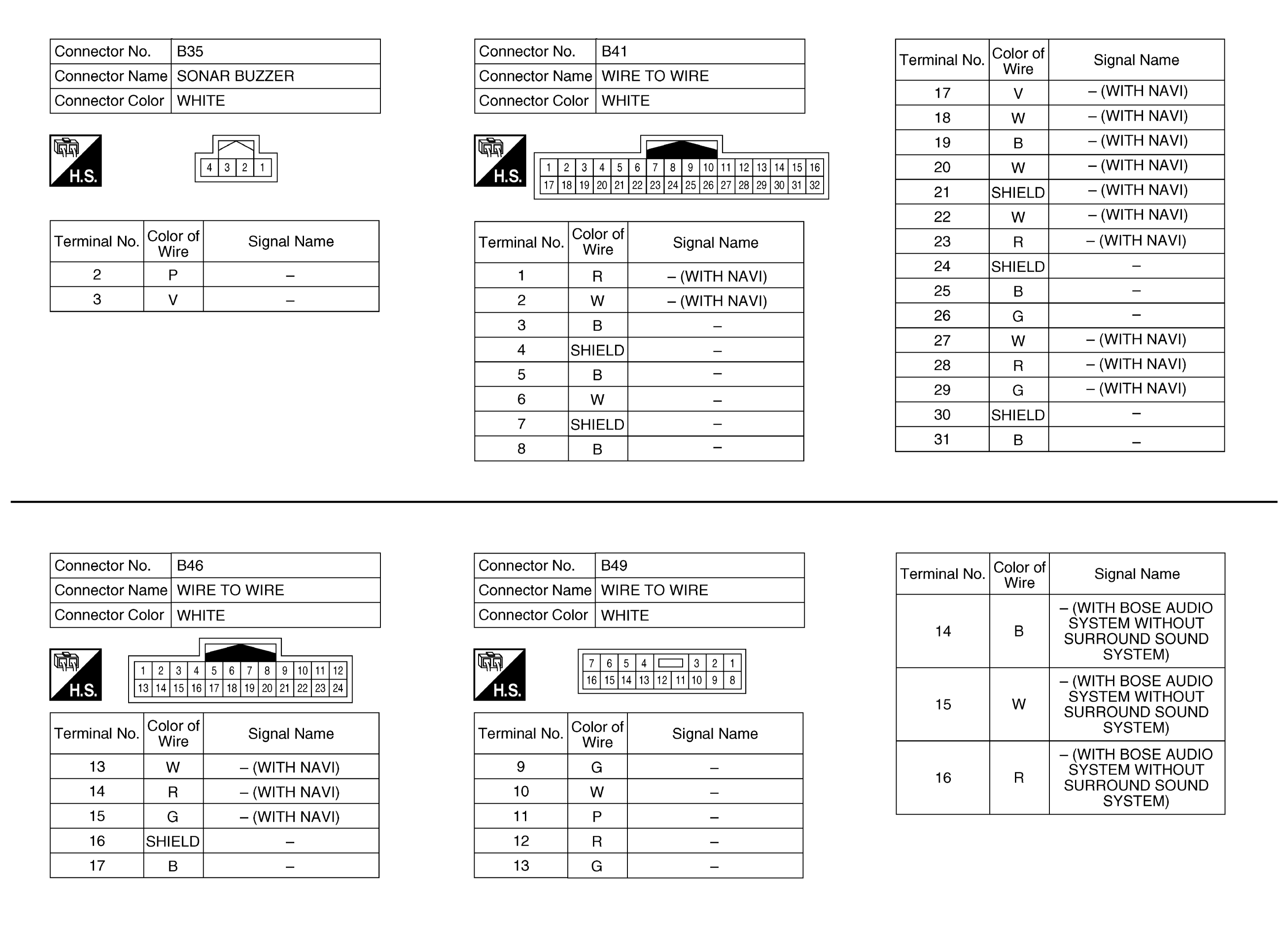

Fig 38: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (29 Of 43)

GNSABNIA6997GB-997

Courtesy of NISSAN NORTH AMERICA, INC.

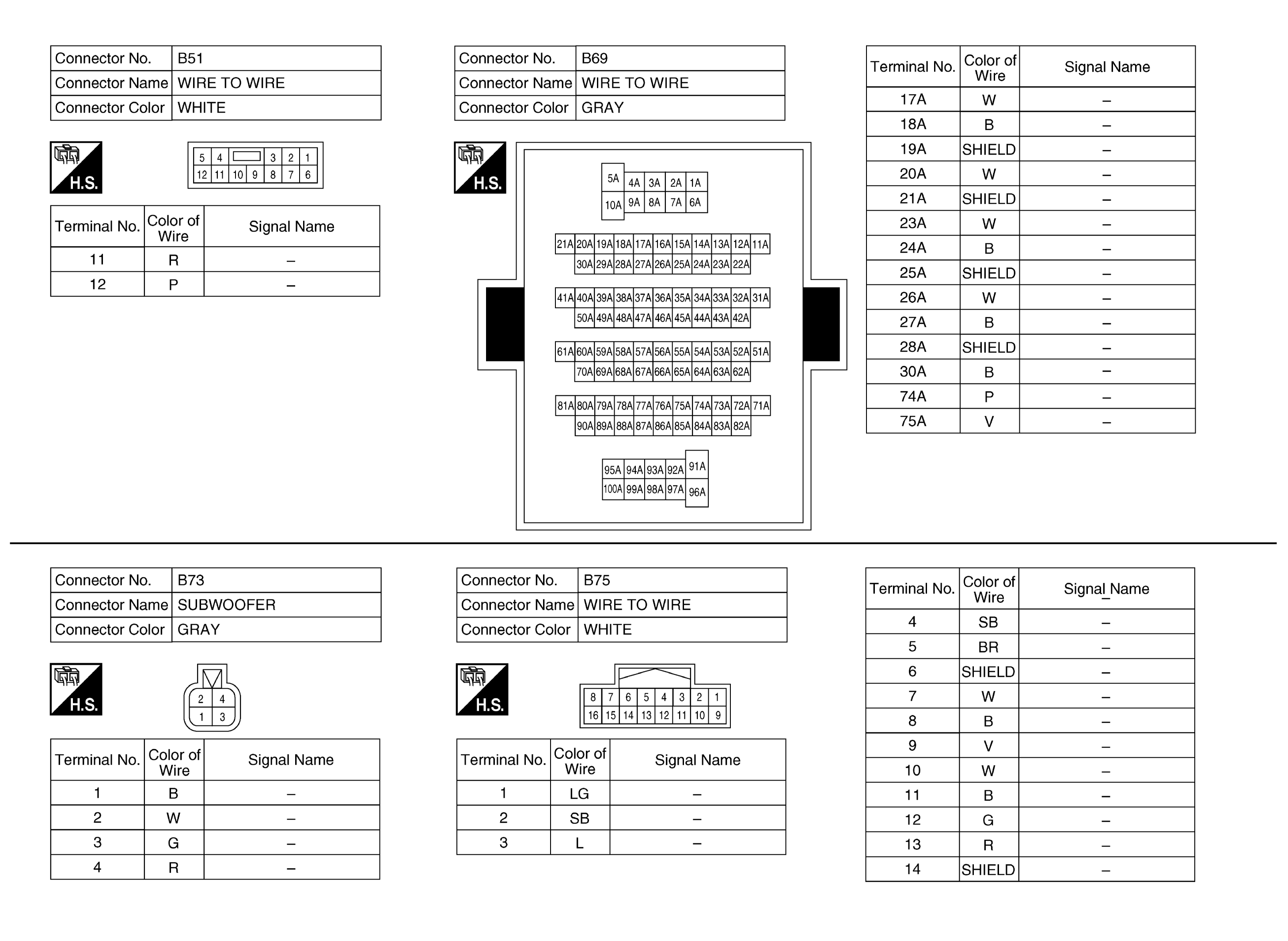

Fig 39: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (30 Of 43)

GNSABNIA6998GB-998

Courtesy of NISSAN NORTH AMERICA, INC.

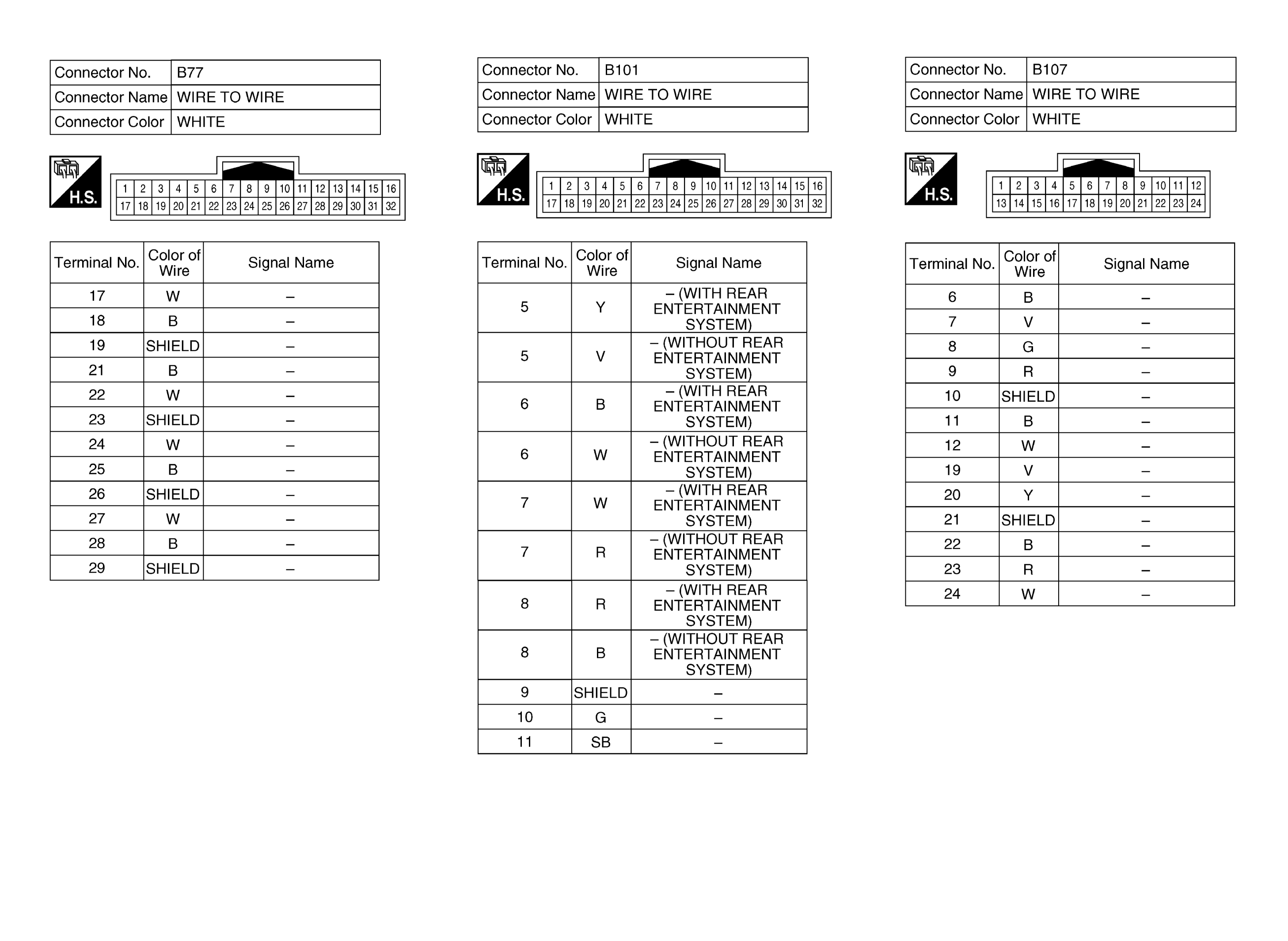

Fig 40: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (31 Of 43)

GNSABNIA6999GB-999

Courtesy of NISSAN NORTH AMERICA, INC.

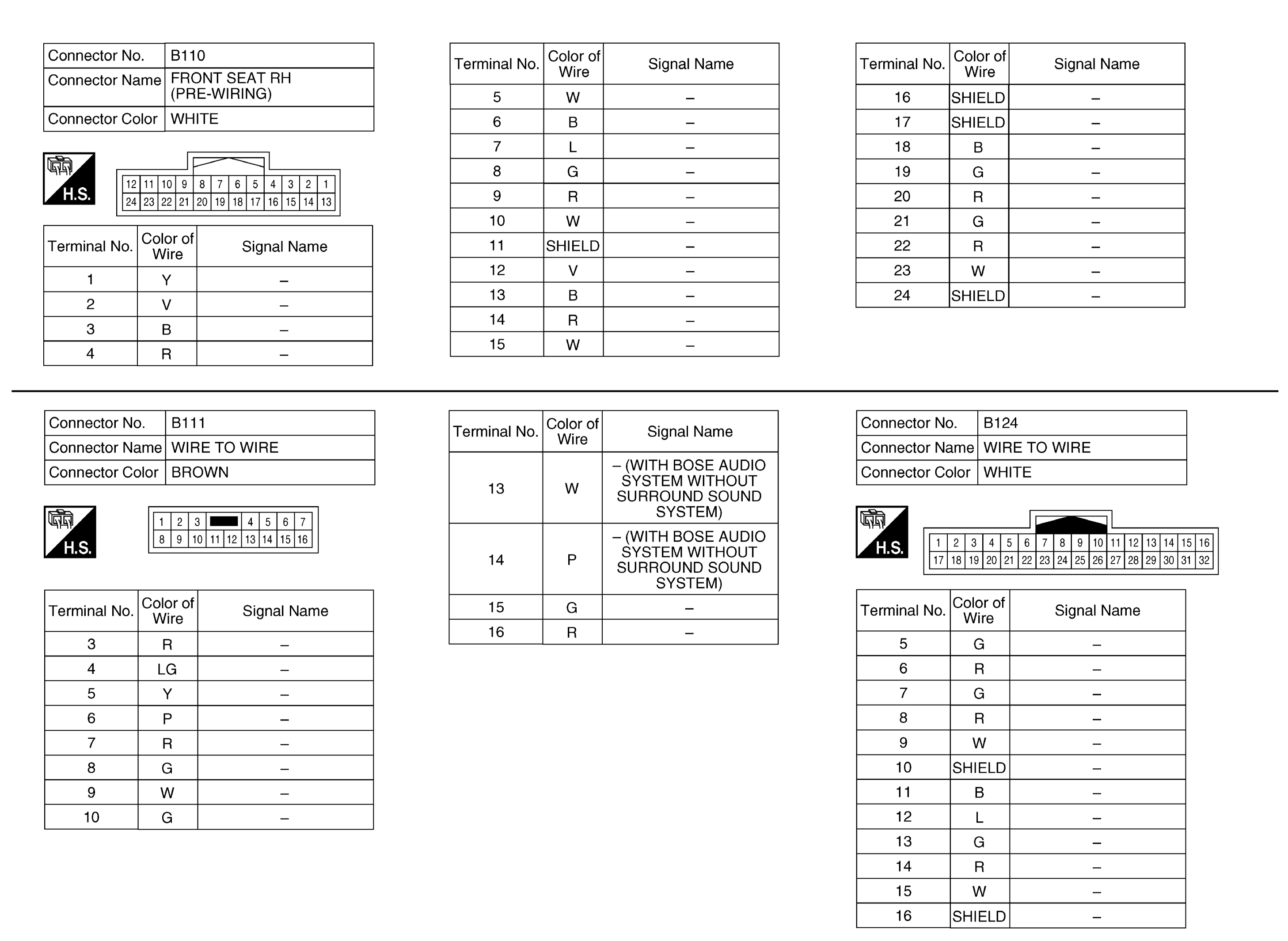

Fig 41: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (32 Of 43)

GNSABNIA7000GB-000

Courtesy of NISSAN NORTH AMERICA, INC.

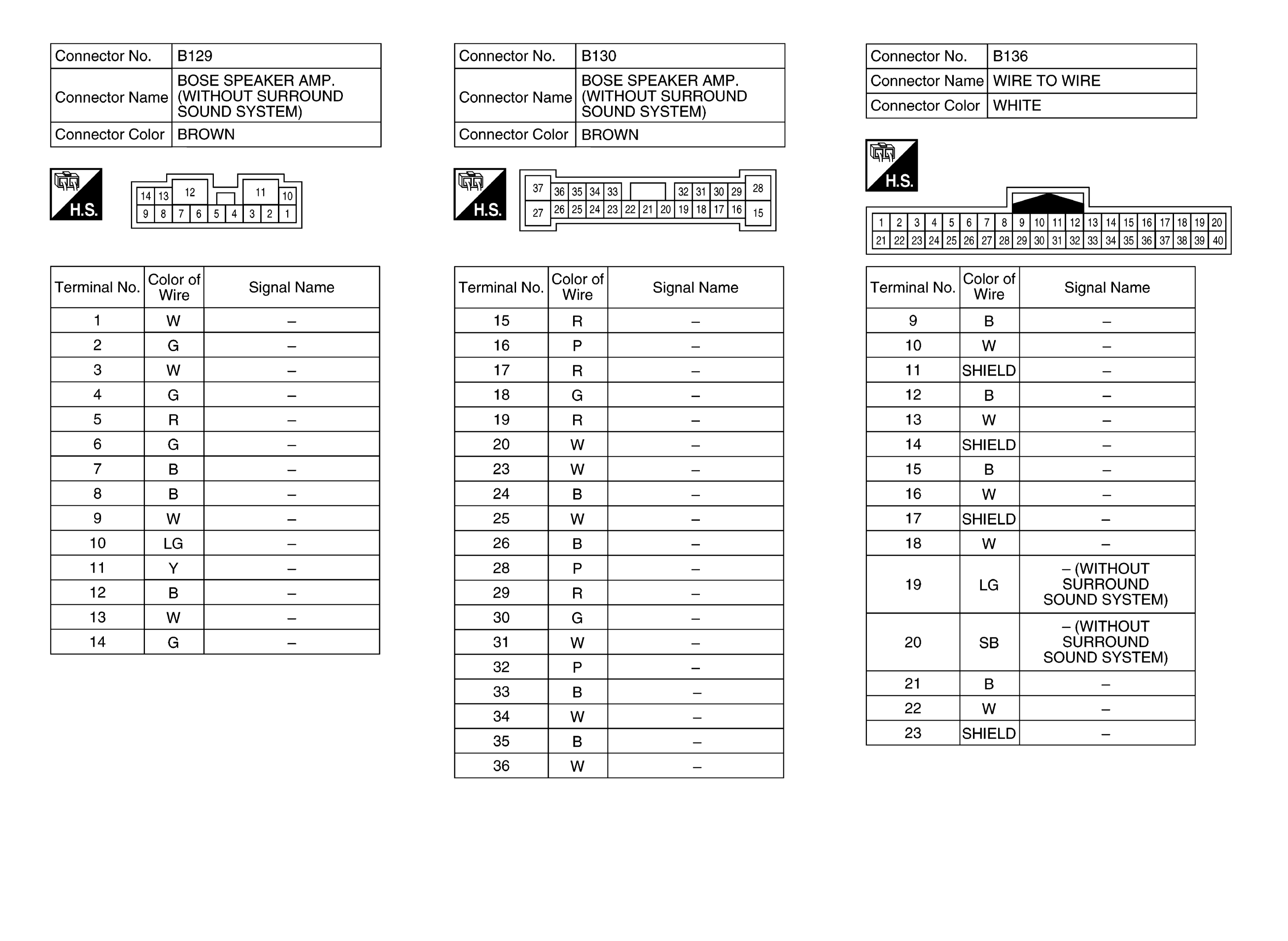

Fig 42: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (33 Of 43)

GNSABNIA7001GB-001

Courtesy of NISSAN NORTH AMERICA, INC.

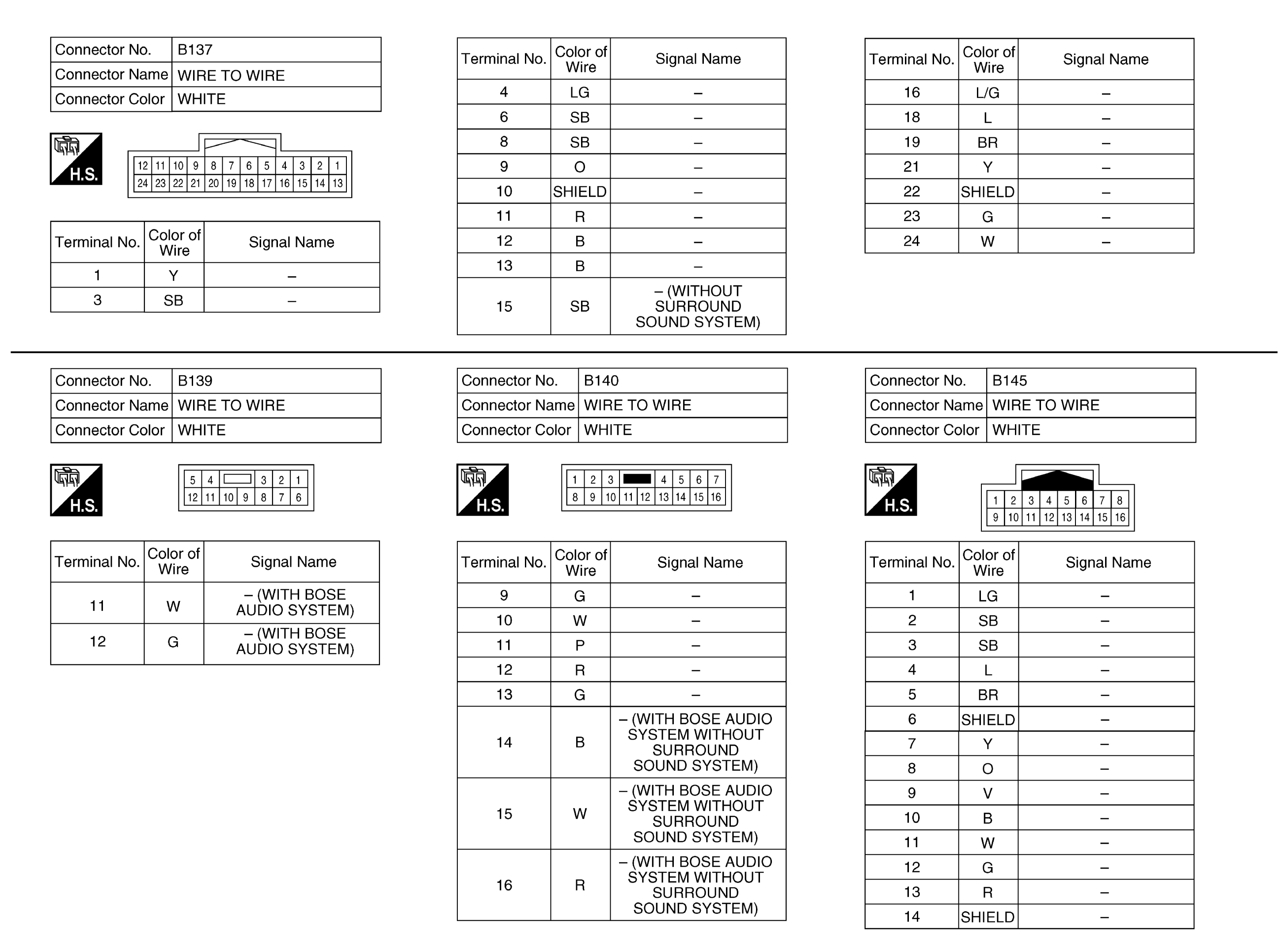

Fig 43: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (34 Of 43)

GNSABNIA7002GB-002

Courtesy of NISSAN NORTH AMERICA, INC.

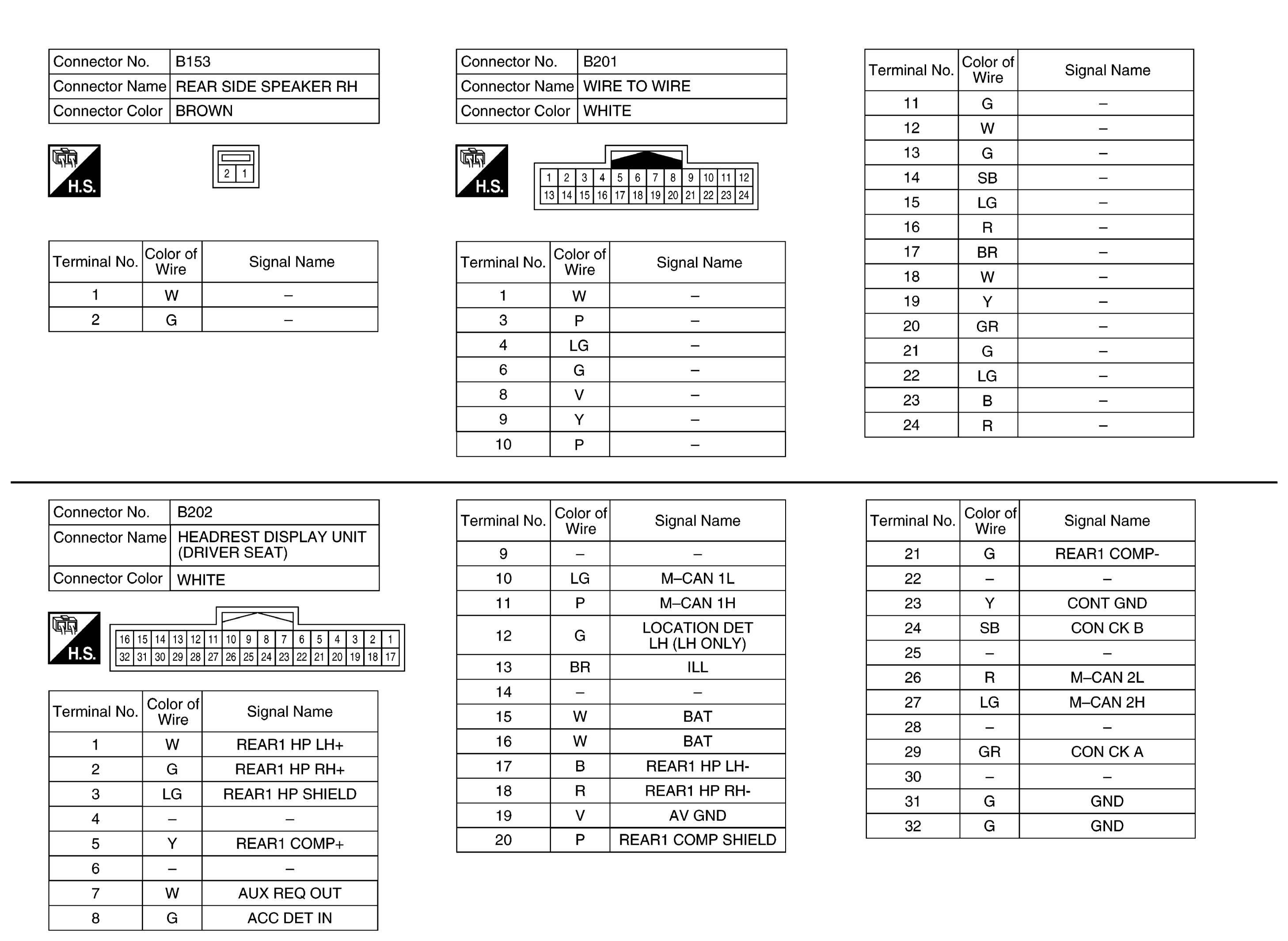

Fig 44: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (35 Of 43)

GNSABNIA7003GB-003

Courtesy of NISSAN NORTH AMERICA, INC.

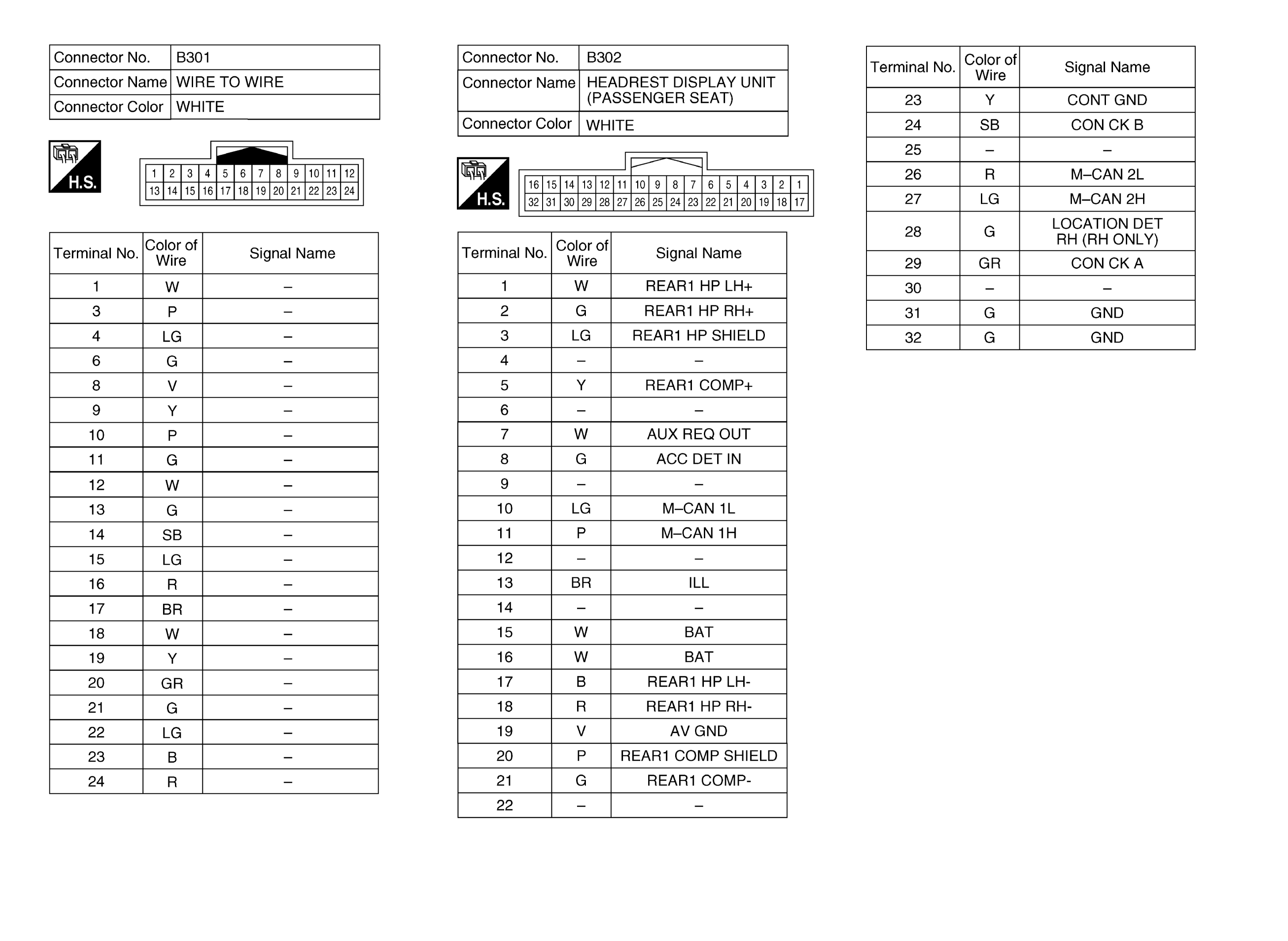

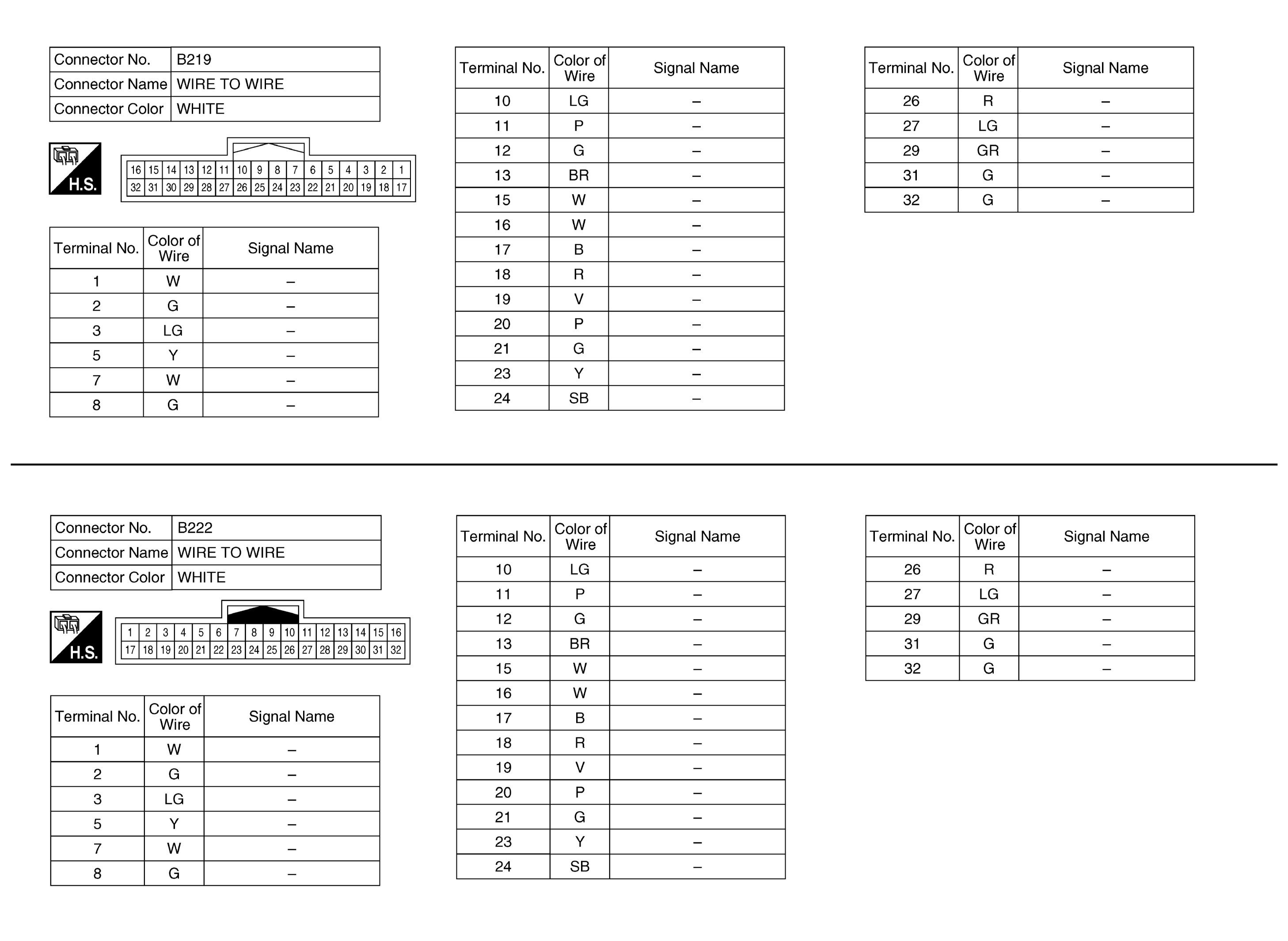

Fig 45: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (36 Of 43)

GNSABNIA7004GB-004

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 46: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (37 Of 43)

GNSABNIA7005GB-005

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 47: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (38 Of 43)

GNSABNIA7006GB-006

Courtesy of NISSAN NORTH AMERICA, INC.

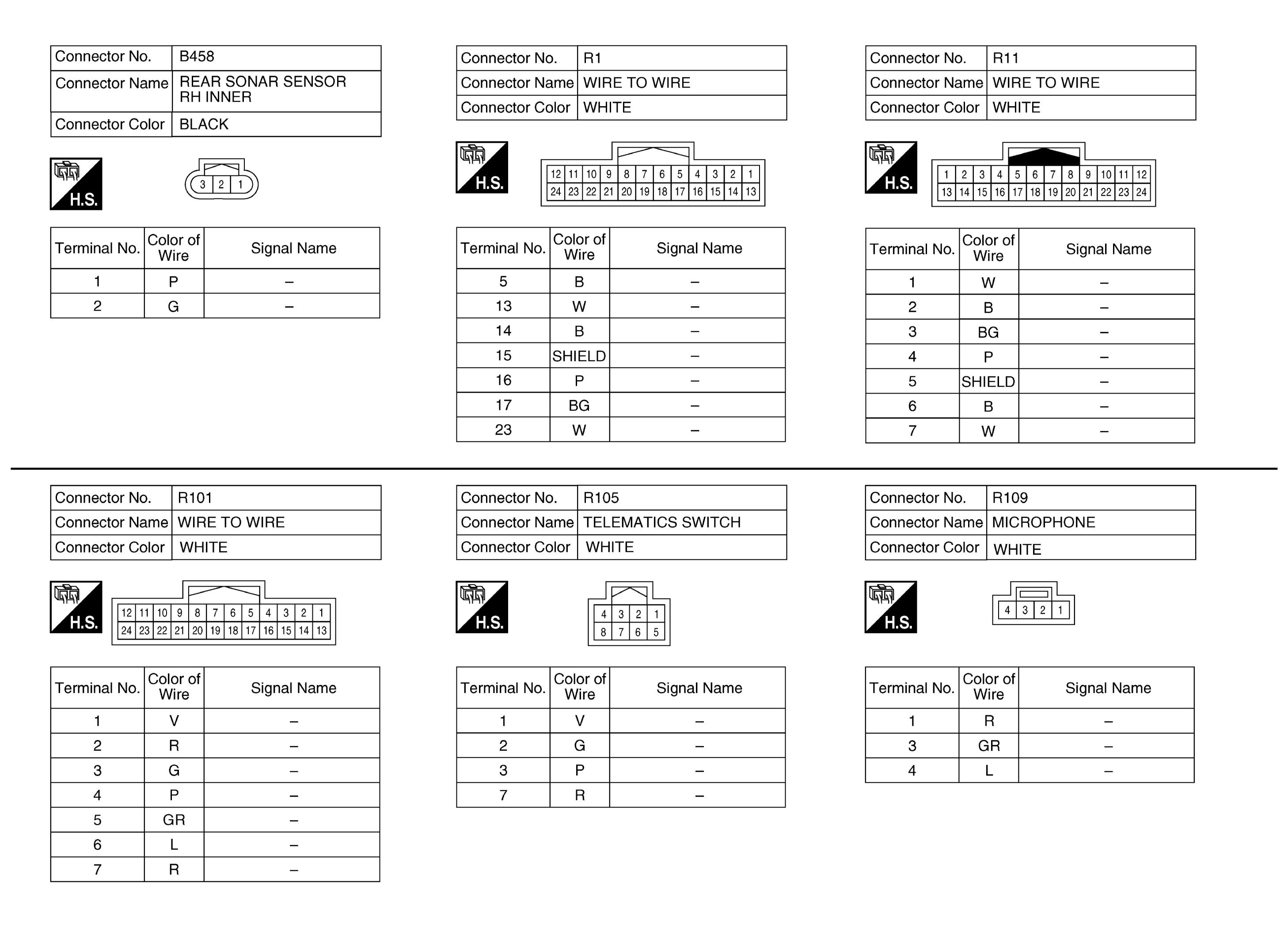

Fig 48: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (39 Of 43)

GNSABNIA7007GB-007

Courtesy of NISSAN NORTH AMERICA, INC.

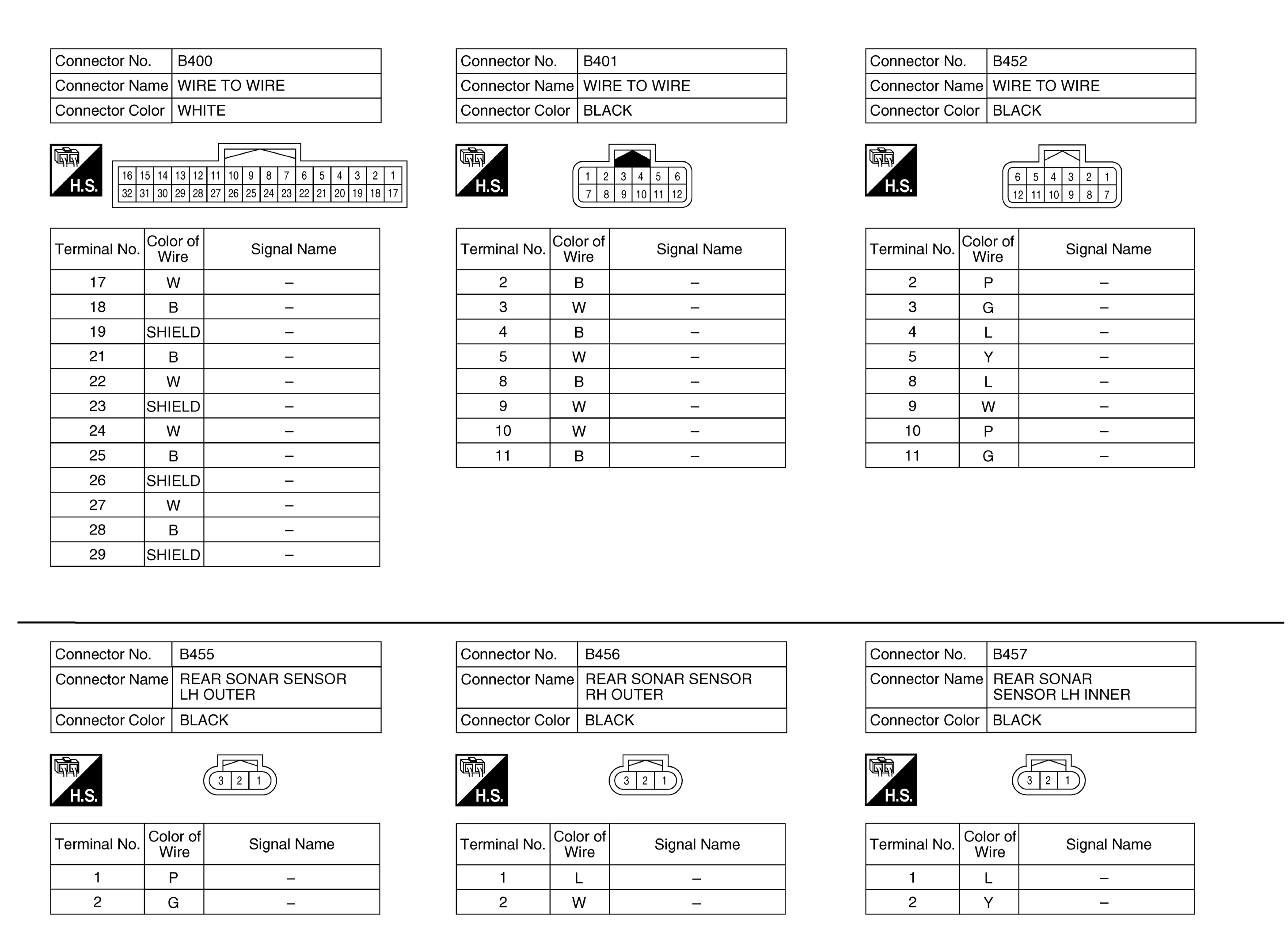

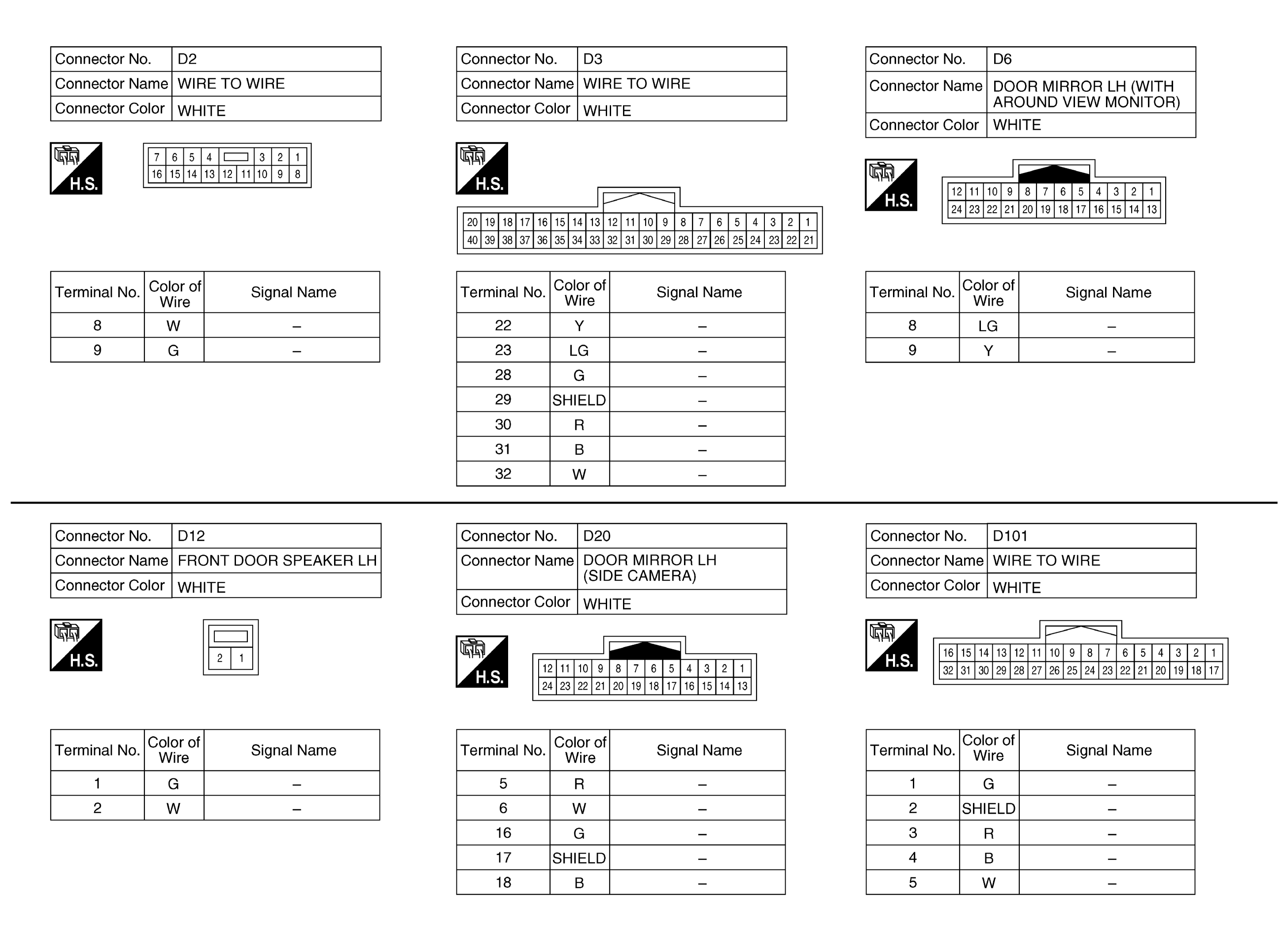

Fig 49: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (40 Of 43)

GNSABNIA7008GB-008

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 50: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (41 Of 43)

GNSABNIA7009GB-009

Courtesy of NISSAN NORTH AMERICA, INC.

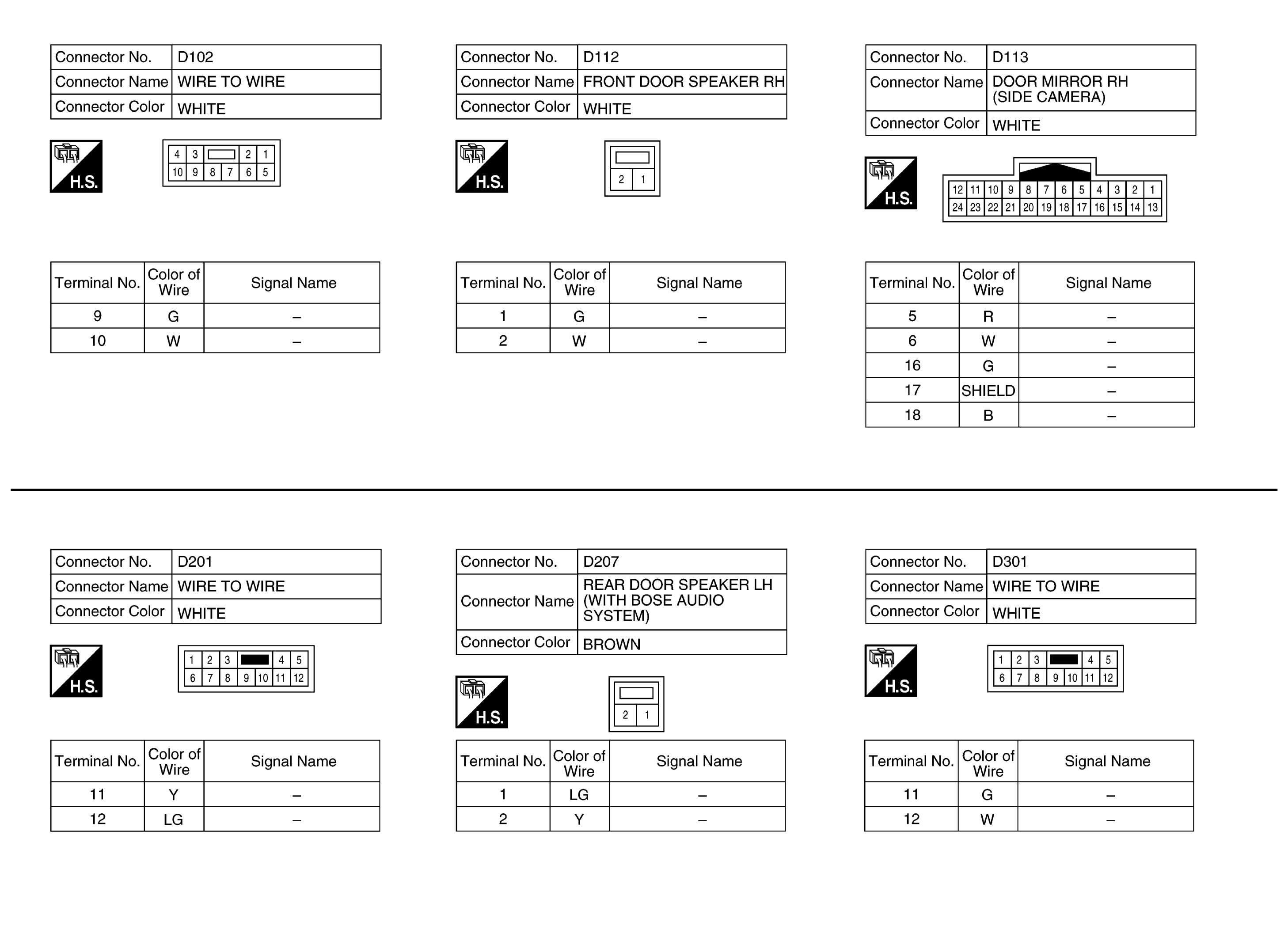

Fig 51: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (42 Of 43)

GNSABNIA7010GB-010

Courtesy of NISSAN NORTH AMERICA, INC.

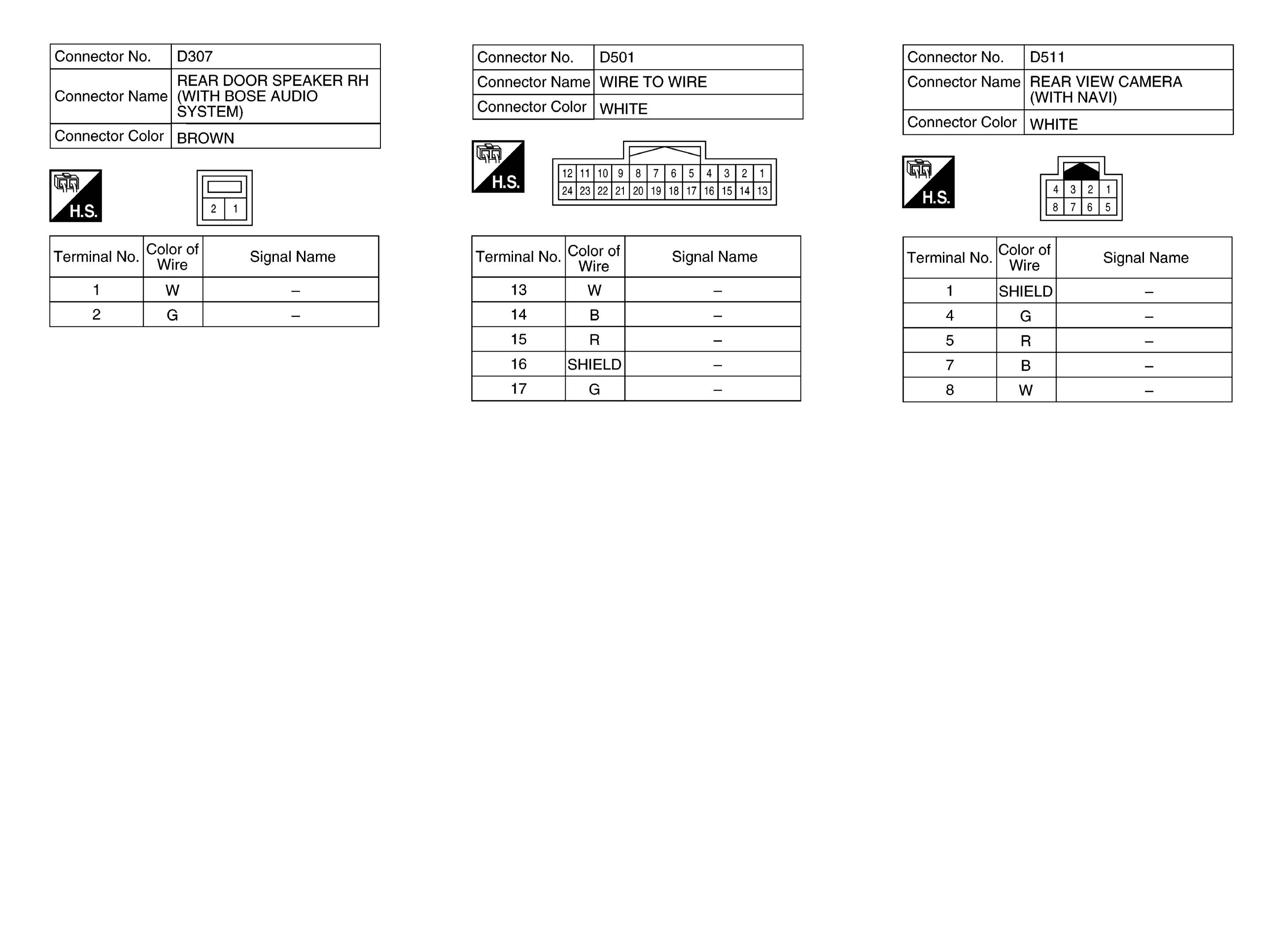

Fig 52: Bose Audio With Navigation (Without Surround) Connector End Views And Pin-Outs (43 Of 43)

GNSABNIA7011GB-011

Courtesy of NISSAN NORTH AMERICA, INC.
