Av Control Unit Confirmation/Adjustment

  1. Select Confirmation/Adjustment.
  2. Select each switch on the Confirmation/Adjustment screen to display the relevant trouble diagnosis screen. Press the BACK switch to return to the initial Confirmation/Adjustment screen.

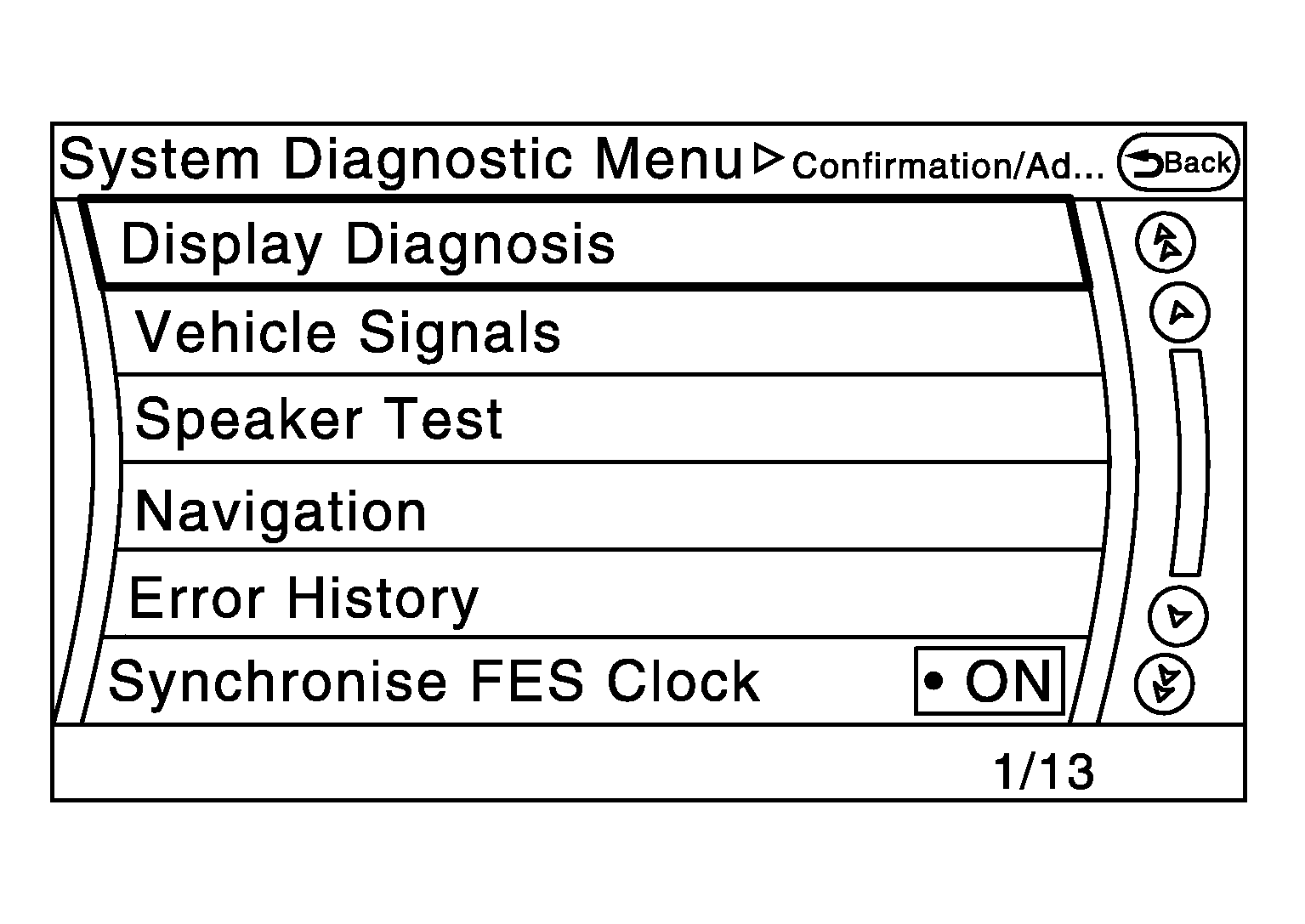

    Fig 1: Display -- AV Control Unit Confirmation/Adjustment Screen
    G07024033Courtesy of NISSAN NORTH AMERICA, INC.
