Exploded View With Torque Specifications
Exploded View With Torque Specifications

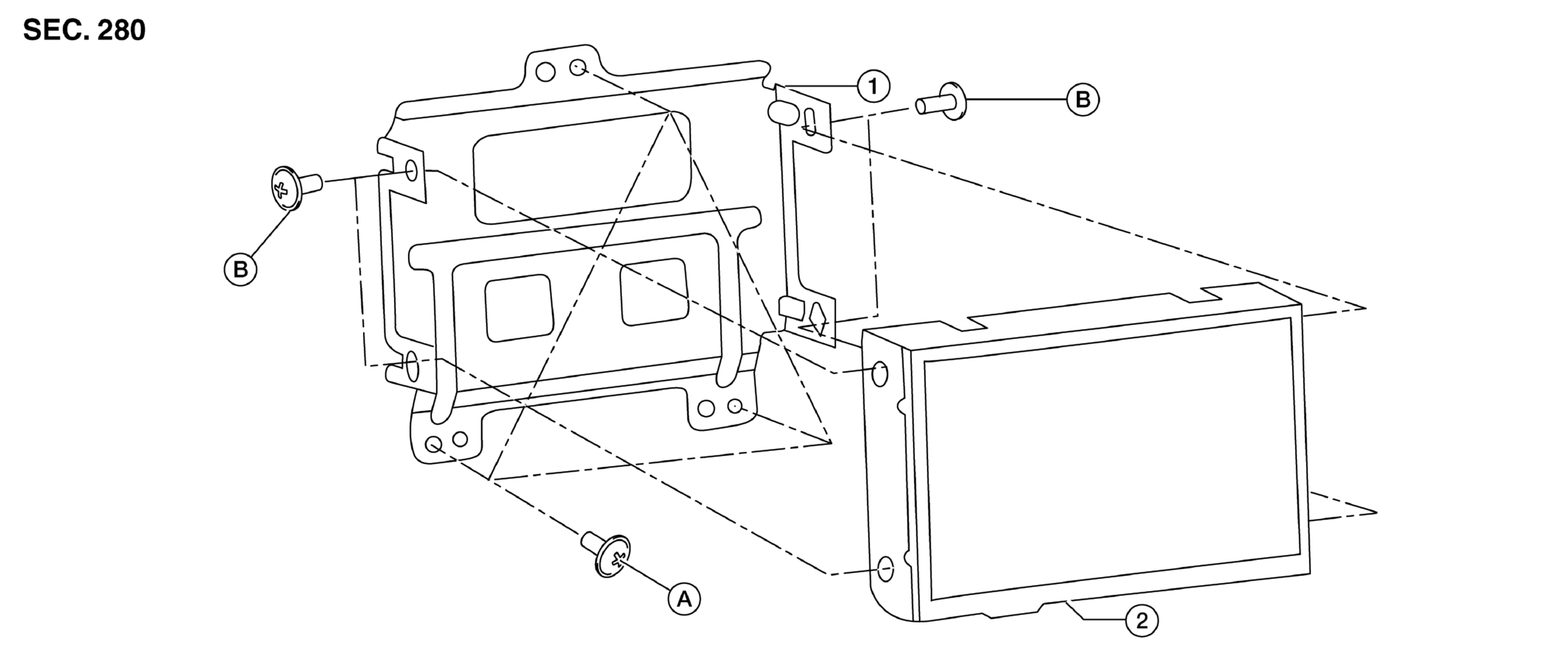

Fig 1: Exploded View Of Display Unit
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Display unit bracket
2.
Display unit
A.
Display unit bracket screws
B.
Display unit screws
