Exploded View With Torque Specifications

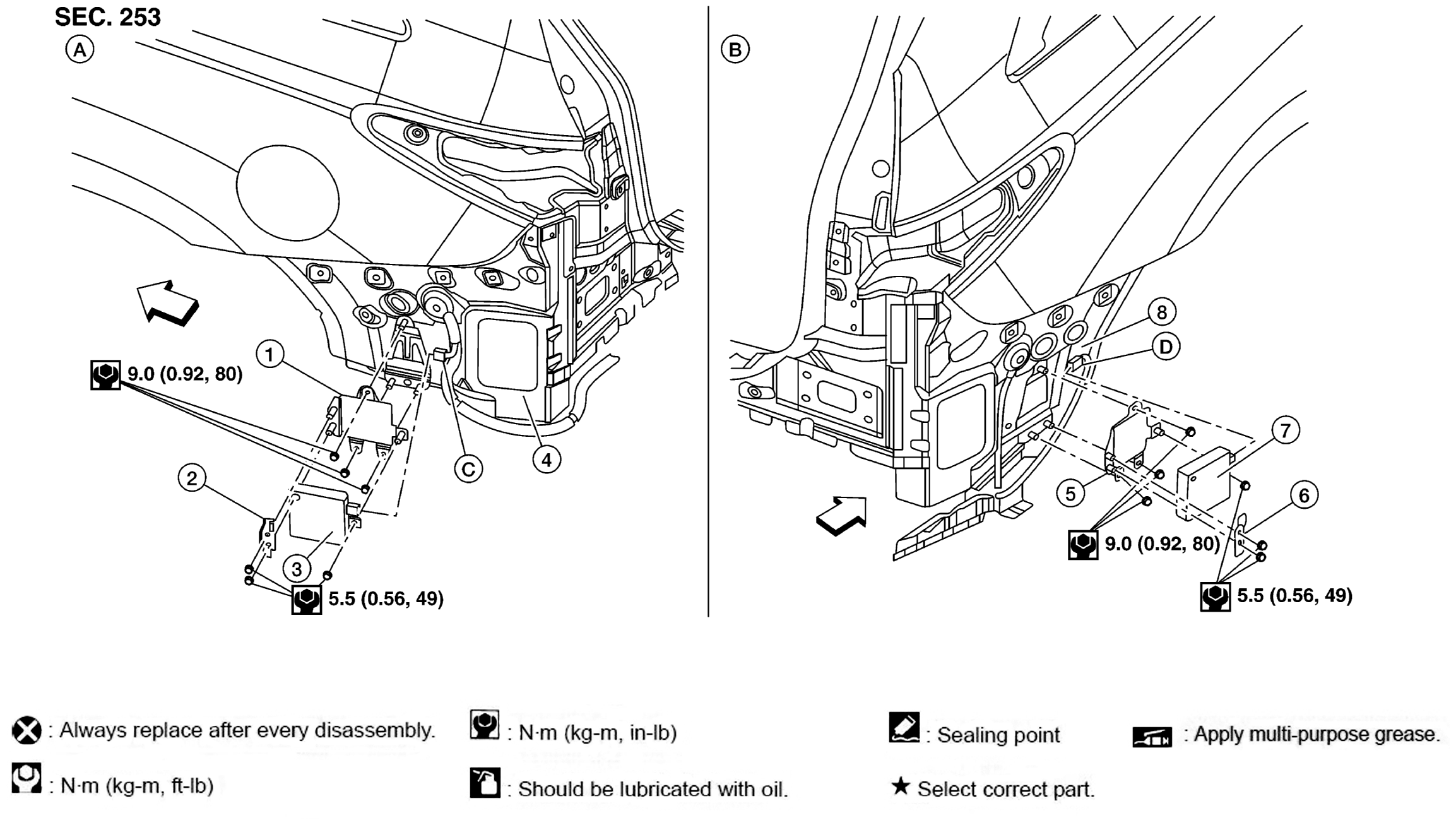

Fig 1: Exploded View Of Side Radar With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Retaining inner bracket (LH)	2.	Retaining outer bracket (LH)	3.	Side radar (LH)
4.	Body side (LH)	5.	Retaining inner bracket (RH)	6.	Retaining outer bracket (RH)
7.	Side radar (RH)	8.	Body side (RH)	A.	LH side
B.	RH side	C.	Harness connector (LH)	D.	Harness connector (RH)
	Front
