Drive Mode Select Switch

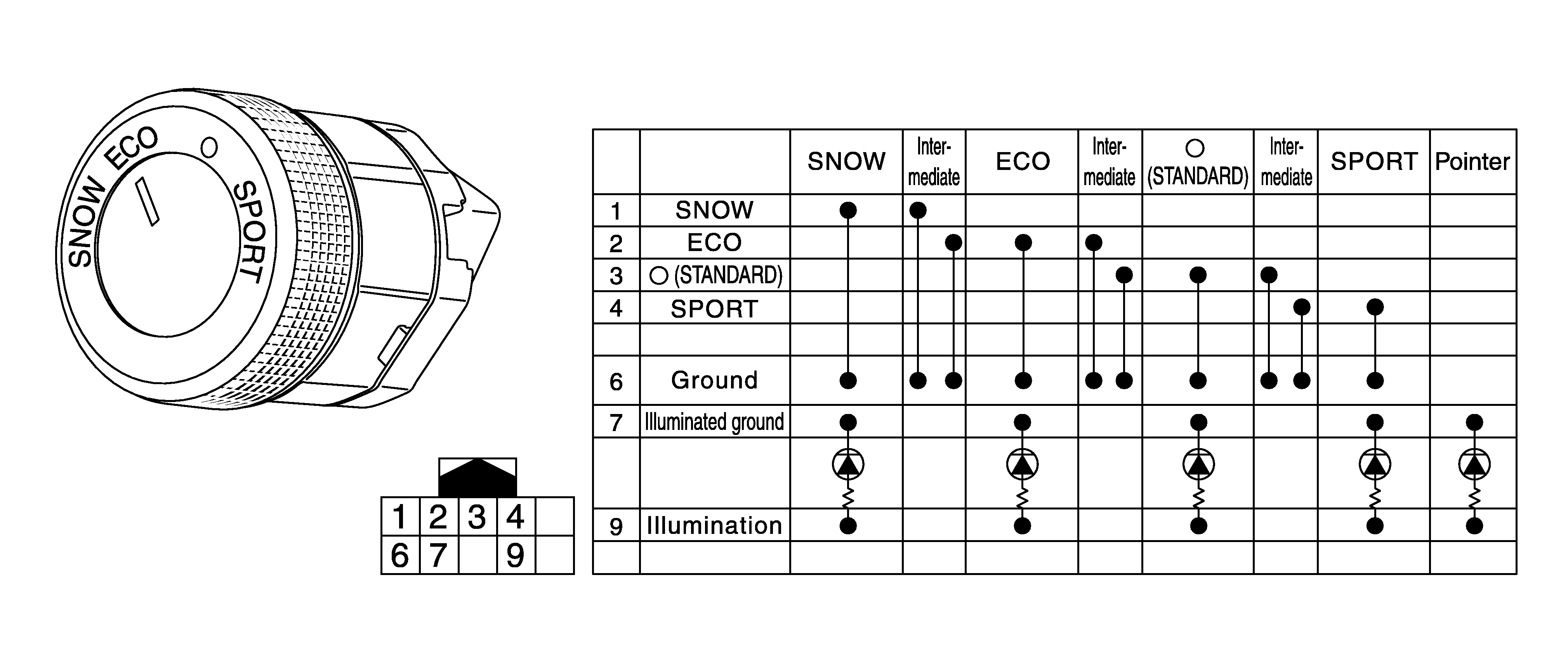

Fig 1: Drive Mode Select Switch Continuity Reference Chart

Courtesy of NISSAN NORTH AMERICA, INC.

4-contact rotary type drive mode select switch is set on the upper part of the center console.
Being connected to A/C auto amp., this switch allows to select STANDARD, SPORT, ECO, or SNOW mode.
