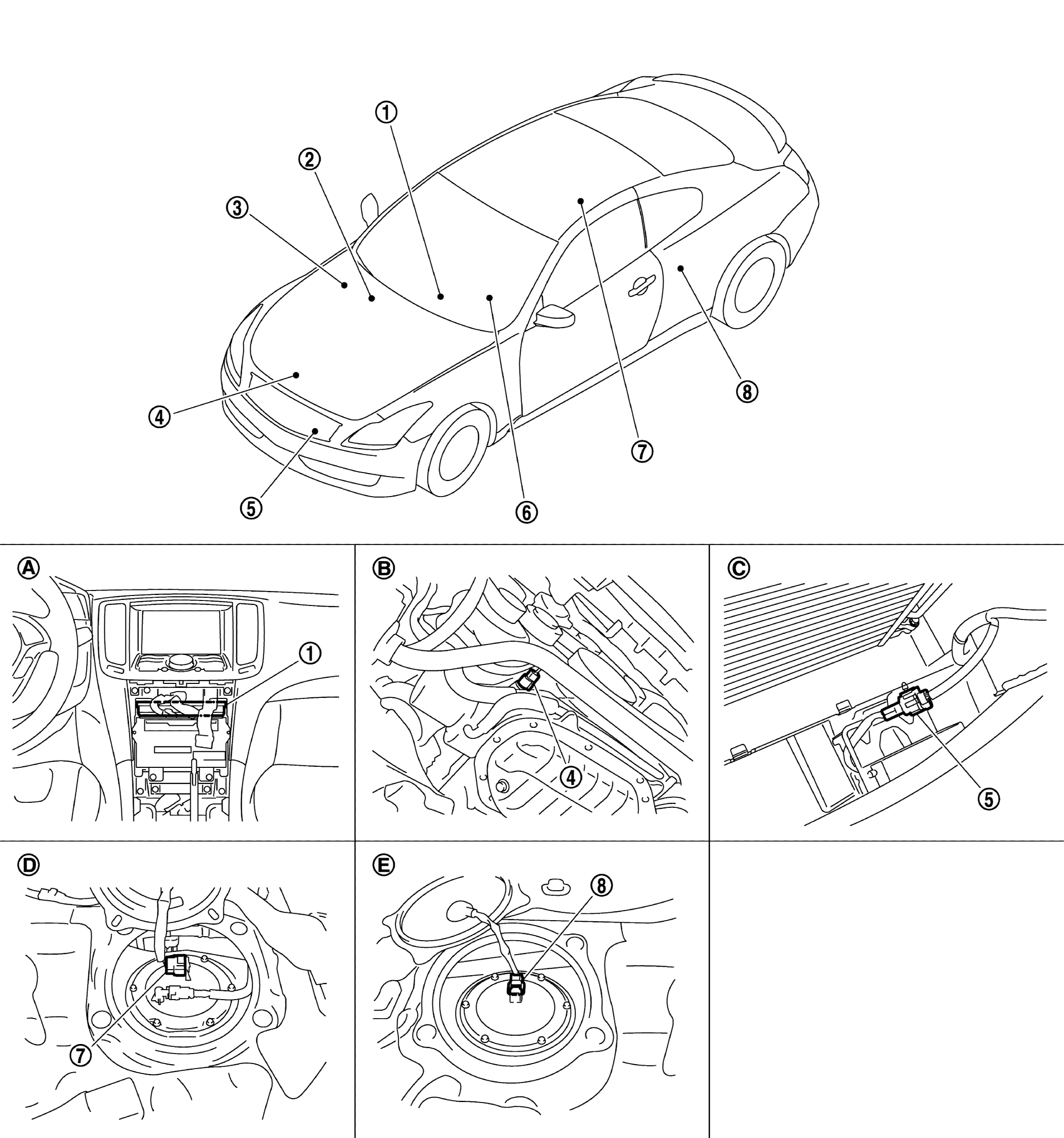

Component Parts Location
| 1. | Unified meter and A/C amp. | 2. | BCM | 3. | IPDM E/R |
| 4. | Oil pressure switch | 5. | Ambient sensor | 6. | Combination meter |
| 7. | Fuel level sensor unit and fuel pump (main) | 8. | Fuel level sensor unit (sub) | ||
| A. | Behind cluster lid C | B. | Oil pan (upper) RH side | C. | Condenser (front) |
| D. | Under of rear right seat | E. | Under of rear left seat |
