Component Parts Location

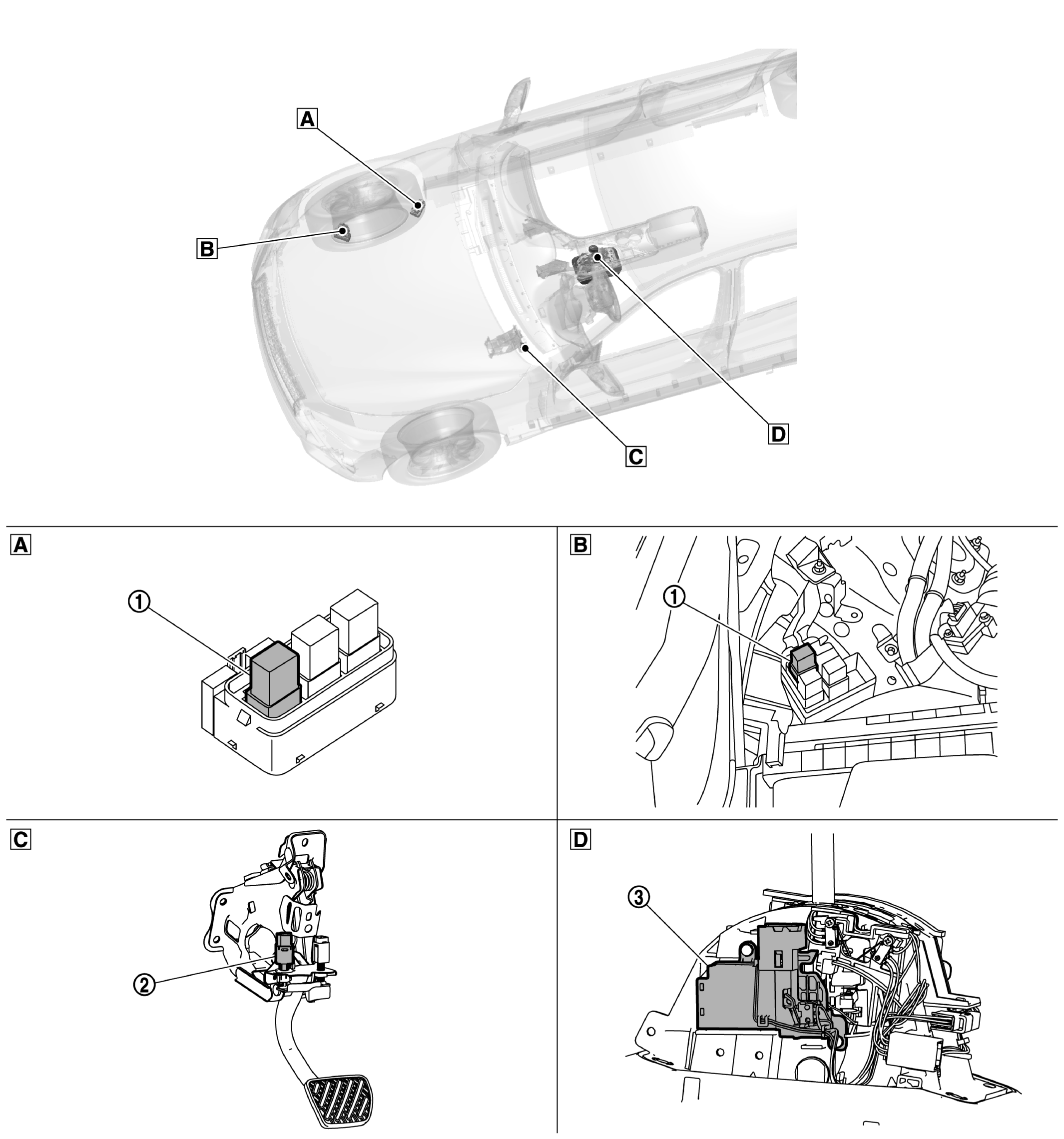

Fig 1: A/T Shift Lock System Component Parts Location
GNSJSDIA4292ZZ-292Courtesy of NISSAN NORTH AMERICA, INC.
  Engine room, RH (Vehicle speed sensitive P/S models)   Engine room, RH (Direct adaptive steering models)   Brake pedal
  A/T shift selector assembly
No. Component Function
  Shift lock relay* SHIFT LOCK RELAY
  Stop lamp switch STOP LAMP SWITCH
  Shift lock unit SHIFT LOCK UNIT

*: With ICC
