Component Parts Location

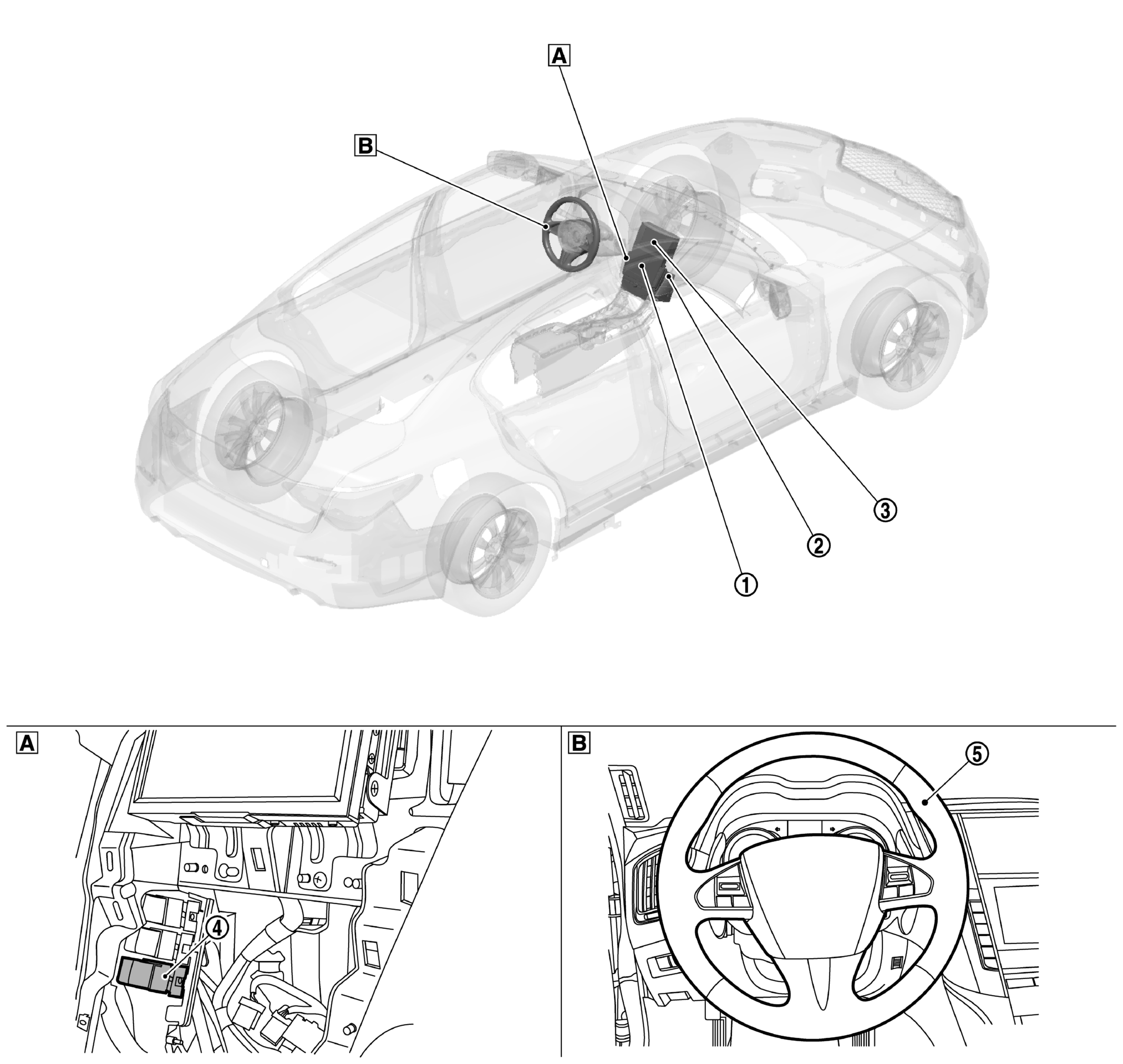

Fig 1: Direct Adaptive Steering Component Parts Location
GNSJSGIA1233ZZ-233Courtesy of NISSAN NORTH AMERICA, INC.
  At the back of integral switch   Steering wheel
No. Component Function
  Integral switch
  • Changes the following settings according to the operation of the display part.
    • Steering heater function ON/OFF
    • Steering heater AUTO function ON/OFF
  • Transmits the following signals to display control unit via communication line.
    • Steering heater signal
    • Steering heater auto signal
  • Refer to COMPONENT PARTS LOCATION for detailed installation location.
  A/C auto amp.
  Display control unit
  • Transmits the following signals received from integral switch to AC auto amp. via CAN communication.
    • Steering heater signal
    • Steering heater auto signal
  • Refer to COMPONENT PARTS LOCATION for detailed installation location.
  Heated steering wheel relay HEATED STEERING WHEEL RELAY
  Heated steering wheel HEATED STEERING WHEEL
