Component Parts Location

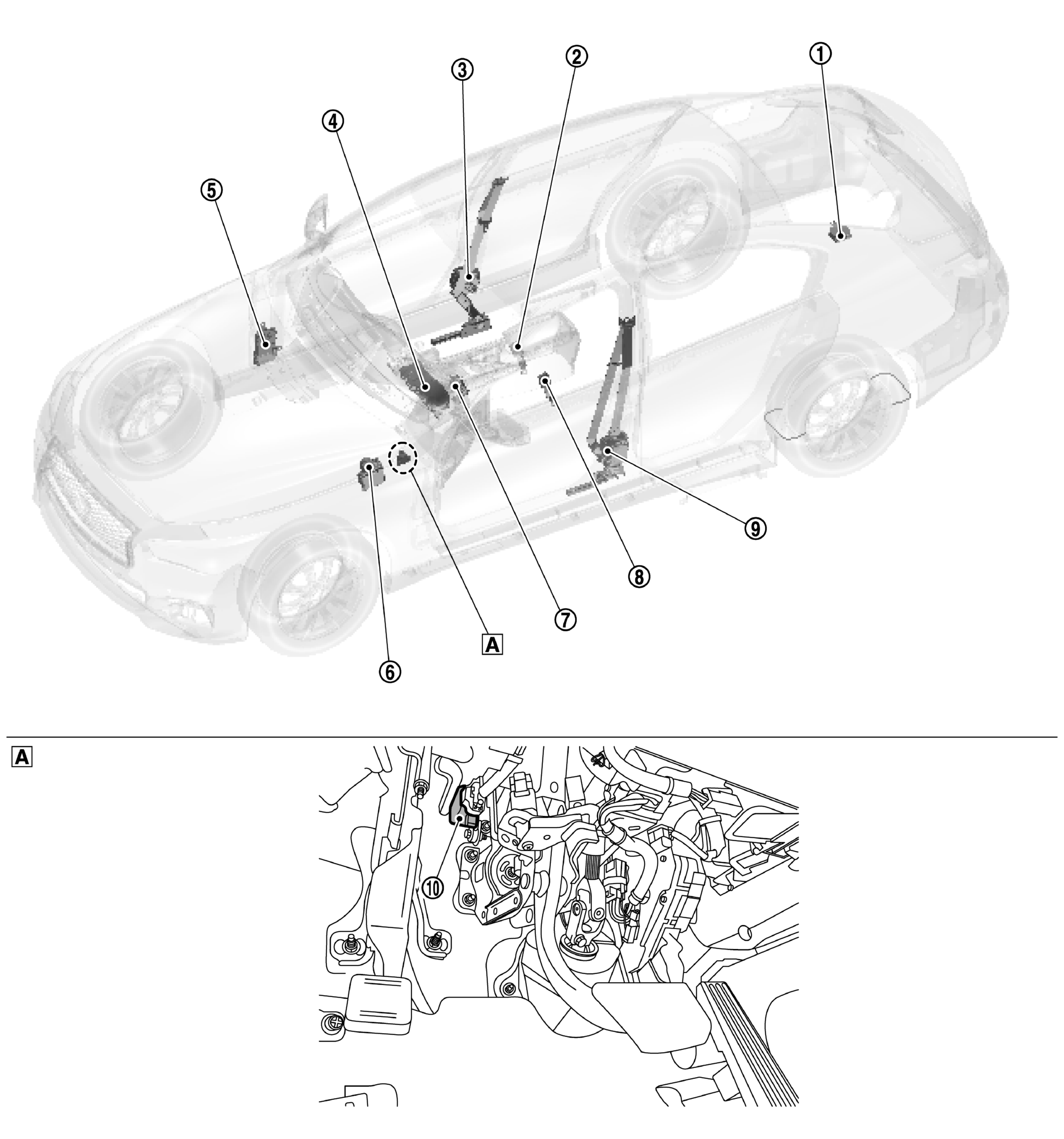

Fig 1: Pre-Crash Seat Belt System Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

View with instrument lower panel LH removed

No.	Component	Function
	ADAS control unit	Forward emergency braking operation signal is received from ADAS control unit via CAN communication. Refer to COMPONENT PARTS LOCATION for detailed installation location.
	Seat belt buckle switch (passenger side)	Refer to SEAT BELT BUCKLE SWITCH .
	Pre-crush seat belt control unit (passenger side)	Refer to PRE-CRUSH SEAT BELT CONTROL UNIT .
	Combination meter	Transmits vehicle speed signal to pre-crash seat belt control unit (driver side). Turns the seat belt warning lamp ON when the seat belt is unfastened.
	BCM	Ignition ON signal, sleep/wakeup signal, and door switch signal are received from BCM via CAN communication. Refer to COMPONENT PARTS LOCATION for detailed installation location.
	ABS actuator and electric unit (control unit)	ABS operation signal is received from ABS actuator and electric unit (control unit) via CAN communication. Refer to COMPONENT PARTS LOCATION for detailed installation location.
	Steering angle sensor	Steering angle sensor signal, steering angle speed signal, steering angle sensor neutral position adjustment completion signal, and steering angle sensor malfunction signal are received via CAN communication. Refer to COMPONENT PARTS LOCATION for detailed installation location.
	Seat belt buckle switch (driver side)	Refer to SEAT BELT BUCKLE SWITCH .
	Pre-crush seat belt control unit (driver side)	Refer to PRE-CRUSH SEAT BELT CONTROL UNIT .
	Brake pedal stroke sensor	Refer to BRAKE PEDAL STROKE SENSOR .
