Component Parts Location

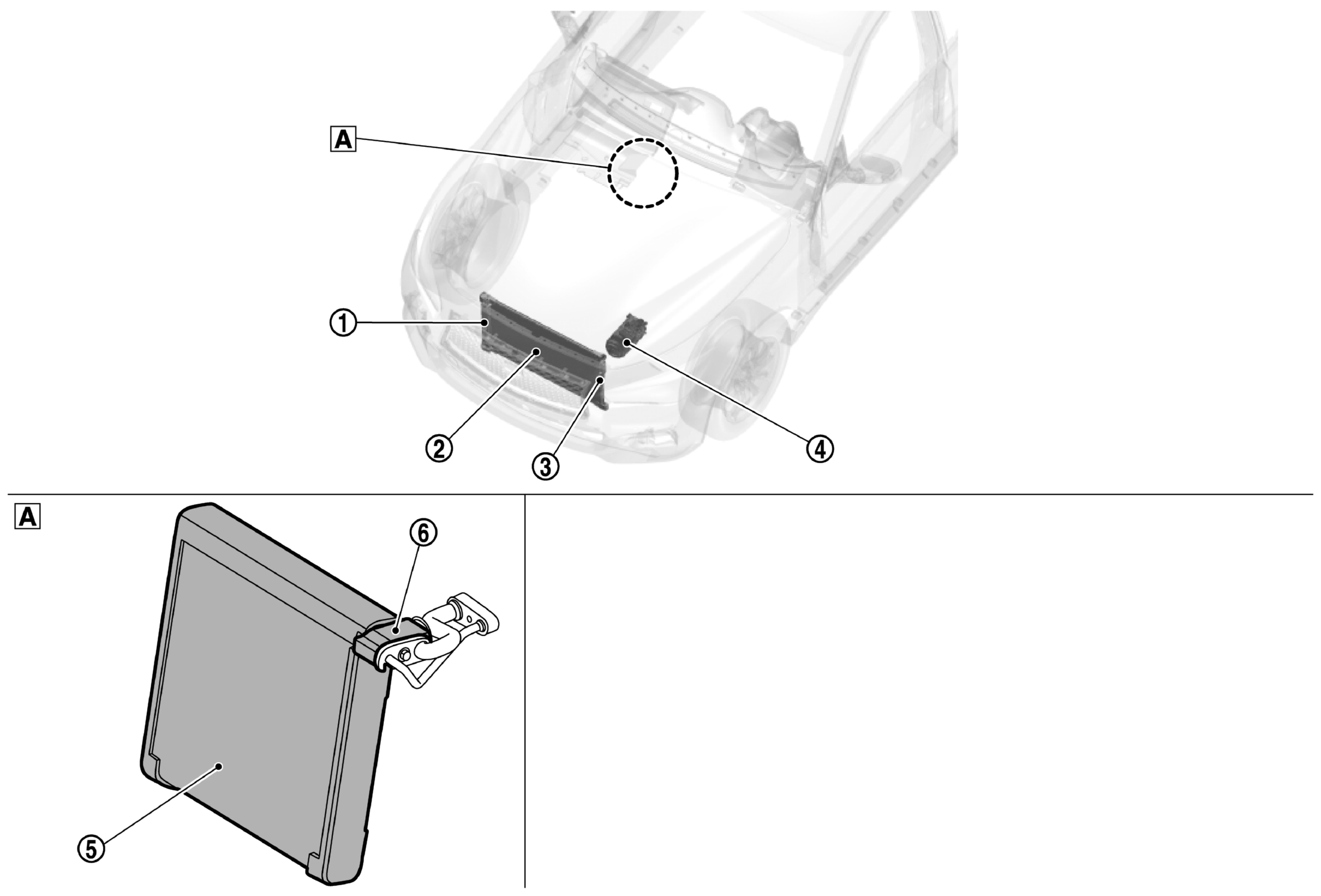

Fig 1: Refrigeration System Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

In the heater & cooling unit assembly

No.	Location	Function
	Liquid tank	Refer to LIQUID TANK .
	Condenser	Refer to CONDENSER .
	Refrigerant pressure sensor	Refer to REFRIGERANT PRESSURE SENSOR .
	Compressor	Refer to COMPRESSOR .
	Evaporator	Refer to EVAPORATOR .
	Expansion valve	Refer to EXPANSION VALVE .
