Exploded View With Torque Specifications

WARNING: This page is about a different variant/trim than selected.

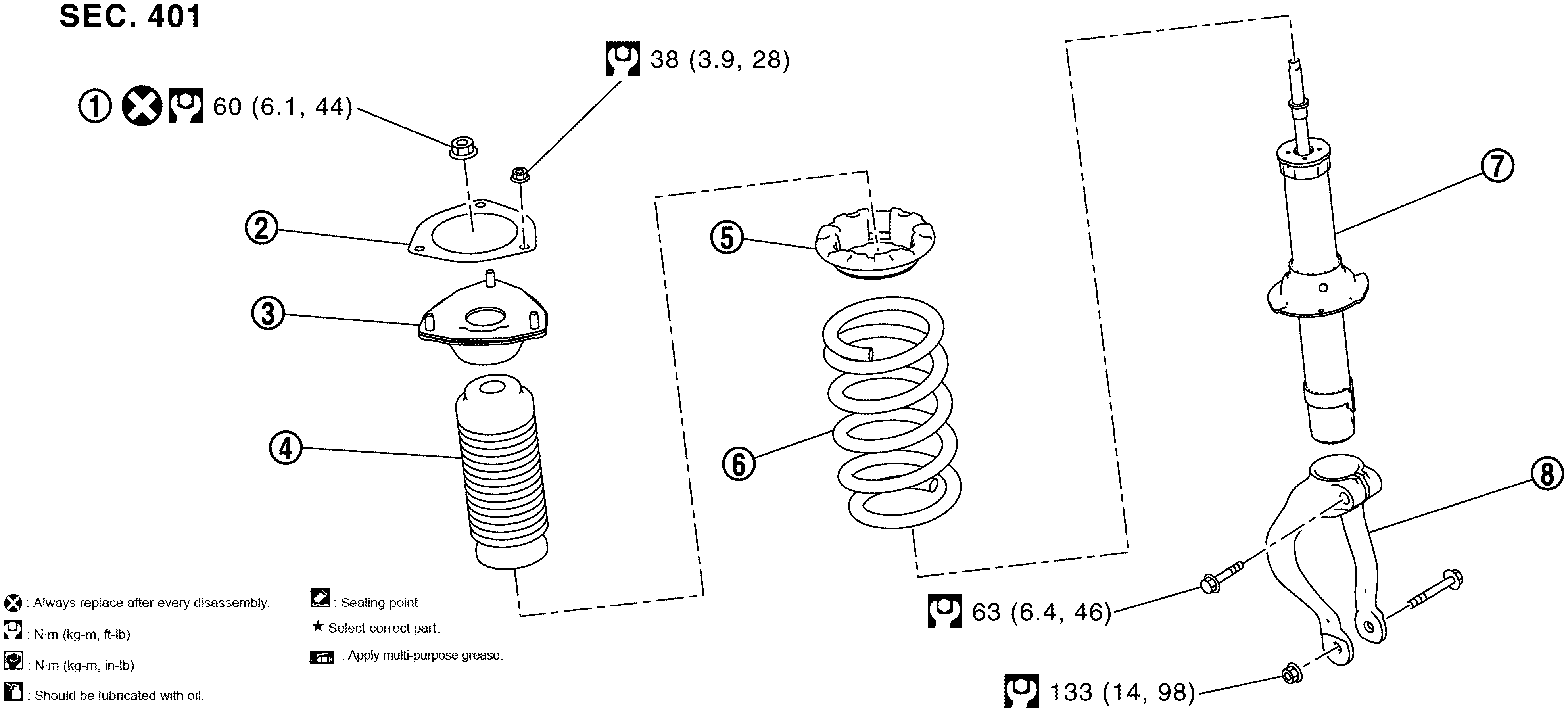

Fig 1: Exploded View Of Front Coil Spring And Shock Absorber With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Piston rod lock nut	Mounting seal	Shock absorber mounting bracket
Bound bumper	Rubber seat	Coil spring
Shock absorber	Shock absorber arm
: N•m (kg-m, ft-lb)
: Always replace after every disassembly.
