Exploded View With Torque Specifications

WARNING: This page is about a different variant/trim than selected.

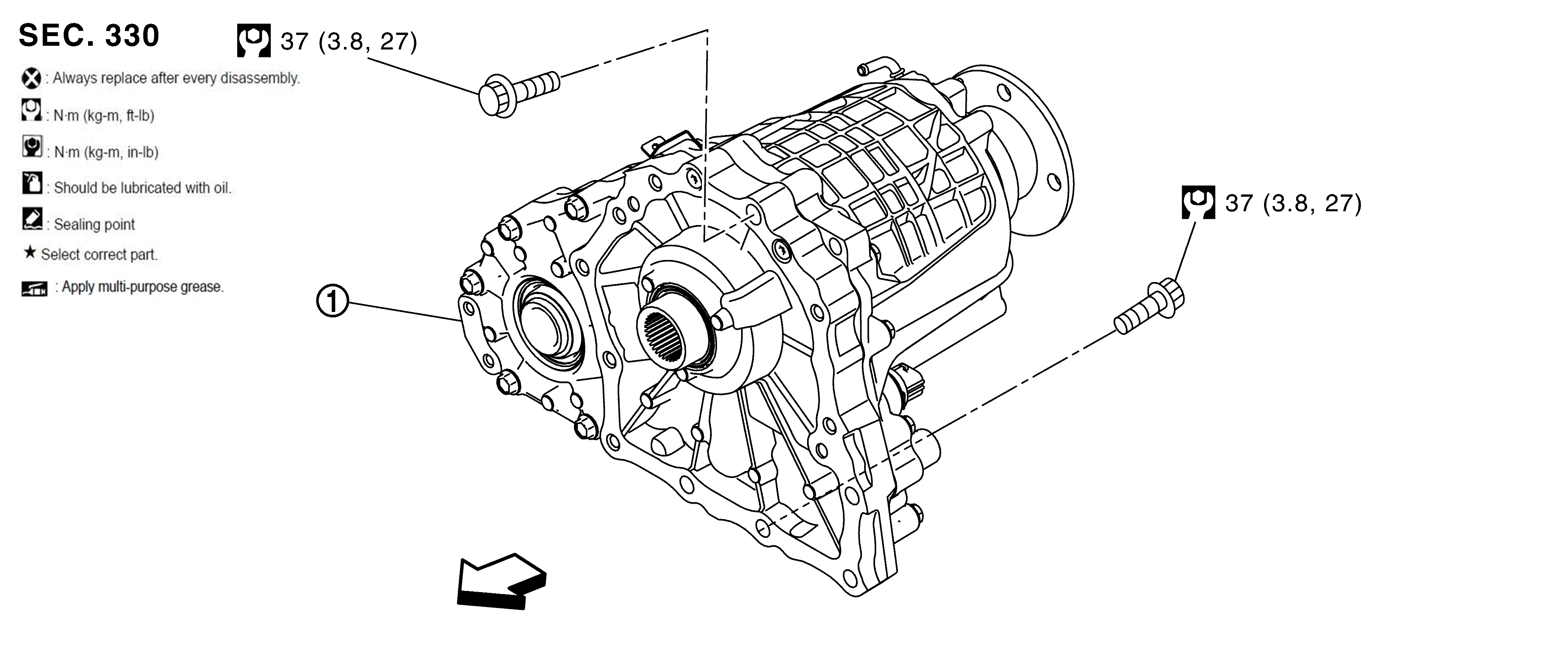

Fig 1: Exploded View Of Transfer Assembly With Torque Specifications
GNSJSDIA4515GB-515Courtesy of NISSAN NORTH AMERICA, INC.
  Transfer assembly
: Vehicle front
: N•m (kg - m, ft - lb)
