Gears And Chain

WARNING: This page is about a different variant/trim than selected.

Excessive wear, damage, peeling, etc. of gear and chain.

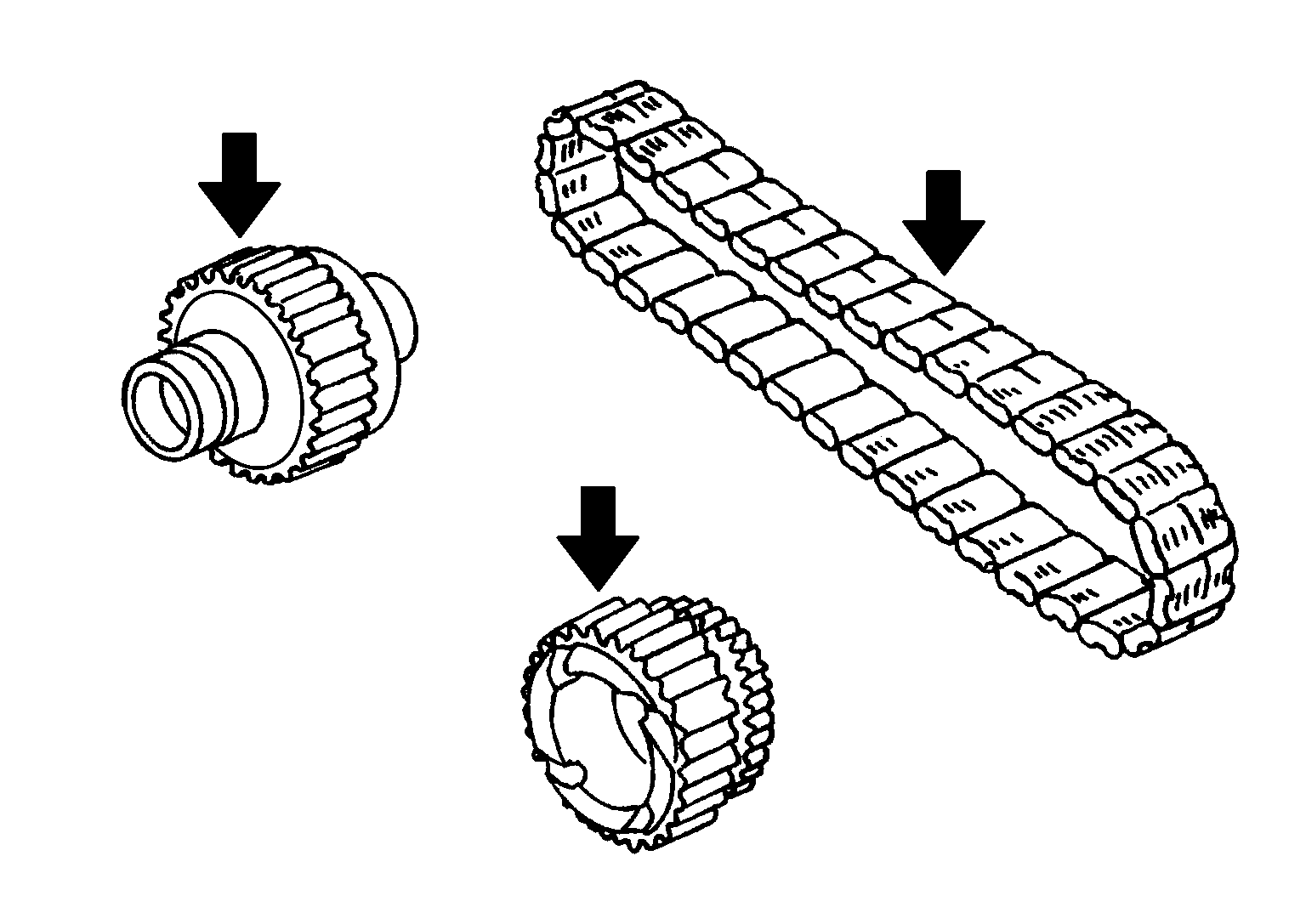

Fig 1: Inspecting Gears And Chain
Courtesy of NISSAN NORTH AMERICA, INC.
Cracks, damage, wear, etc. of drive chain.
