Front Drive Shaft And Drive Chain: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Separate front case and rear case. Refer to DISASSEMBLY .
  2. Remove drive chain and front drive shaft assembly.
    CAUTION:

    Never use tools. Always remove by hand.

  3. Remove front drive shaft front bearing with the drift (A) and separator (B).

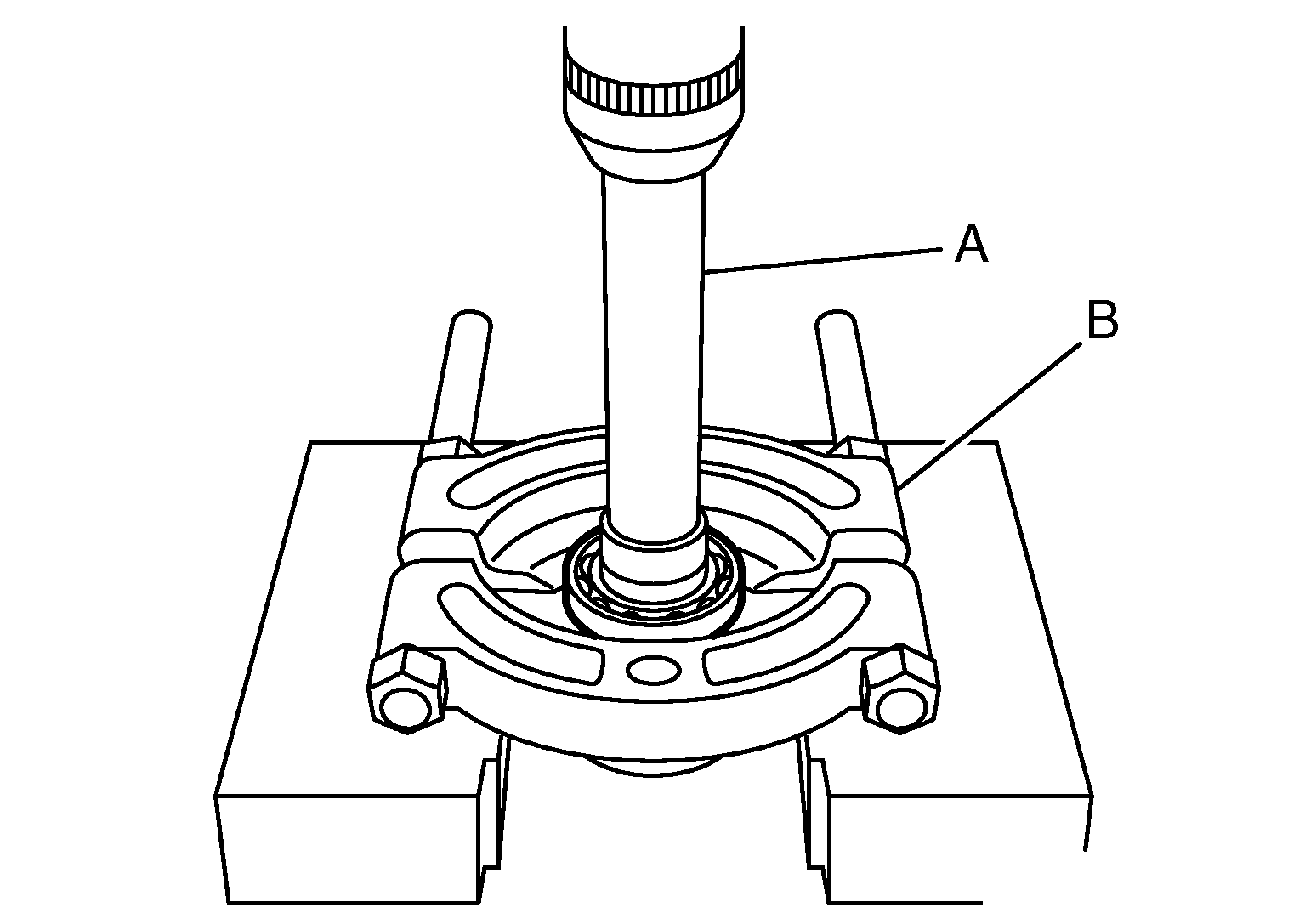

    Fig 1: Removing Front Drive Shaft Front Bearing With Drift And Puller
    G06301755Courtesy of NISSAN NORTH AMERICA, INC.
    A : Drift [SST: ST31214000 (J-25269-B)]
    B : Separator (commercial service tool)
  4. Remove front drive shaft rear bearing with the drift (A) and separator (B).

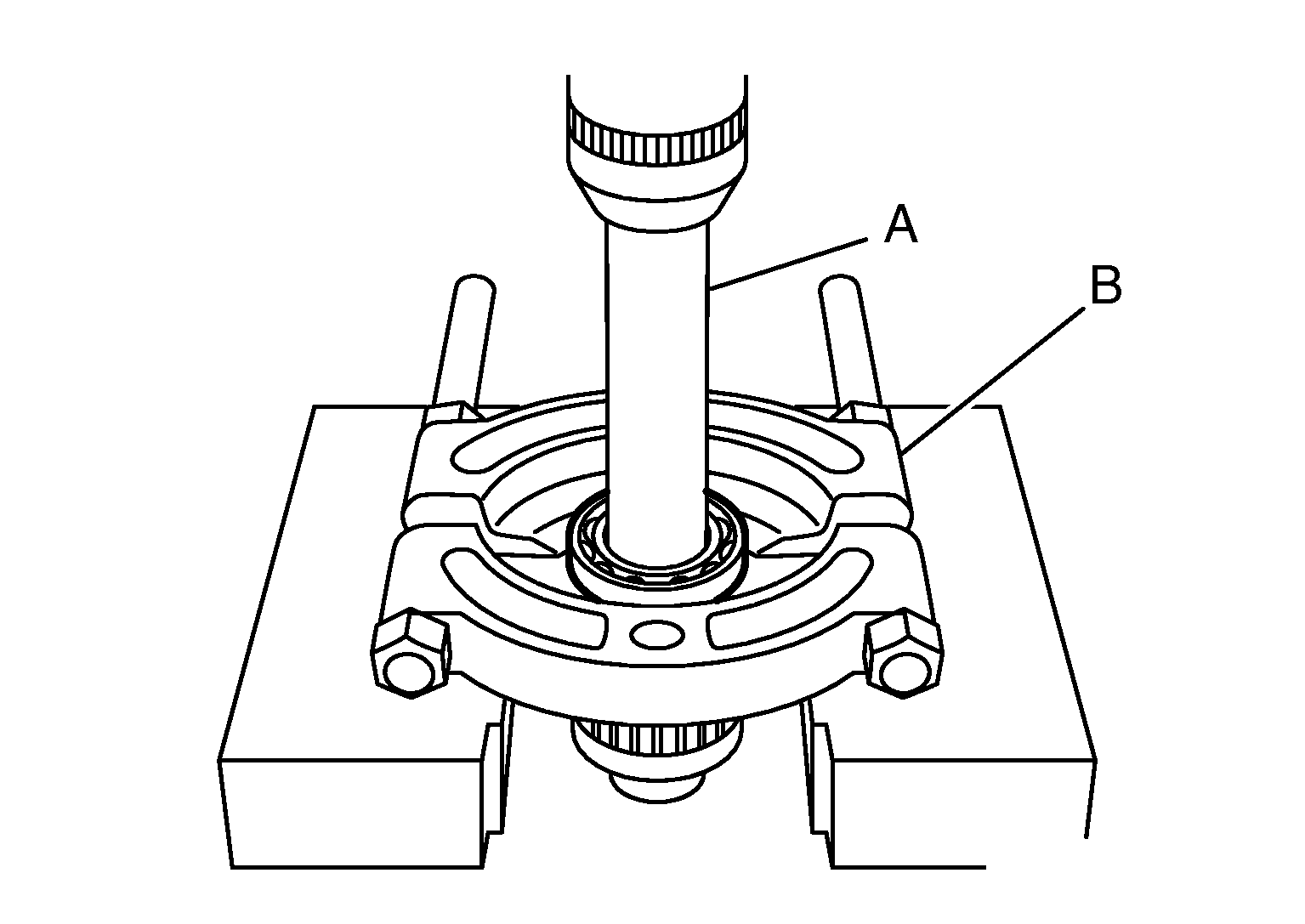

    Fig 2: Removing Front Drive Shaft Front Bearing Using Drift And Replacer
    G08457255Courtesy of NISSAN NORTH AMERICA, INC.
    A : Drift [SST: ST31214000 (J-25269-B)]
    B : Separator (commercial service tool)
  5. Remove plug from front drive shaft.
  6. Perform inspection after disassembly. Refer to INSPECTION .
