Sectional View

WARNING: This page is about a different variant/trim than selected.

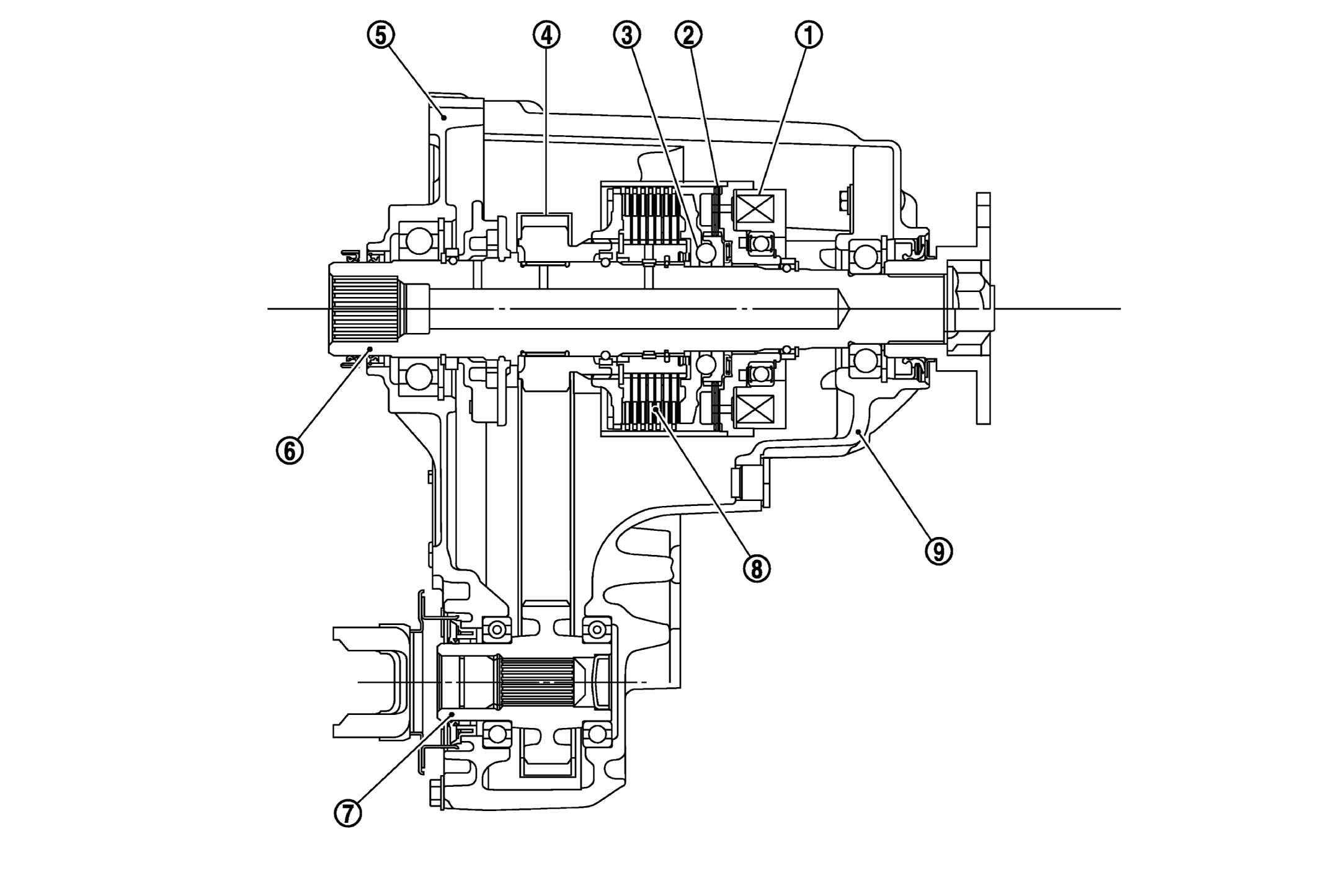

Fig 1: Cross-Sectional View Of Transfer Case
GNSJSDIA0803ZZ-803Courtesy of NISSAN NORTH AMERICA, INC.
  Electromagnet   Control clutch   Cam
  Drive chain   Front case   Main shaft
  Front drive shaft   Main clutch   Rear case
