Removal And Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Apply transfer fluid to rear oil seal, install it with the drifts (A and B) within the dimension (L) shown as follows.

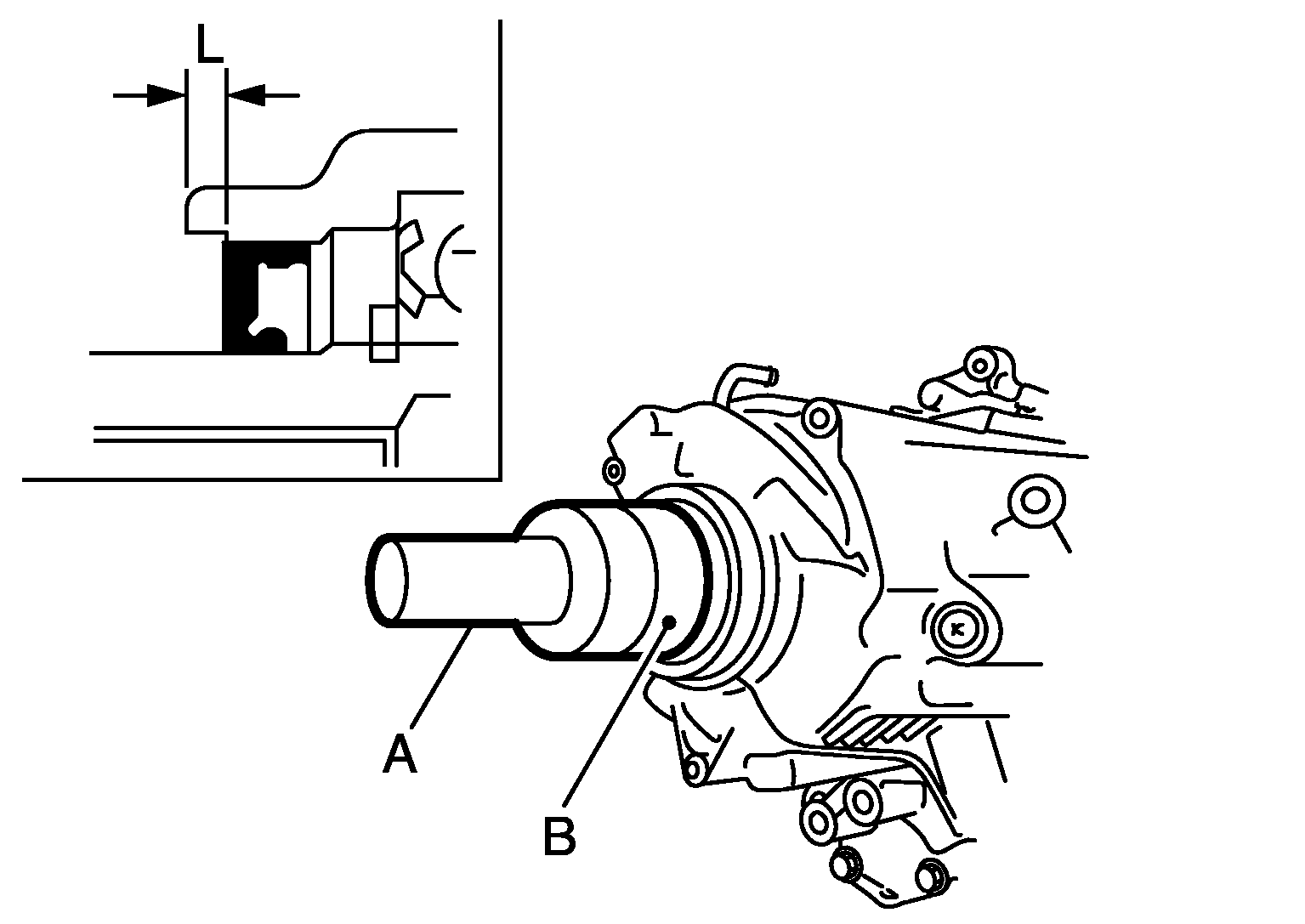

    Fig 1: Installing Rear Oil Seal Using Drifts
    G06329951Courtesy of NISSAN NORTH AMERICA, INC.
    A : Drift [SST: ST30720000 (J-25405)]
    B : Drift [SST: KV40104830 (-)]
    L : 6.7 - 7.3 mm (0.264 - 0.287 in)
    CAUTION:
    • Never reuse rear oil seal.
    • Apply multi-purpose grease to oil seal lip.
    • When installing, never incline rear oil seal.
  2. Align the matching mark of main shaft with the mark of companion flange, then install the companion flange.
    Fig 2: Identifying Matching Mark On End Of Main Shaft And Companion Flange
    G05727164Courtesy of NISSAN NORTH AMERICA, INC.
  3. Using a flange wrench (A) (commercial service tool), install the self-lock nut of companion flange and tighten to the specified torque. Refer to EXPLODED VIEW .
    Fig 3: Installing Companion Flange Self-Lock Nut Using Flange Wrench
    G05979336Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Never reuse self-lock nut.

  4. Install the rear propeller shaft. Refer to REMOVAL AND INSTALLATION .
  5. Perform inspection after installation. Refer to INSPECTION .
