Exploded View With Torque Specifications
Exploded View With Torque Specifications
WARNING:
This page is about a different variant/trim than selected.

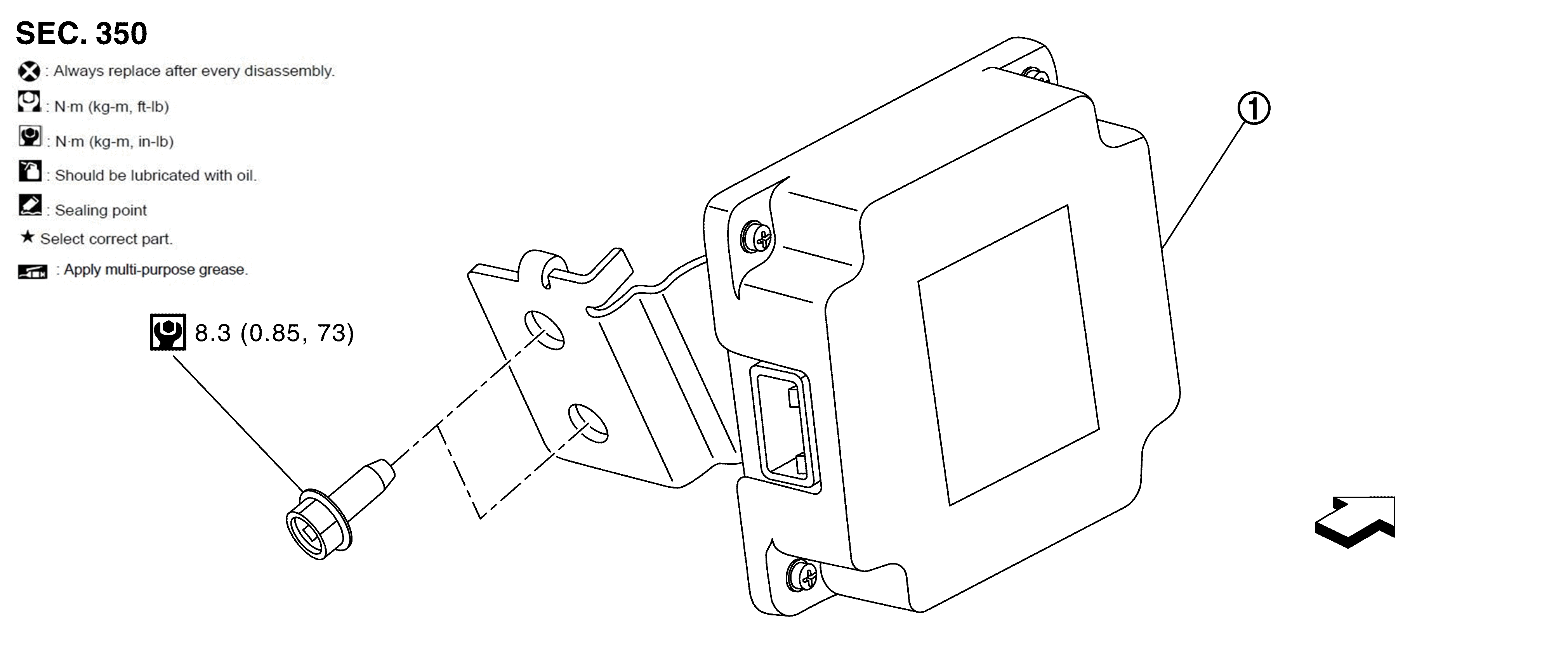

Fig 1: Exploded View Of AWD Control Unit With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
AWD control unit
: Vehicle front
: N•m (kg - m, in - lb)
