Ignition Power Supply Fuse No. 14 Wiring Diagram

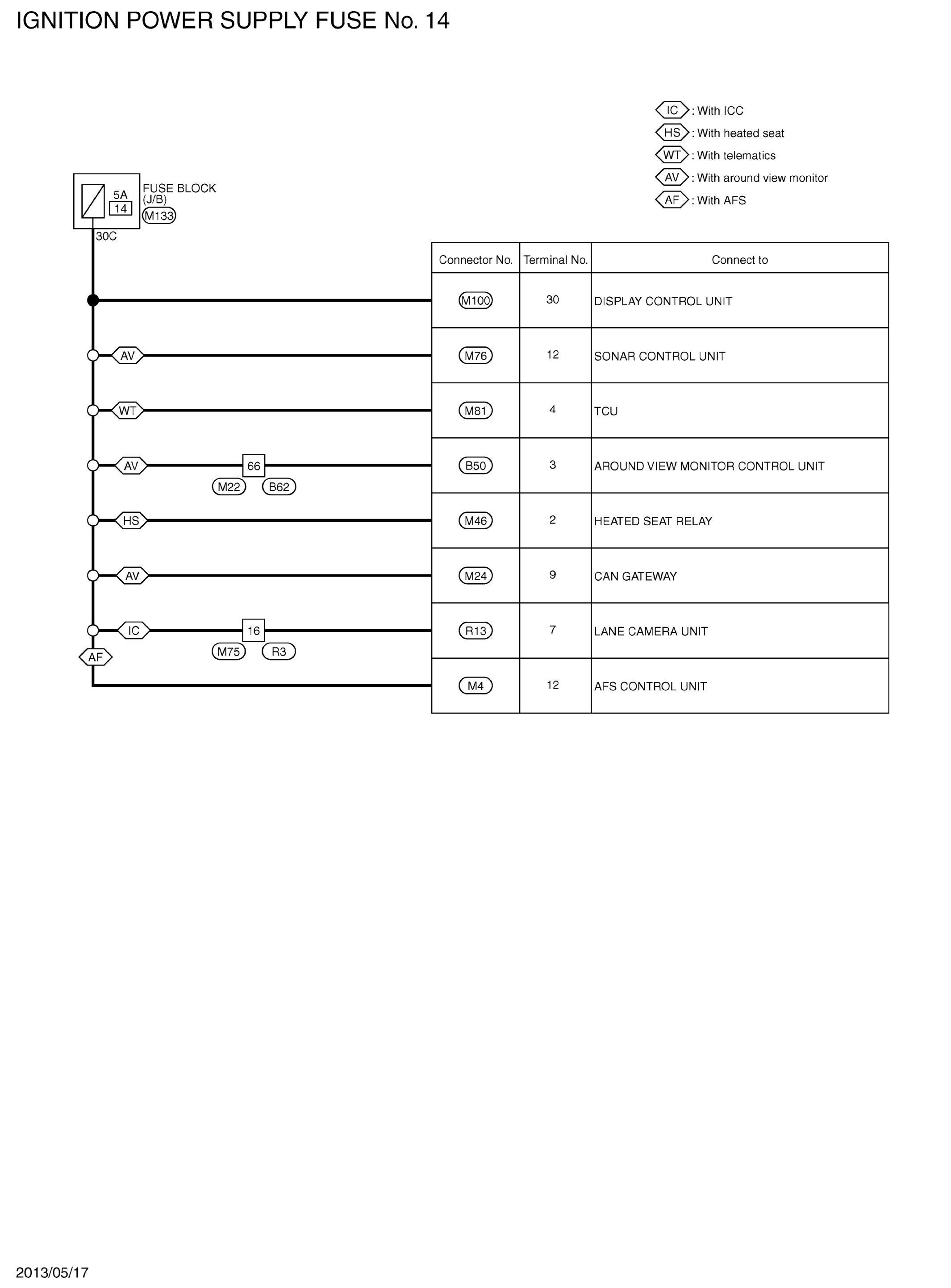

Fig 1: Ignition Power Supply Fuse No. 14 Wiring Diagram

G09161241

Courtesy of NISSAN NORTH AMERICA, INC.
