Ignition Power Supply Fuse No. 12 Wiring Diagram

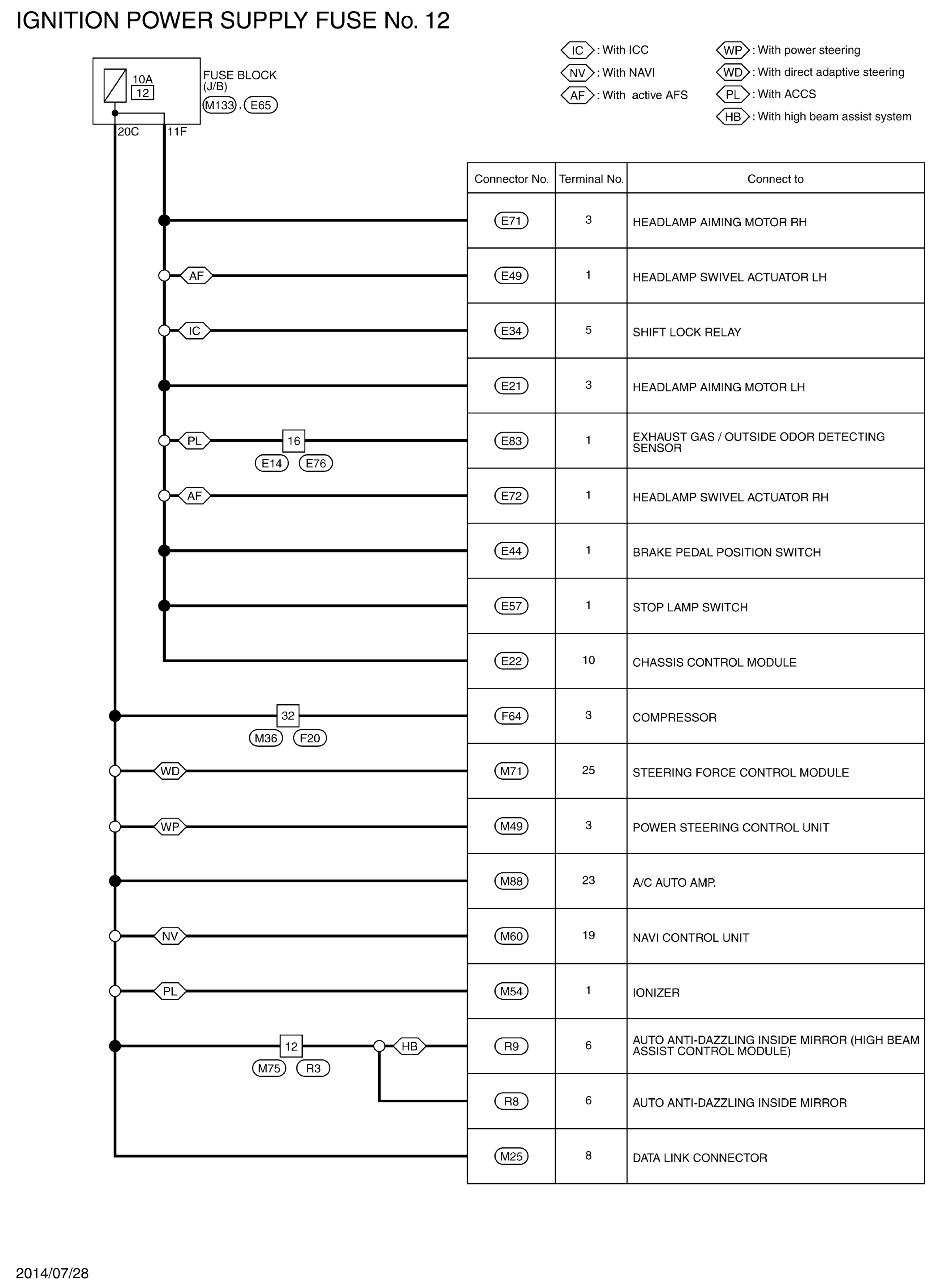

Fig 1: Ignition Power Supply Fuse No. 12 Wiring Diagram

GNSJRMWG3624GB-624

Courtesy of NISSAN NORTH AMERICA, INC.
