Ignition Power Supply Connectors

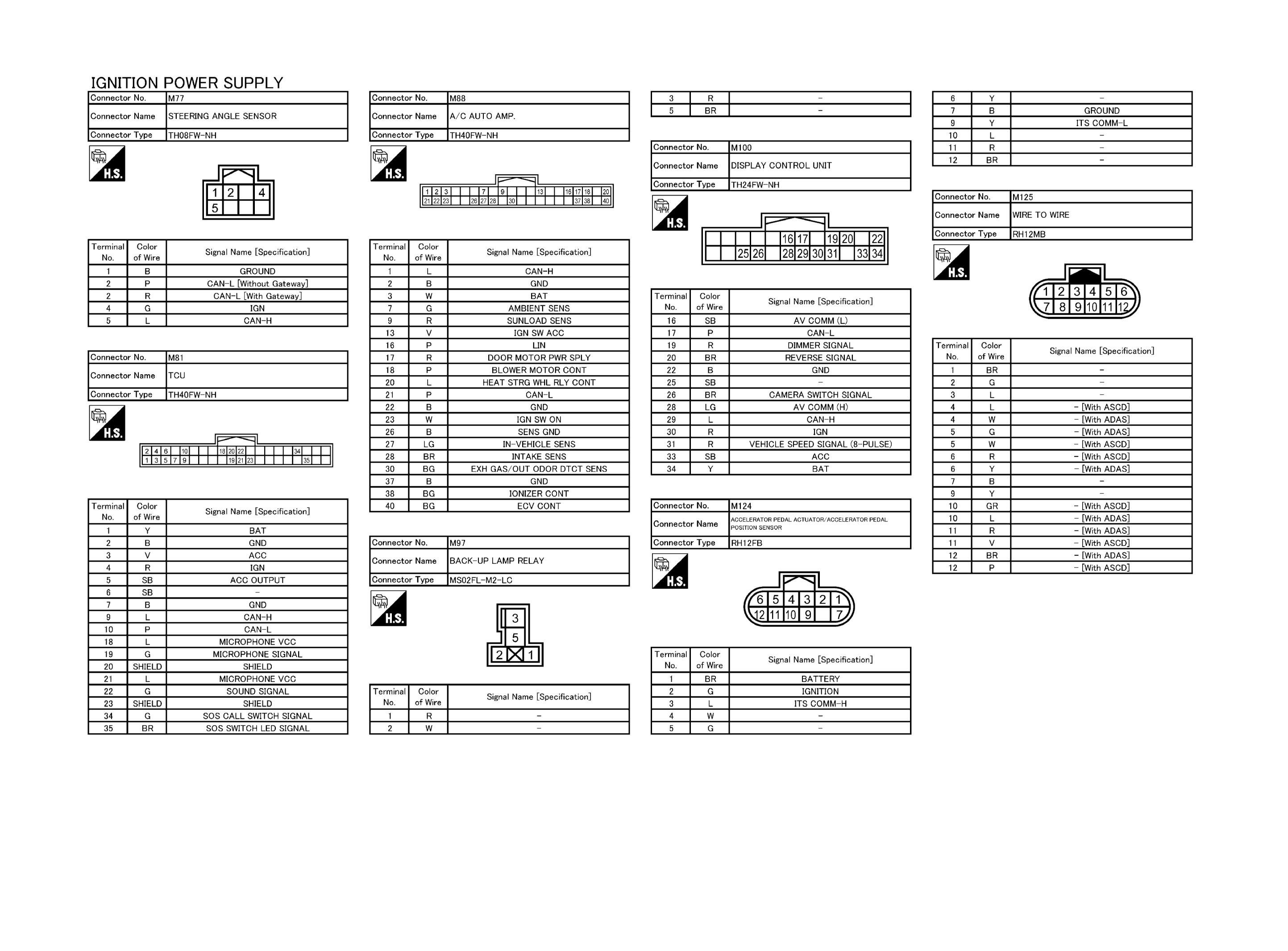

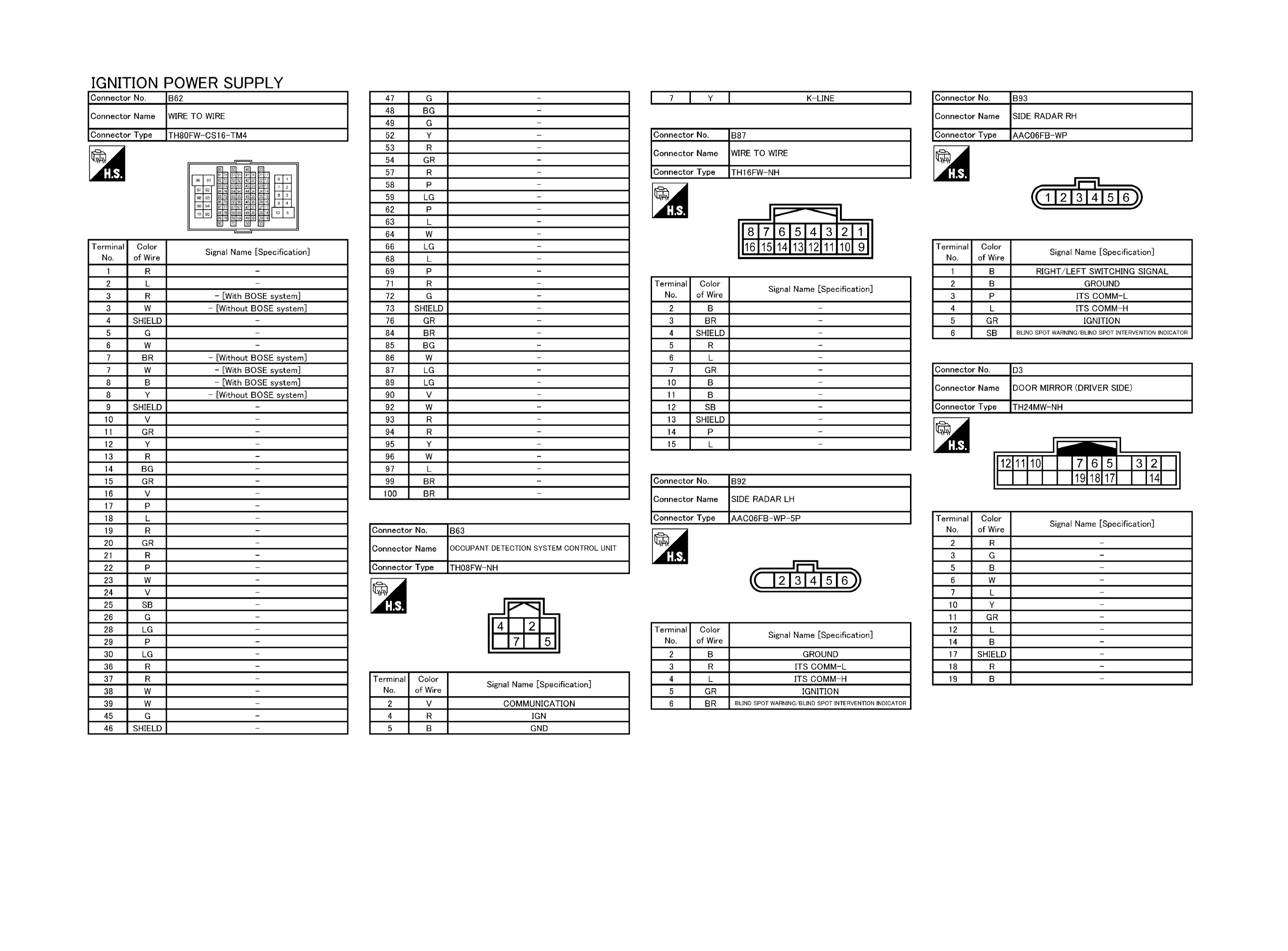

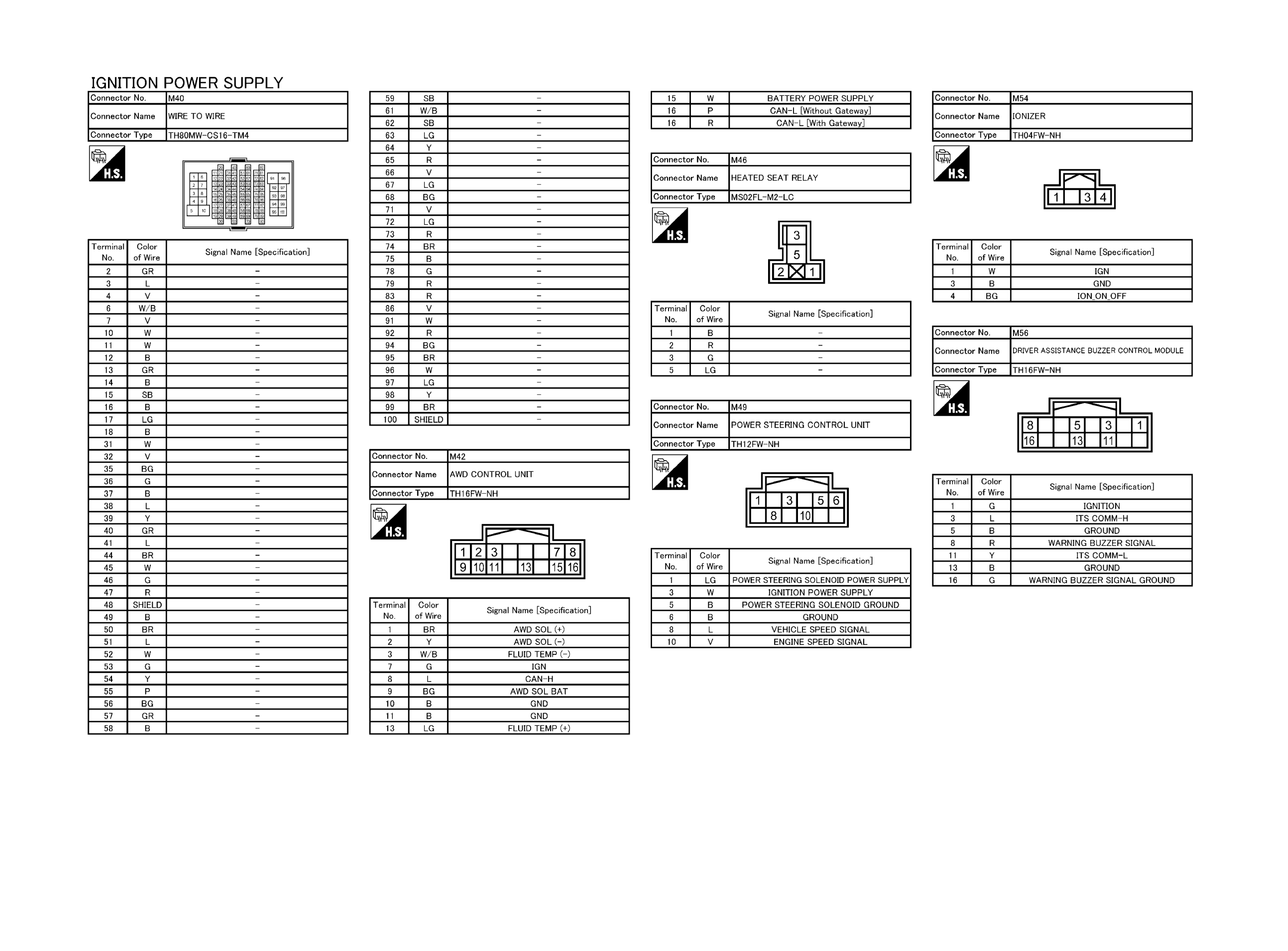

Fig 1: Ignition Power Supply Connectors (1 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

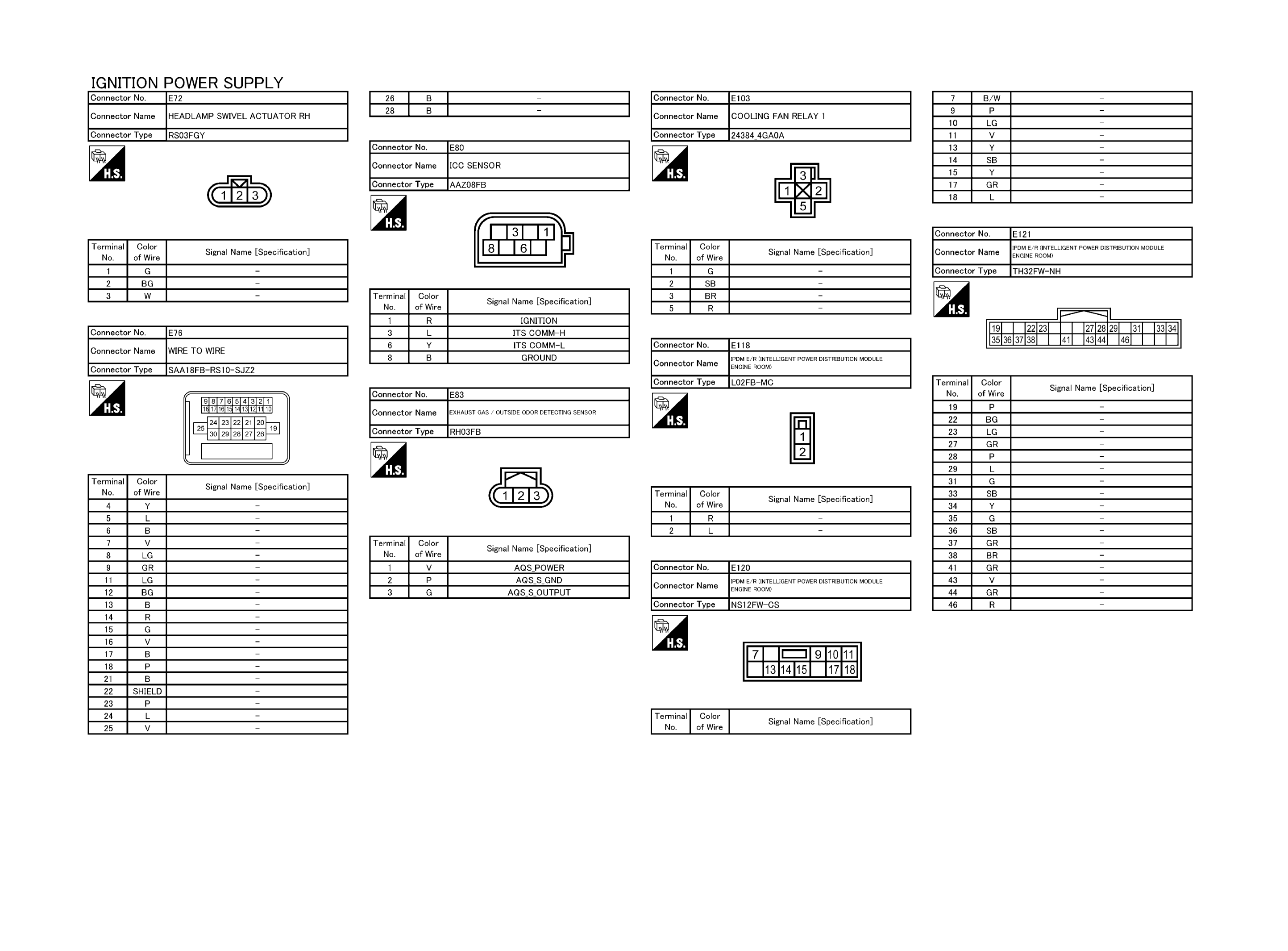

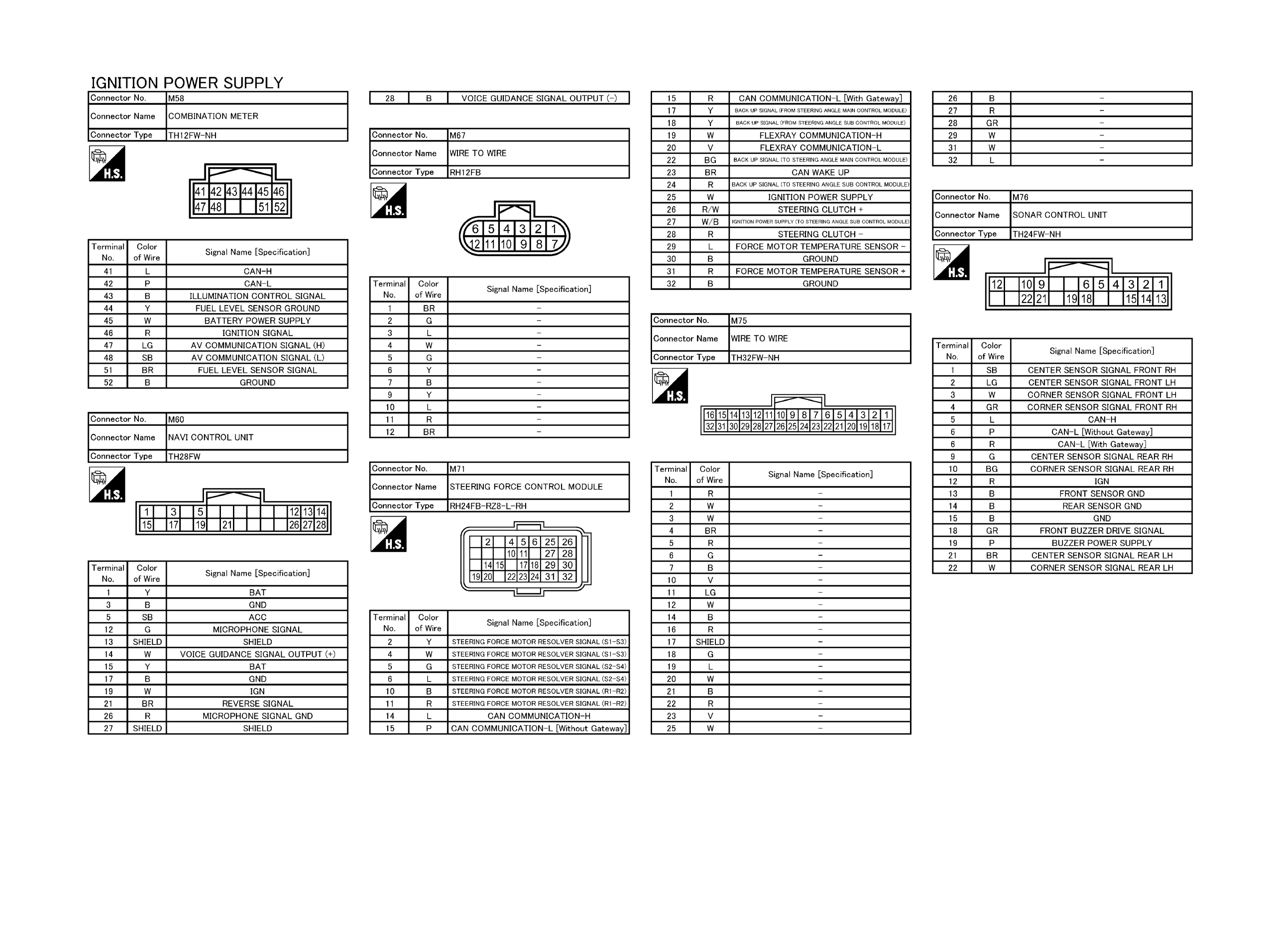

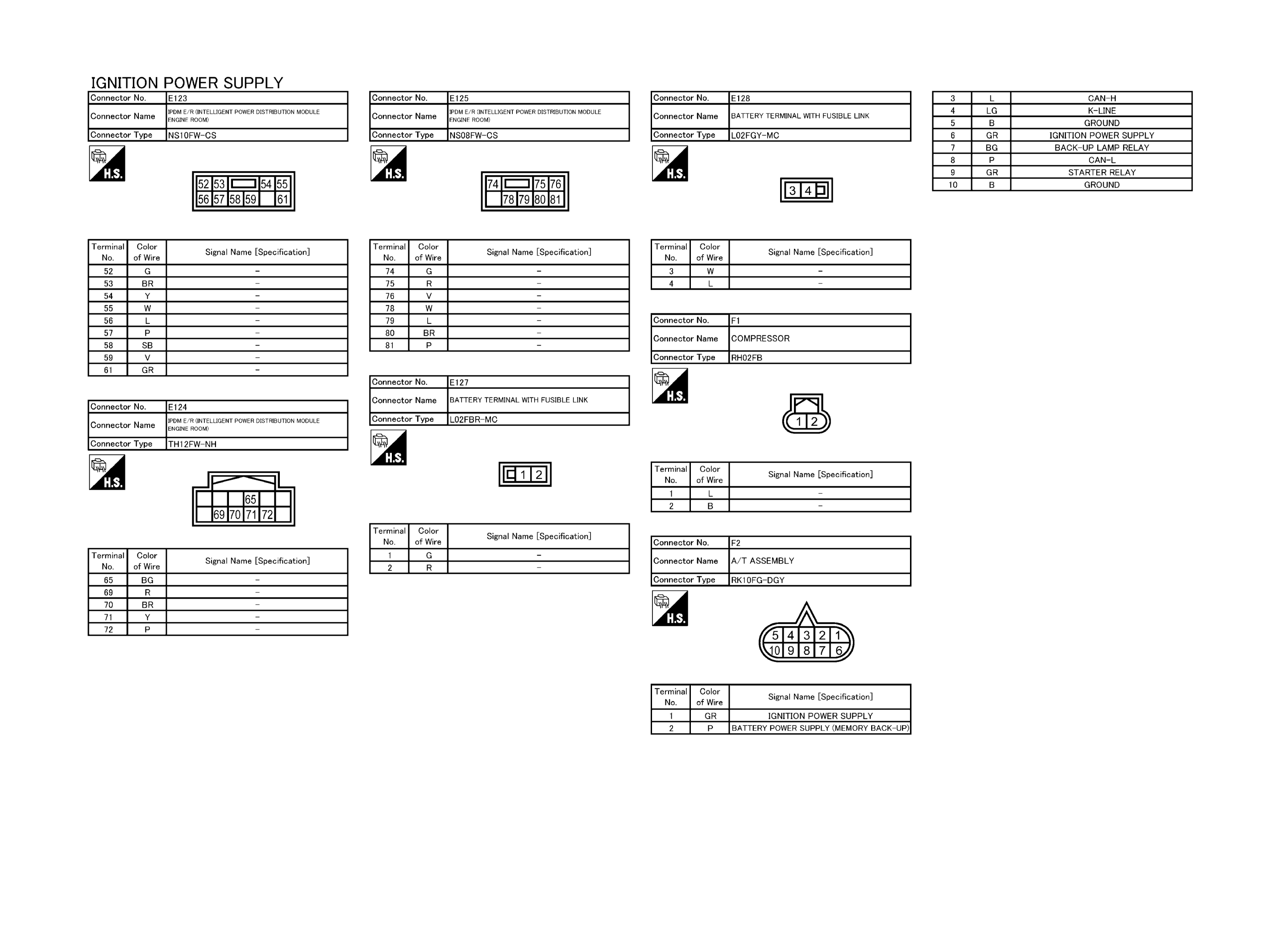

Fig 2: Ignition Power Supply Connectors (2 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

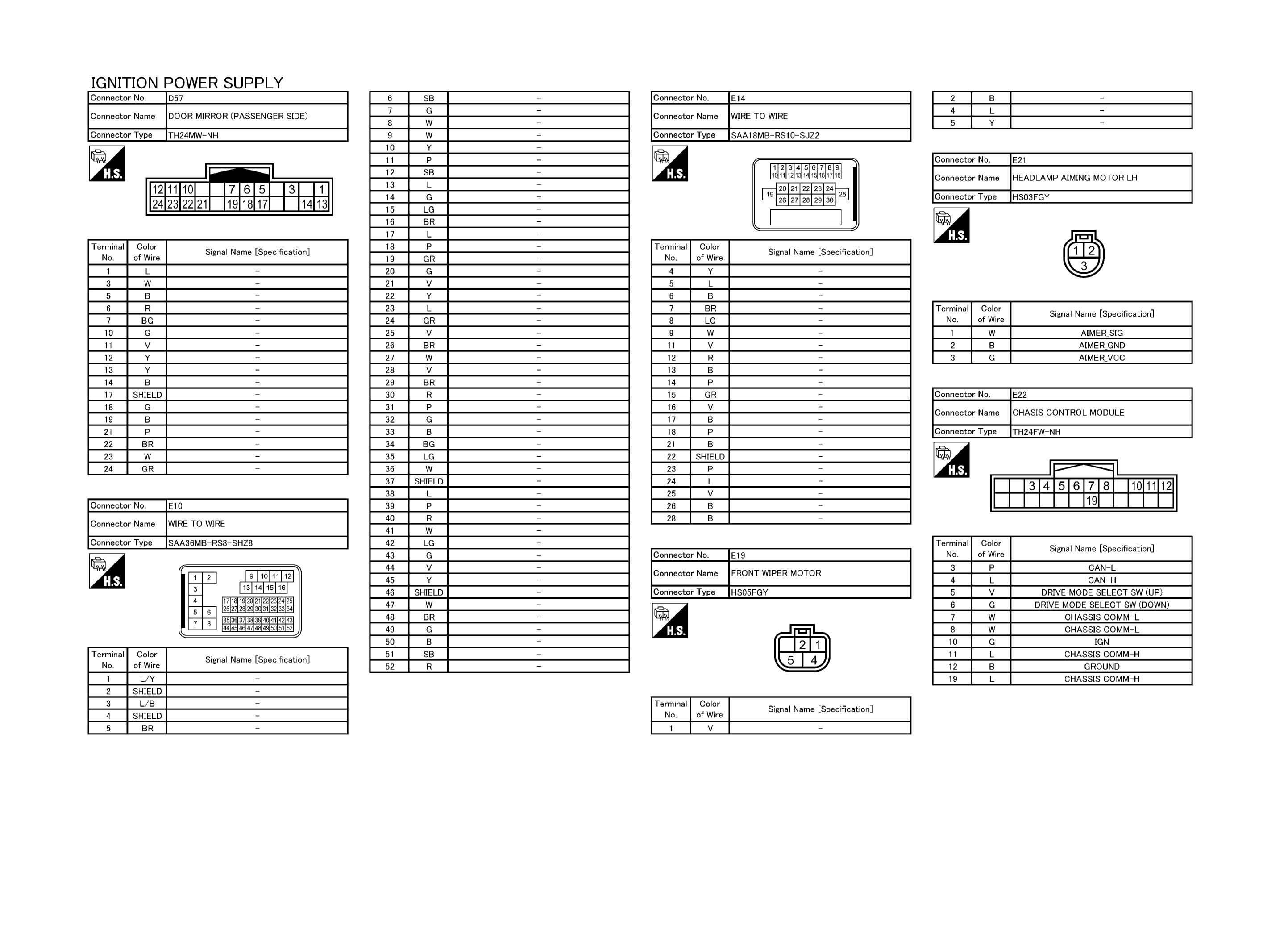

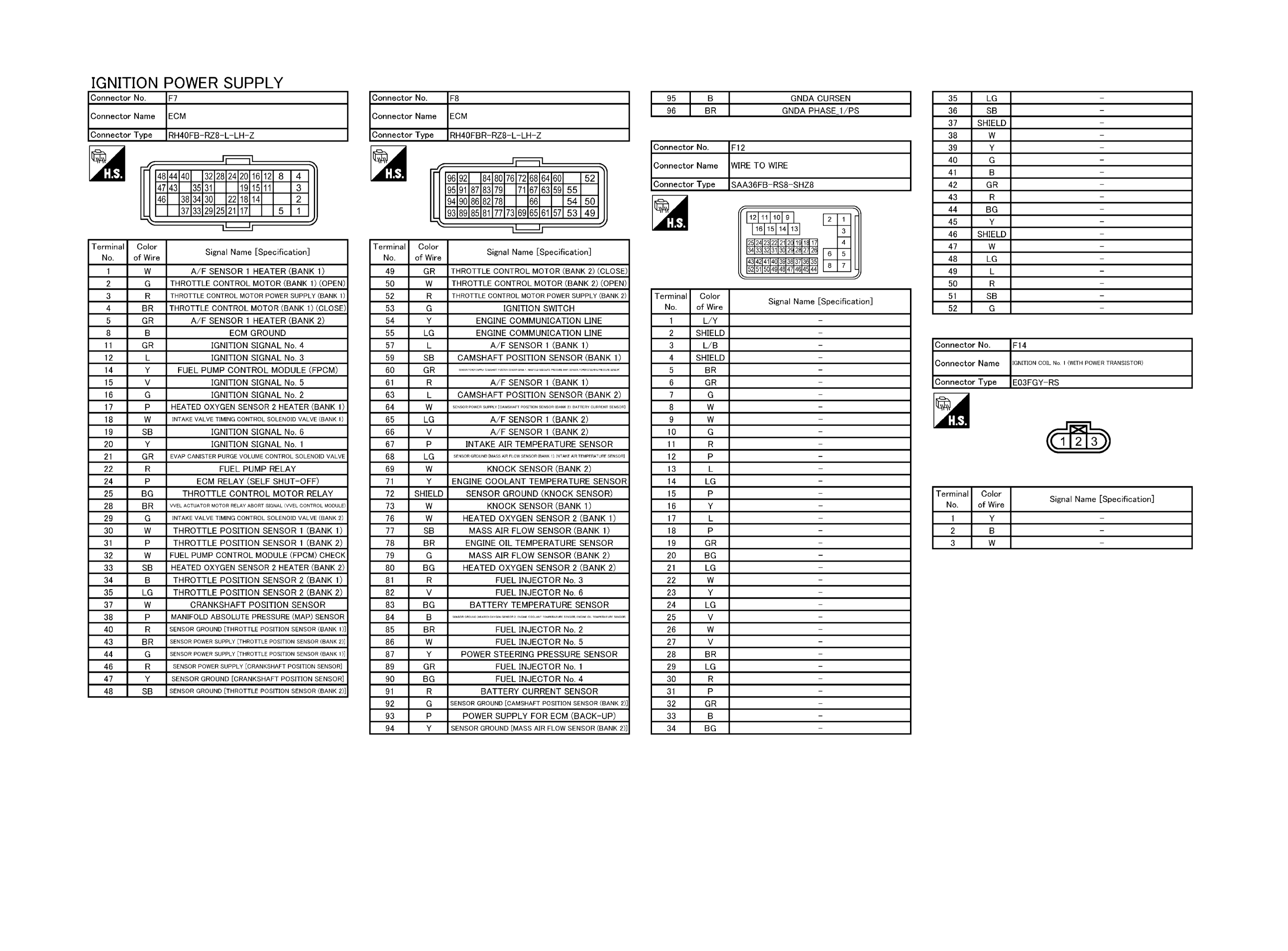

Fig 3: Ignition Power Supply Connectors (3 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

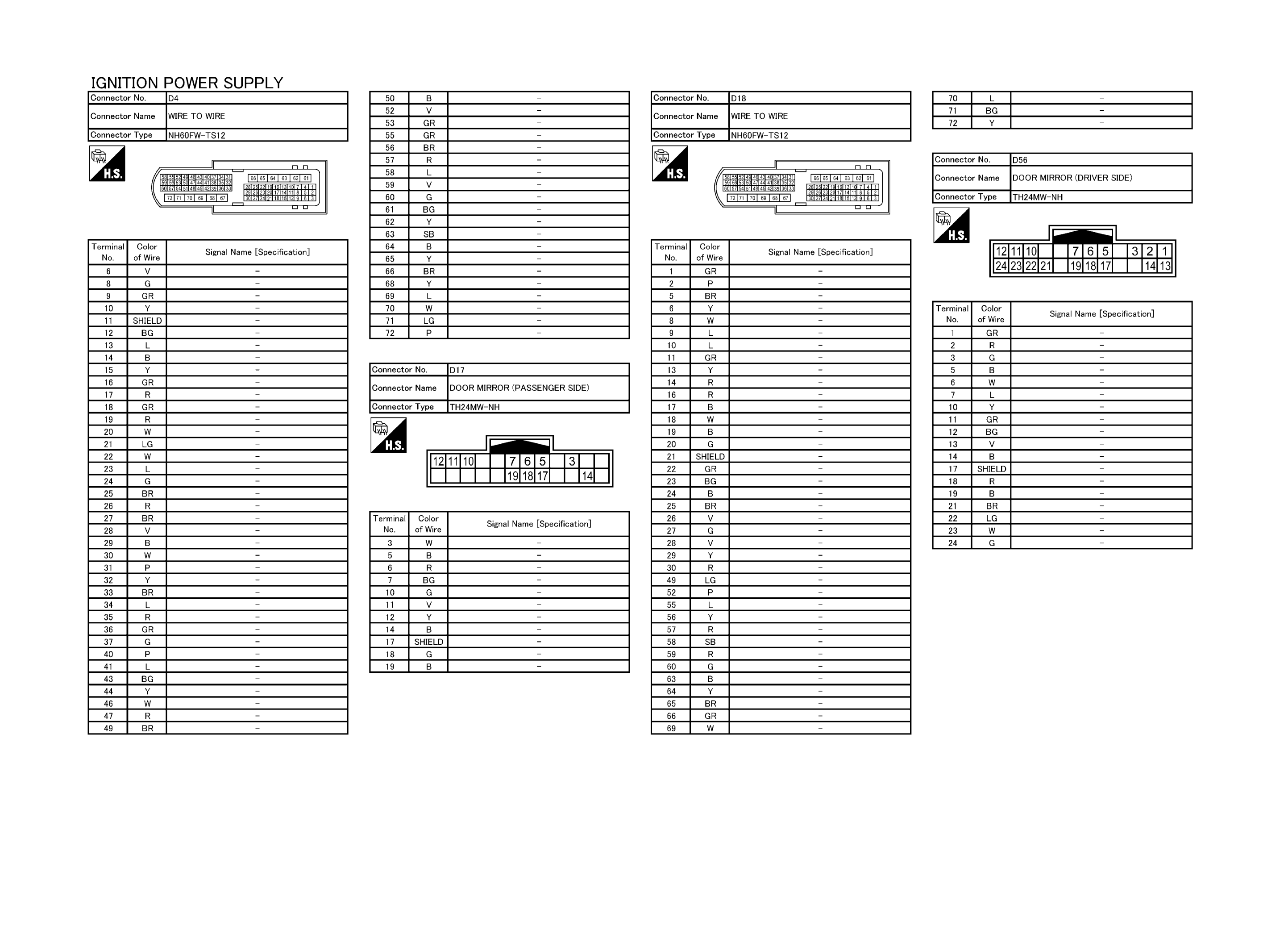

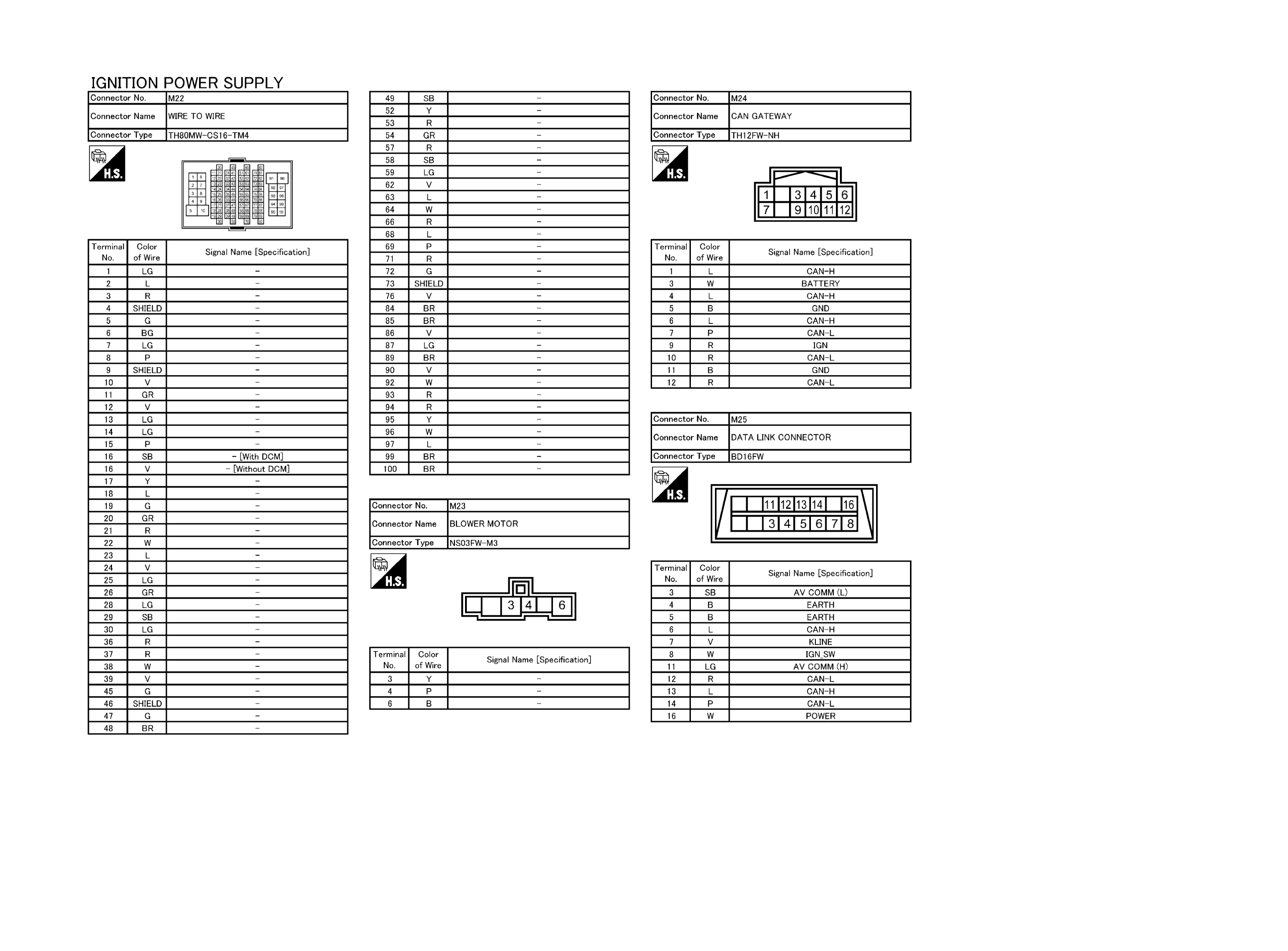

Fig 4: Ignition Power Supply Connectors (4 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

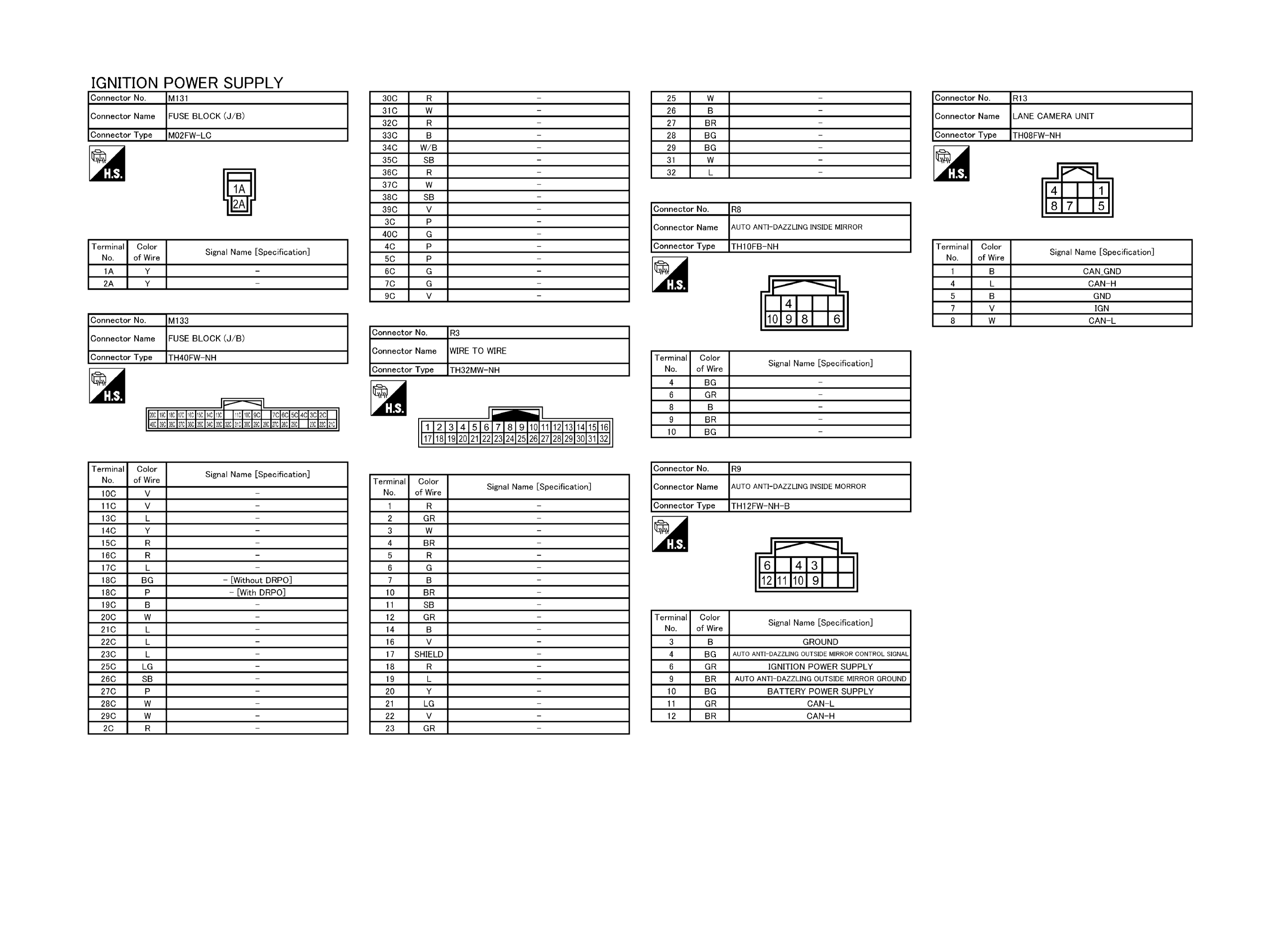

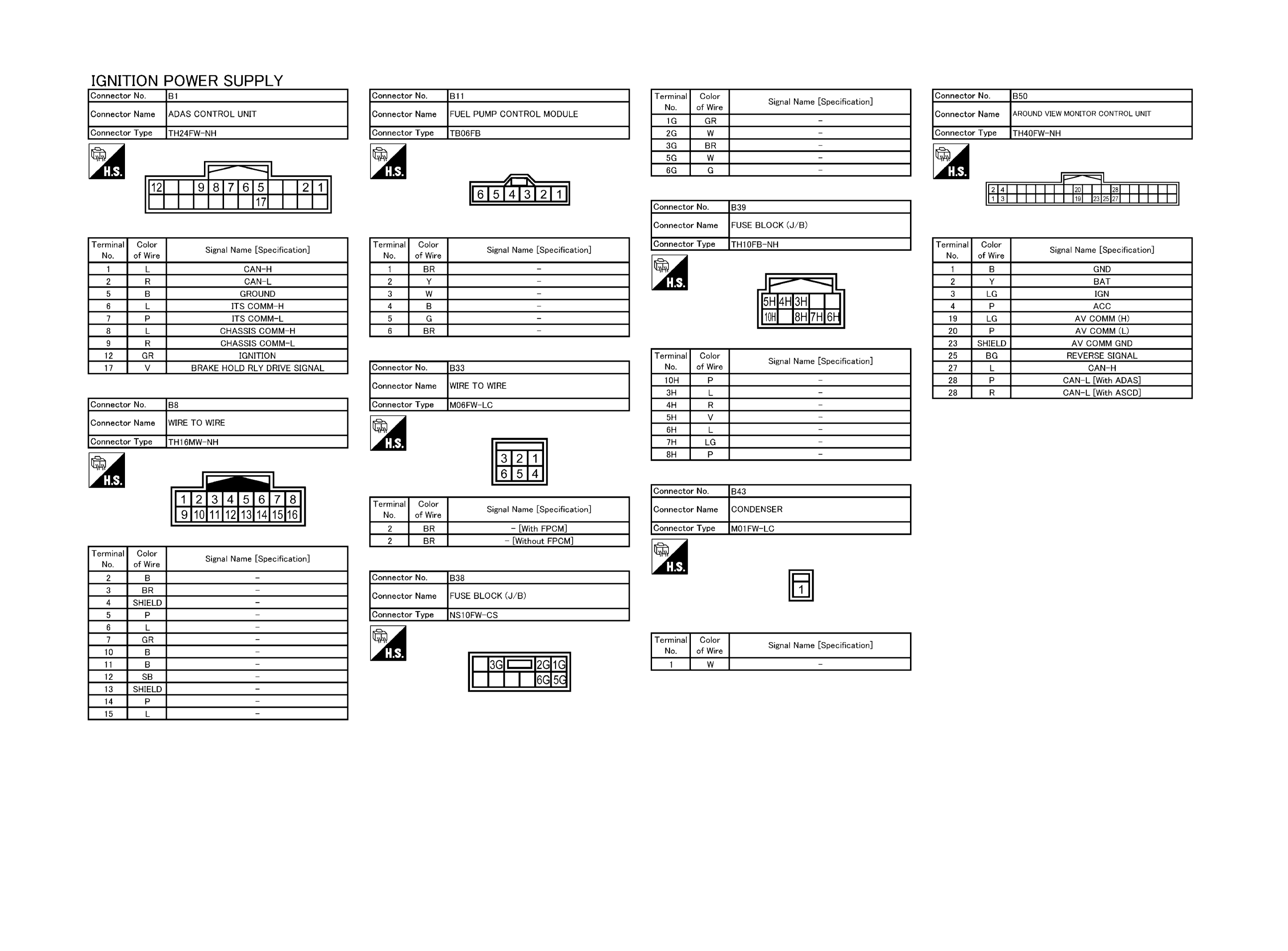

Fig 5: Ignition Power Supply Connectors (5 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

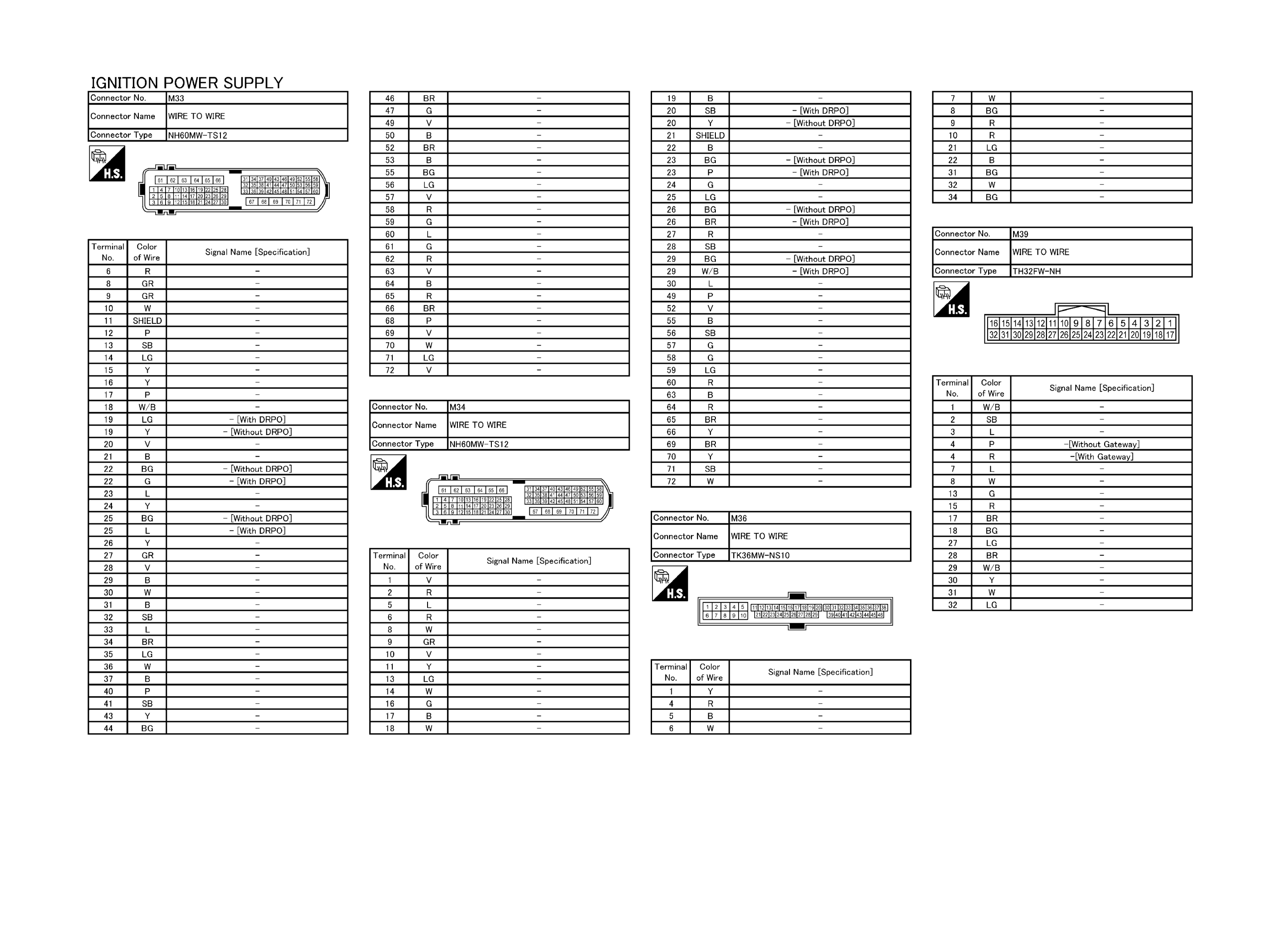

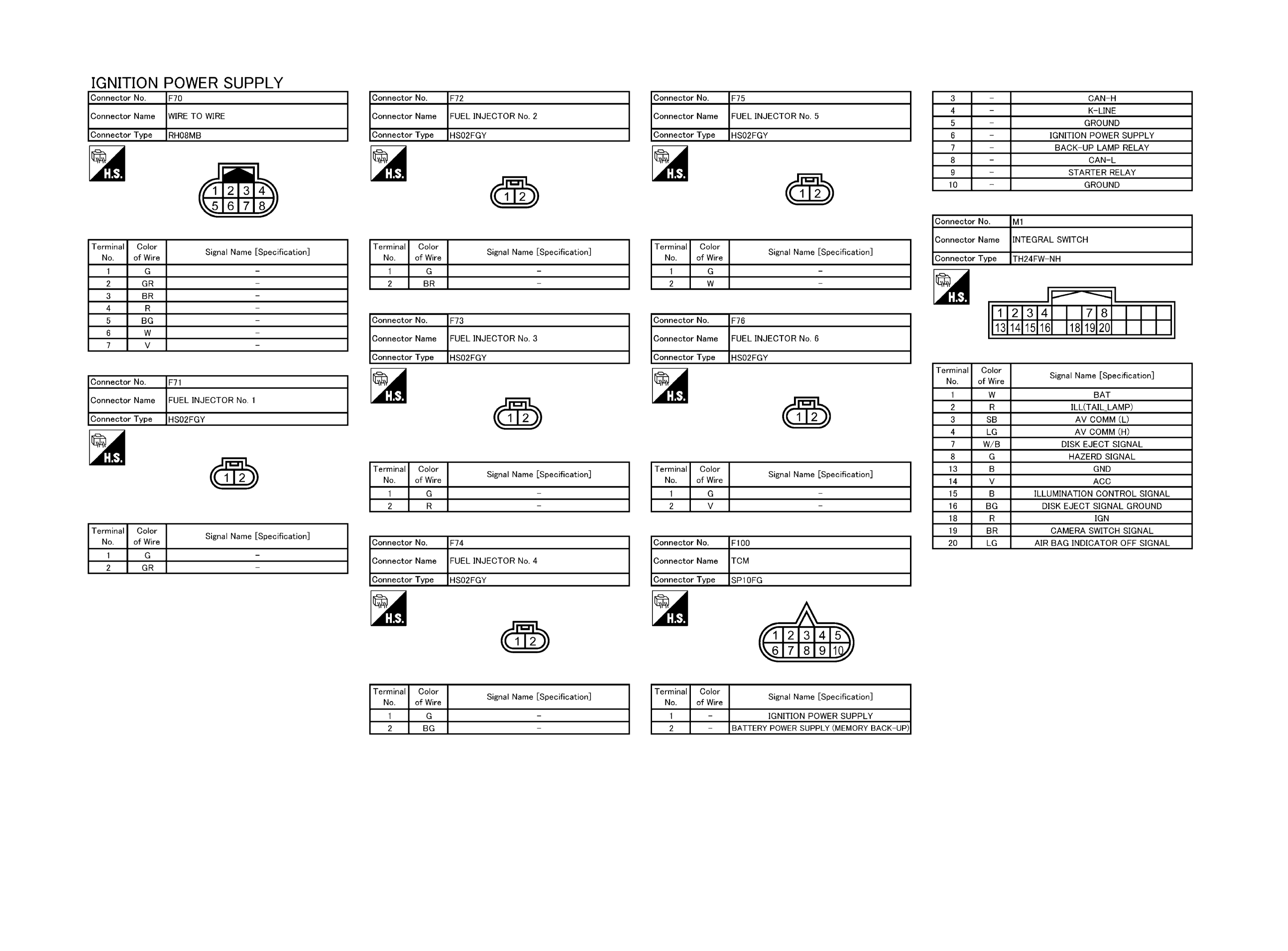

Fig 6: Ignition Power Supply Connectors (6 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

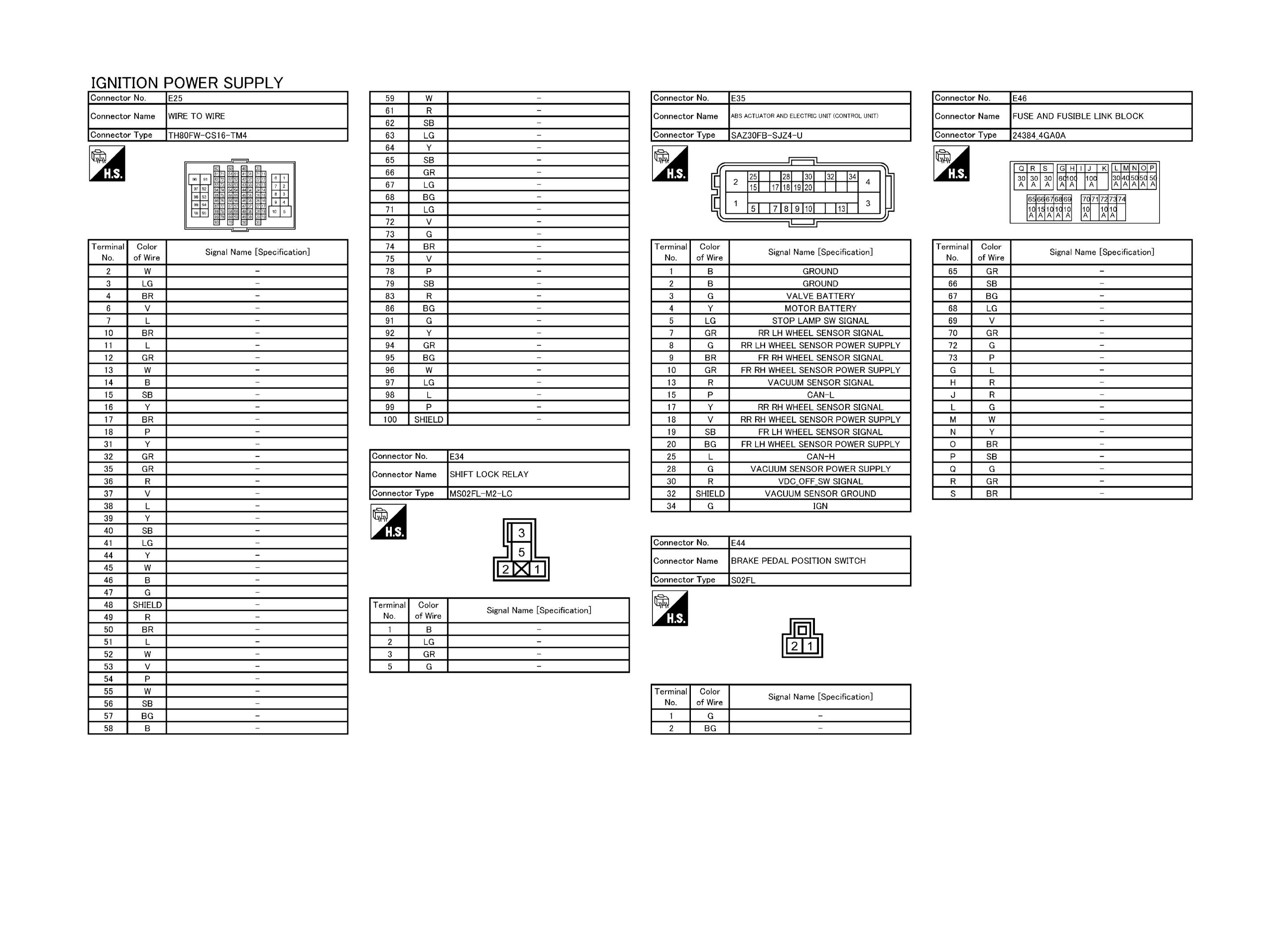

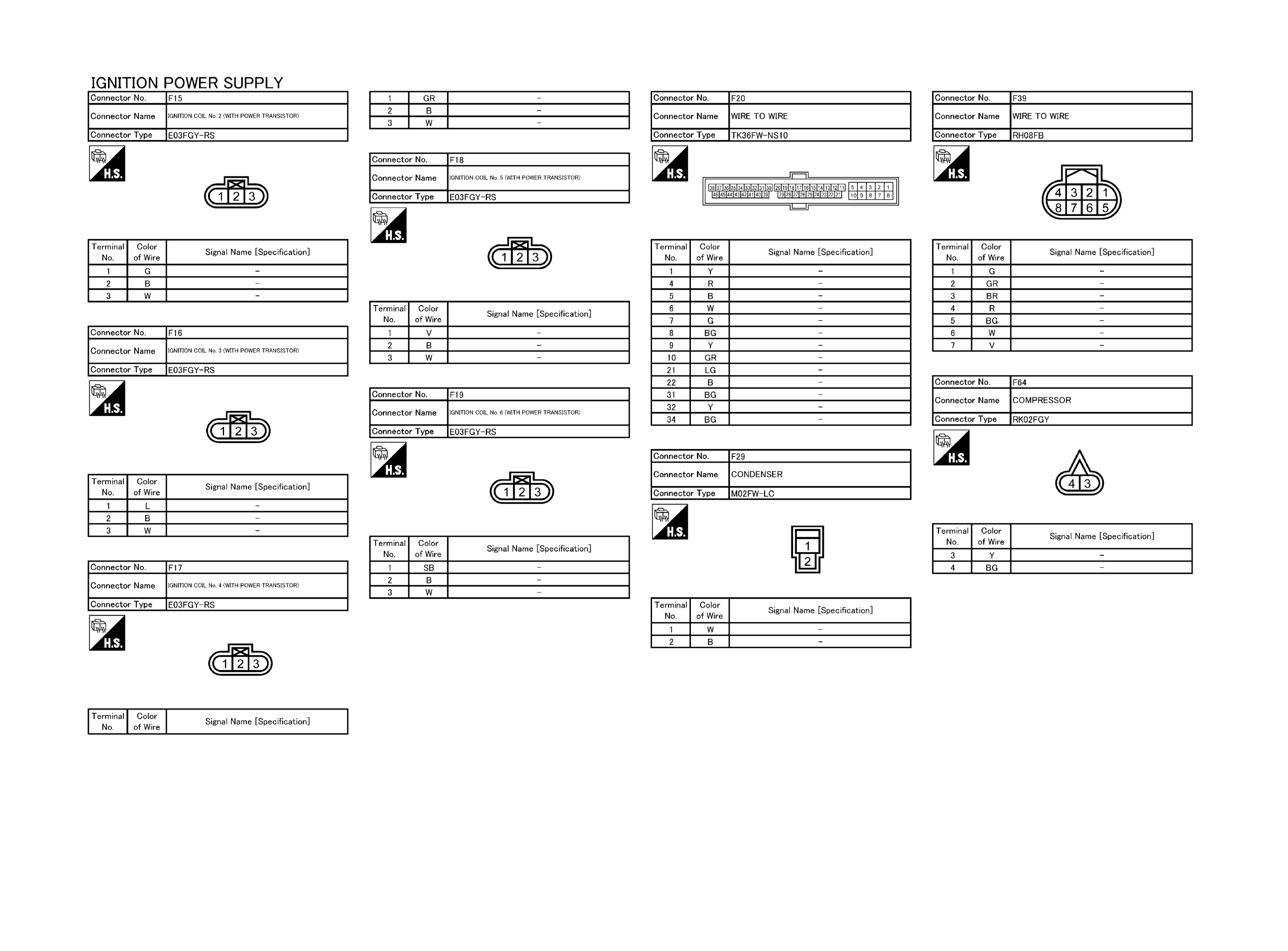

Fig 7: Ignition Power Supply Connectors (7 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

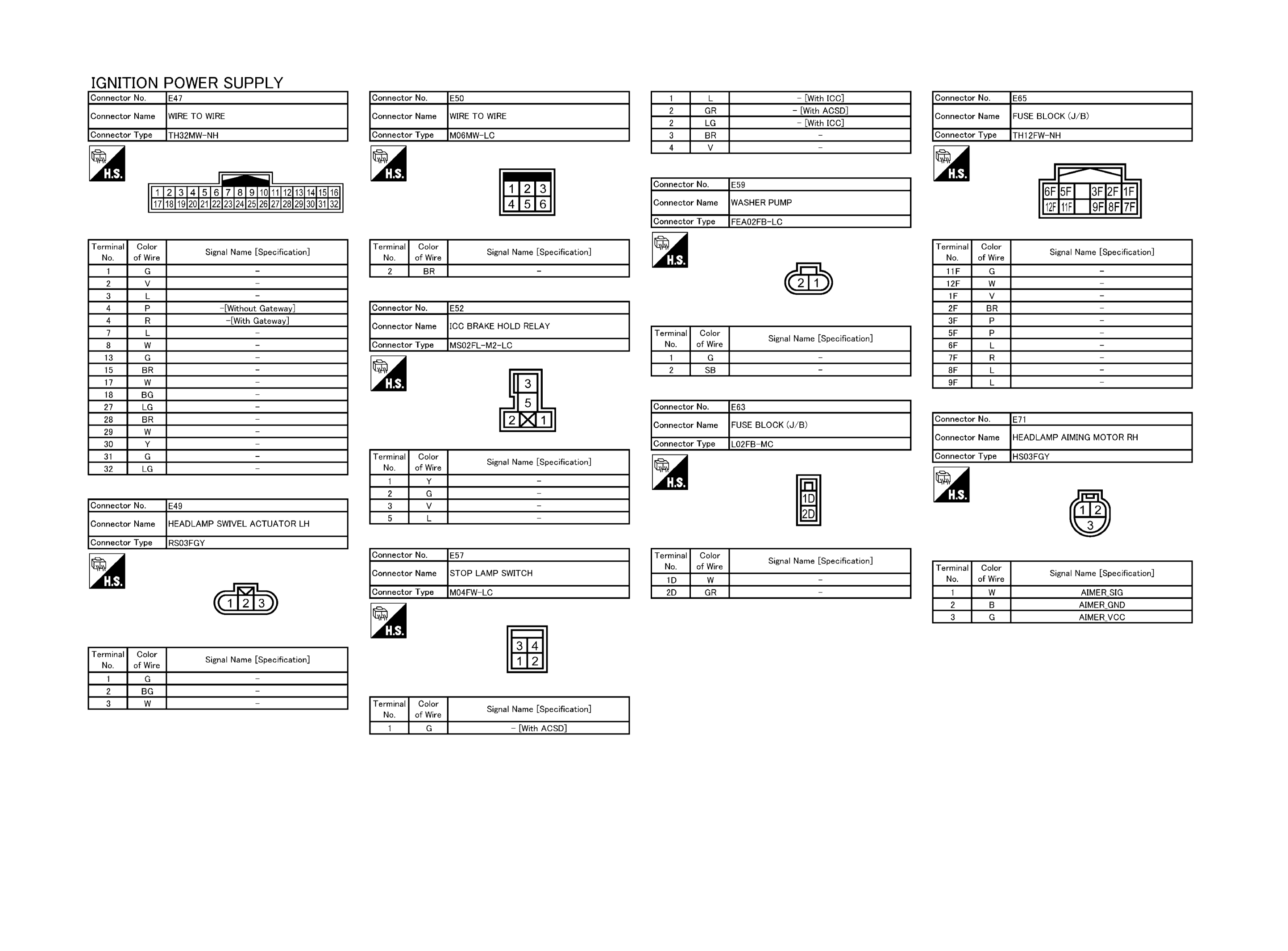

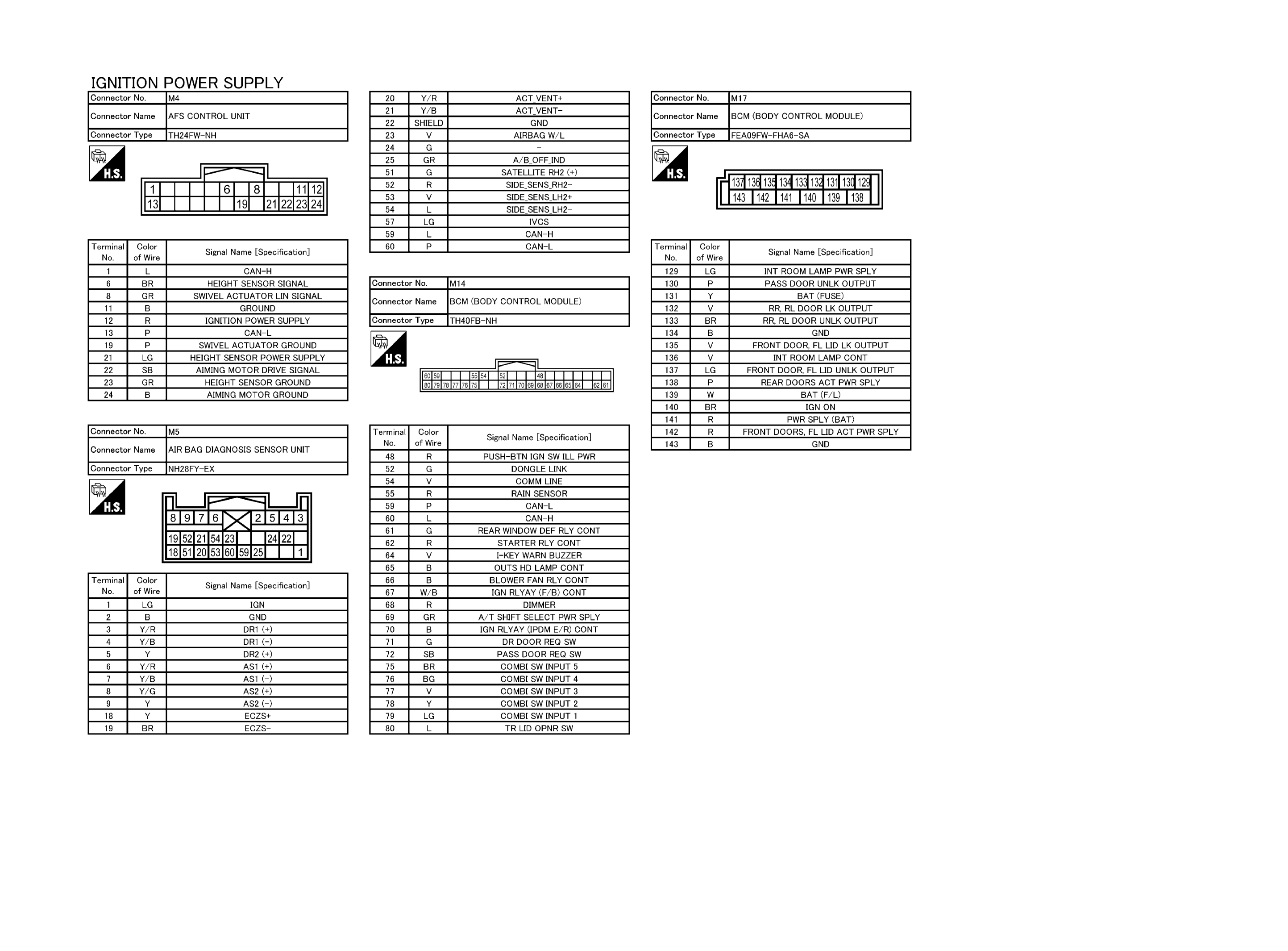

Fig 8: Ignition Power Supply Connectors (8 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Ignition Power Supply Connectors (9 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Ignition Power Supply Connectors (10 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Ignition Power Supply Connectors (11 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Ignition Power Supply Connectors (12 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Ignition Power Supply Connectors (13 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Ignition Power Supply Connectors (14 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Ignition Power Supply Connectors (15 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Ignition Power Supply Connectors (16 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Ignition Power Supply Connectors (17 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Ignition Power Supply Connectors (18 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.
