Battery Power Supply Wiring Diagram
Battery Power Supply Wiring Diagram

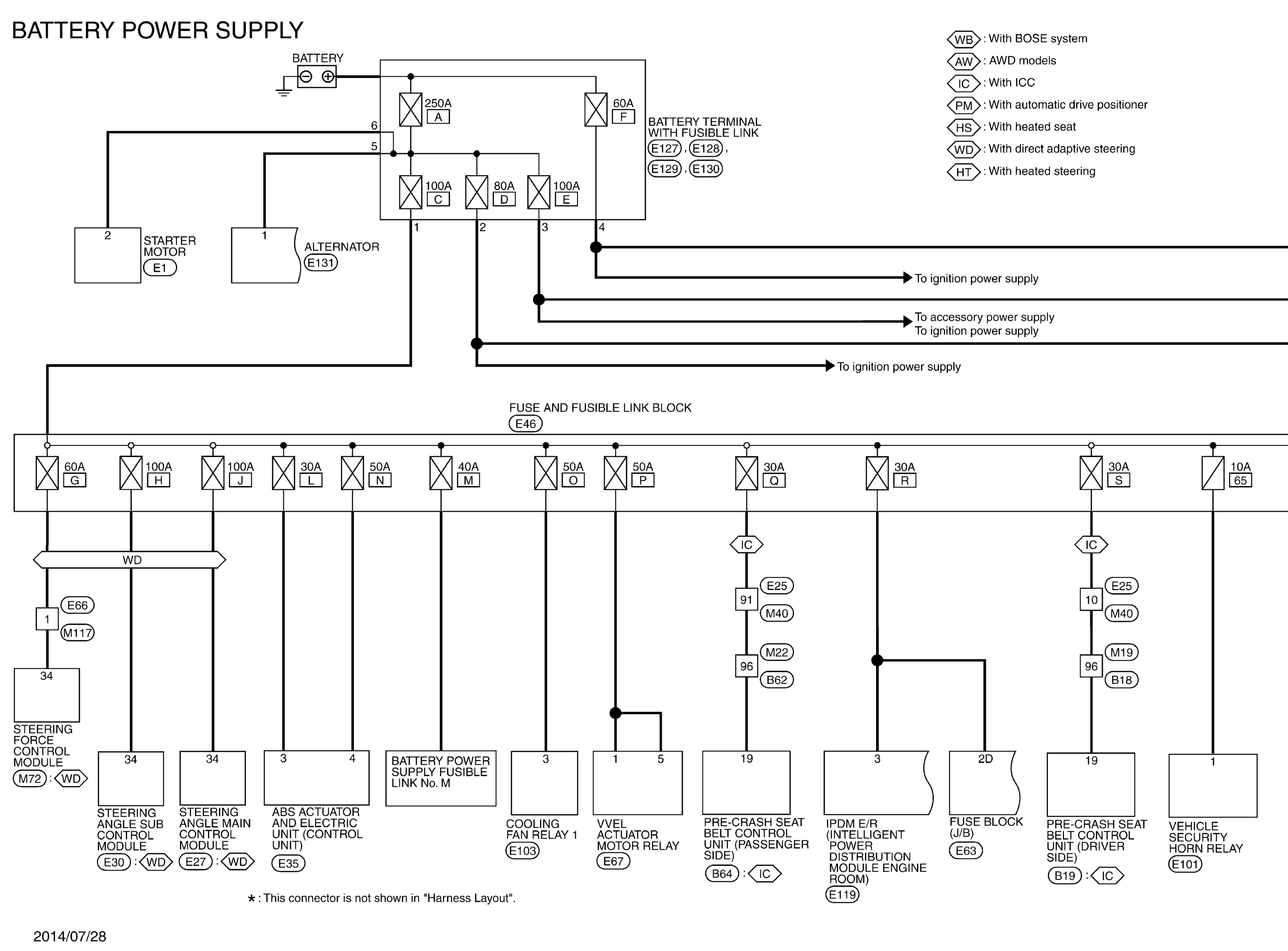

Fig 1: Battery Power Supply Wiring Diagram (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

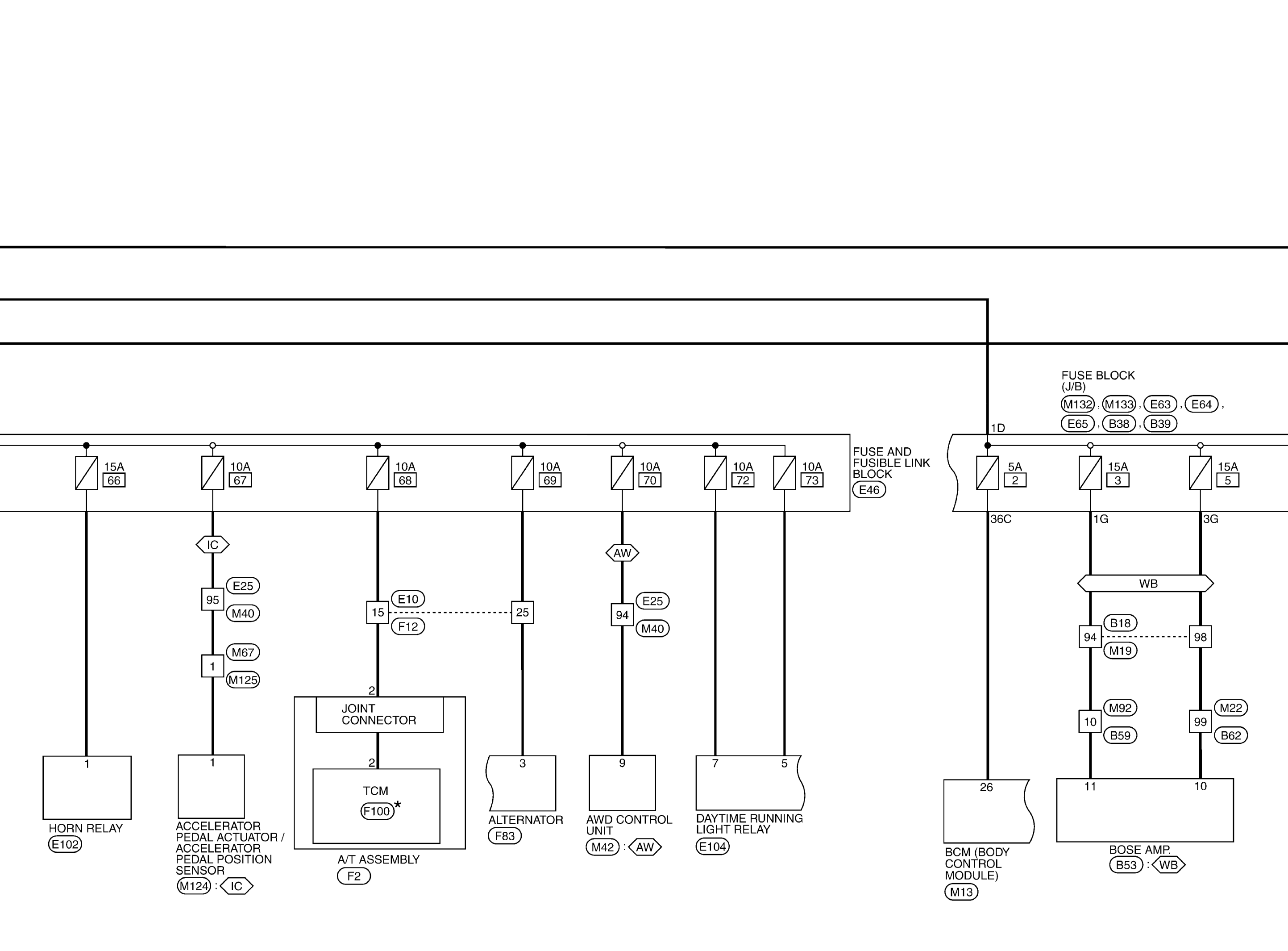

Fig 2: Battery Power Supply Wiring Diagram (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

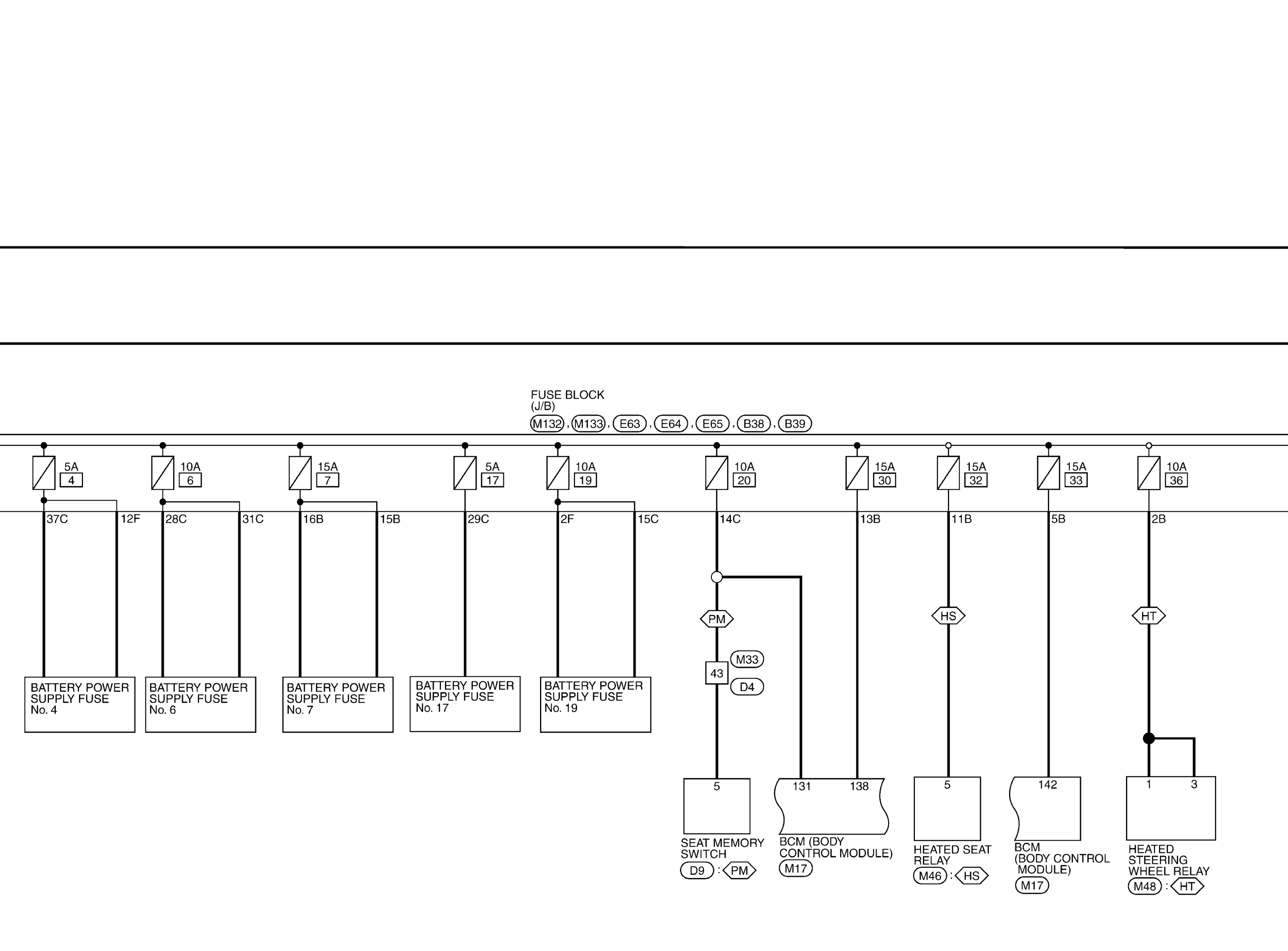

Fig 3: Battery Power Supply Wiring Diagram (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

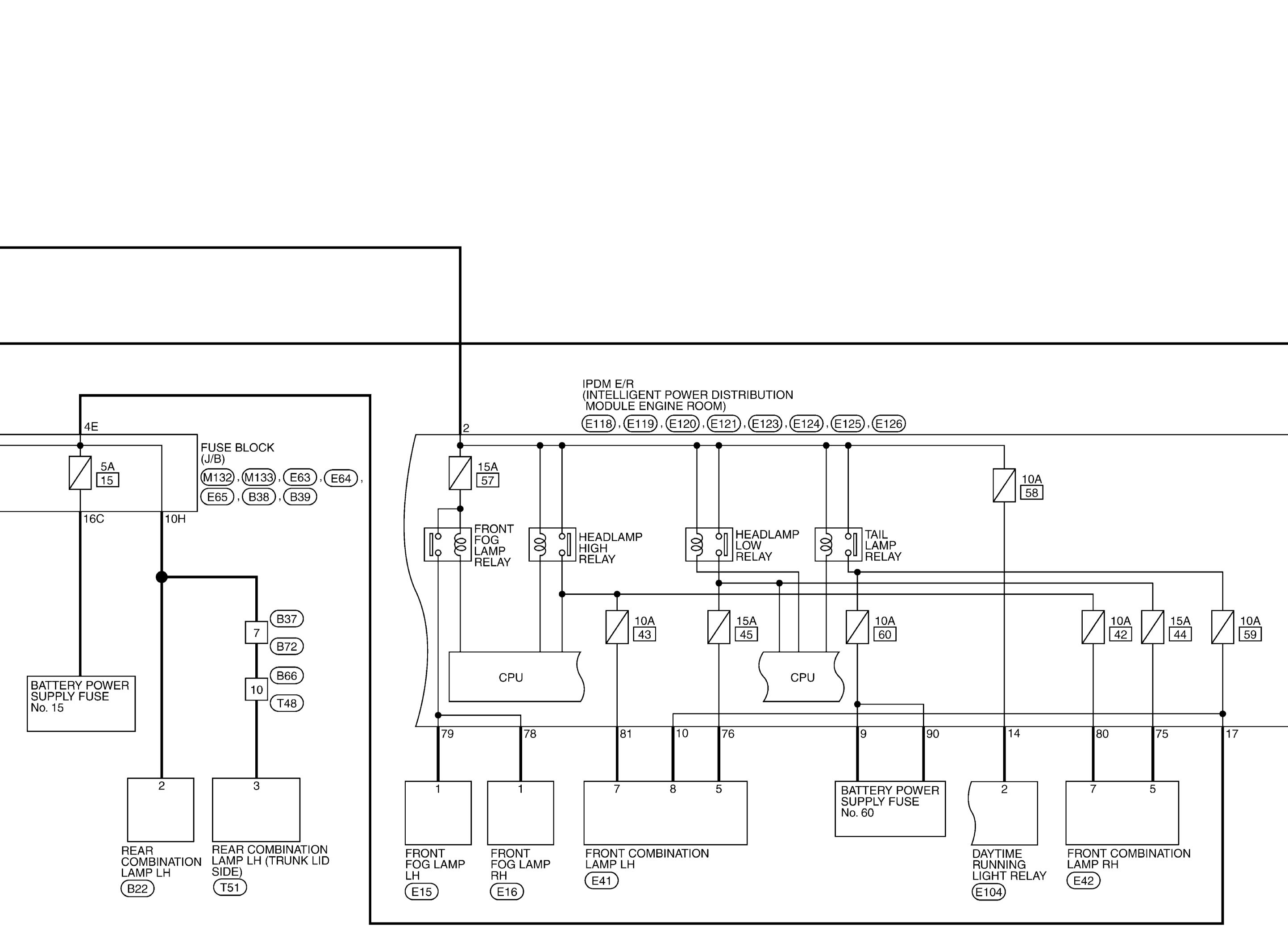

Fig 4: Battery Power Supply Wiring Diagram (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

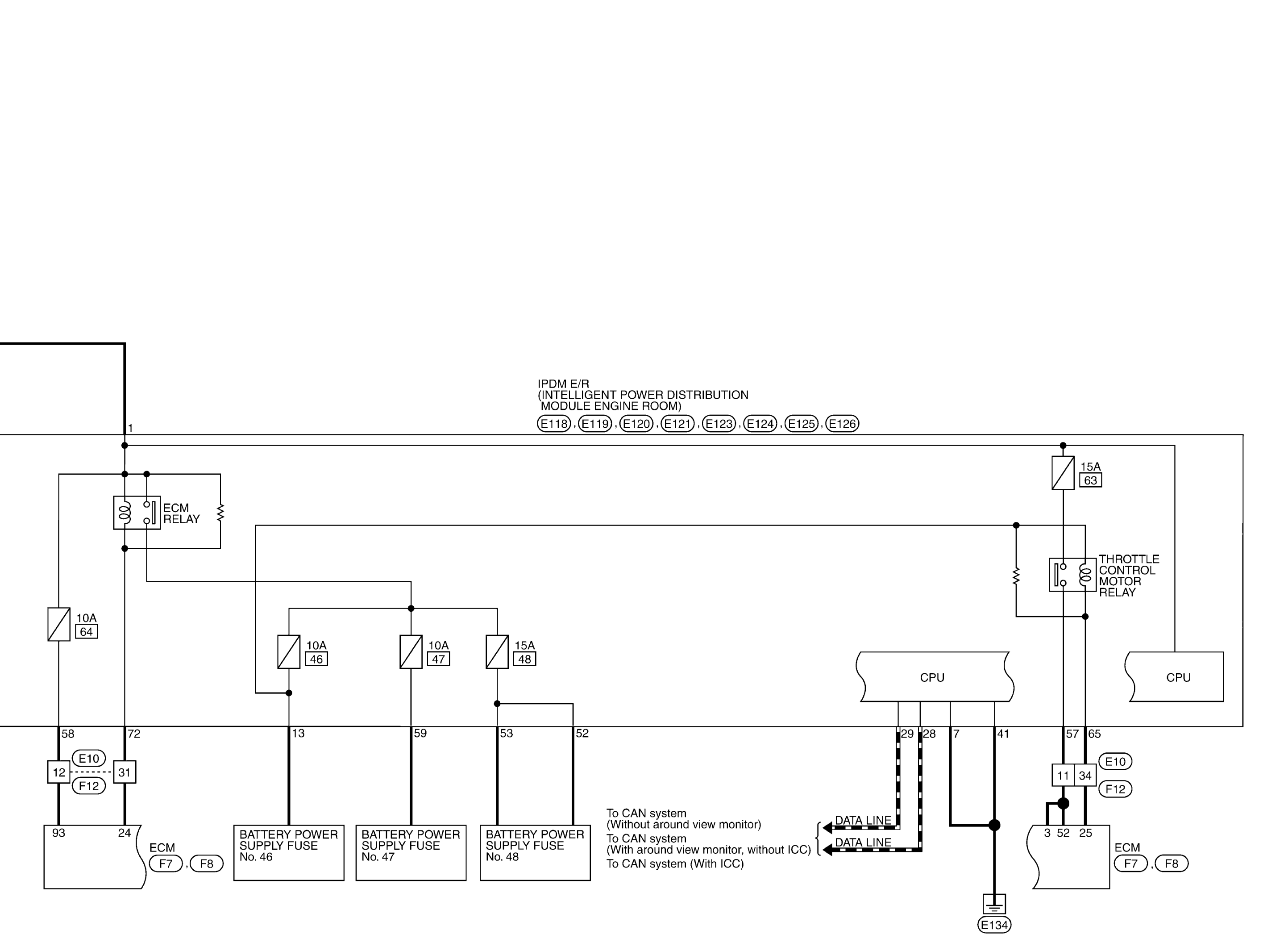

Fig 5: Battery Power Supply Wiring Diagram (5 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
