Battery Power Supply Fusible Link No. M Wiring Diagram

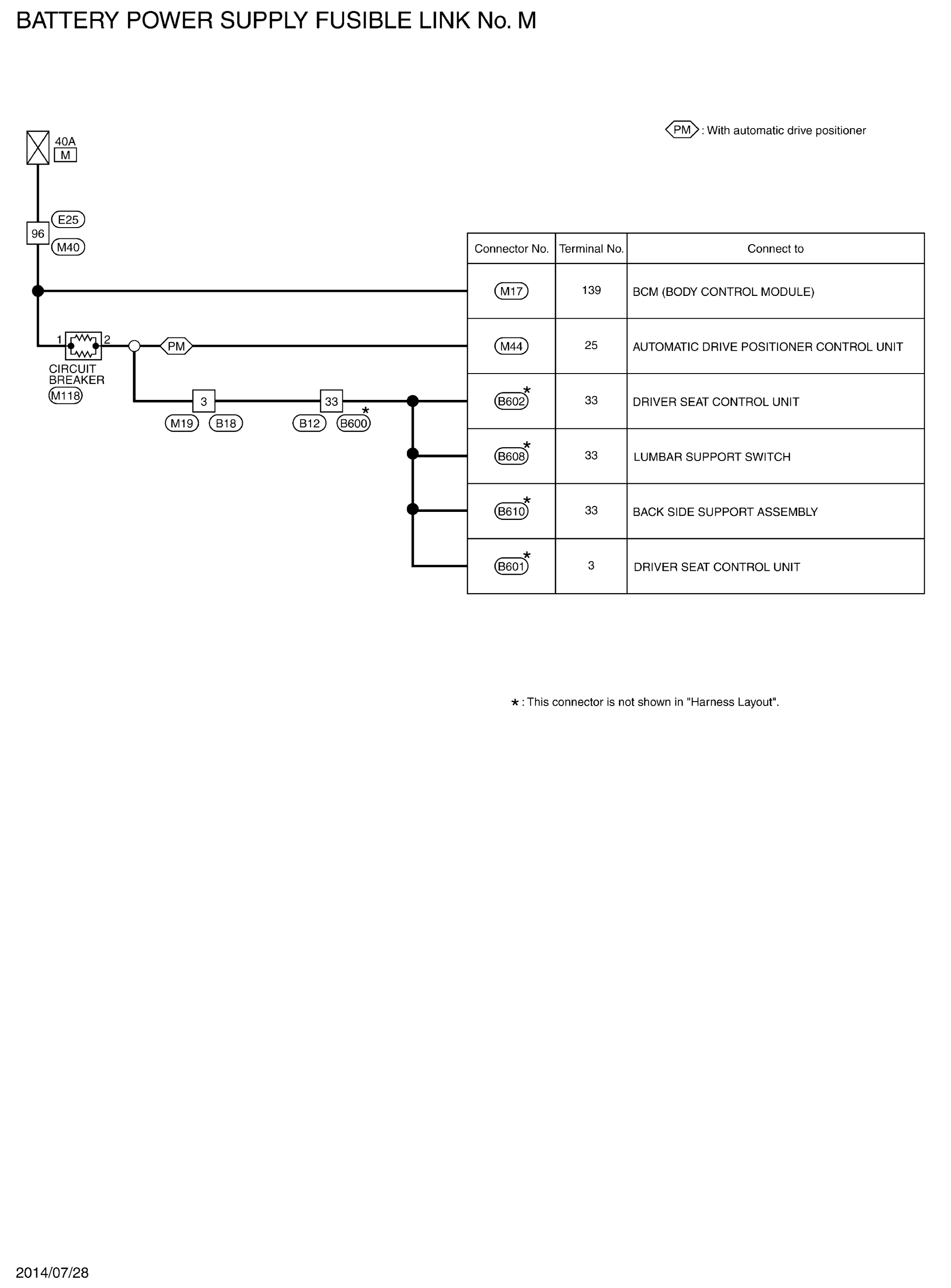

Fig 1: Battery Power Supply Fusible Link No. M Wiring Diagram

GNSJRMWG3606GB-606

Courtesy of NISSAN NORTH AMERICA, INC.
