Battery Power Supply Fuse No. 4 Wiring Diagram

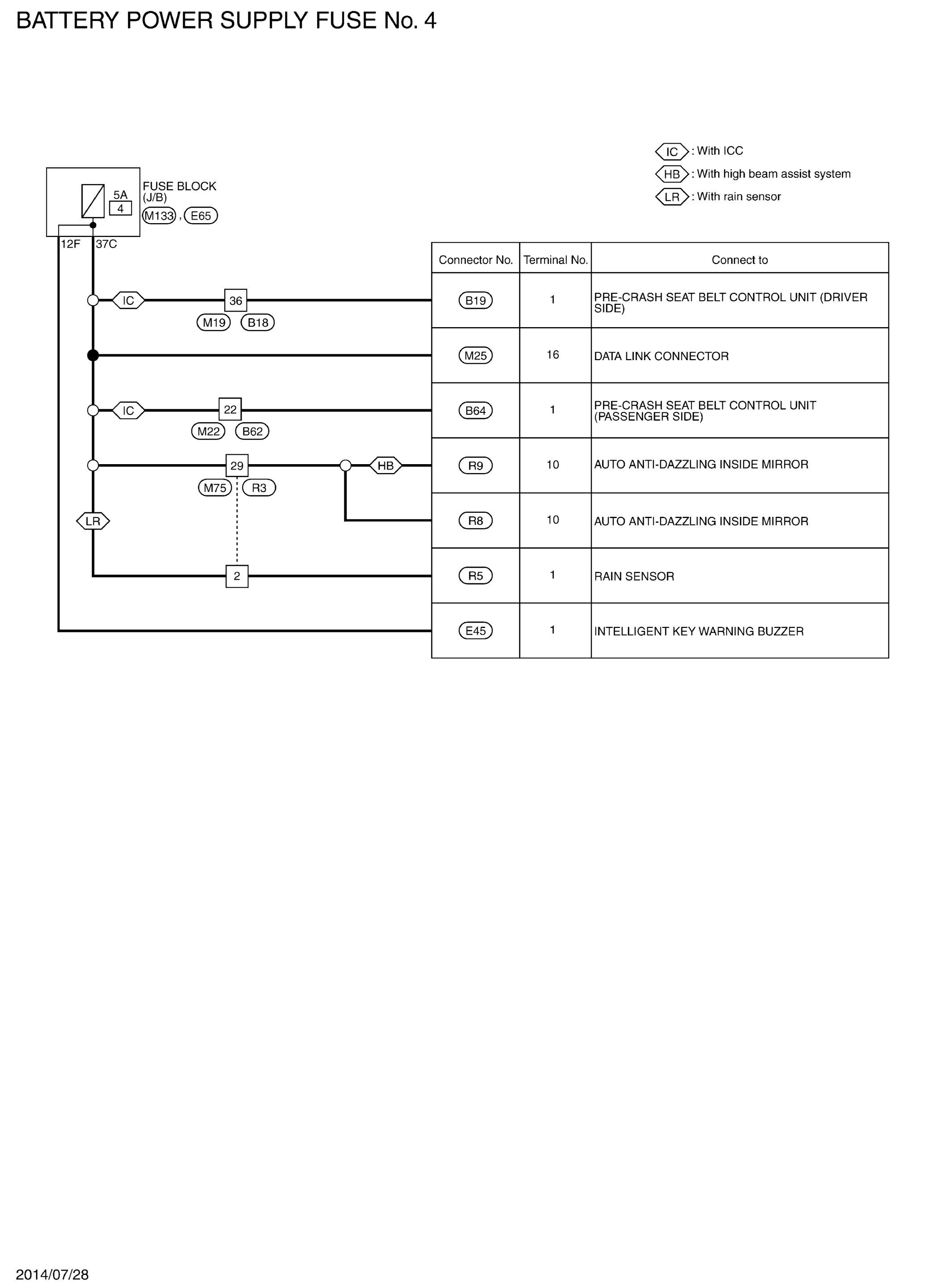

Fig 1: Battery Power Supply Fuse No. 4 Wiring Diagram

GNSJRMWG3607GB-607

Courtesy of NISSAN NORTH AMERICA, INC.
