Battery Power Supply Connectors

Fig 1: Battery Power Supply Connectors (1 Of 21)

GNSJRMWG3593GB-593

Courtesy of NISSAN NORTH AMERICA, INC.

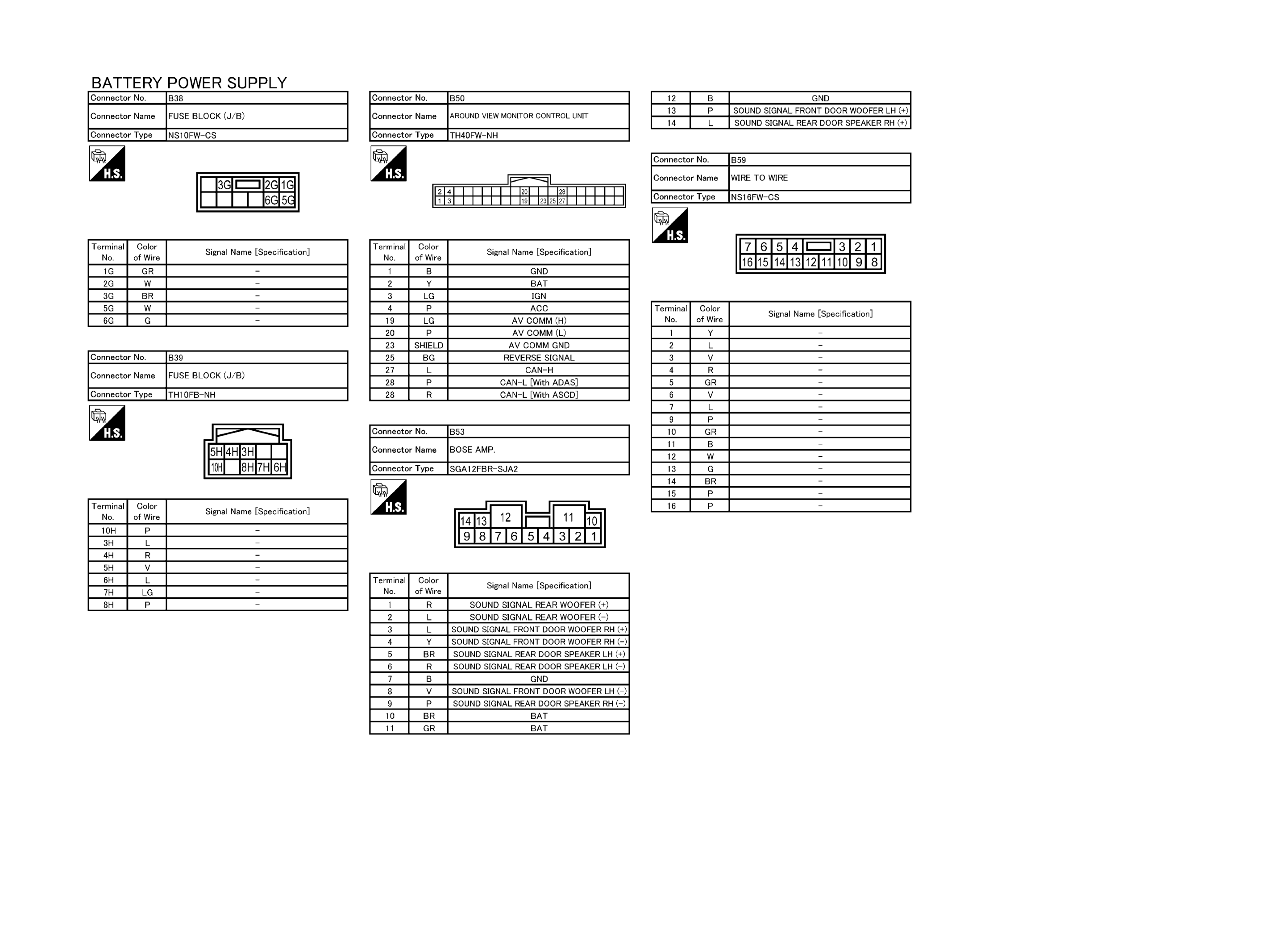

Fig 2: Battery Power Supply Connectors (2 Of 21)

GNSJRMWG3594GB-594

Courtesy of NISSAN NORTH AMERICA, INC.

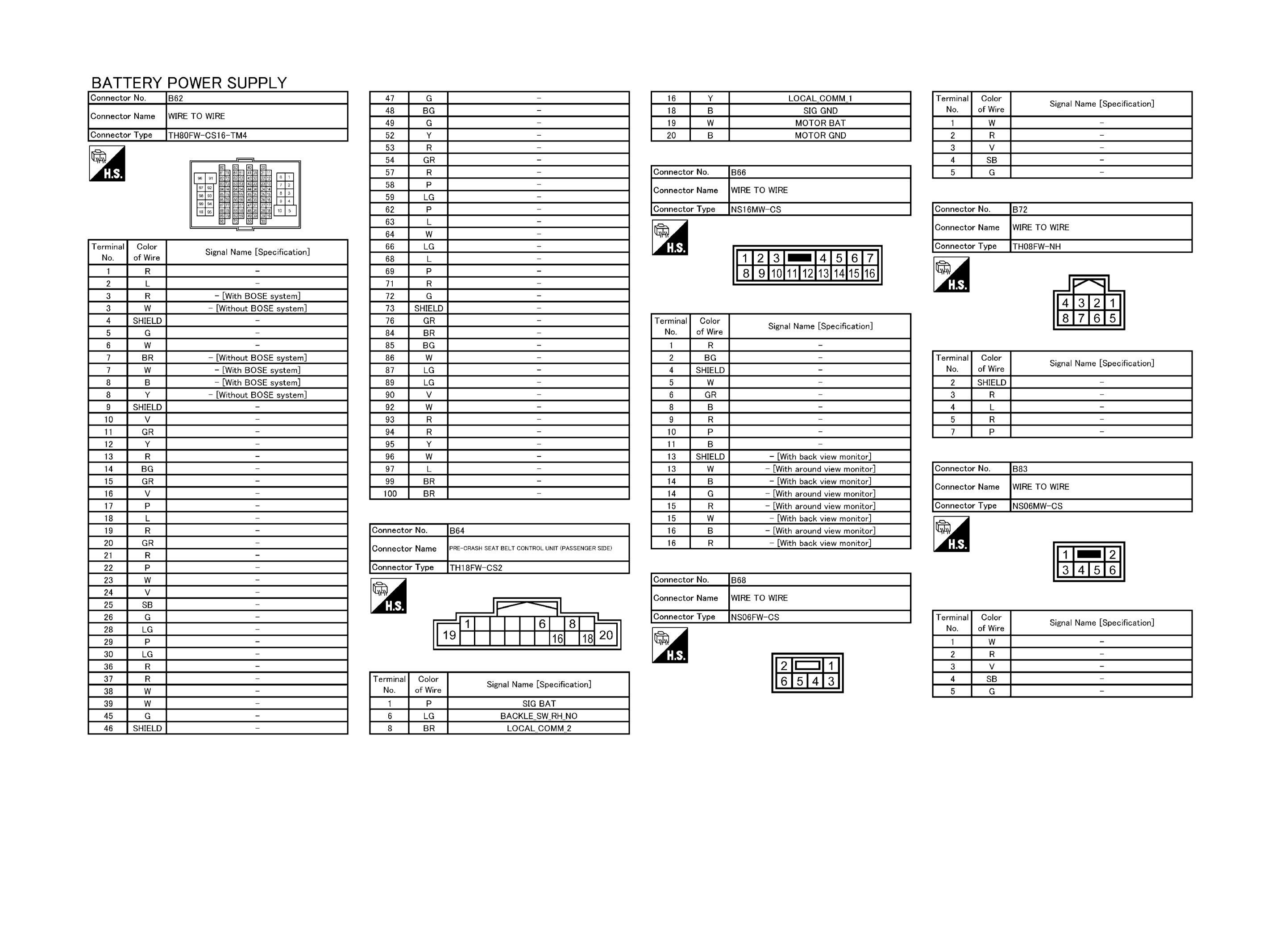

Fig 3: Battery Power Supply Connectors (3 Of 21)

GNSJRMWG3595GB-595

Courtesy of NISSAN NORTH AMERICA, INC.

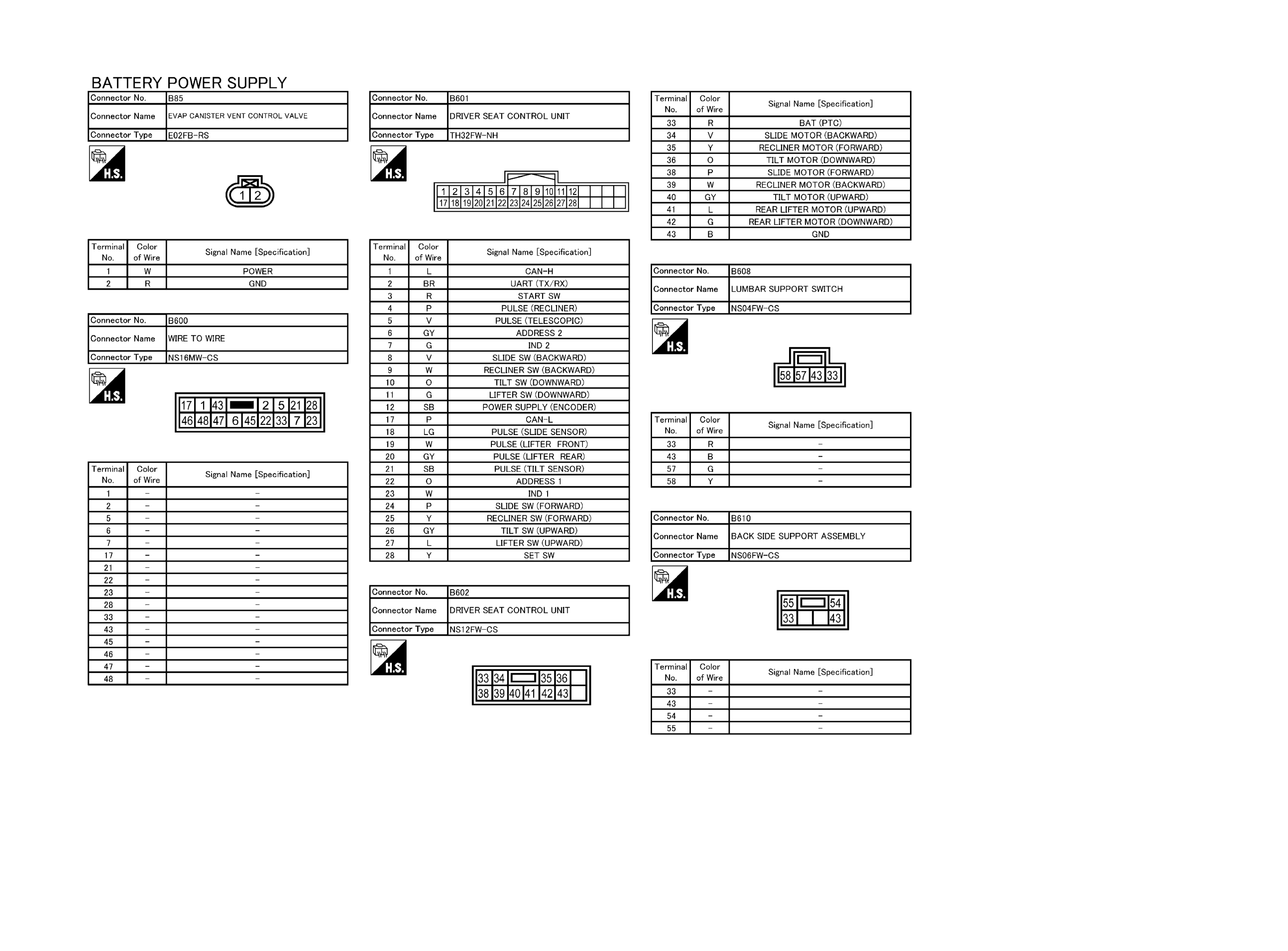

Fig 4: Battery Power Supply Connectors (4 Of 21)

GNSJRMWG3596GB-596

Courtesy of NISSAN NORTH AMERICA, INC.

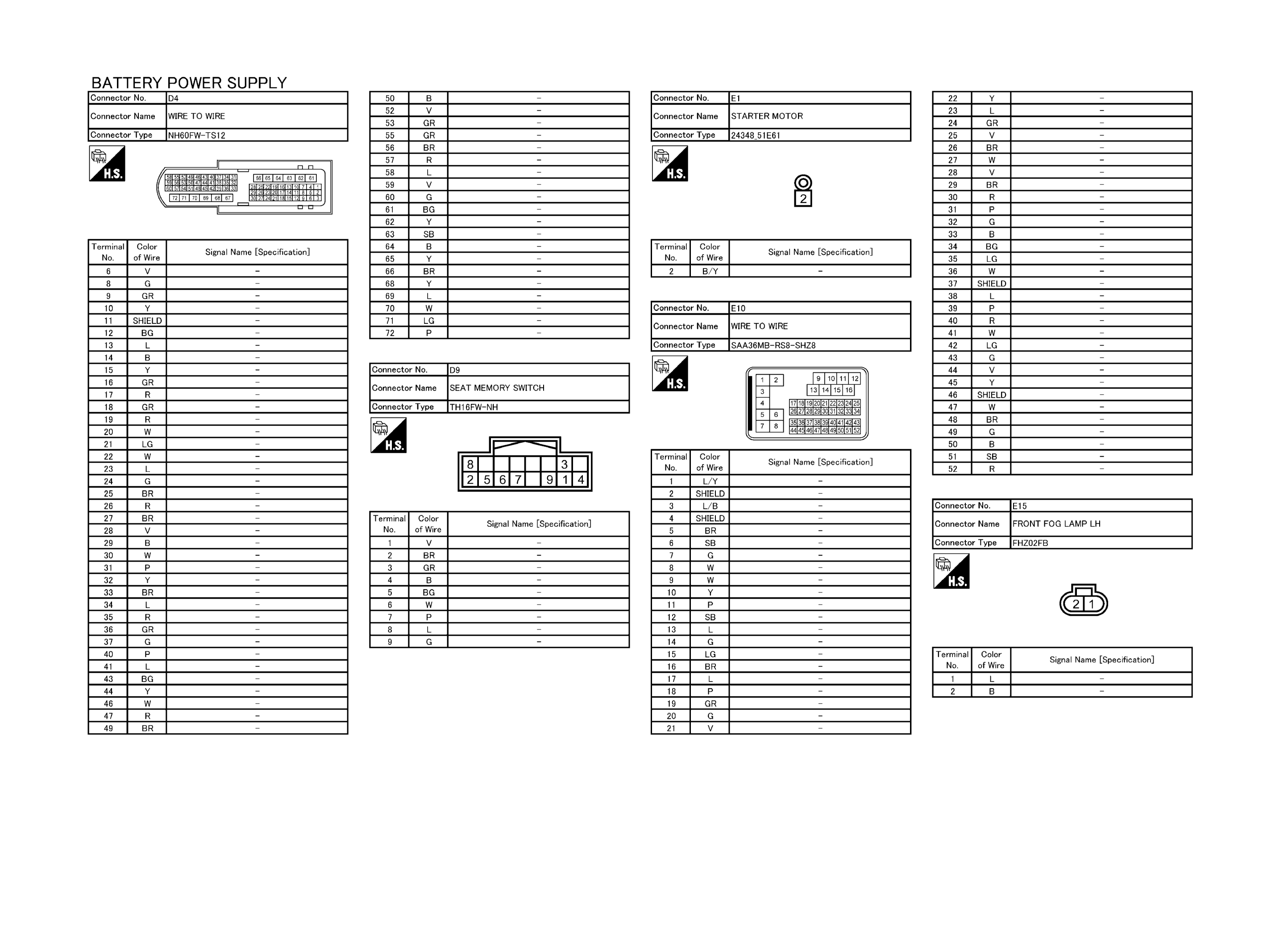

Fig 5: Battery Power Supply Connectors (5 Of 21)

GNSJRMWG3597GB-597

Courtesy of NISSAN NORTH AMERICA, INC.

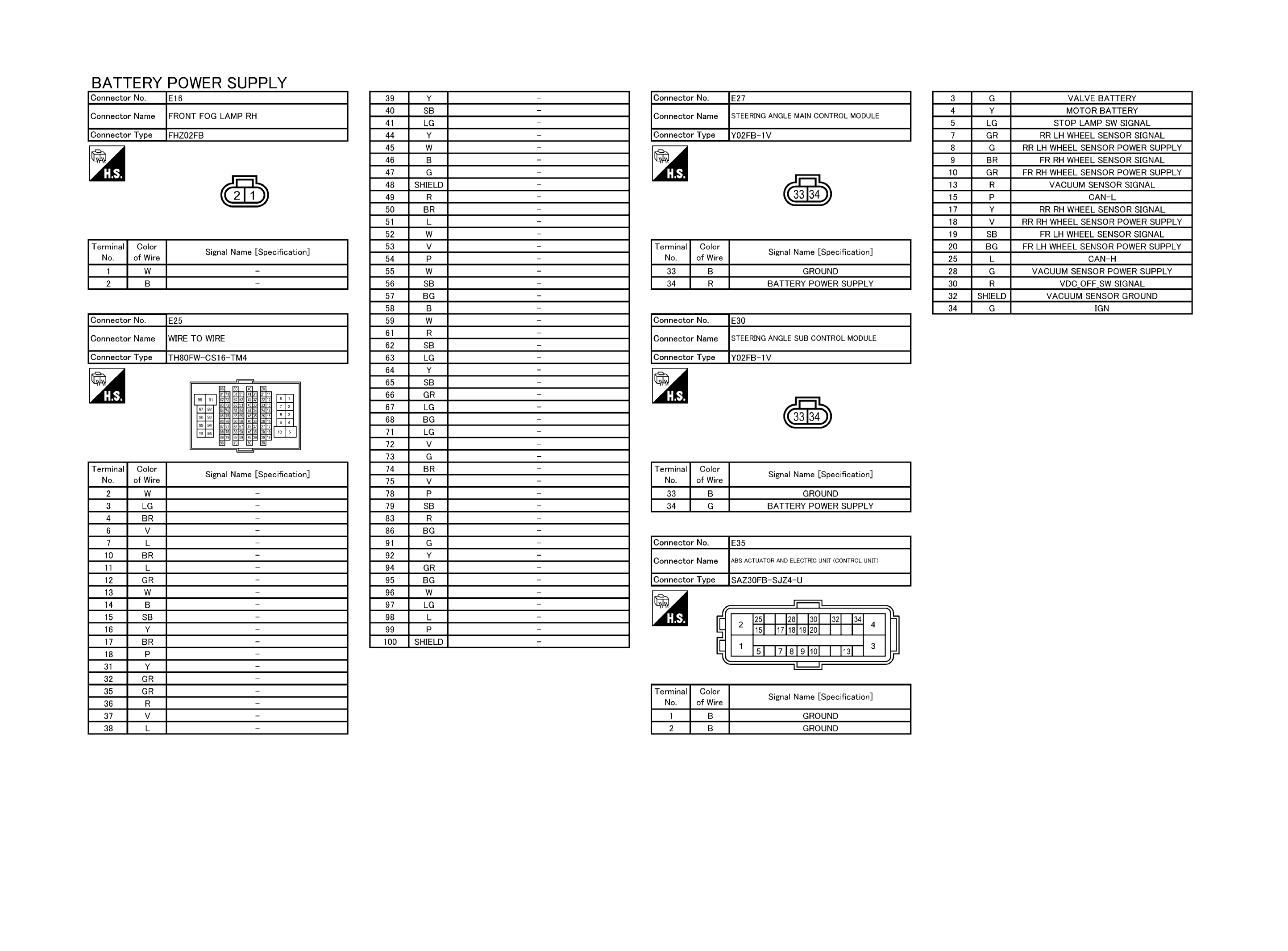

Fig 6: Battery Power Supply Connectors (6 Of 21)

GNSJRMWG3598GB-598

Courtesy of NISSAN NORTH AMERICA, INC.

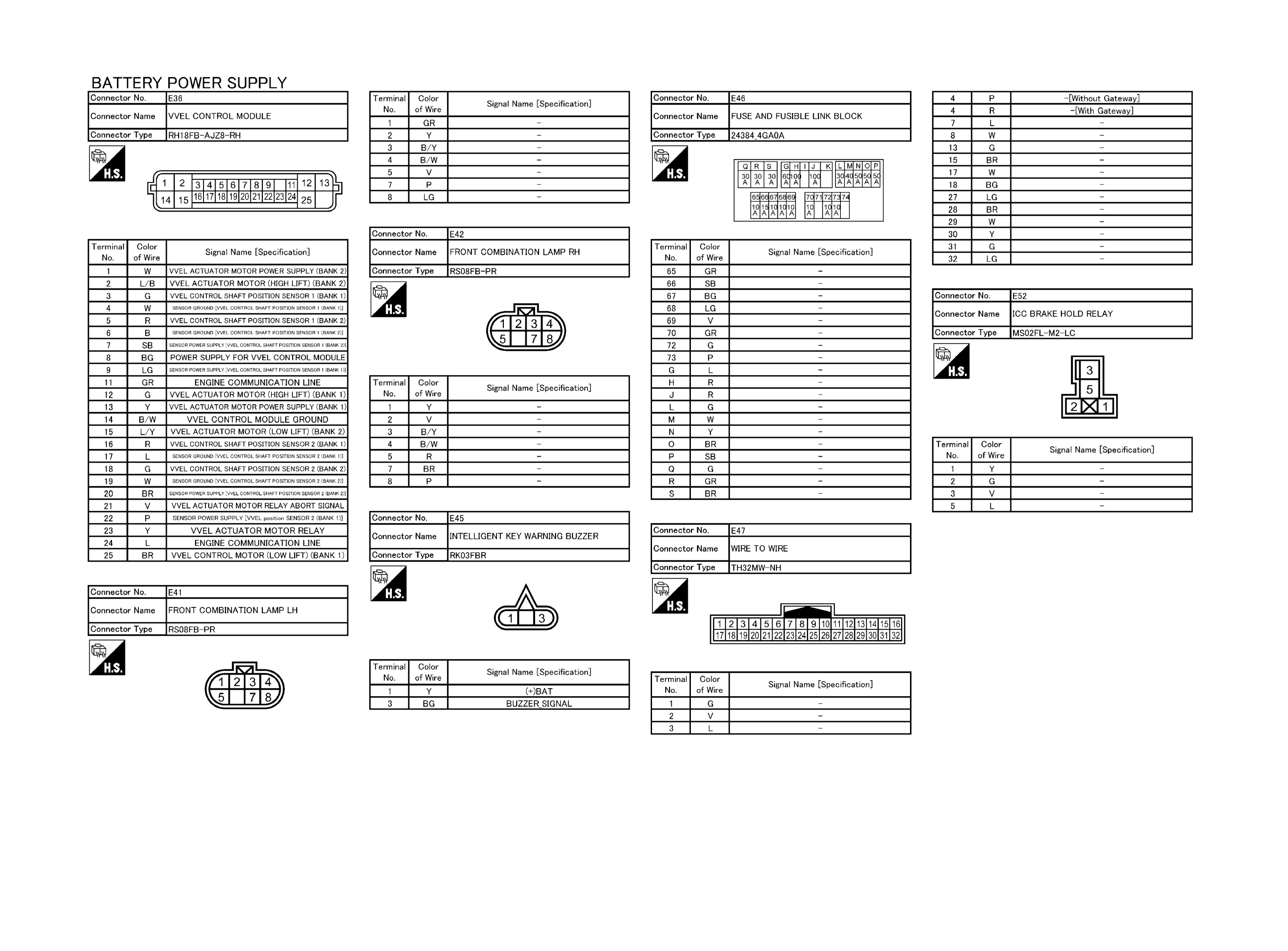

Fig 7: Battery Power Supply Connectors (7 Of 21)

GNSJRMWG3599GB-599

Courtesy of NISSAN NORTH AMERICA, INC.

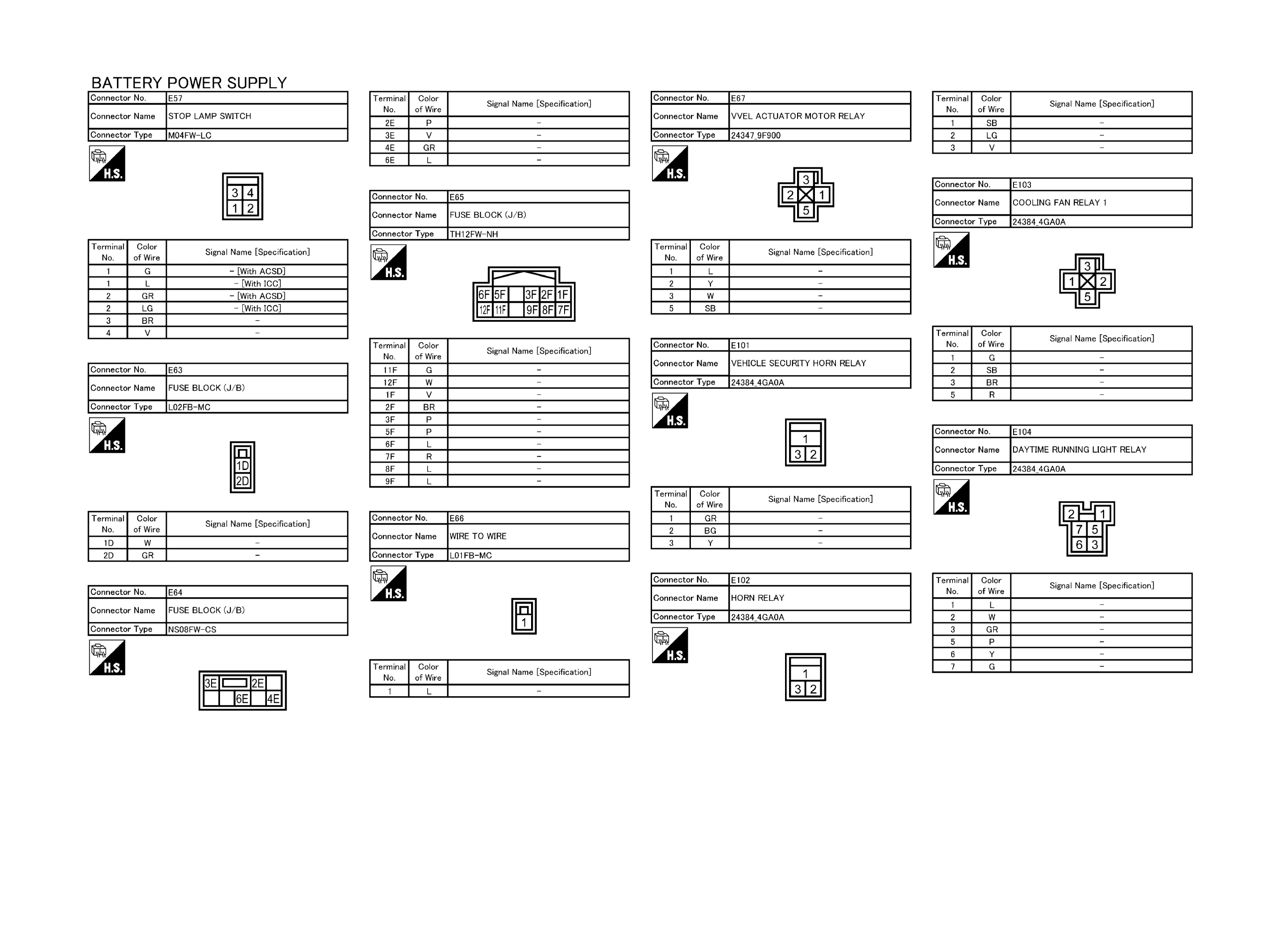

Fig 8: Battery Power Supply Connectors (8 Of 21)

GNSJRMWG3600GB-600

Courtesy of NISSAN NORTH AMERICA, INC.

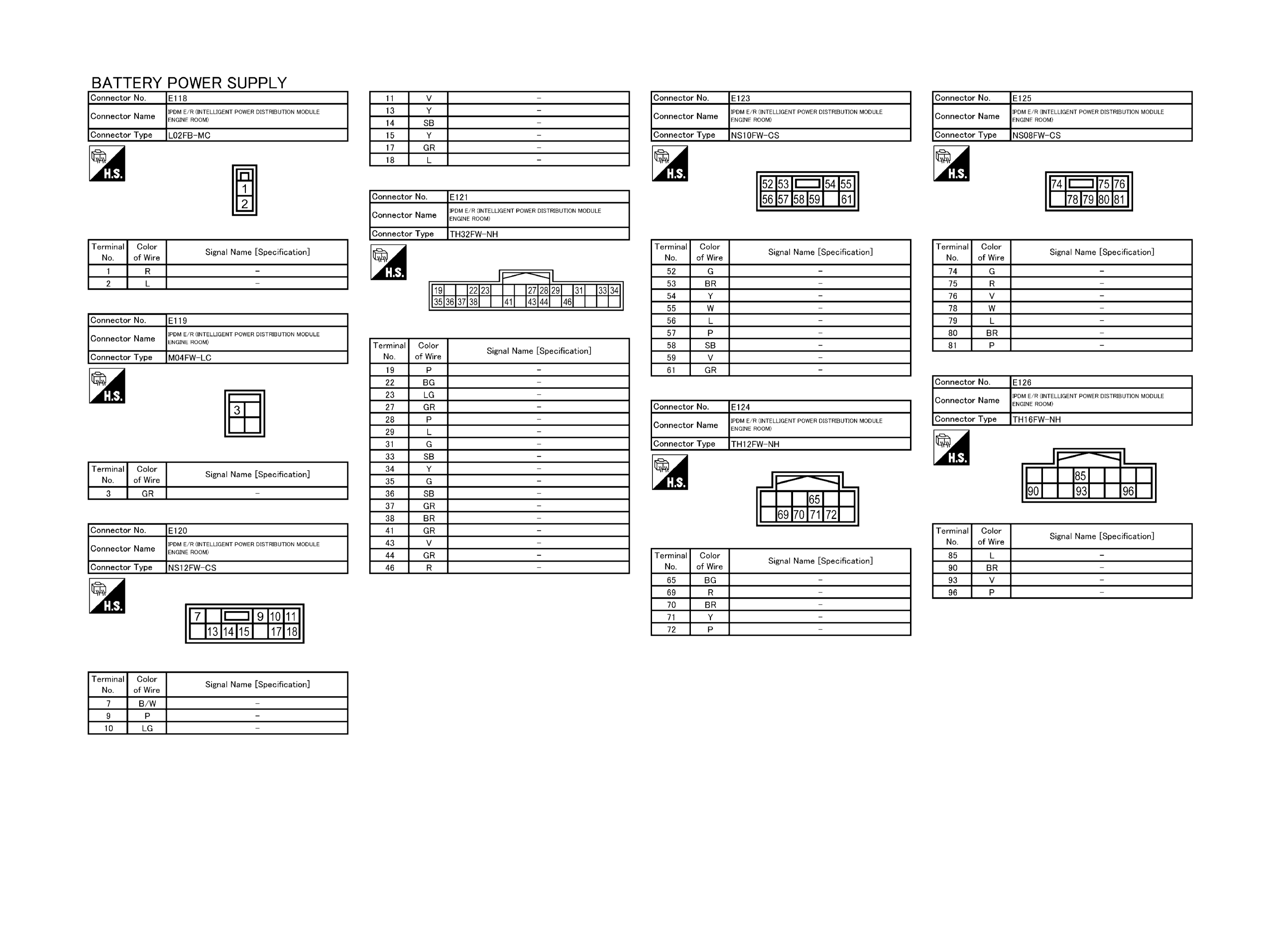

Fig 9: Battery Power Supply Connectors (9 Of 21)

GNSJRMWG3601GB-601

Courtesy of NISSAN NORTH AMERICA, INC.

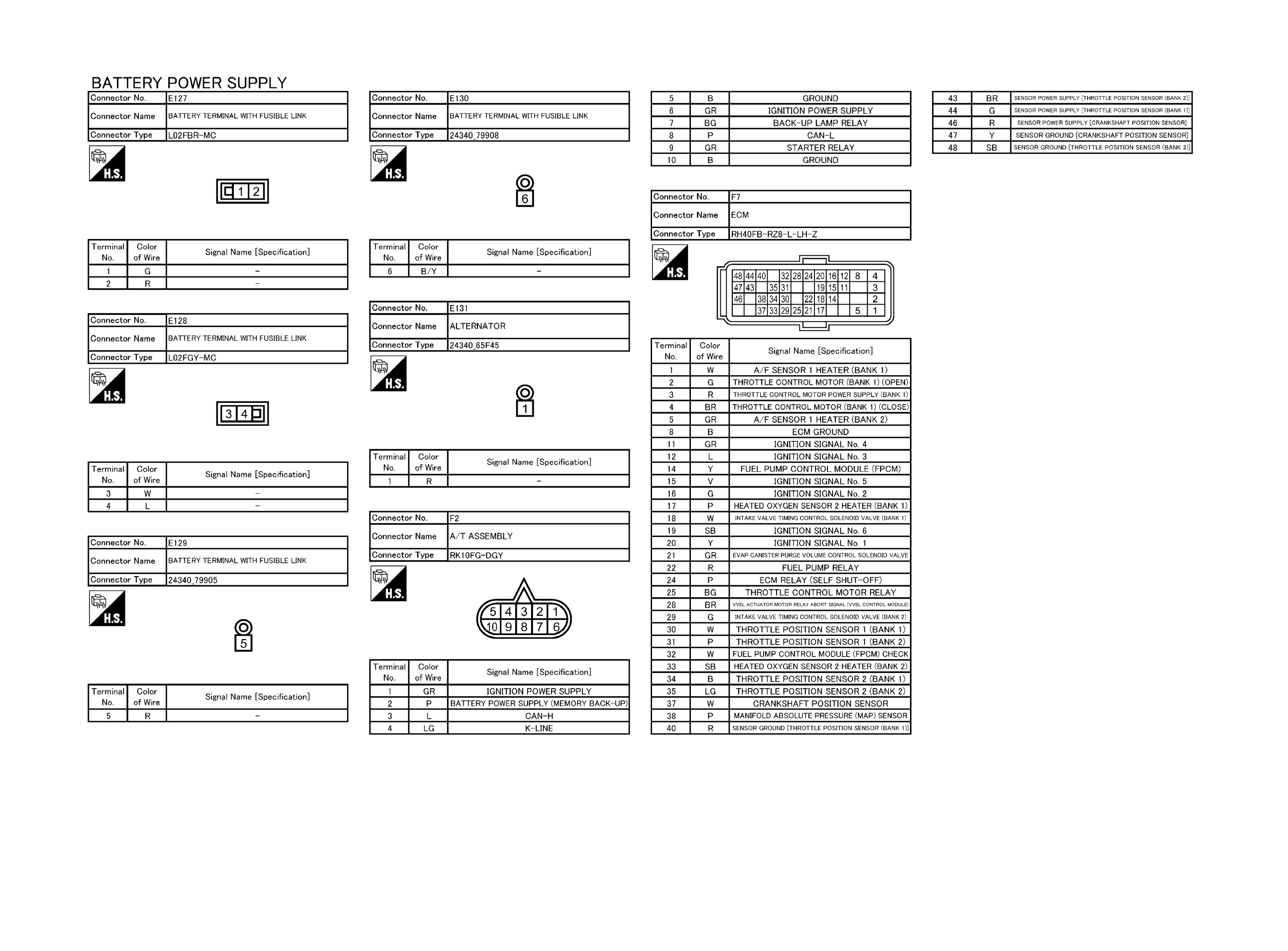

Fig 10: Battery Power Supply Connectors (10 Of 21)

GNSJRMWG3602GB-602

Courtesy of NISSAN NORTH AMERICA, INC.

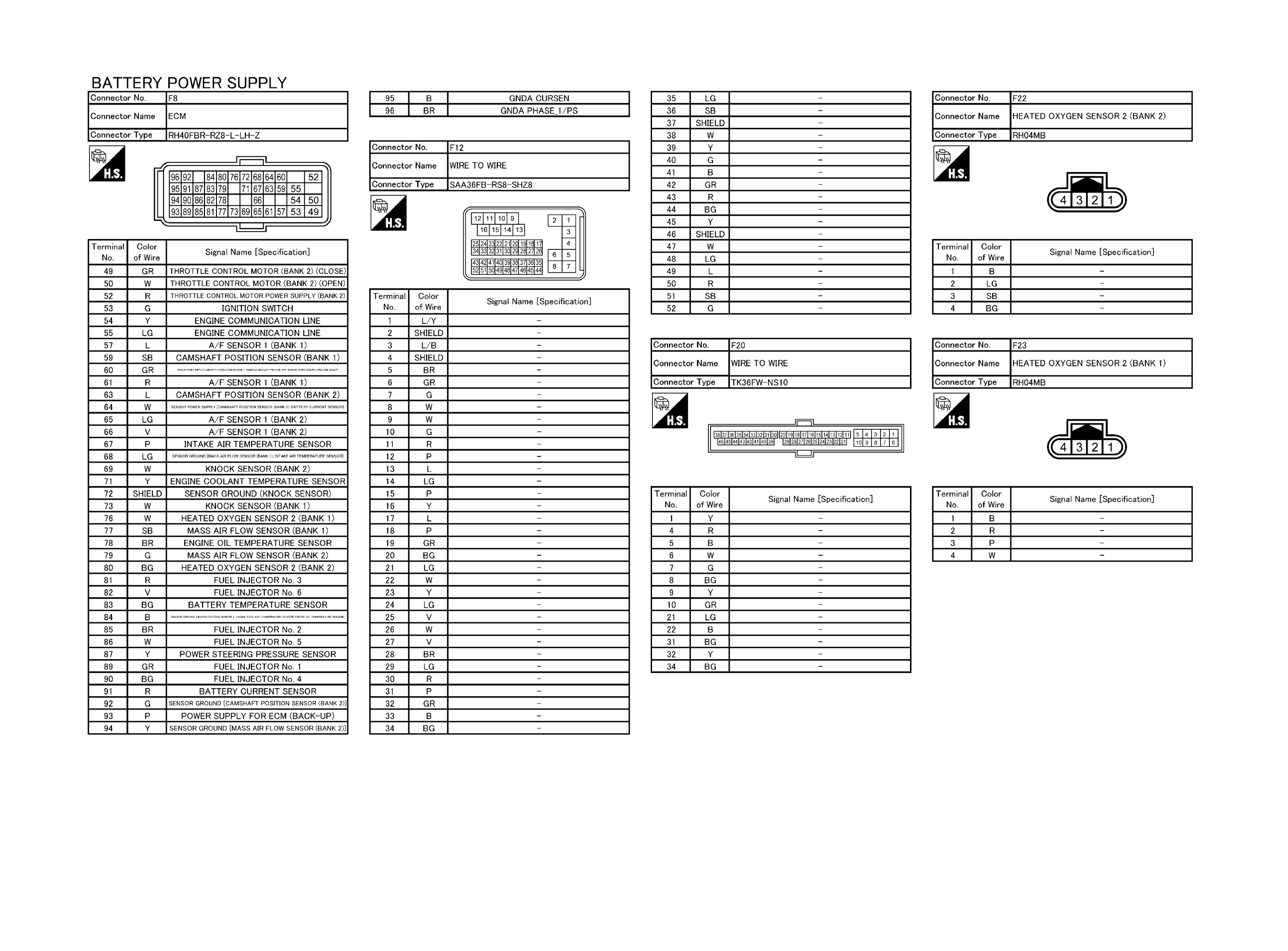

Fig 11: Battery Power Supply Connectors (11 Of 21)

GNSJRMWG3603GB-603

Courtesy of NISSAN NORTH AMERICA, INC.

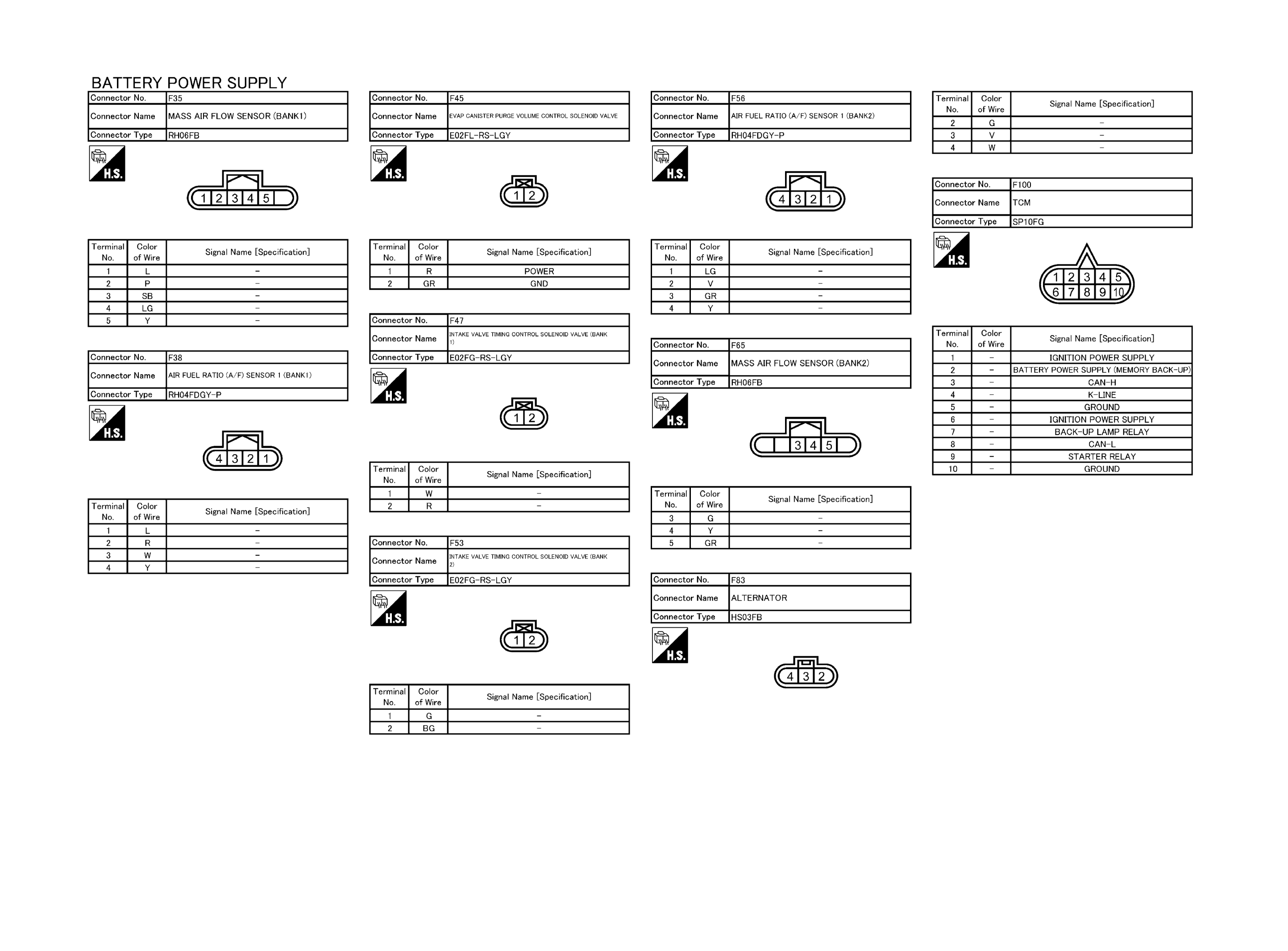

Fig 12: Battery Power Supply Connectors (12 Of 21)

GNSJRMWG3604GB-604

Courtesy of NISSAN NORTH AMERICA, INC.

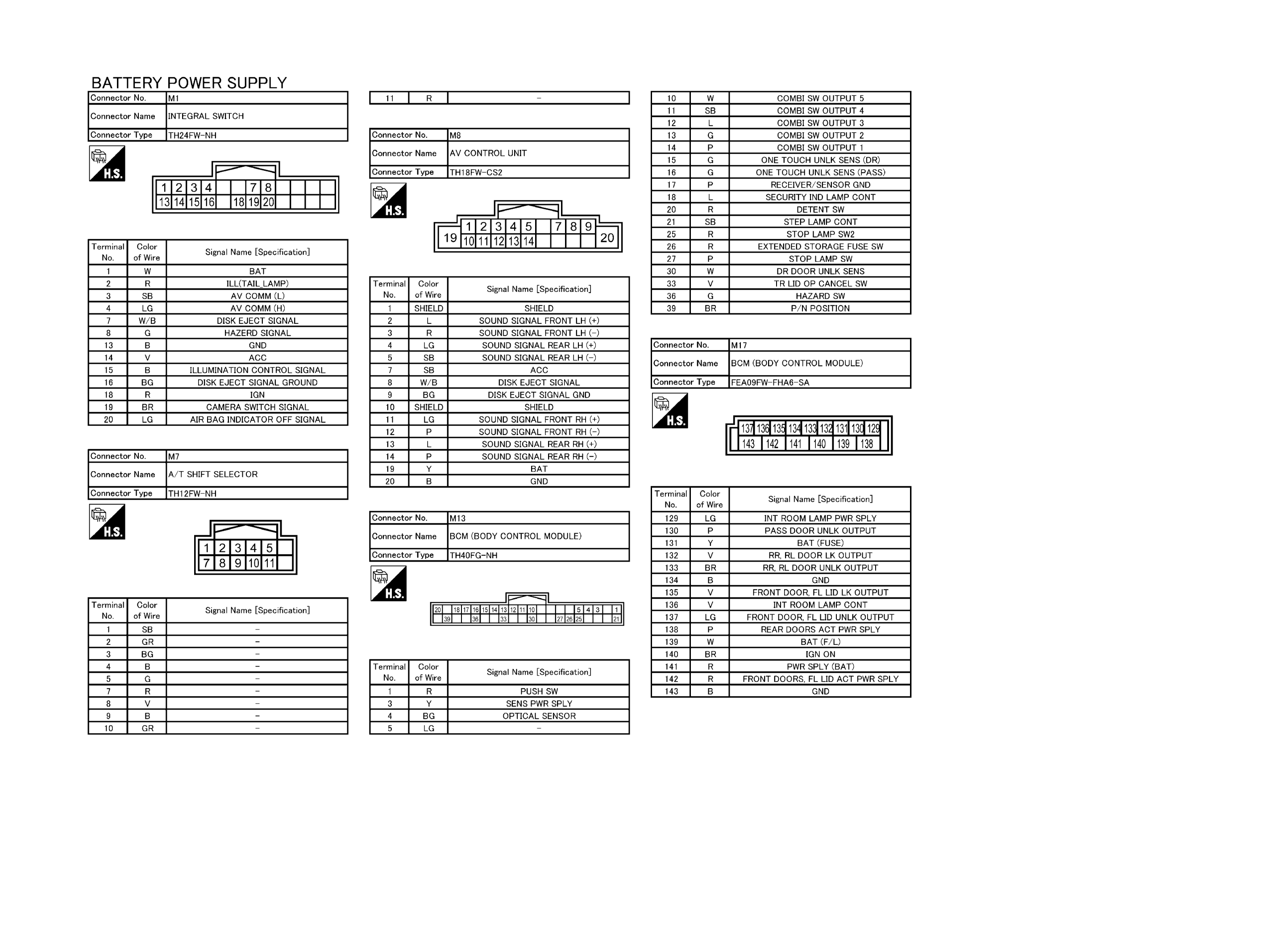

Fig 13: Battery Power Supply Connectors (13 Of 21)

GNSJRMWG3605GB-605

Courtesy of NISSAN NORTH AMERICA, INC.

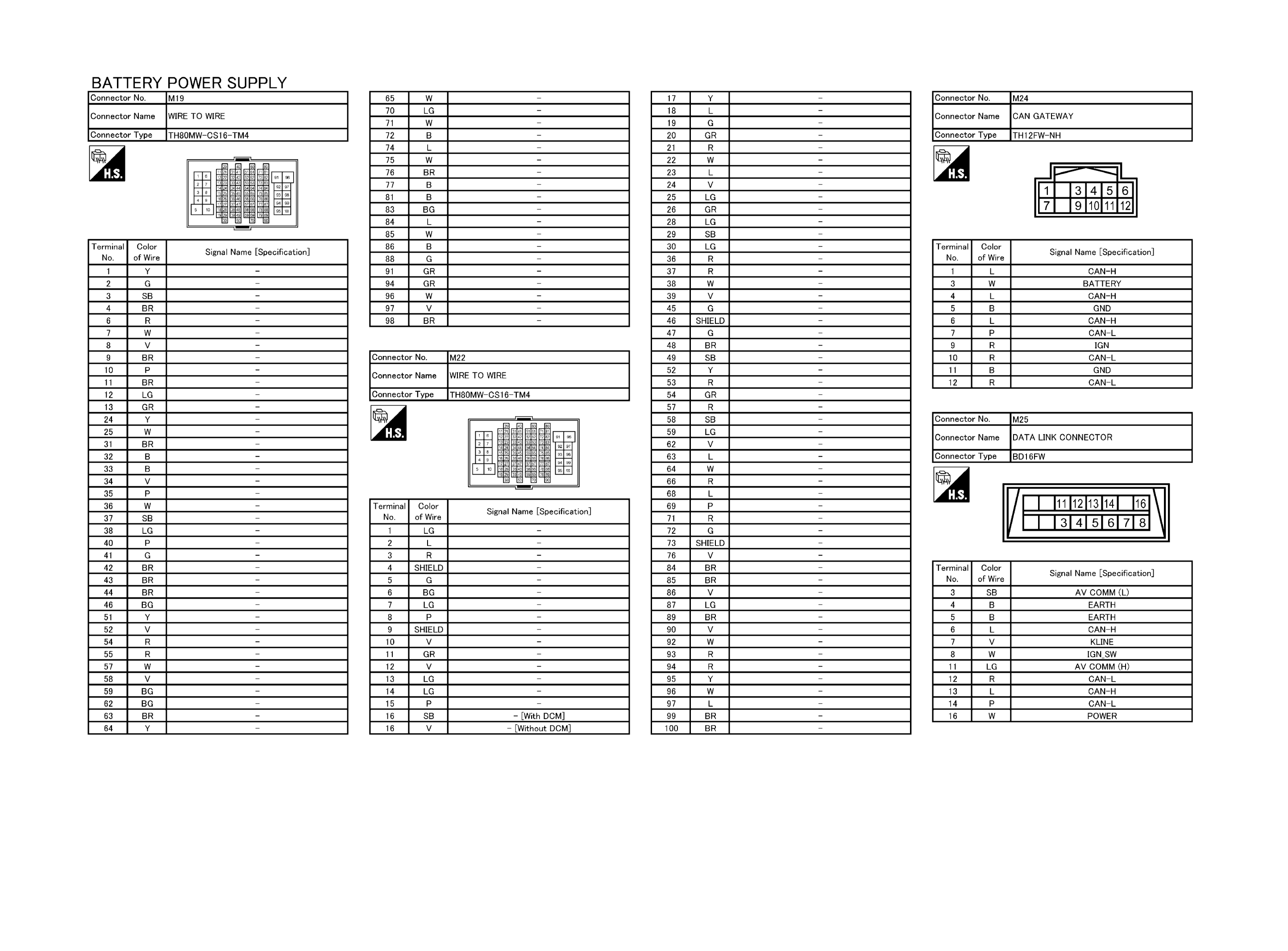

Fig 14: Battery Power Supply Connectors (14 Of 21)

GNSJRMWG3725GB-725

Courtesy of NISSAN NORTH AMERICA, INC.

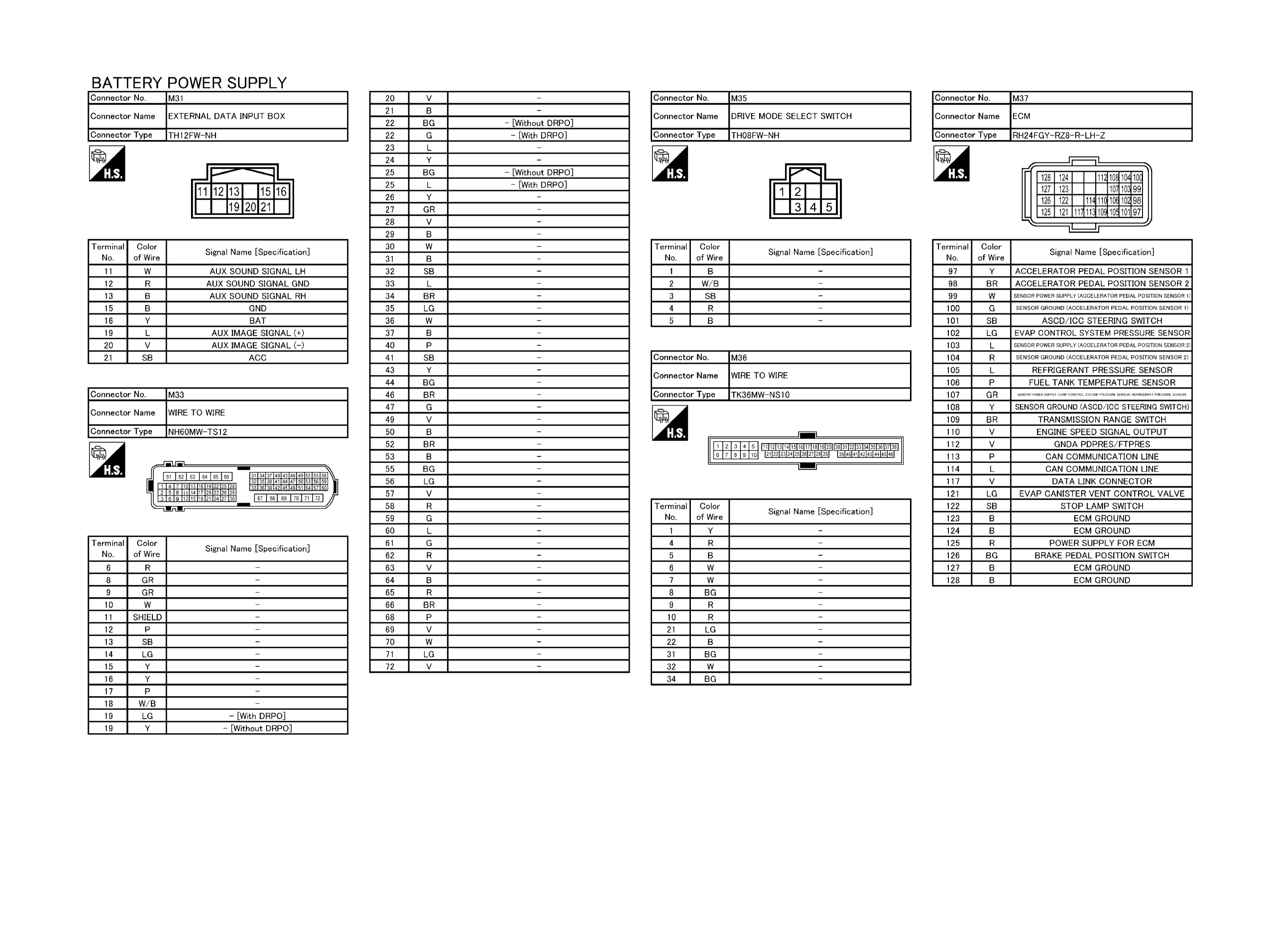

Fig 15: Battery Power Supply Connectors (15 Of 21)

GNSJRMWG3726GB-726

Courtesy of NISSAN NORTH AMERICA, INC.

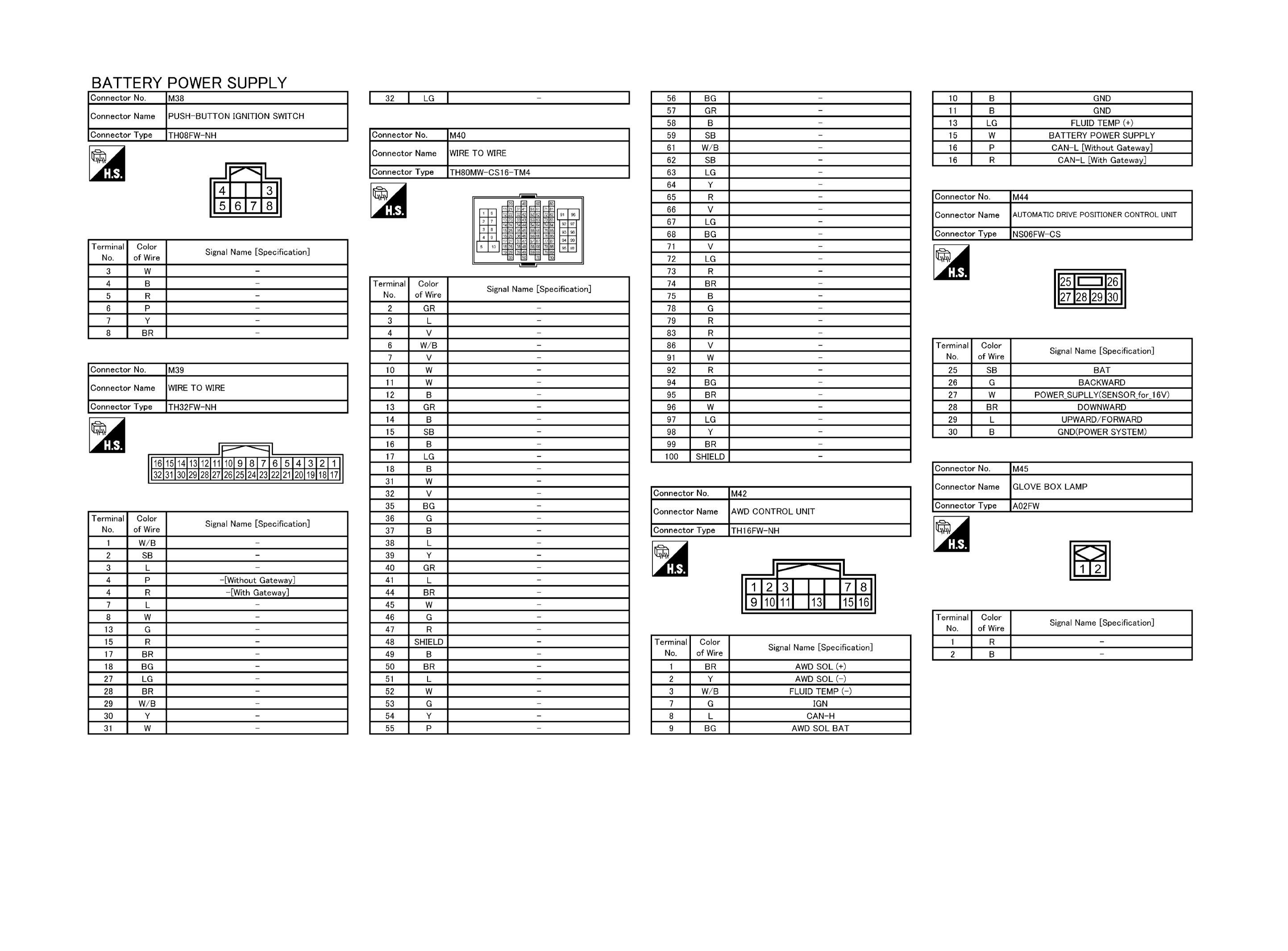

Fig 16: Battery Power Supply Connectors (16 Of 21)

GNSJRMWG3727GB-727

Courtesy of NISSAN NORTH AMERICA, INC.

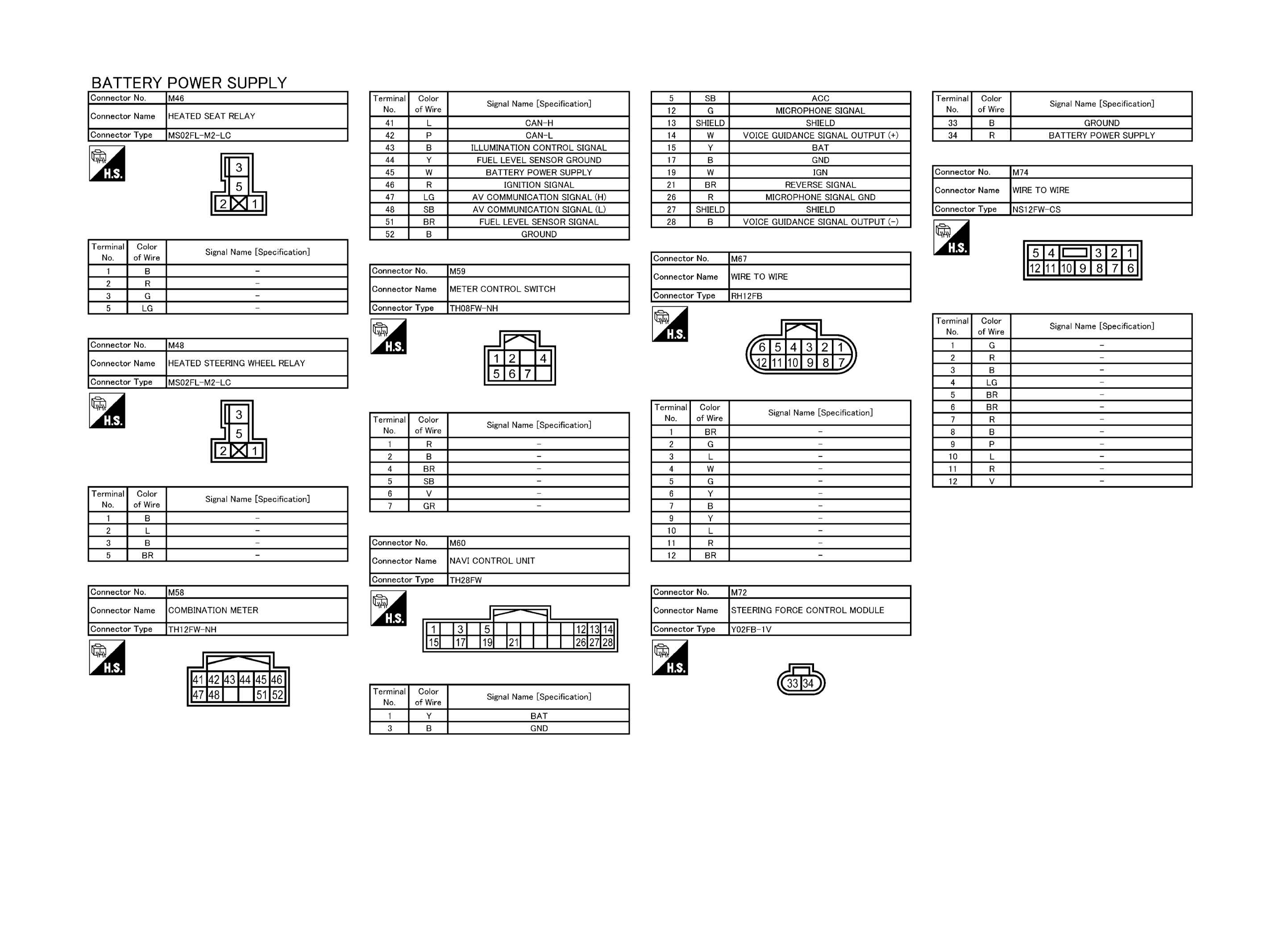

Fig 17: Battery Power Supply Connectors (17 Of 21)

GNSJRMWG3728GB-728

Courtesy of NISSAN NORTH AMERICA, INC.

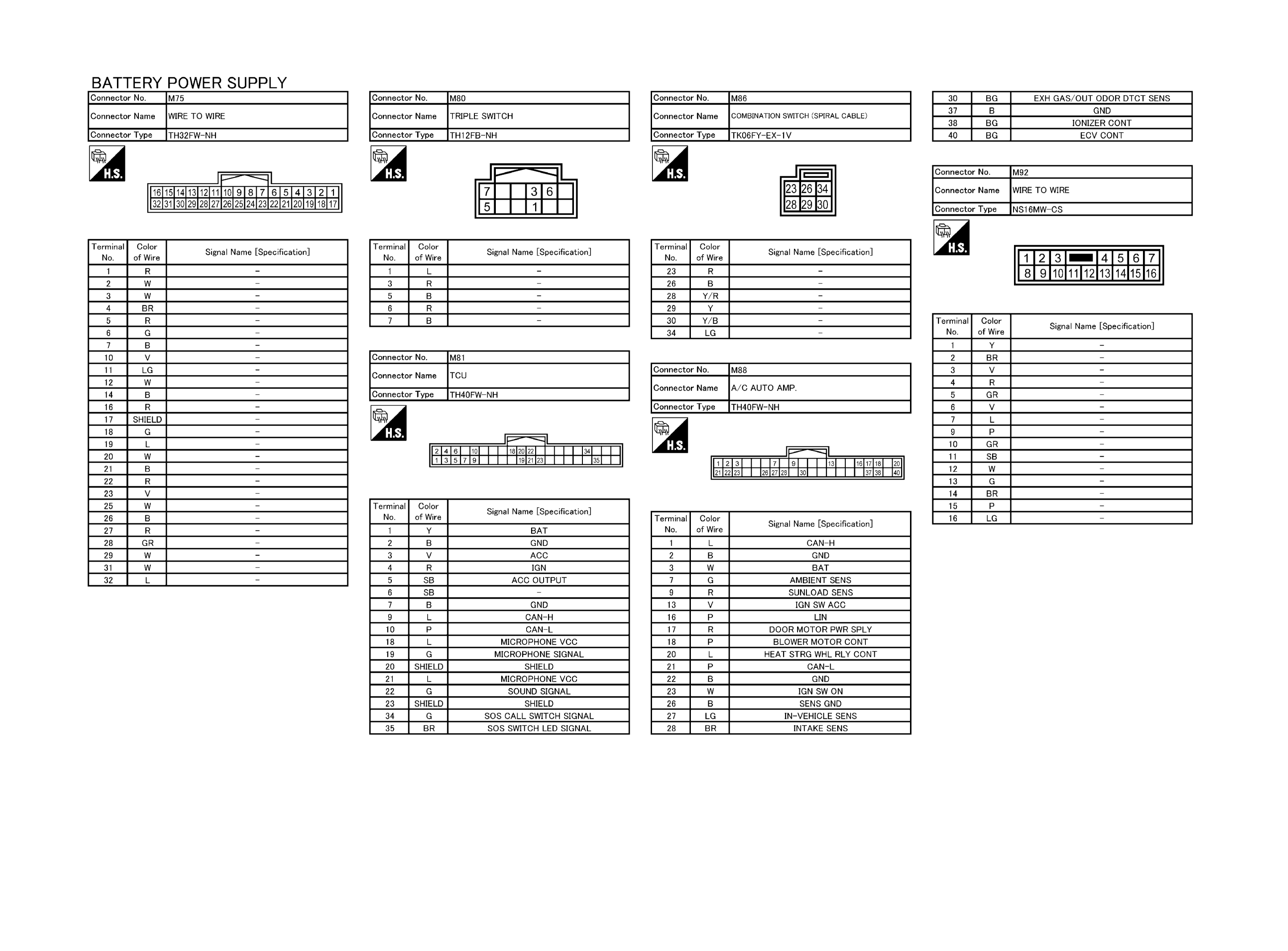

Fig 18: Battery Power Supply Connectors (18 Of 21)

GNSJRMWG3729GB-729

Courtesy of NISSAN NORTH AMERICA, INC.

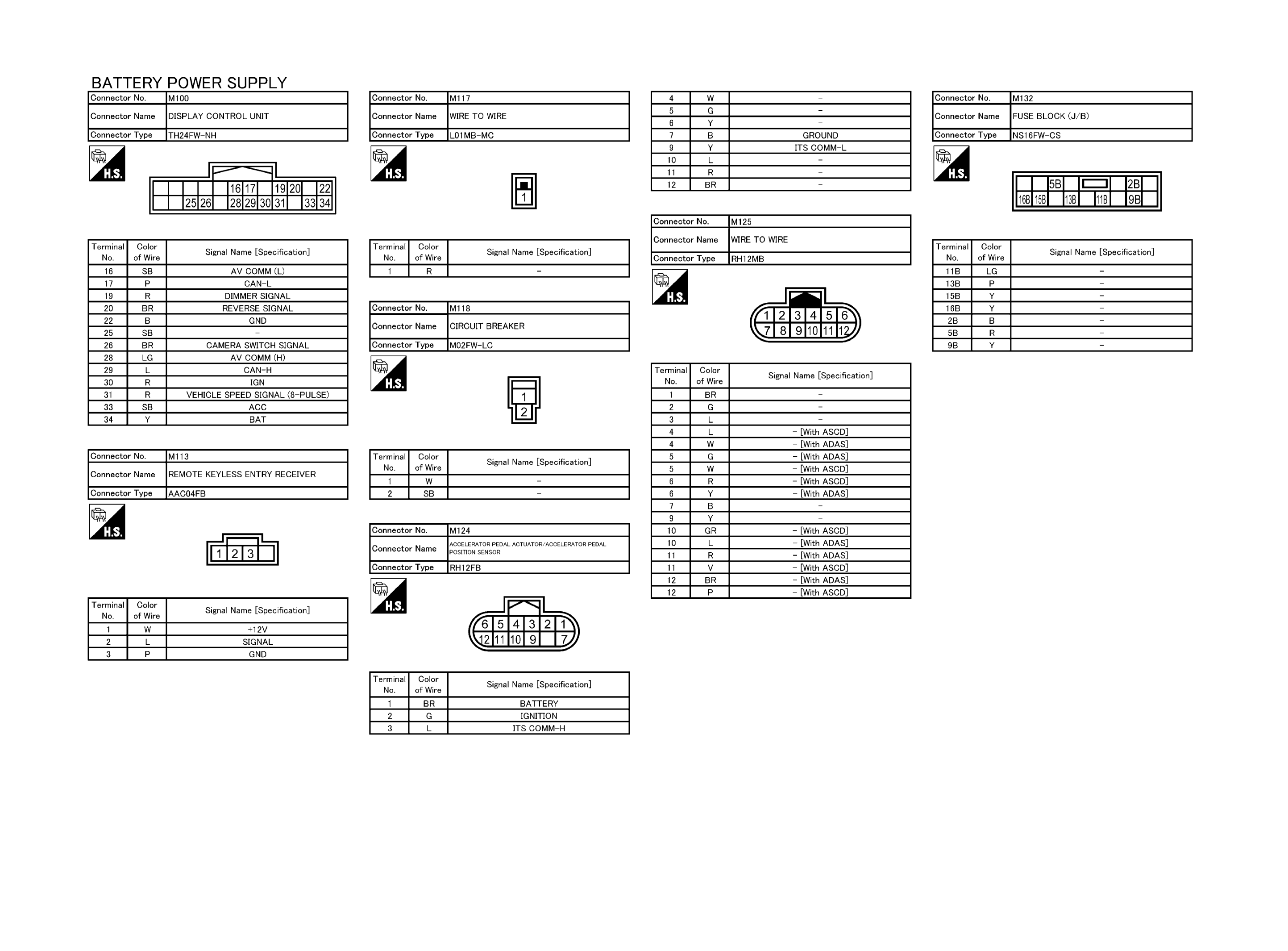

Fig 19: Battery Power Supply Connectors (19 Of 21)

GNSJRMWG3730GB-730

Courtesy of NISSAN NORTH AMERICA, INC.

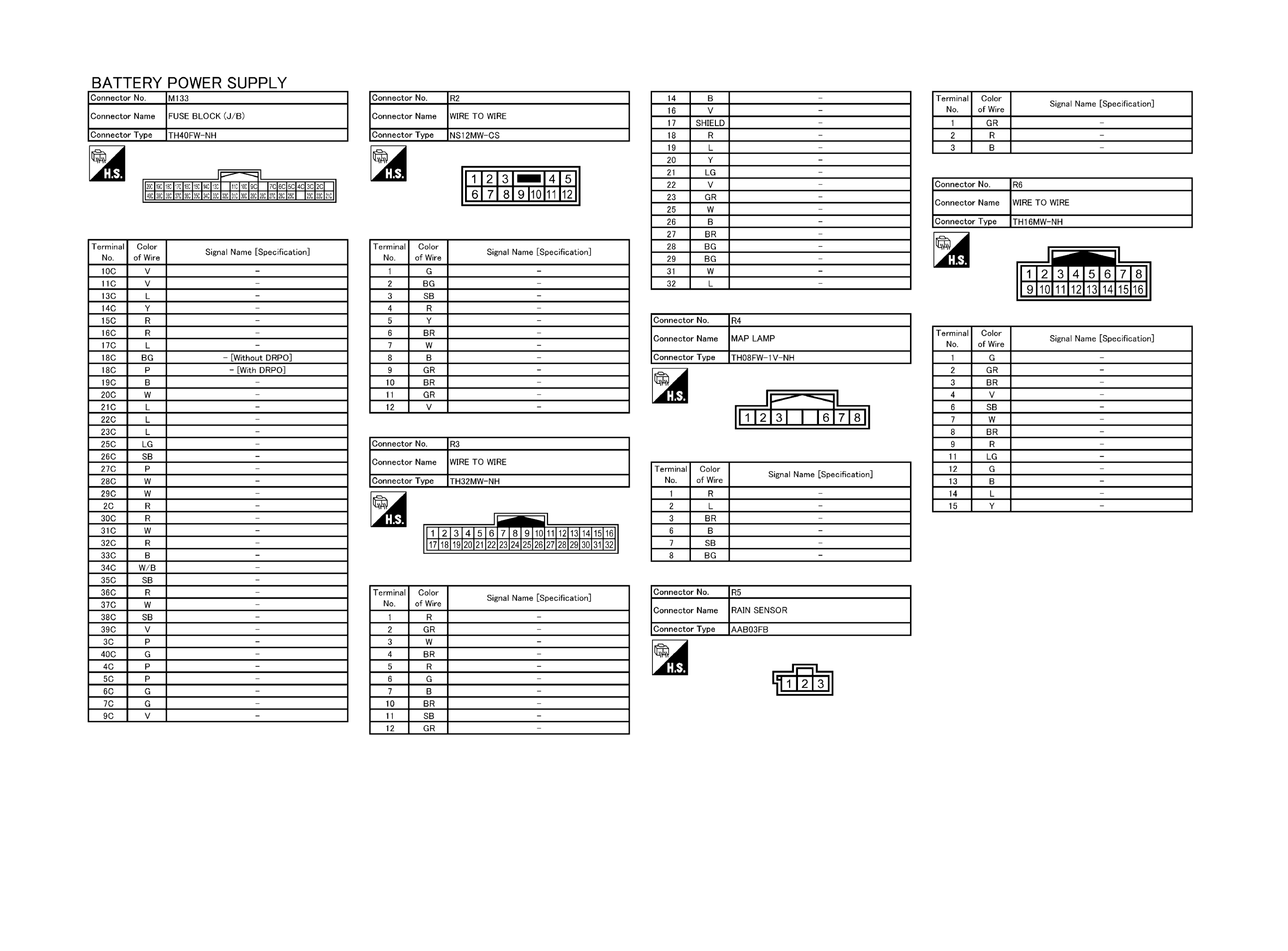

Fig 20: Battery Power Supply Connectors (20 Of 21)

GNSJRMWG3731GB-731

Courtesy of NISSAN NORTH AMERICA, INC.

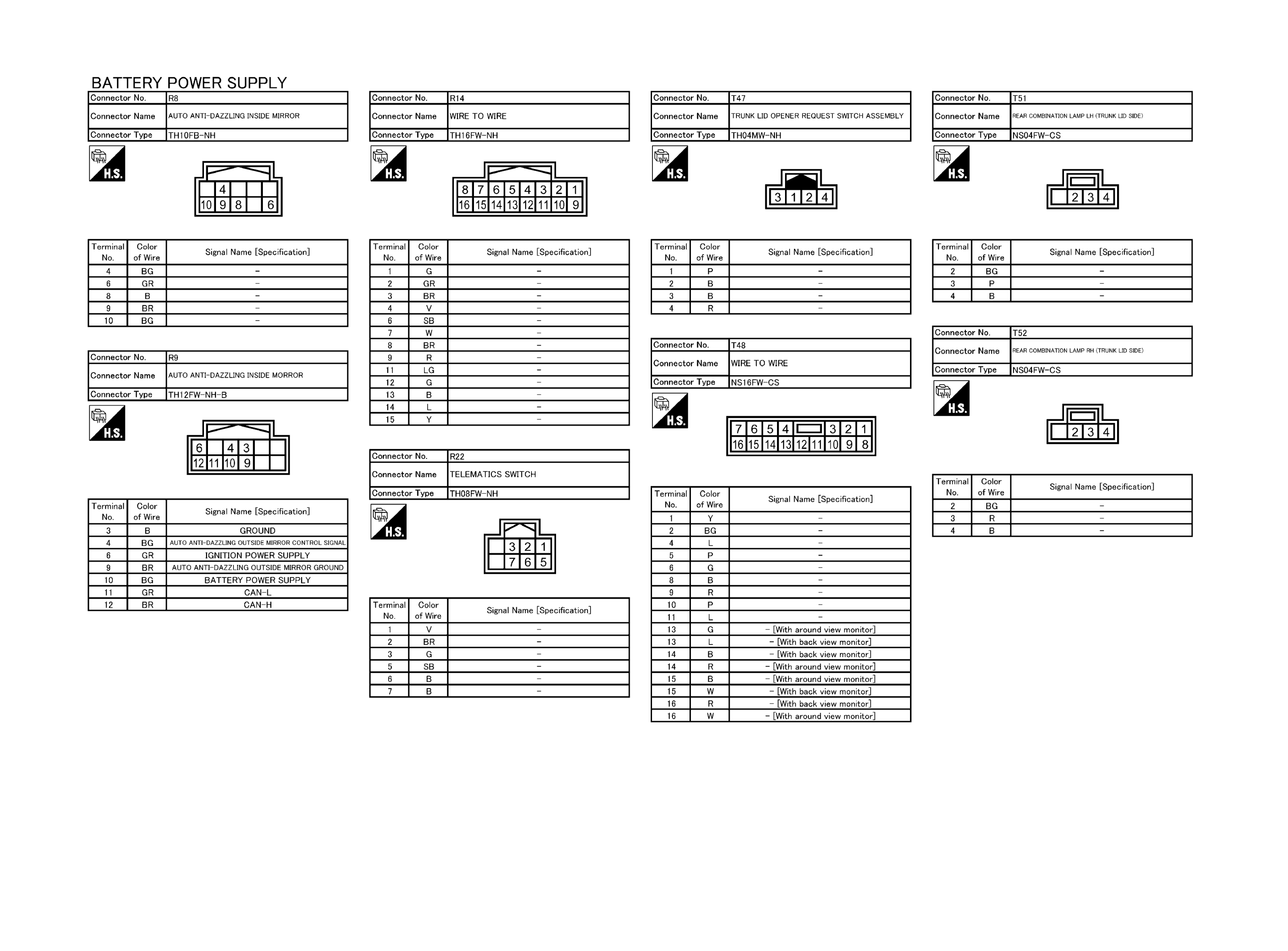

Fig 21: Battery Power Supply Connectors (21 Of 21)

GNSJRMWG3732GB-732

Courtesy of NISSAN NORTH AMERICA, INC.
