Accessory Power Supply Connectors

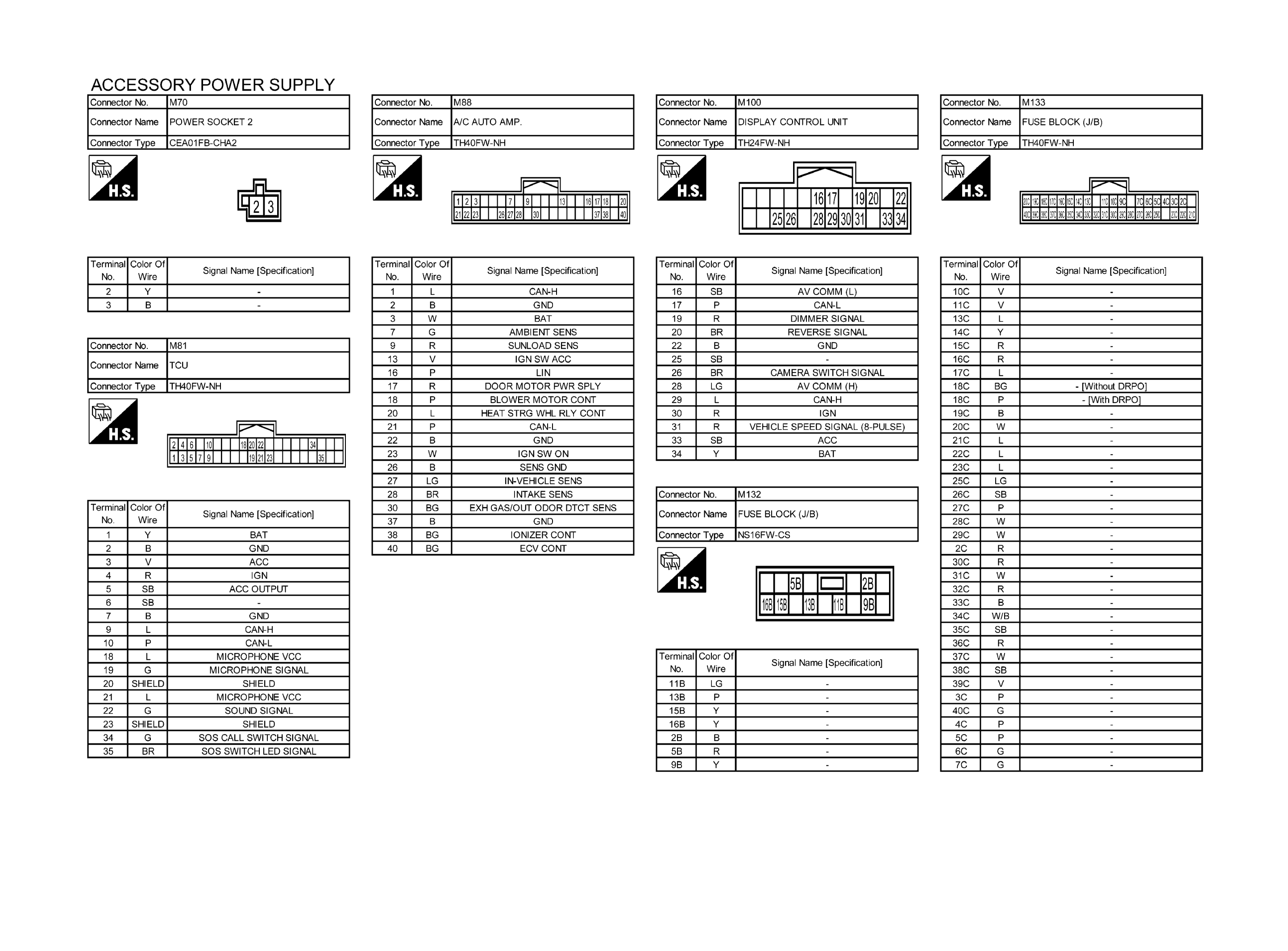

Fig 1: Accessory Power Supply Connectors (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

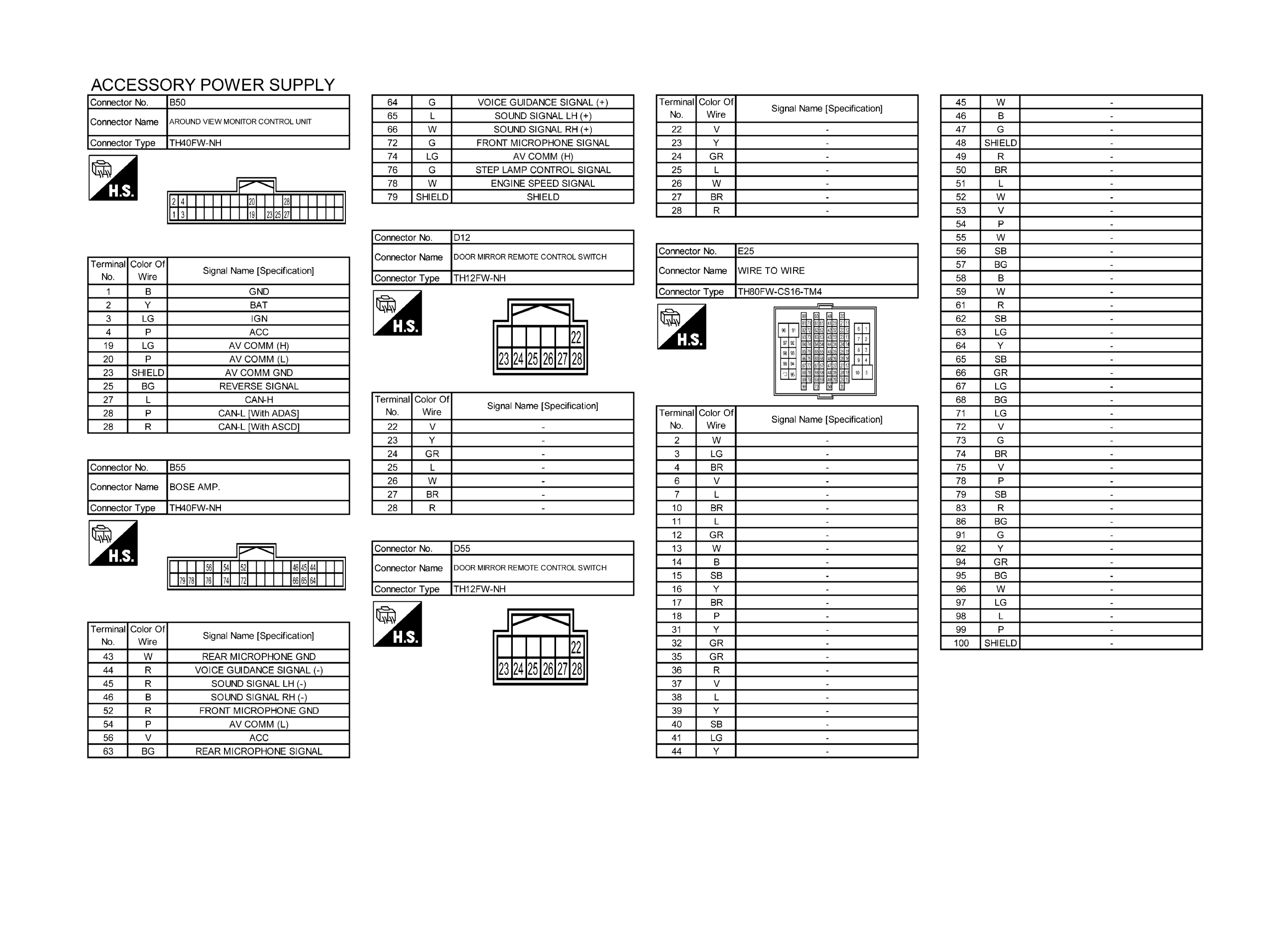

Fig 2: Accessory Power Supply Connectors (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

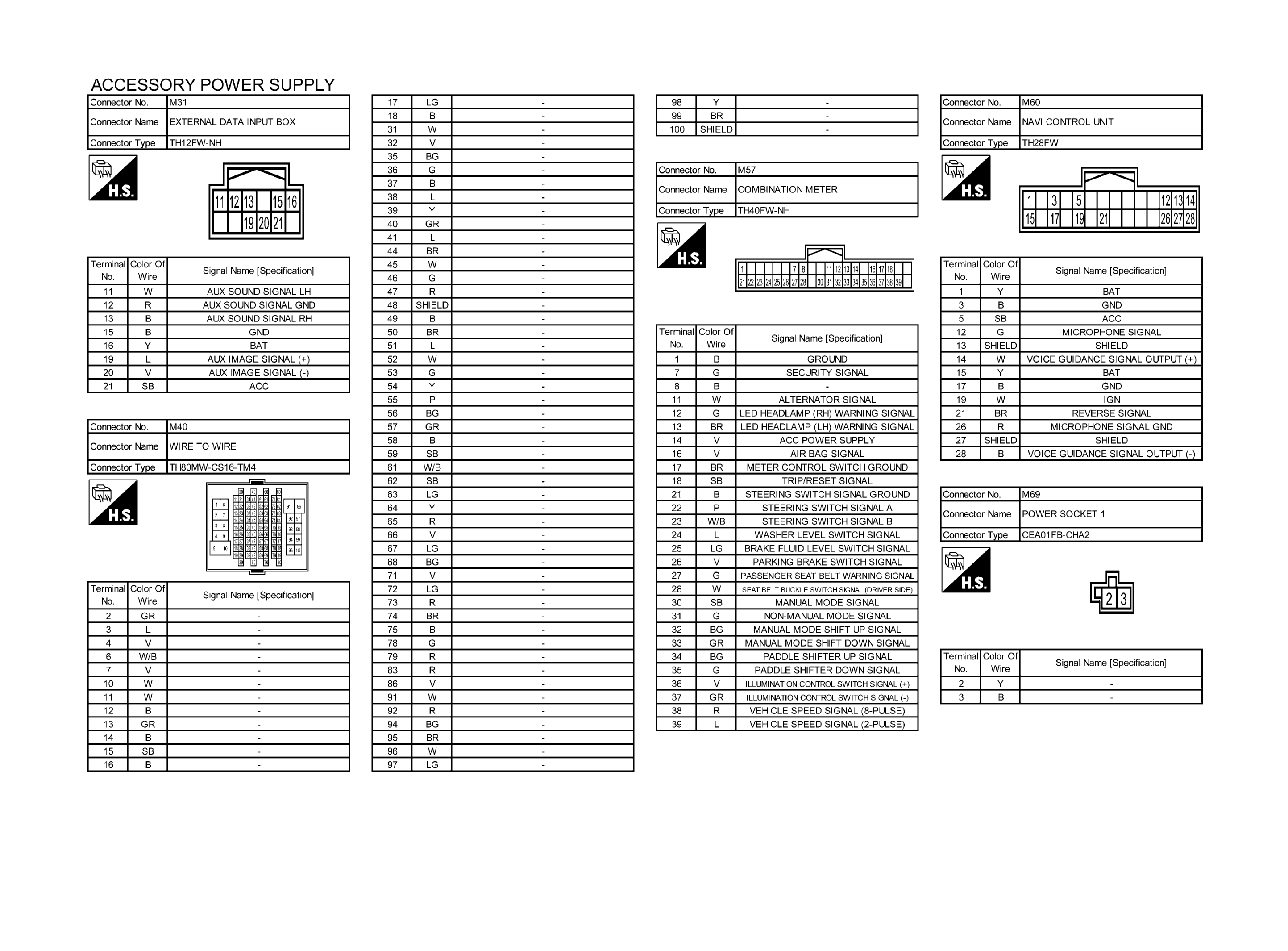

Fig 3: Accessory Power Supply Connectors (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

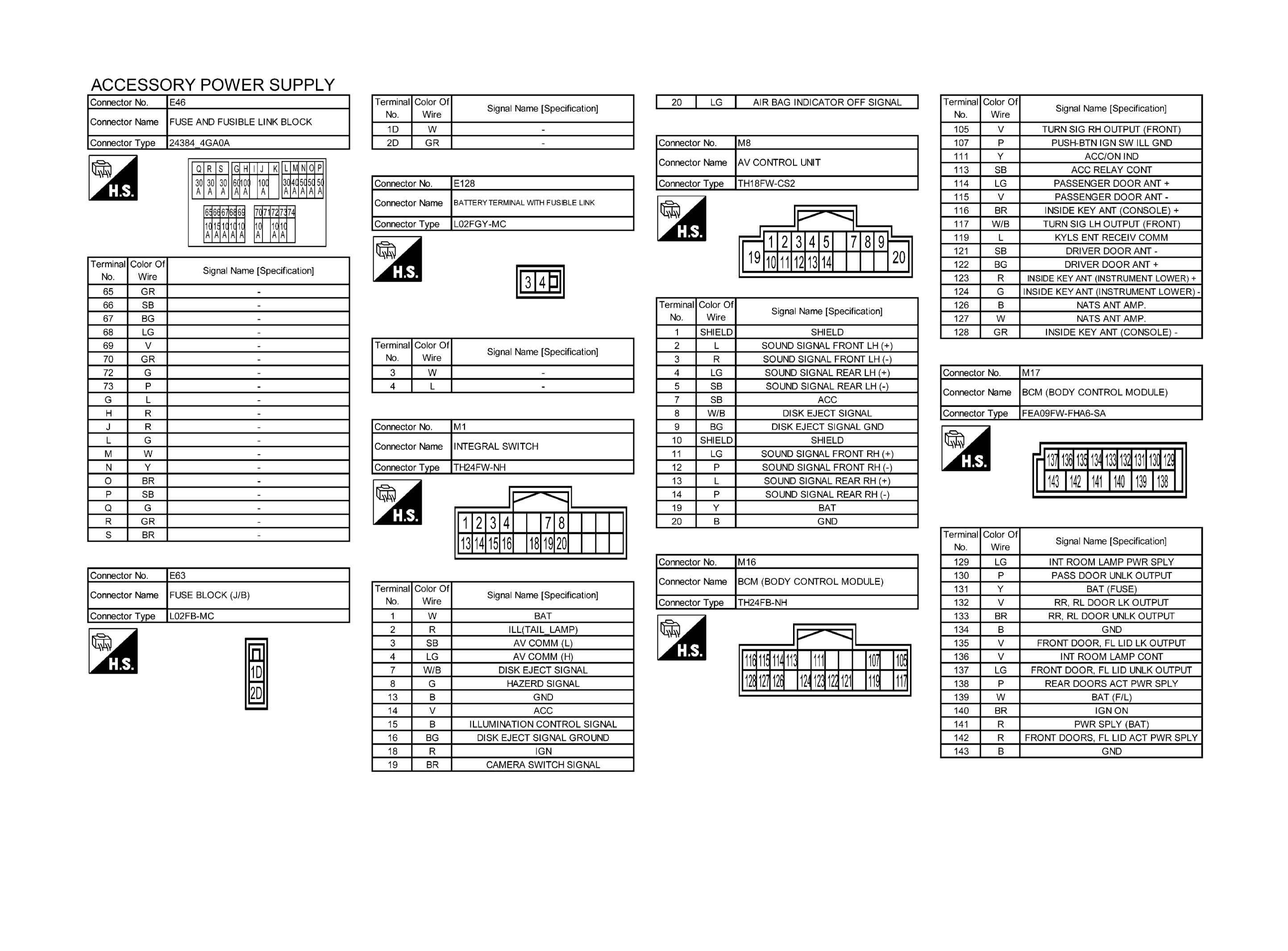

Fig 4: Accessory Power Supply Connectors (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

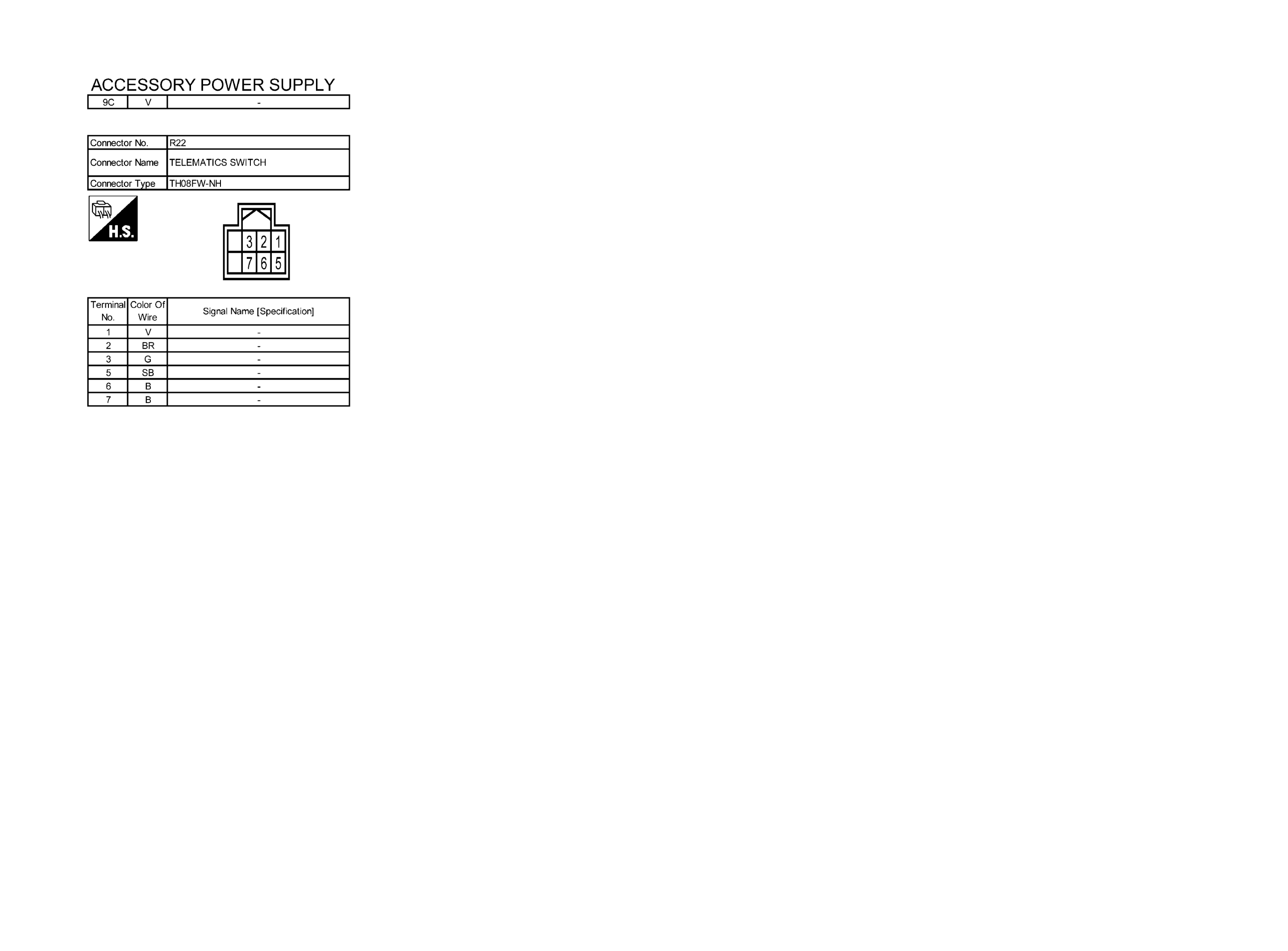

Fig 5: Accessory Power Supply Connectors (5 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
