Wiring Diagram
>>
Ground Distribution
>>
Main Harness
Main Harness

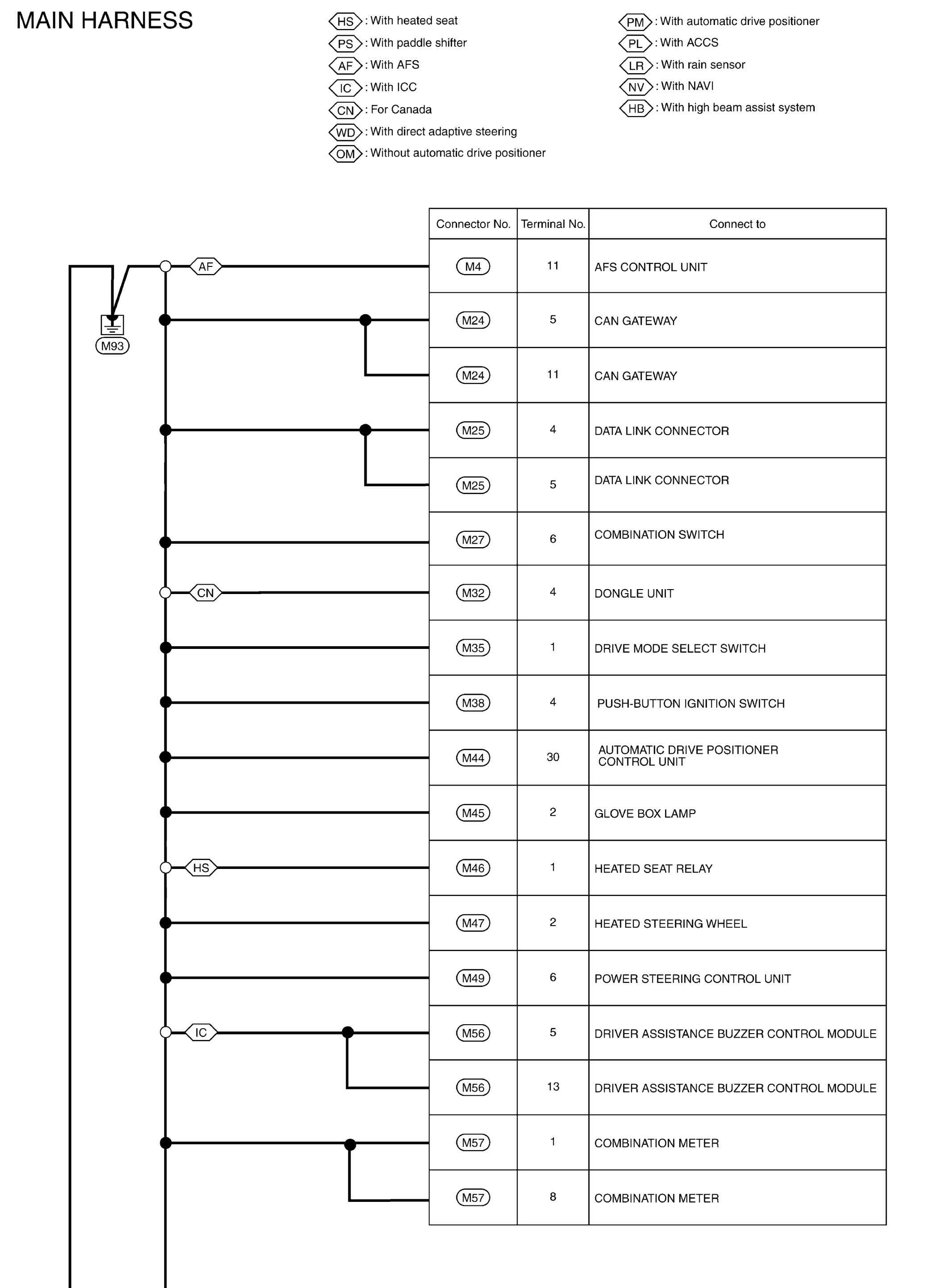

Fig 1: Main Harness Ground Distribution (1 Of 6)
Courtesy of NISSAN NORTH AMERICA, INC.

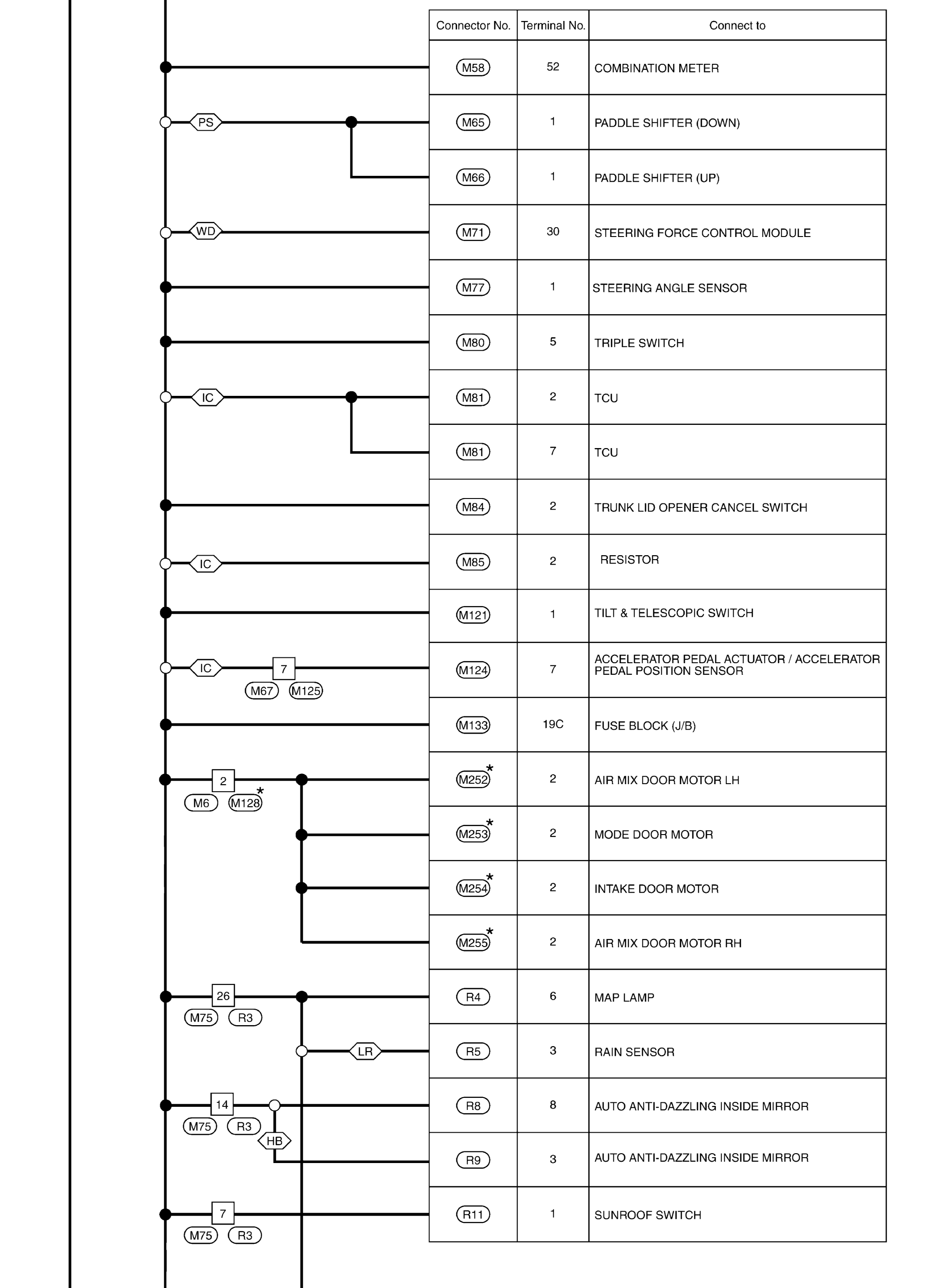

Fig 2: Main Harness Ground Distribution (2 Of 6)
Courtesy of NISSAN NORTH AMERICA, INC.

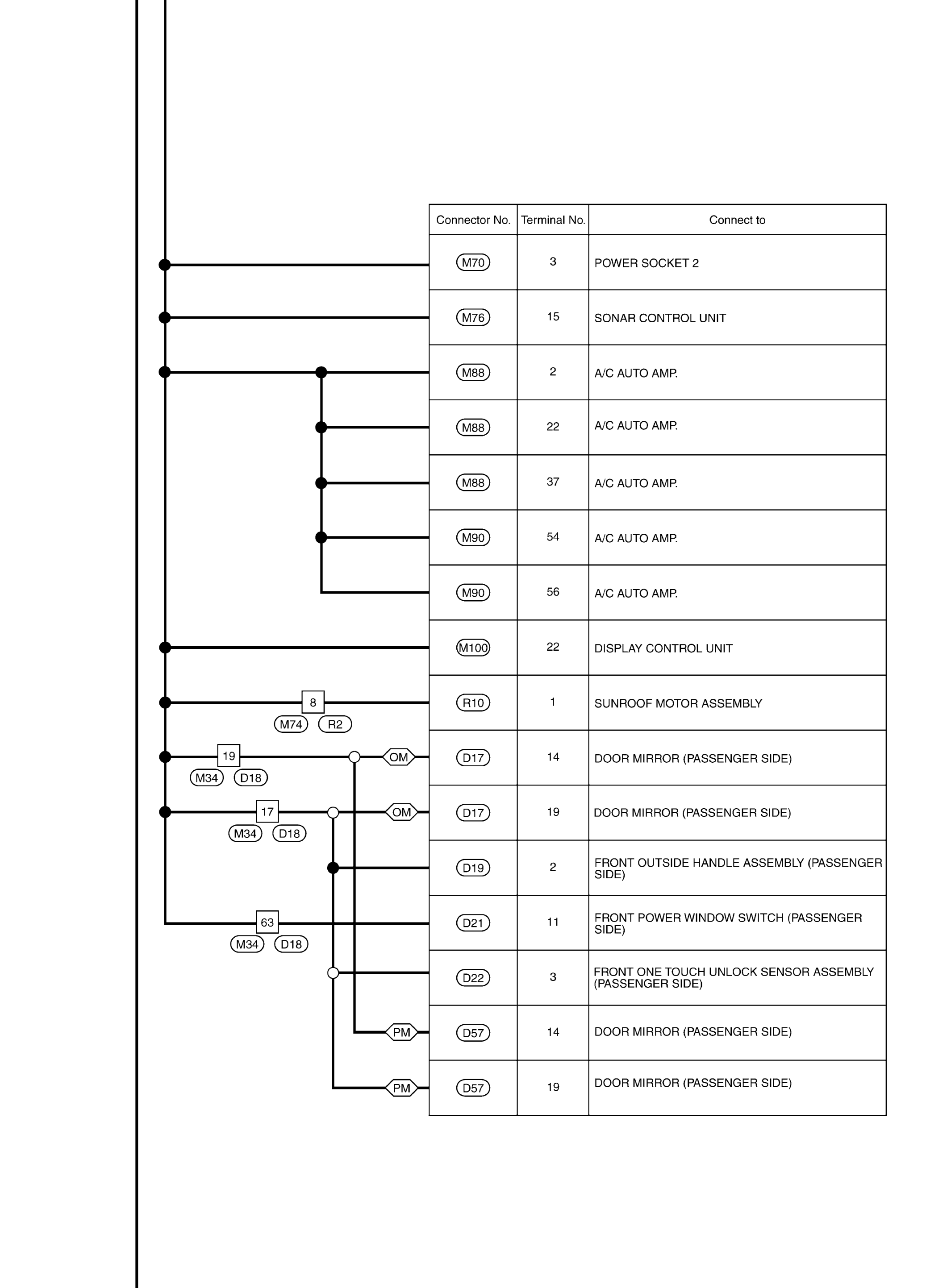

Fig 3: Main Harness Ground Distribution (3 Of 6)
Courtesy of NISSAN NORTH AMERICA, INC.

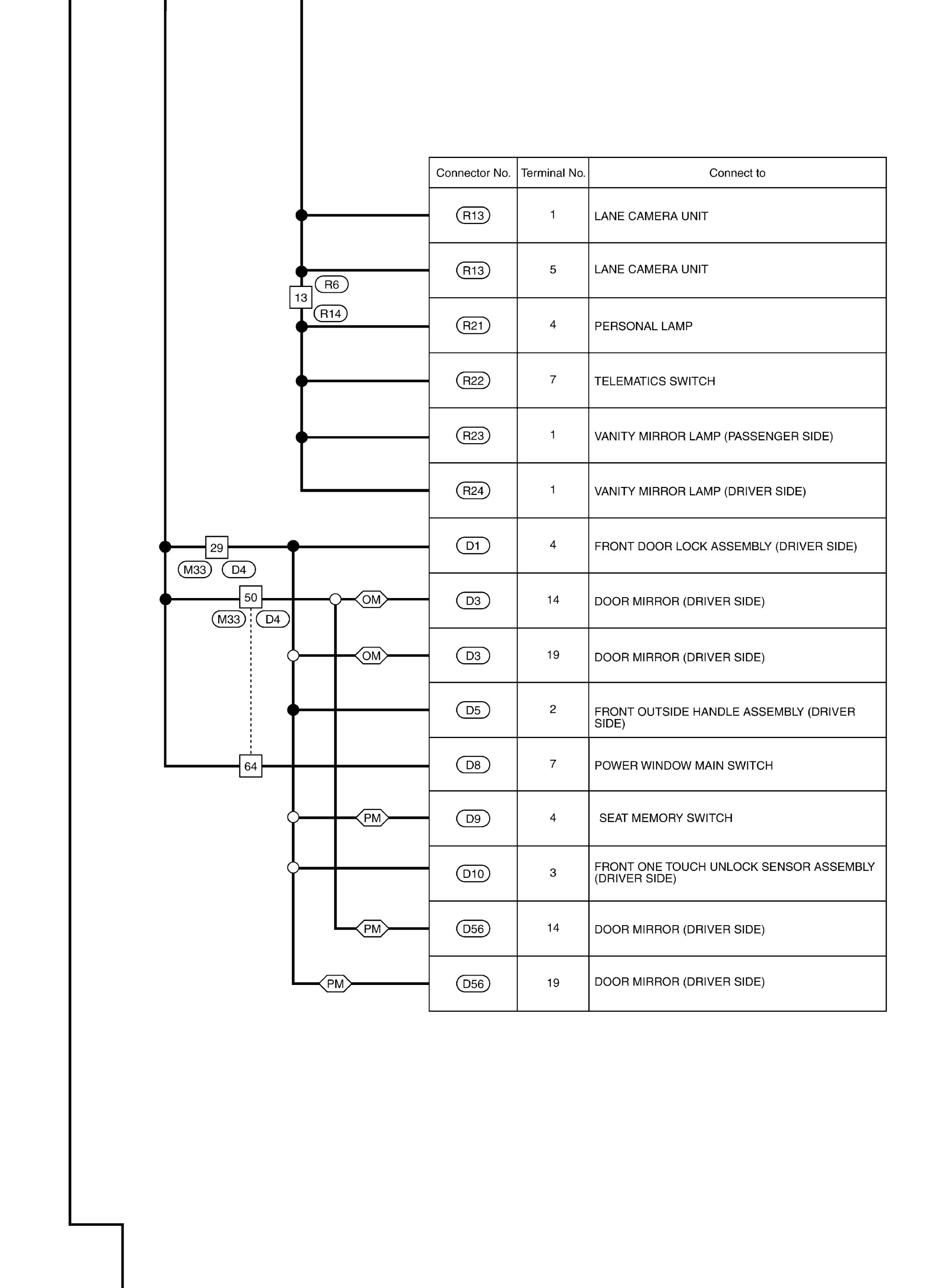

Fig 4: Main Harness Ground Distribution (4 Of 6)
Courtesy of NISSAN NORTH AMERICA, INC.

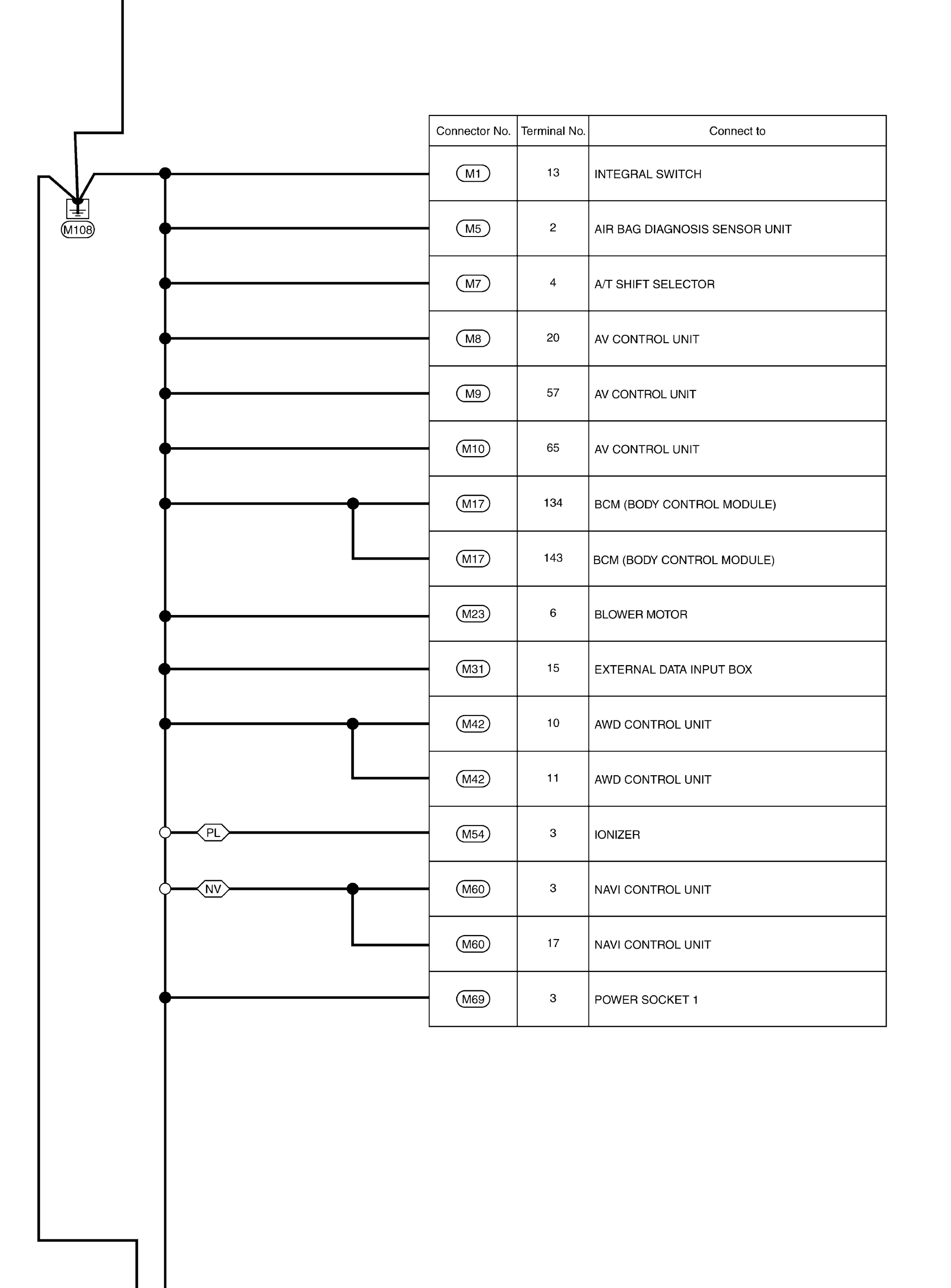

Fig 5: Main Harness Ground Distribution (5 Of 6)
Courtesy of NISSAN NORTH AMERICA, INC.

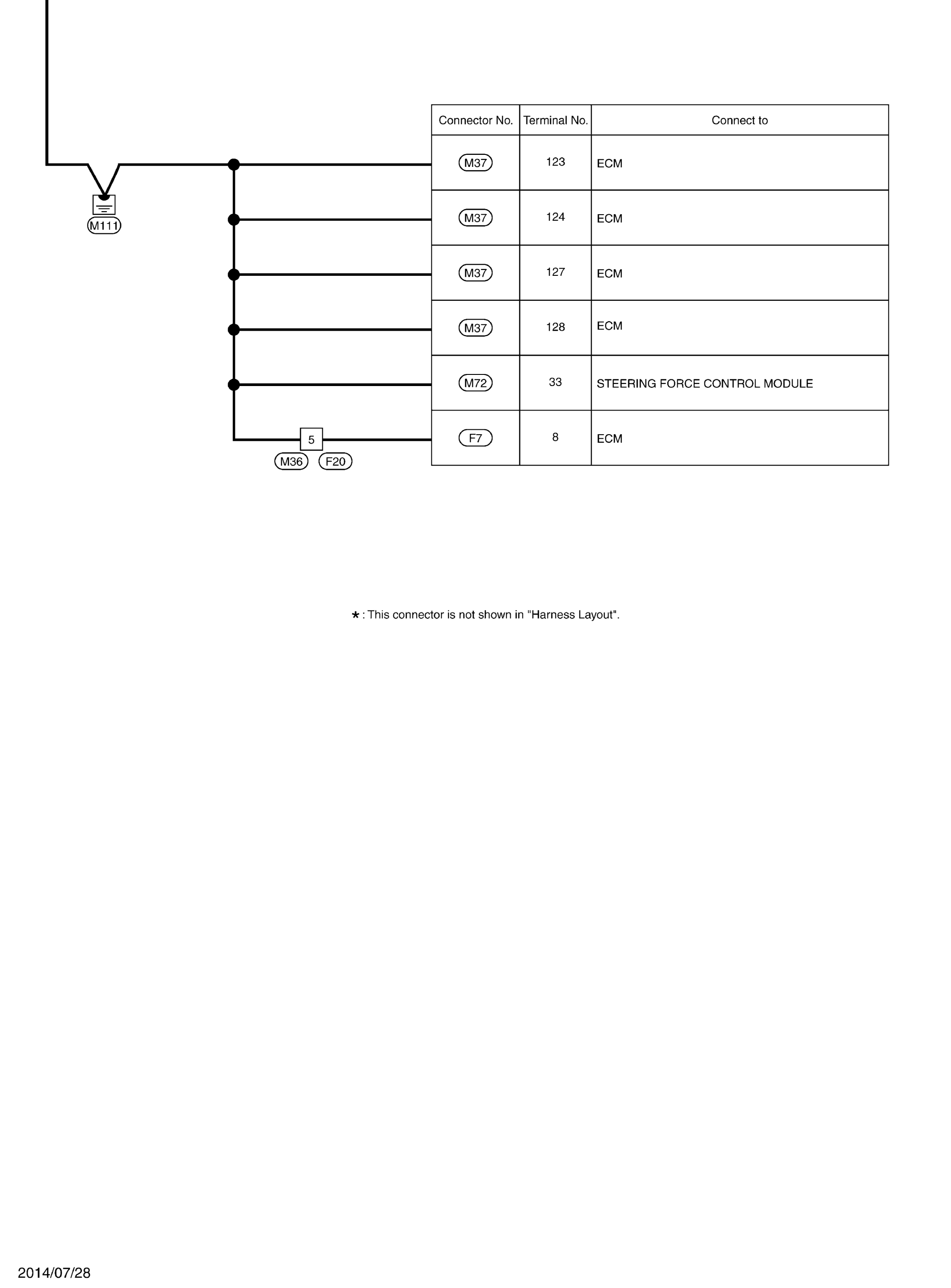

Fig 6: Main Harness Ground Distribution (6 Of 6)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
