Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
Power Supply, Ground & Circuit Elements (Exc Hybrid)
>>
Wiring Diagram
>>
Ground Distribution
>>
Engine Room Harness
Engine Room Harness

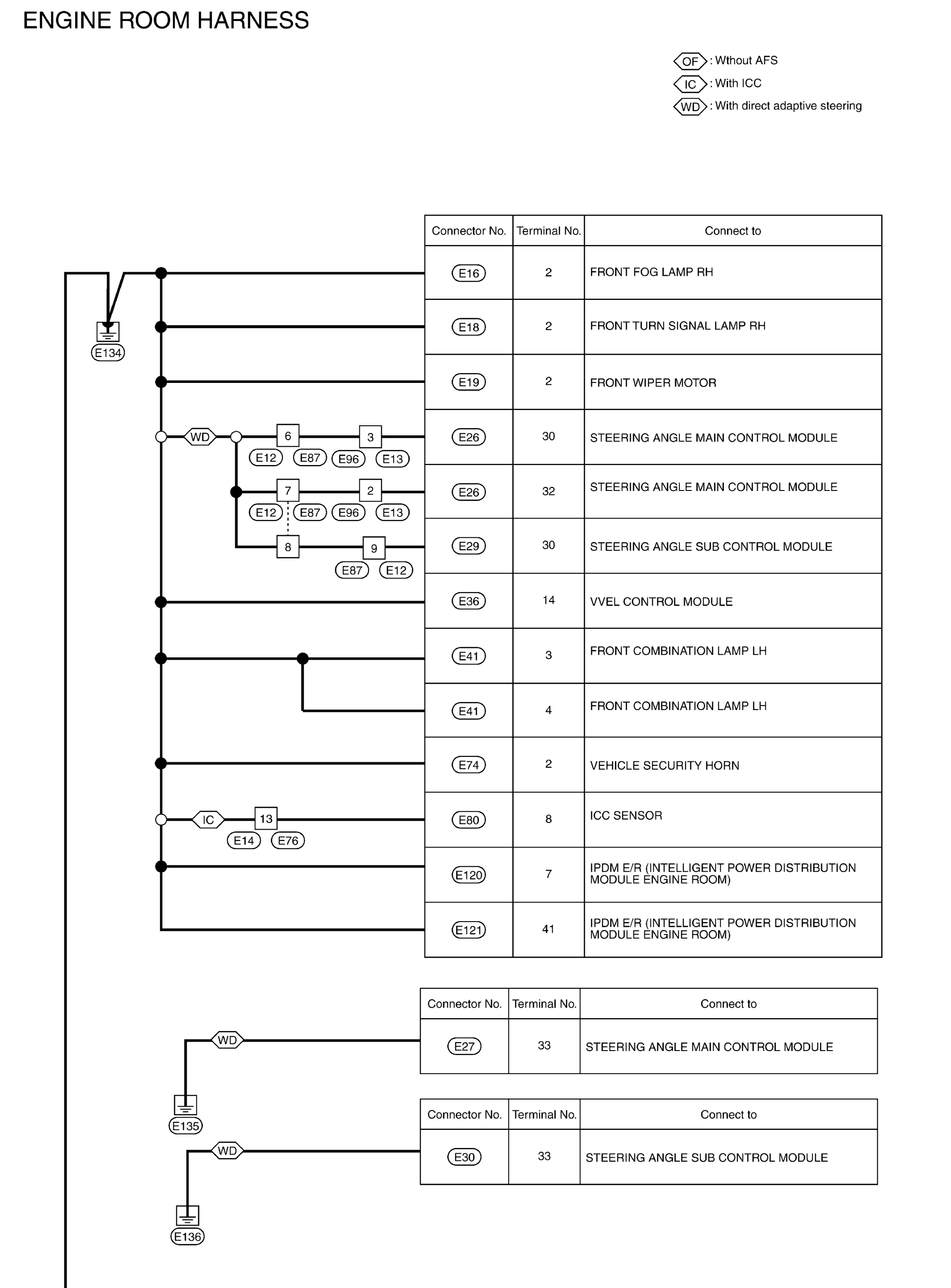

Fig 1: Engine Room Harness Ground Distribution (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

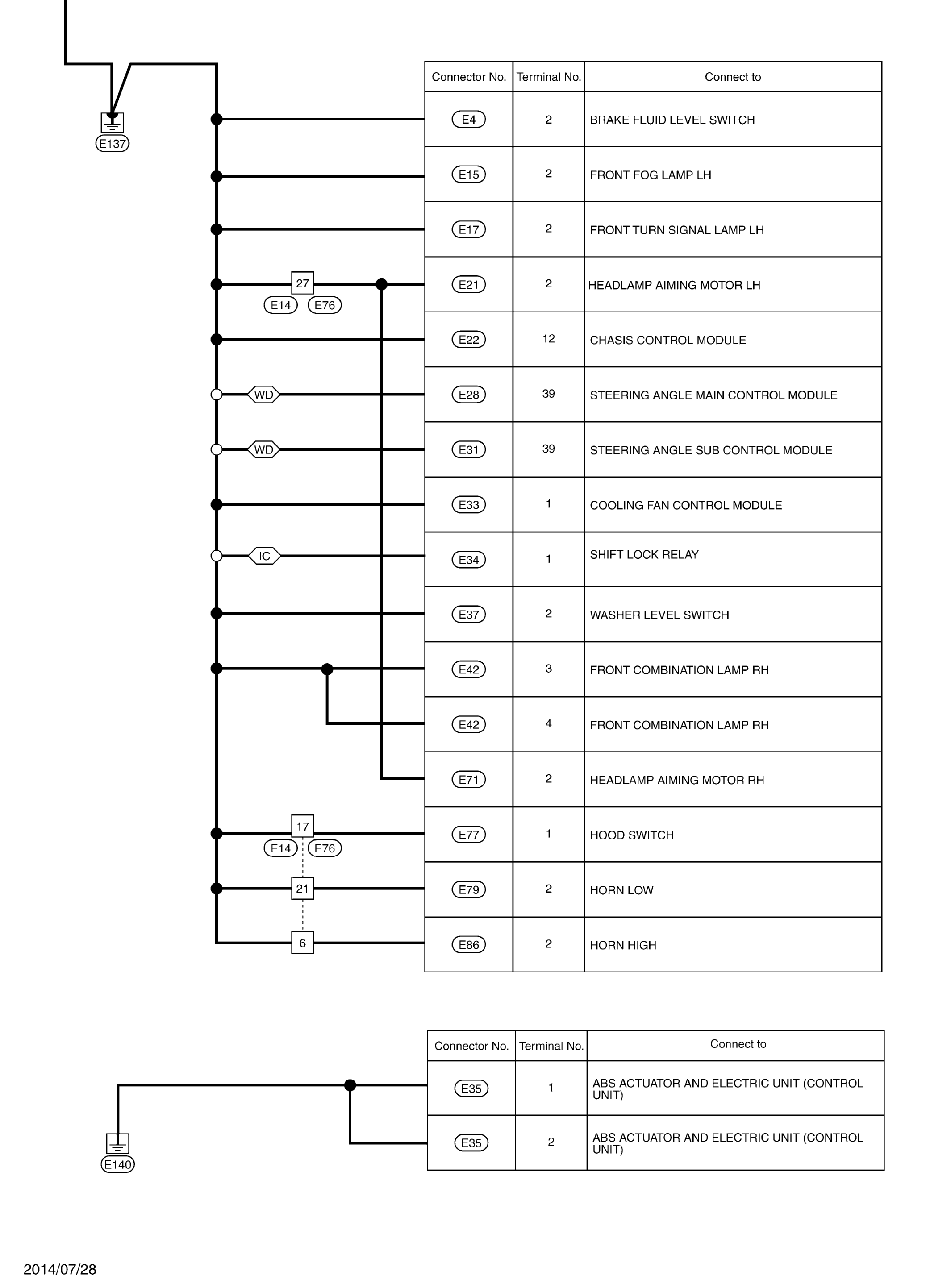

Fig 2: Engine Room Harness Ground Distribution (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
