Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
Power Supply, Ground & Circuit Elements (Exc Hybrid)
>>
Wiring Diagram
>>
Ground Distribution
>>
Body Harness
Body Harness

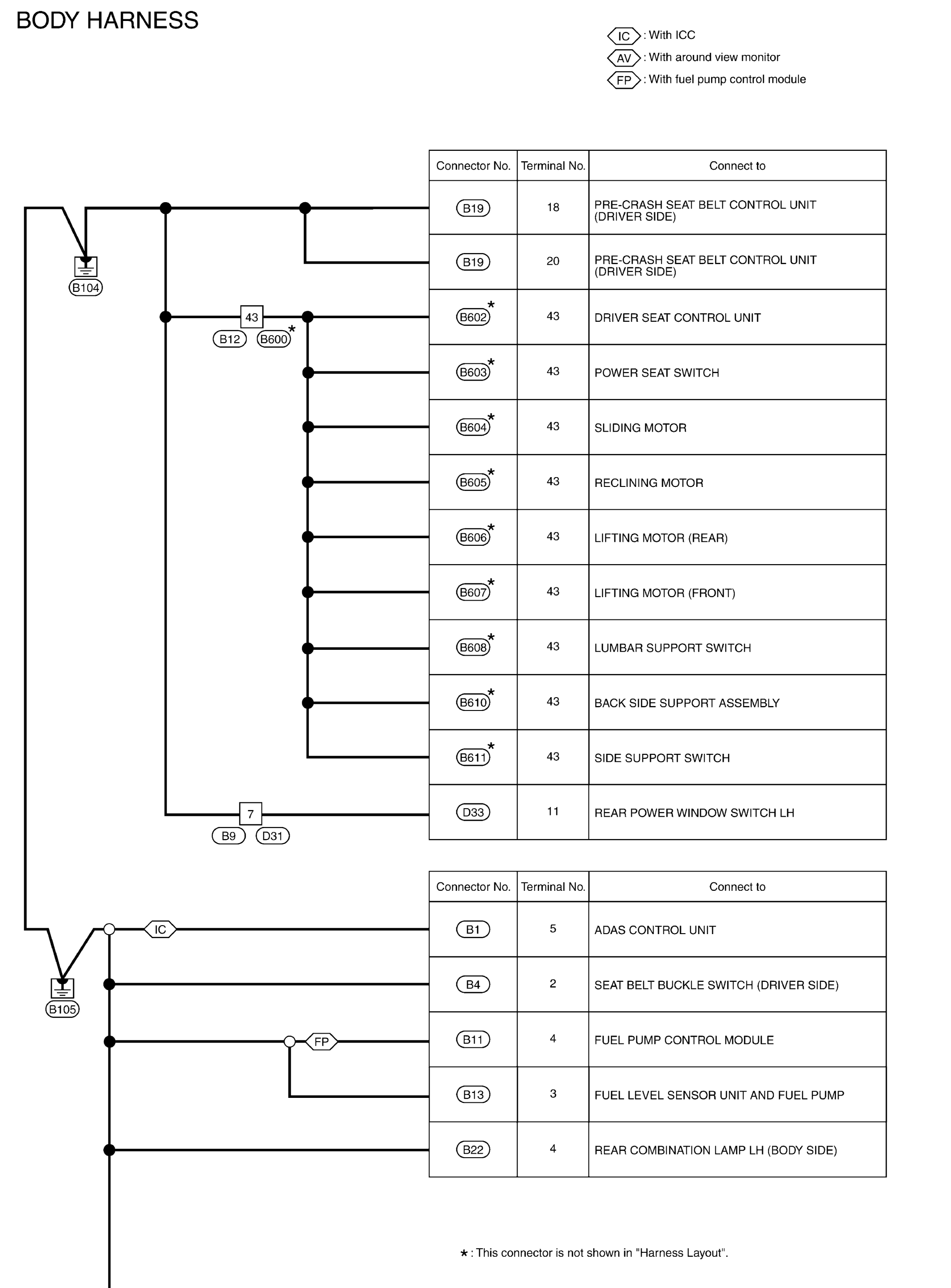

Fig 1: Body Harness Ground Distribution (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

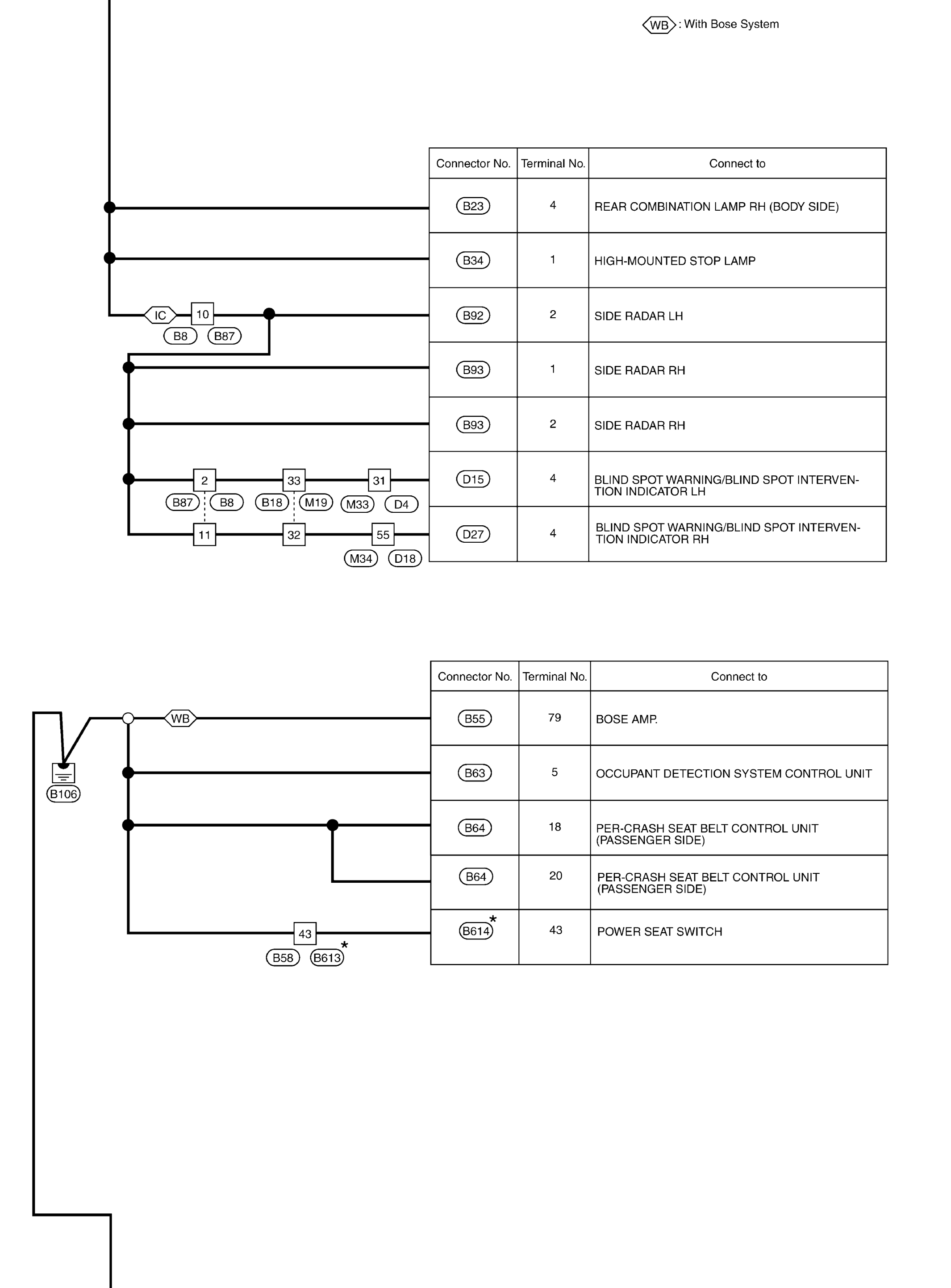

Fig 2: Body Harness Ground Distribution (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

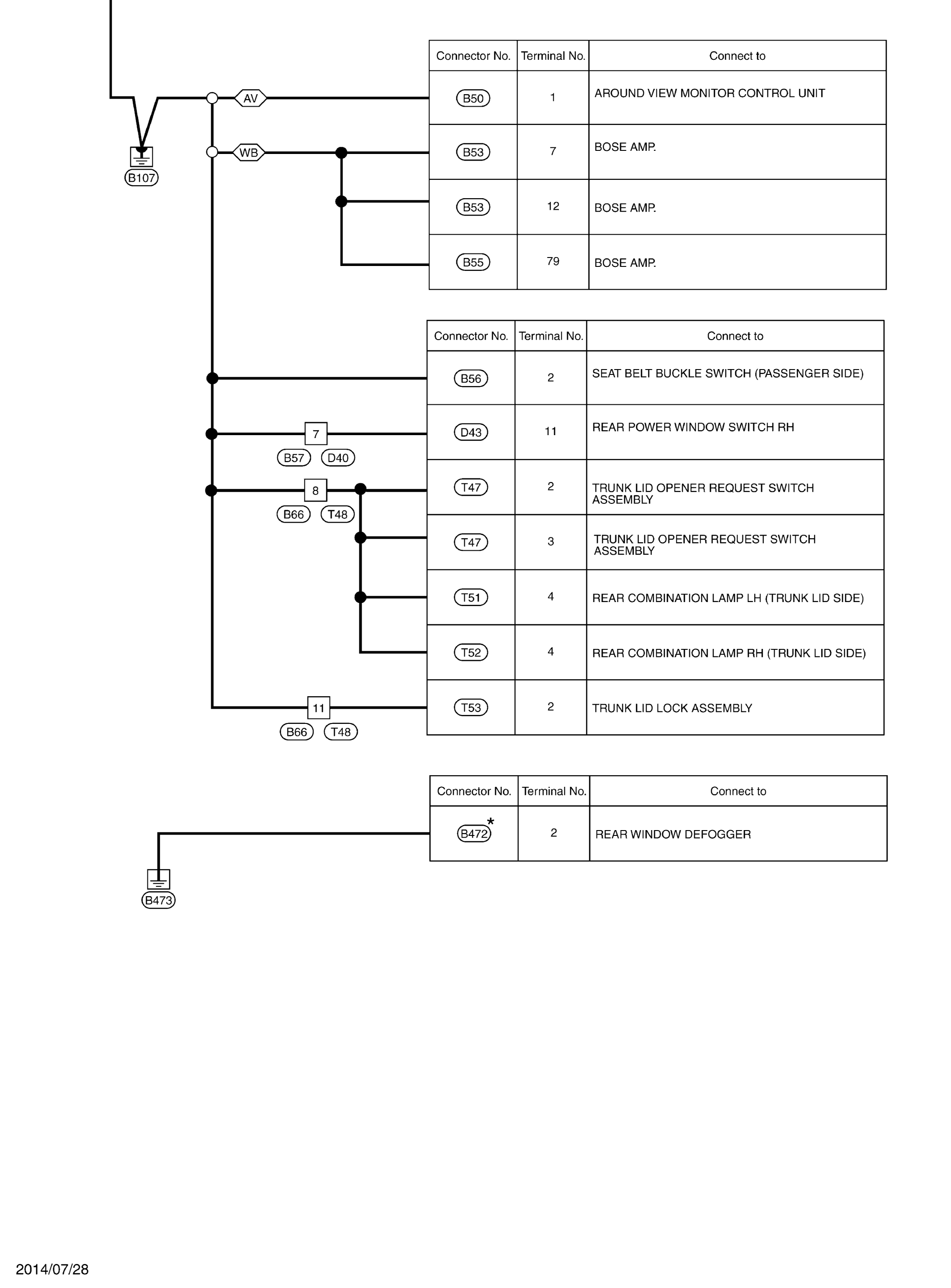

Fig 3: Body Harness Ground Distribution (3 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
