Fuse, Connector And Terminal Arrangement

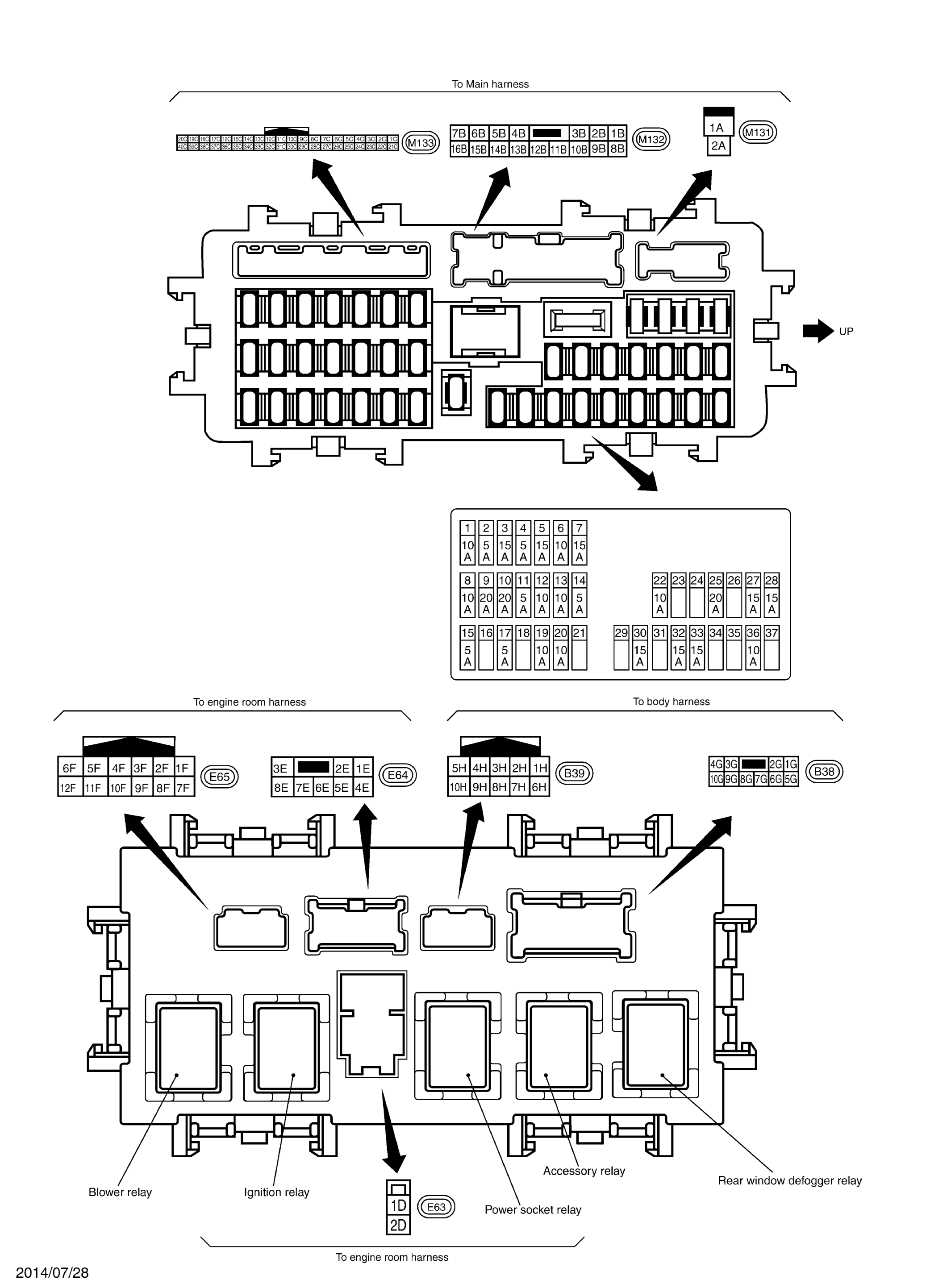

Fig 1: Fuse Block - Junction Box (J/B) Fuse, Connector And Terminal Arrangement

GNSJRMWG3627GB-627

Courtesy of NISSAN NORTH AMERICA, INC.
