Exploded View With Torque Specifications

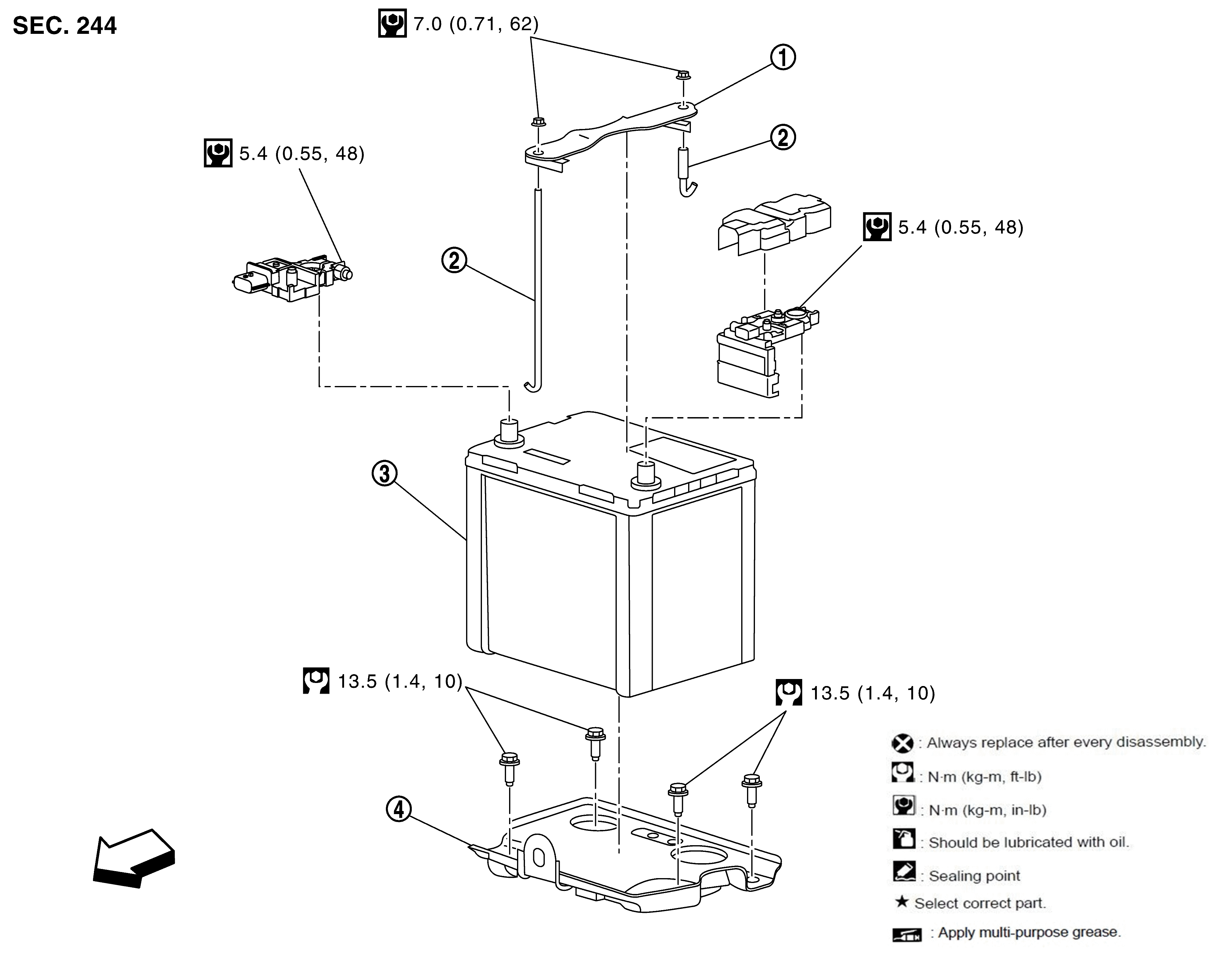

Fig 1: Exploded View Of Battery With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Battery fix frame		Battery fix rod		Battery
	Battery tray
	: Vehicle front
	: N•m (kg - m, ft - lb)
	: N•m (kg - m, in - lb)
