Sunroof Motor Assembly Connectors

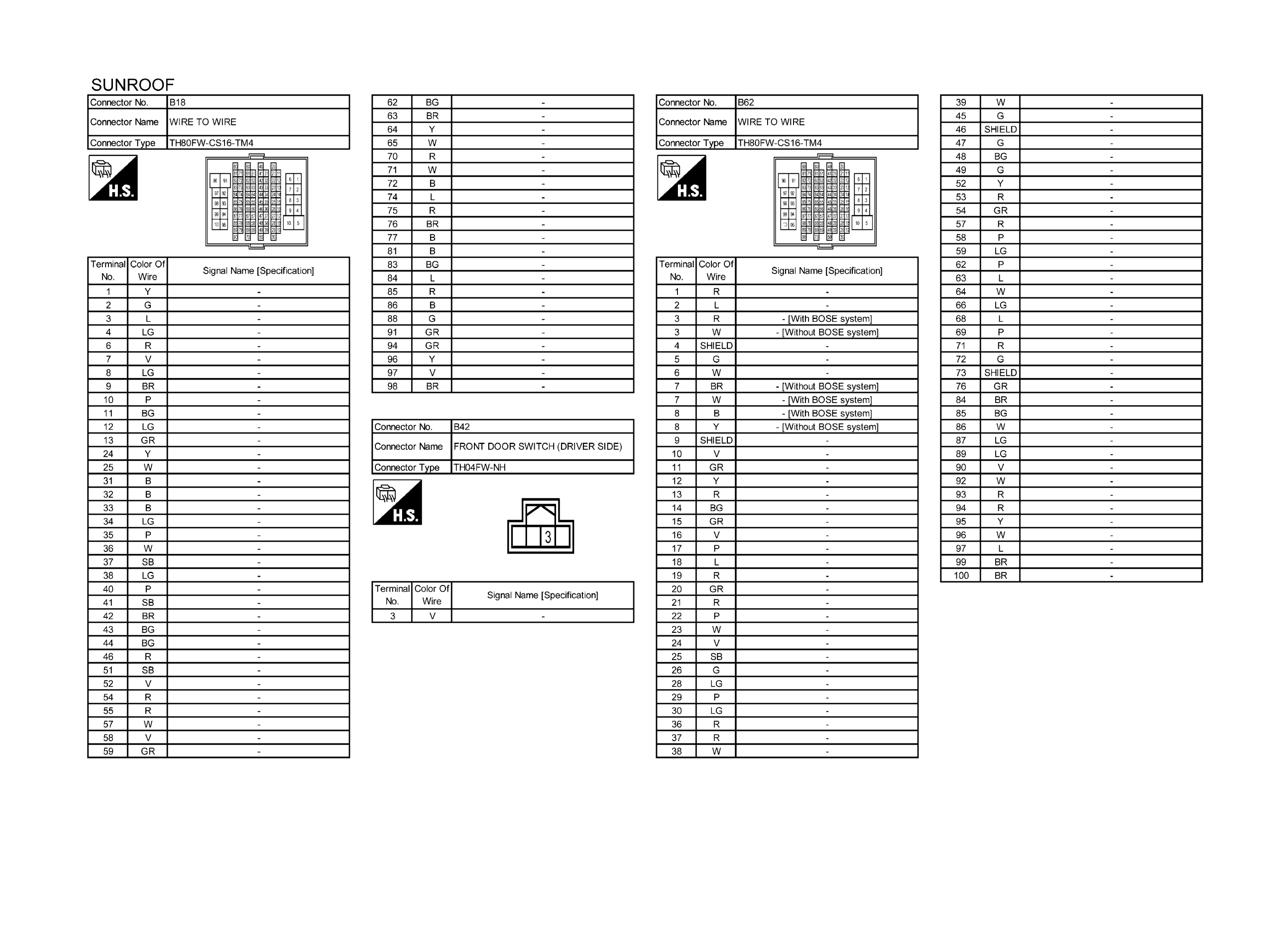

Fig 1: Sunroof Motor Assembly Connectors (1 Of 6)

GNSJRKWE1751GB-751

Courtesy of NISSAN NORTH AMERICA, INC.

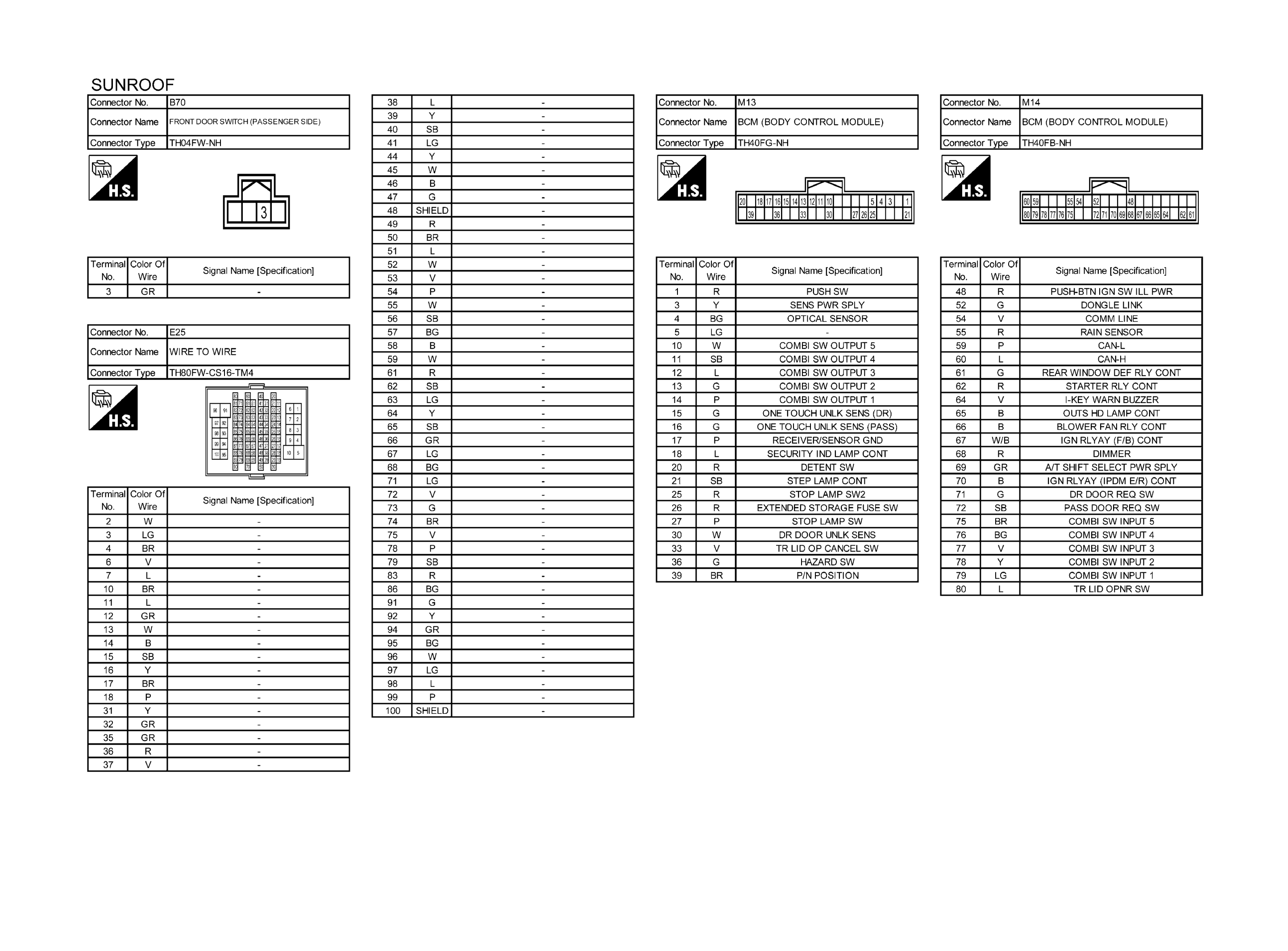

Fig 2: Sunroof Motor Assembly Connectors (2 Of 6)

GNSJRKWE1752GB-752

Courtesy of NISSAN NORTH AMERICA, INC.

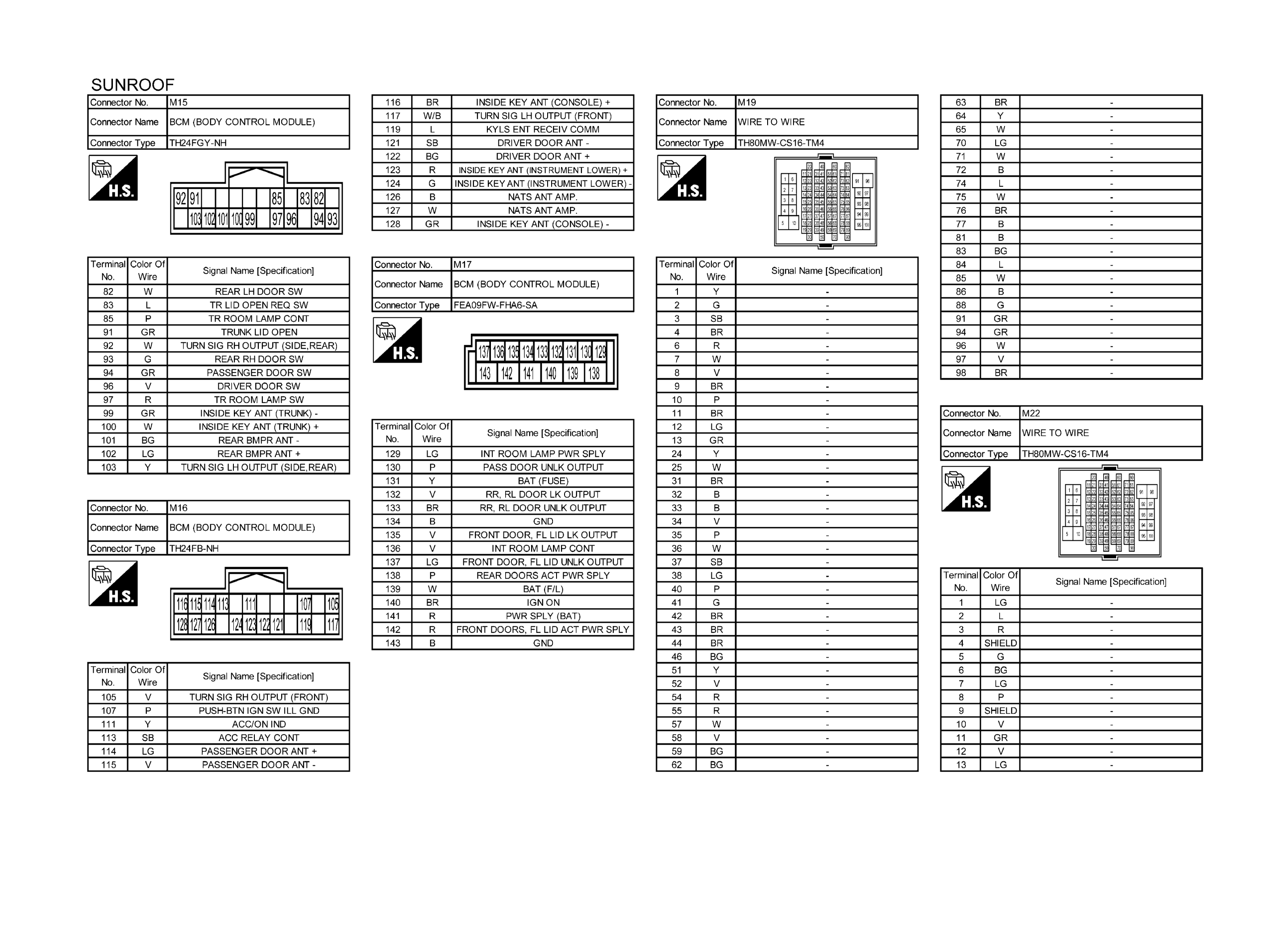

Fig 3: Sunroof Motor Assembly Connectors (3 Of 6)

GNSJRKWE1753GB-753

Courtesy of NISSAN NORTH AMERICA, INC.

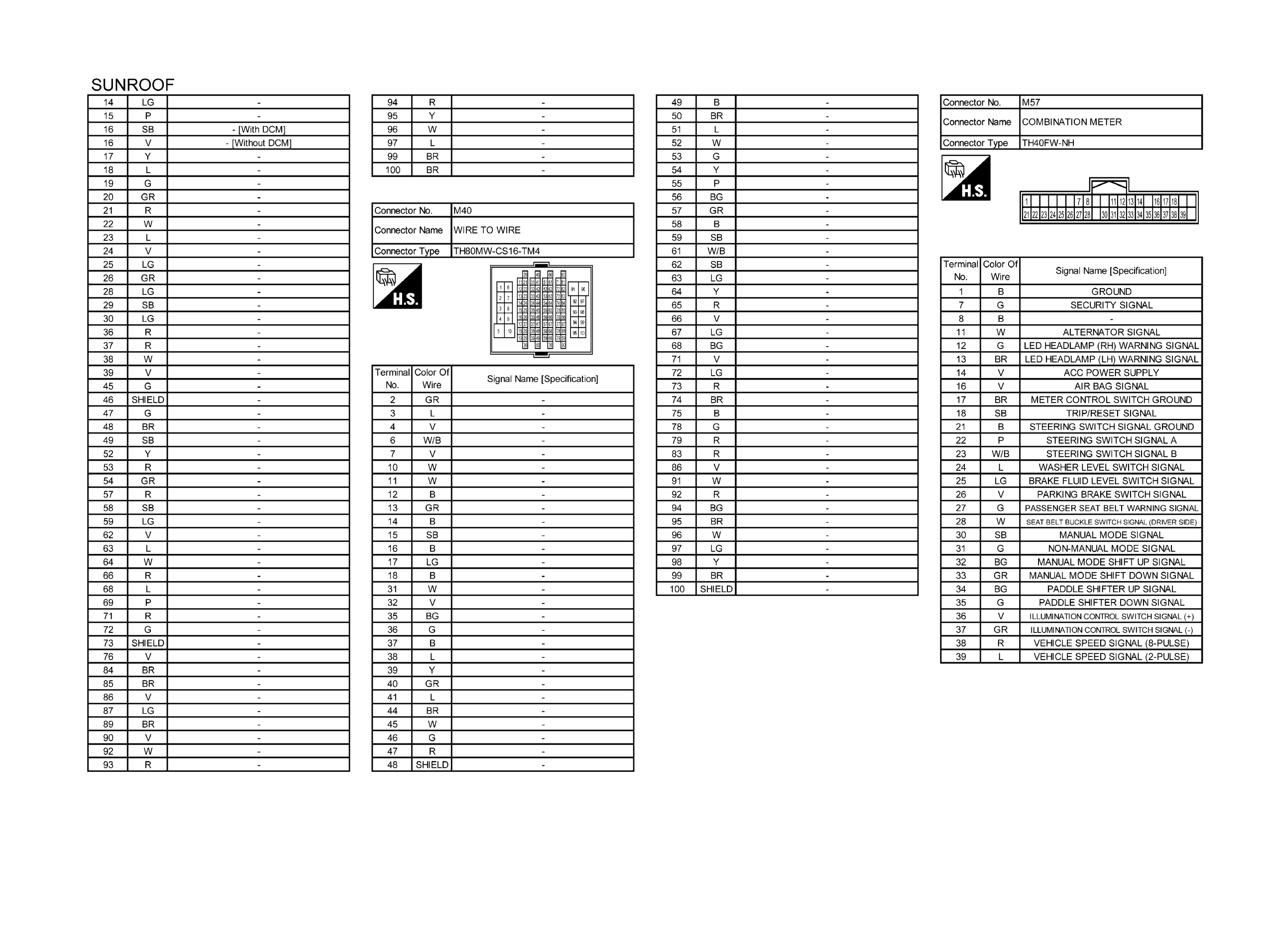

Fig 4: Sunroof Motor Assembly Connectors (4 Of 6)

GNSJRKWE1754GB-754

Courtesy of NISSAN NORTH AMERICA, INC.

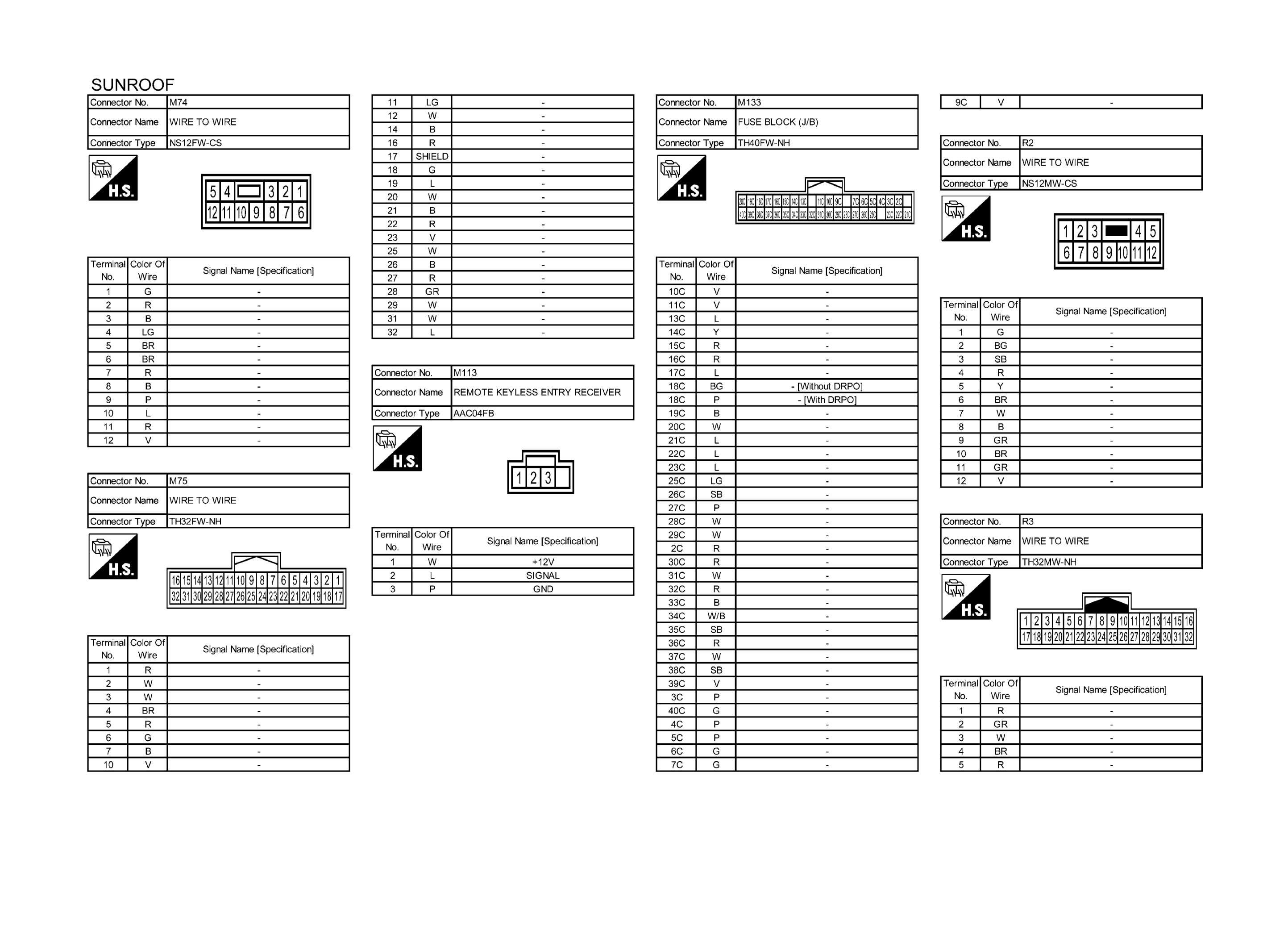

Fig 5: Sunroof Motor Assembly Connectors (5 Of 6)

GNSJRKWE1755GB-755

Courtesy of NISSAN NORTH AMERICA, INC.

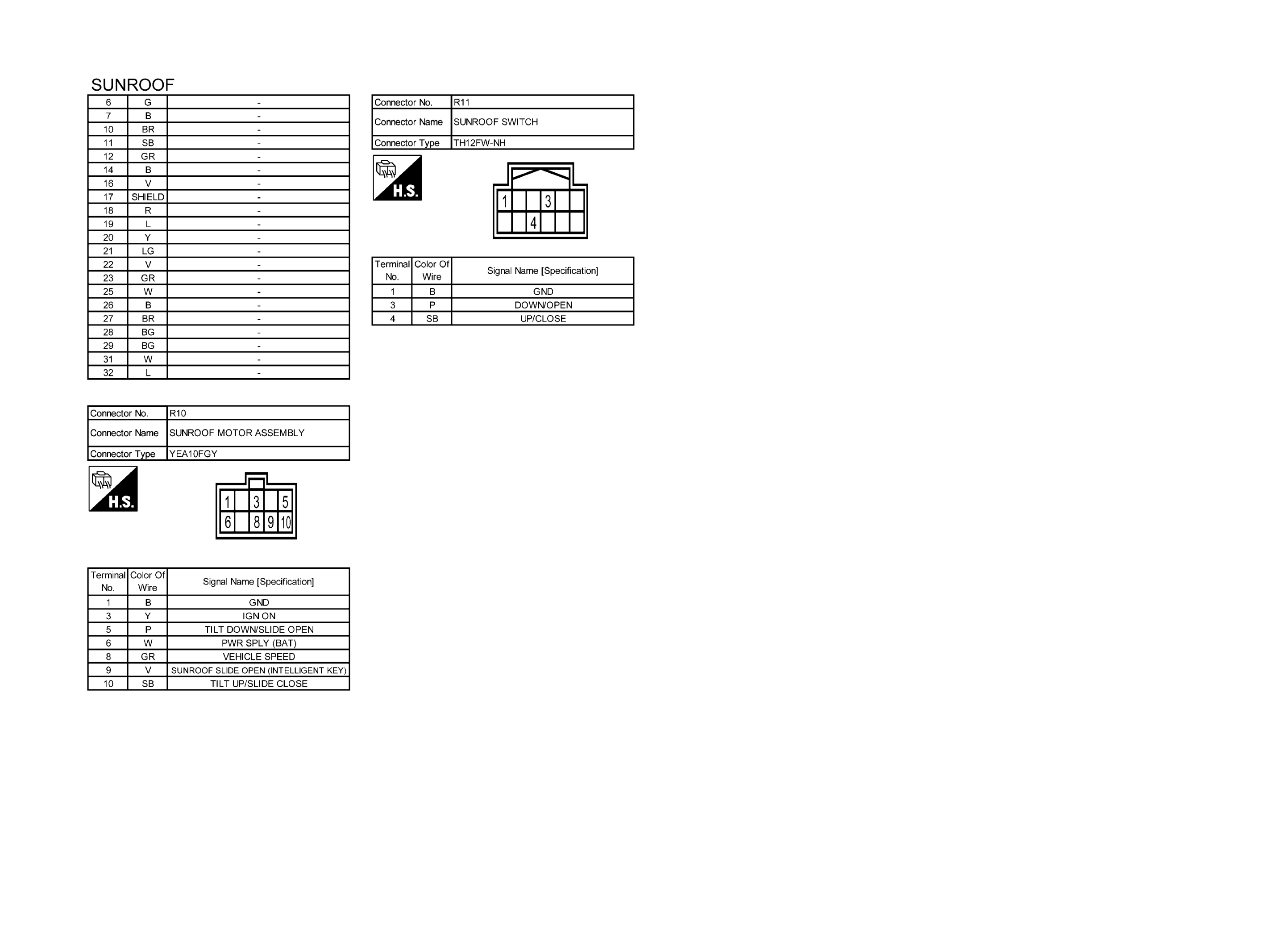

Fig 6: Sunroof Motor Assembly Connectors (6 Of 6)

GNSJRKWE1756GB-756

Courtesy of NISSAN NORTH AMERICA, INC.
