Circuit Diagram

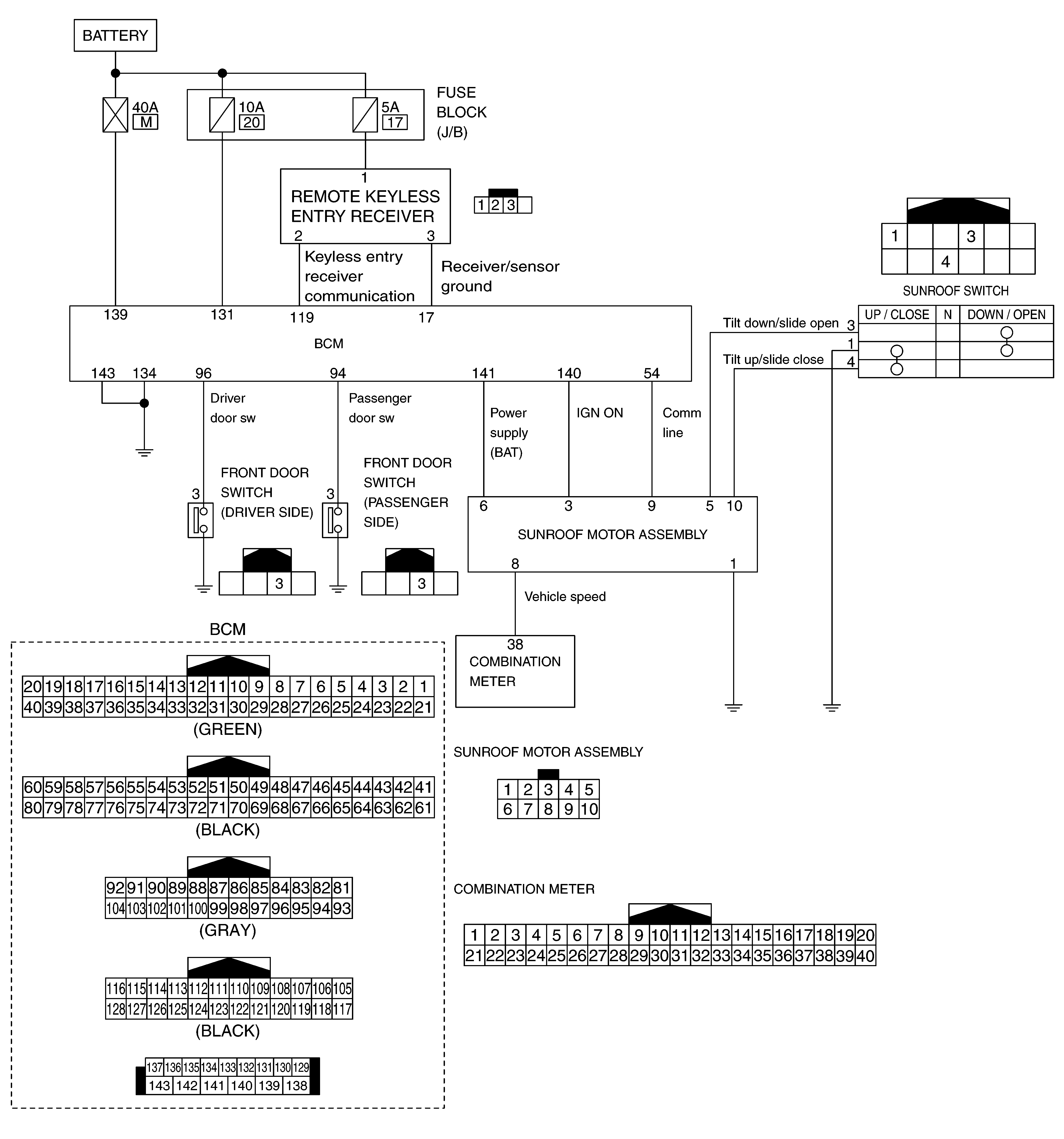

Fig 1: Sunroof System Circuit Diagram

G09162462

Courtesy of NISSAN NORTH AMERICA, INC.
