Removal And Installation: Removal

CAUTION:

Before removing sunroof motor, check that glass lid is fully closed.
After removing sunroof motor, never attempt to rotate sunroof motor assembly as a single unit.

Fully close glass lid.
Remove map lamp assembly. Refer to REMOVAL AND INSTALLATION .
Remove sunroof motor assembly.

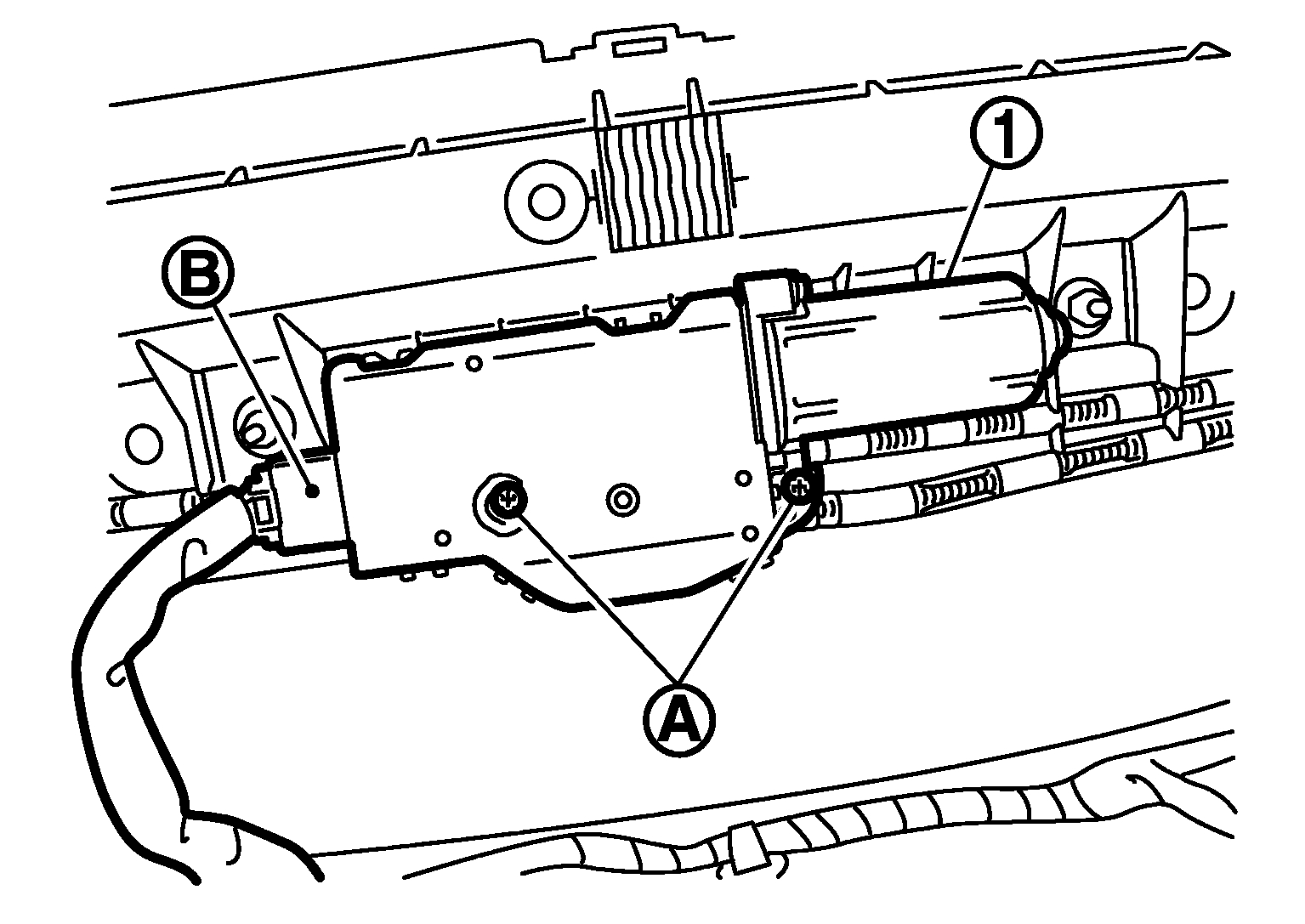

Fig 1: Identifying Sunroof Motor, Harness Connector And Screws
Courtesy of NISSAN NORTH AMERICA, INC.
1. Disconnect harness connector from sunroof motor assembly.
2. Remove sunroof motor assembly fixing screws, and then remove sunroof motor assembly.
