Component Parts Location

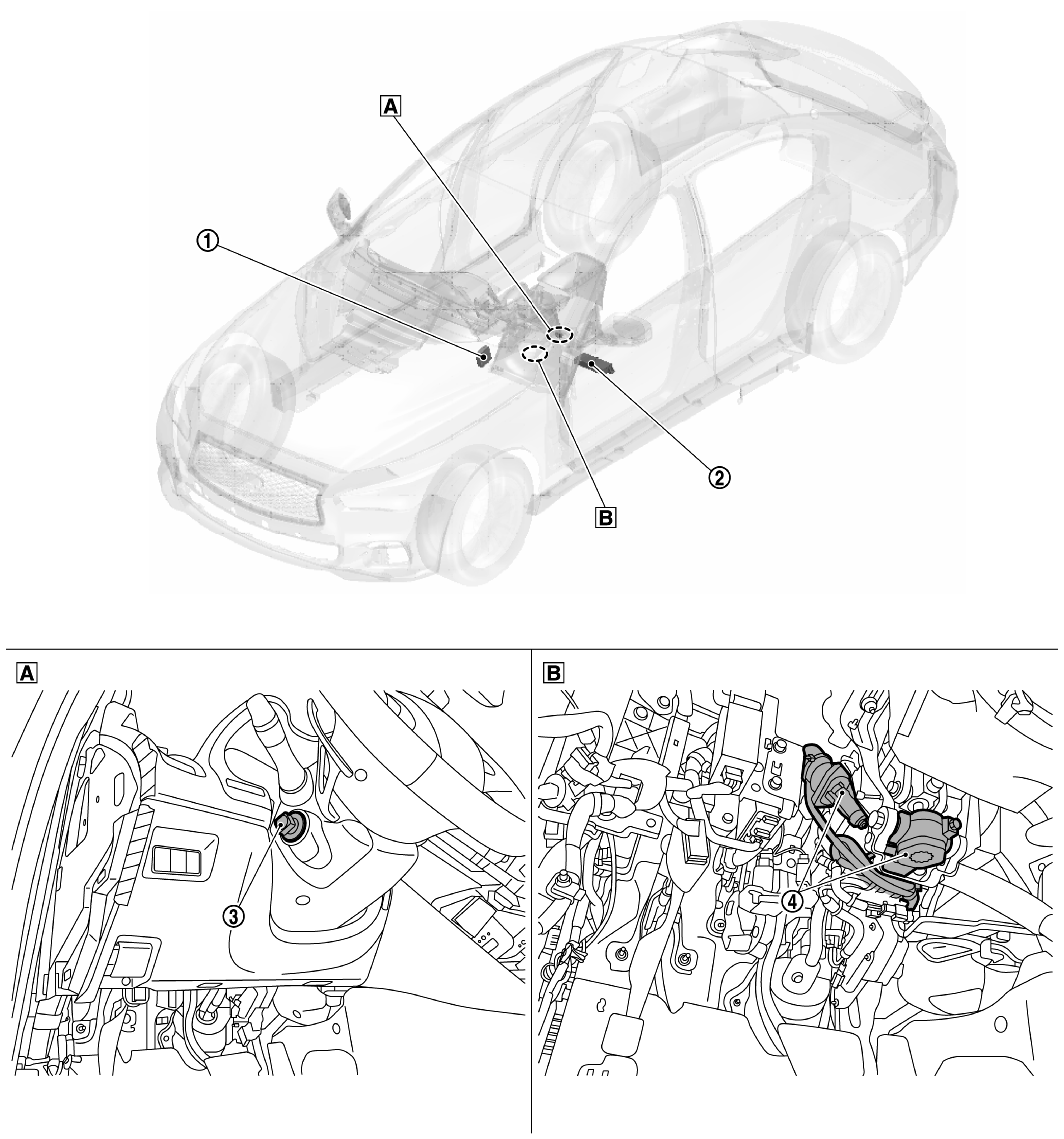

Fig 1: Tilt & Telescopic System Component Parts Location
GNSJMJIA9015ZZ-015Courtesy of NISSAN NORTH AMERICA, INC.
  View with steering column cover lower   View with steering column cover lower and instrument lower cover LH removed
No. Component Function
  Automatic drive positioner control unit
  • It communicates with driver seat control unit via UART communication.
  • Perform the controls of tilt & telescopic motor.
  Driver seat control unit
  • It communicates with automatic drive positioner control unit via UART communication.
  • Requests the operation of tilt & telescopic motor to automatic drive positioner control unit.
  Tilt & telescopic switch Tilt & telescopic switch, as a unit, transmits switch operation signal to automatic drive positioner control unit.
  Tilt & telescopic motor Operates by power supply from automatic drive positioner control unit.
