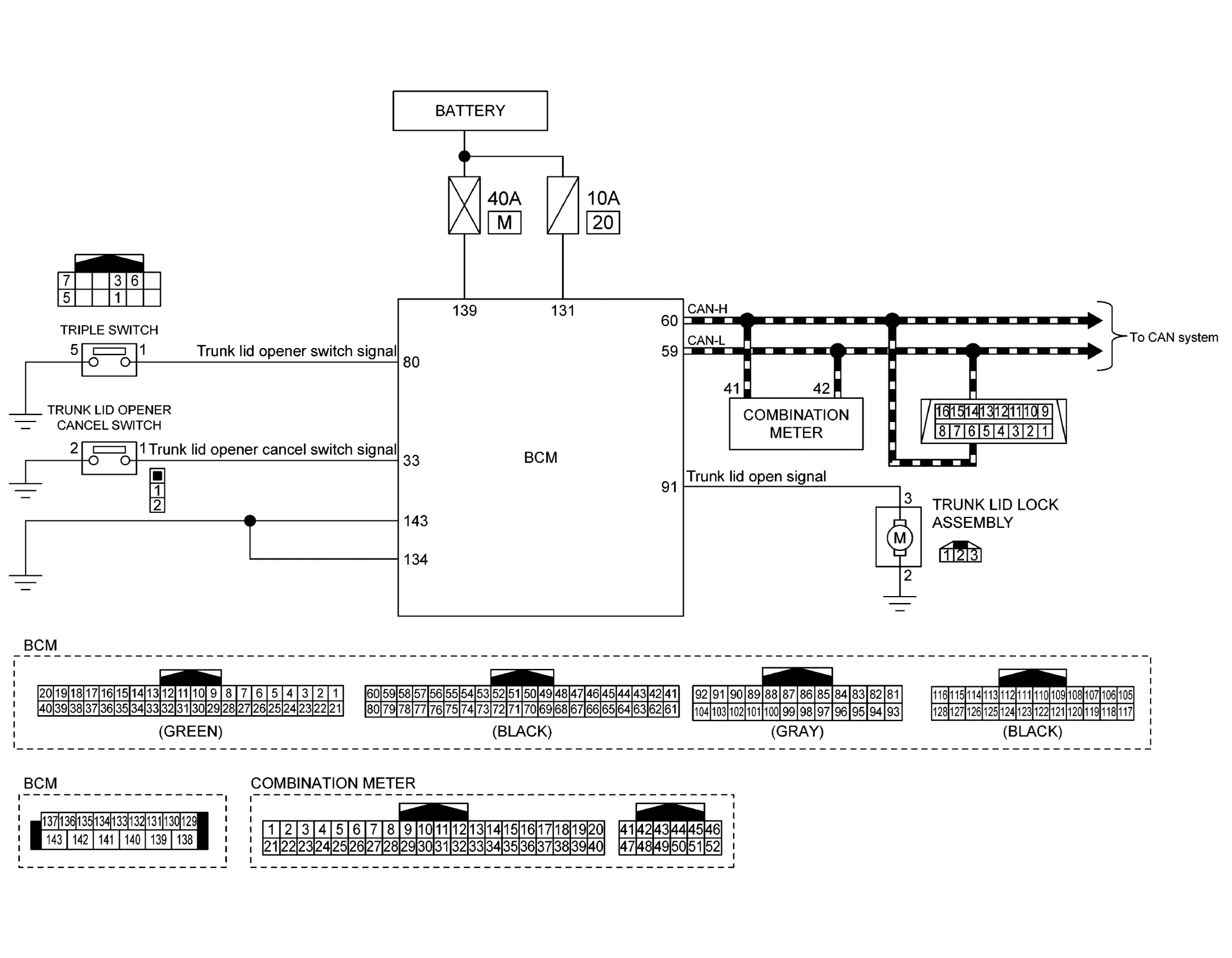

Home >> Infiniti >> 2015 >> Q50 Base, RWD >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Door & Lock (Exc Hybrid) >> System Description >> System (Trunk Lid Opener System) >> Circuit Diagram
